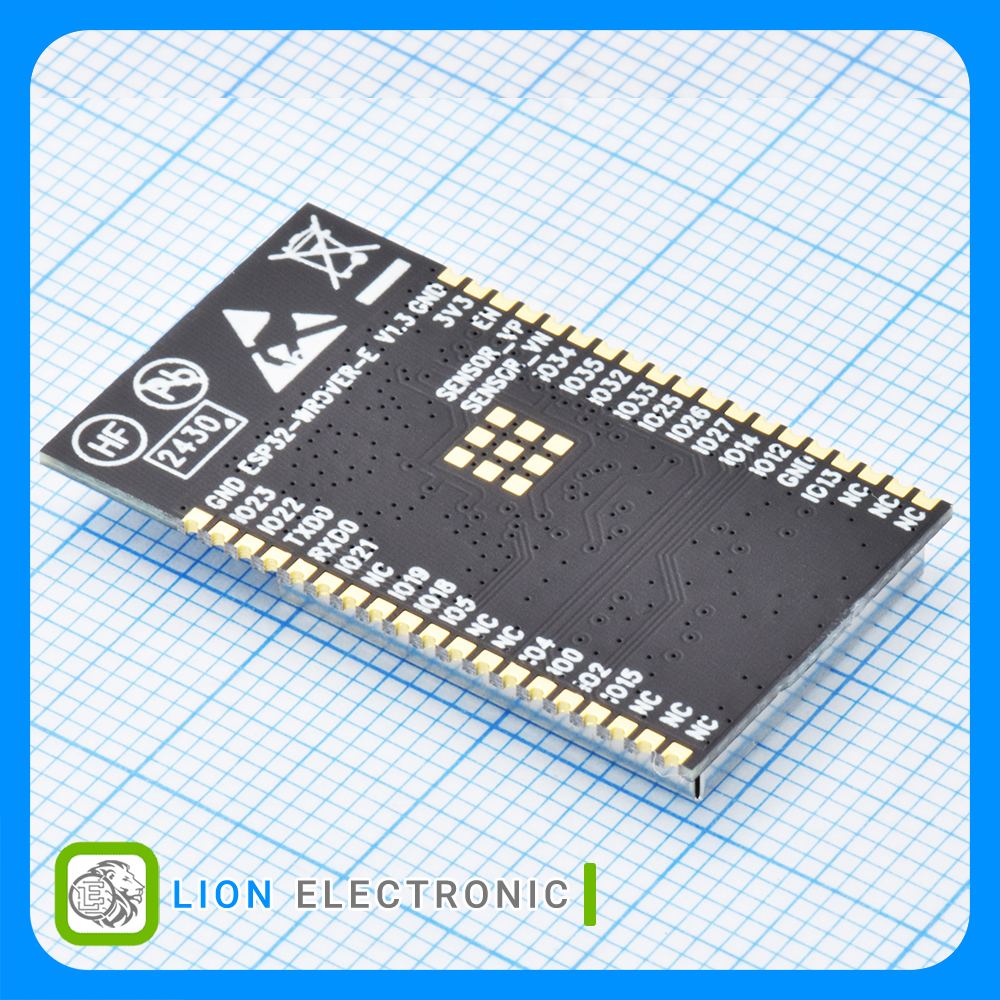

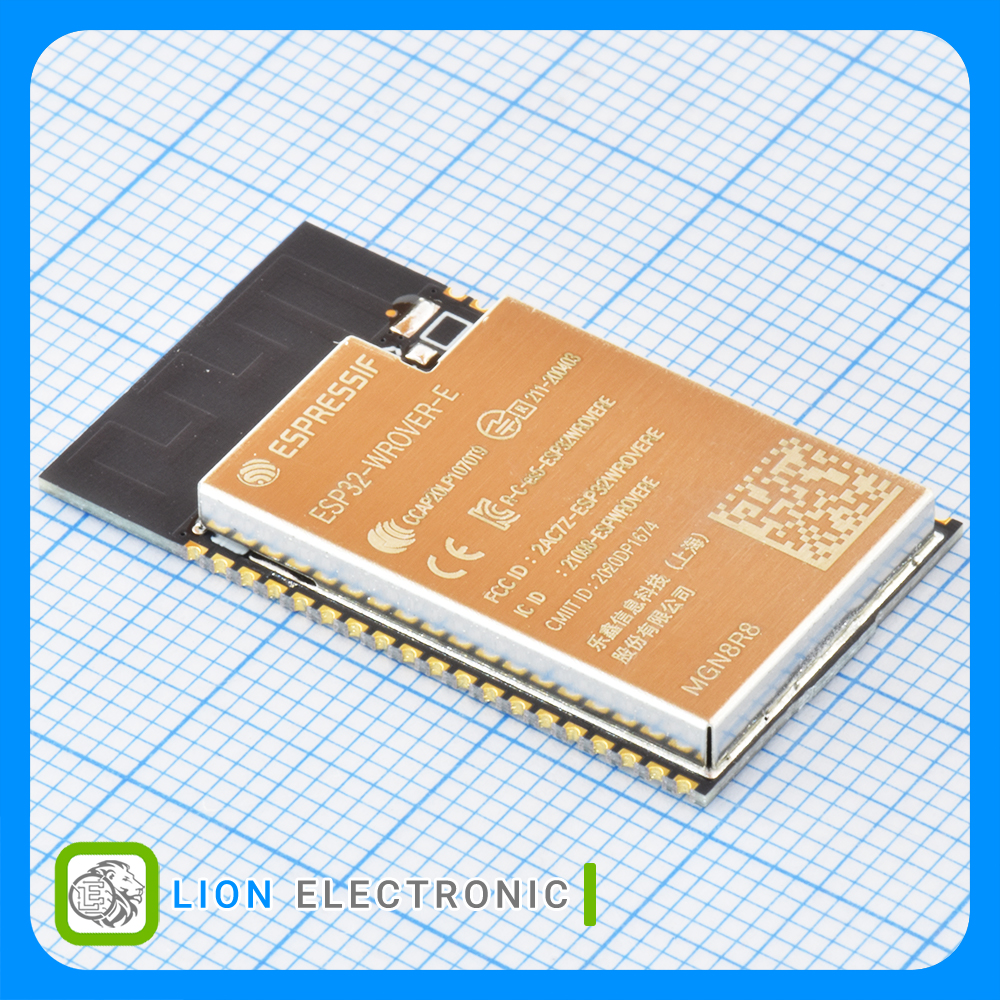

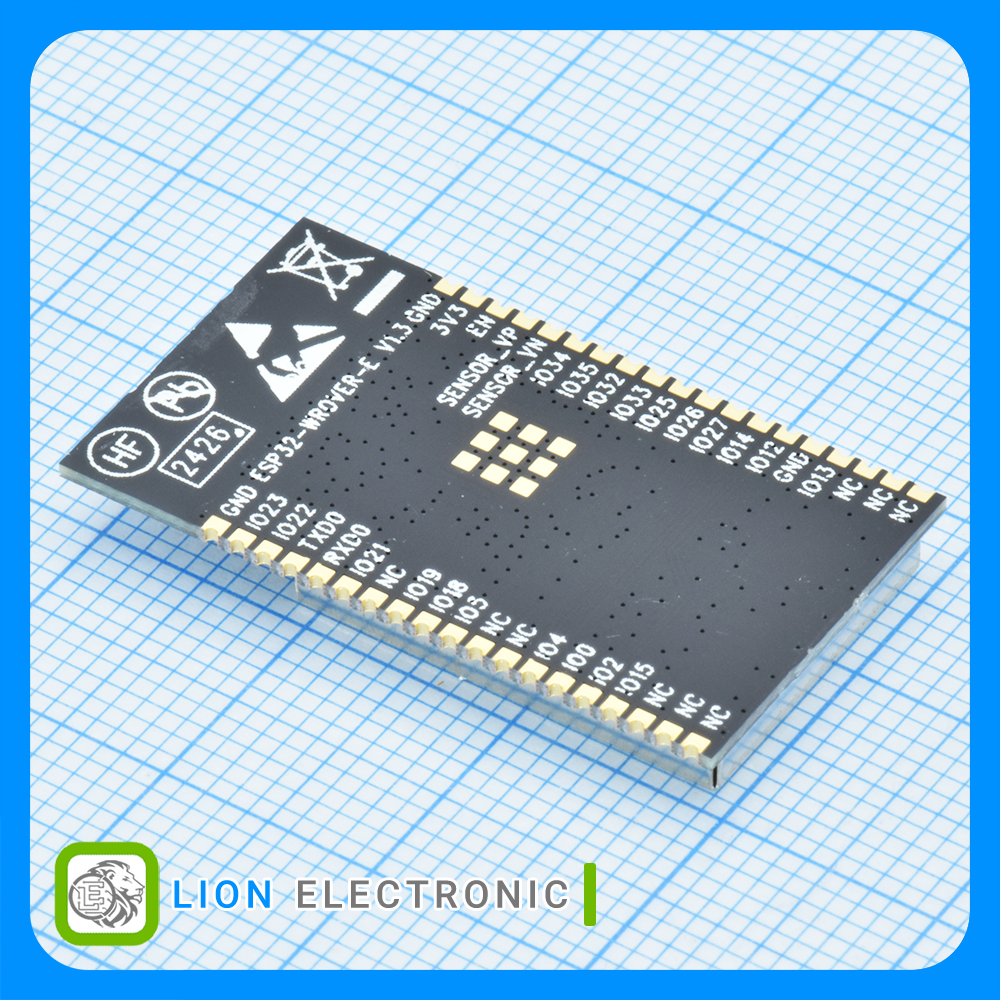

ماژول وای فای و بلوتوث ESP32-WROVER-E-N8R8

Part Number

ESP32-WROVER-E-N8R8

Datasheet

Manufacturer

Espressif

Description

Powerful, Generic Wi-Fi + Bluetooth + Bluetooth LE MCU

8MB Quad SPI Flash

8MB PSRAM

Onboard PCB Antenna

25GPIOs

موجودی محصول

در صورت کمبود موجودی محصول می توانید آنرا به لیست استعلام اضافه نمایید تا توسط کارشناسان واحد سفارشات خارجی بررسی شده و نتیجه به شما اطلاع داده شود

قیمت محصول

تعداد	قیمت
1	2,452,892 ریال
10	2,400,703 ریال
50	2,348,514 ریال

معرفی

CPU and OnChip Memory
• At the core of the module is the ESP32-D0WD chip. The chip embedded is designed to be scalable and adaptive. There are two CPU cores that can be individually controlled, and the CPU clock frequency is adjustable from 80 MHz to 240 MHz.
• 8 MB (Quad SPI) FLASH

• 8 MB (Quad SPI) PSRAM

WiFi
• 802.11 b/g/n (802.11n up to 150 Mbps)

• A-MPDU and A-MSDU aggregation and 0.4 µs guard in terval support

Bluetooth®
• Bluetooth v4.2 BR/EDR and Bluetooth LE specification

• NZIF receiver with –97 dBm sensitivity

• Class-1, class-2 and class-3 transmitter

• AFH

• CVSD and SBC

Peripherals
• SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, Two-Wire Automotive Interface (TWAI®, com patible with ISO11898-1)

Integrated Components on Module
• 40 MHz crystal oscillator

Antenna Options
• Onboard PCB antenna (ESP32-WROVER-E-N8R8)

Operating Conditions
• Operating voltage/Power supply: 3.0 ~ 3.6 V
• Operating ambient temperature: –40 ~ 85 °C

مشخصات ماژول وای فای و بلوتوث ESP32-WROVER-E-N8R8

Part Number

ماژول وای فای و بلوتوث ESP32-WROVER-E-N8R8
Antenna Connector Type

PCB
Packaging

Reel
Minimum Operating Temperature

-40C
Maximum Operating Temperature

+85C
Dimensions

18mm x 31.4mm x 3.3mm
Supply Current Receiving

-
Supply Current Transmitting

-
Frequency

2.4GHz
Operating Supply Voltage

2.3V to 3.6V
Output Power

20dBm
Interface Type

I2C, I2S, SPI, UART
Product

Wi-Fi & Bluetooth (LE) & MCU Module
