Lelon
معرفی
خازن الکترولیت 22 میکروفاراد 16 ولت تلرانس 20% سایز 5 میلیمترx5.7 میلیمتر

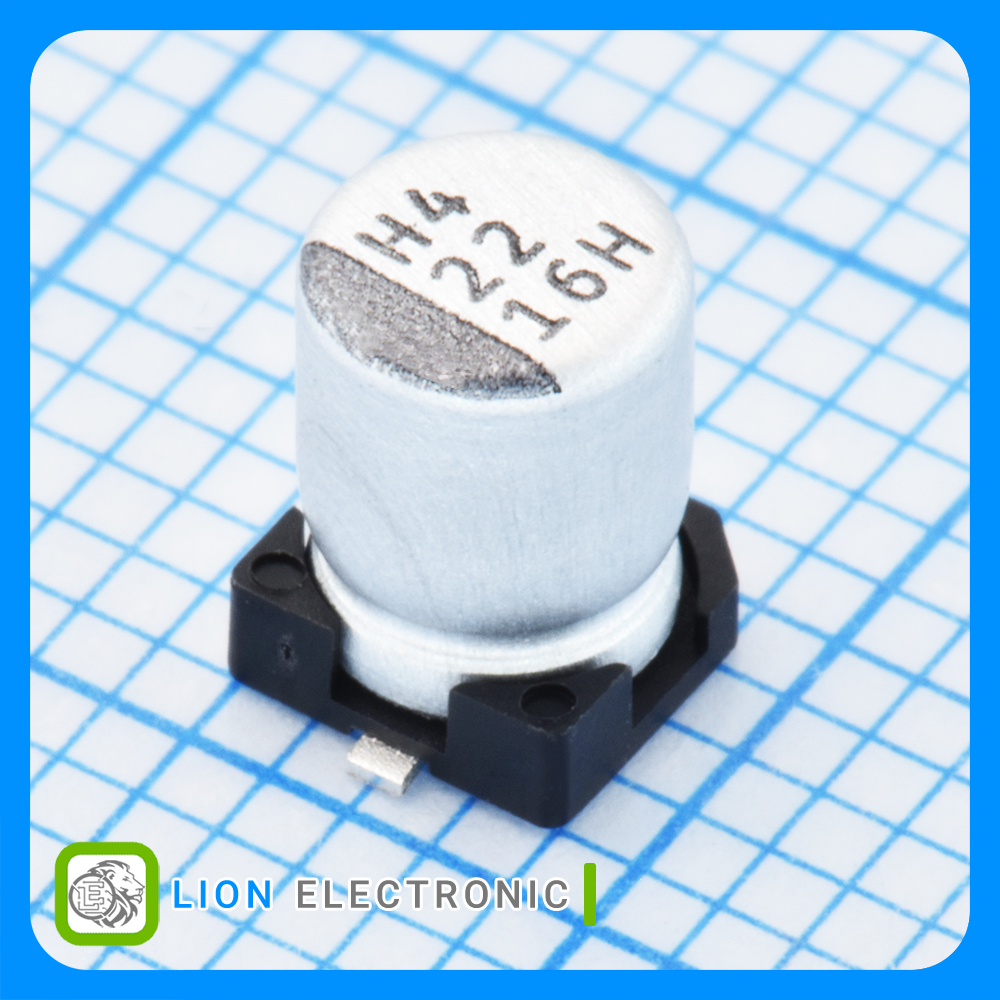

Aluminum Electrolytic Capacitor 22uF, 16V, 20% with 5mmx5.7mm Size
Specifications
- Life: 2000~5000 Hour
- Capacitance: 22uF
- Voltage Rating DC: 16VDC
- Ripple Current: 150mA
- ESR: 800mΩ
- Tolerance: 20%
- Diameter: 5mm
- Height: 5.7mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات خازن VZH220M1CTR-0406
خازن VZH220M1CTR-0406
Part Number
2000~5000 Hour
Life
-55C
Minimum Operating Temperature
Reel
Packaging
16VDC
Voltage Rating DC
5mm
Diameter
150mA
Ripple Current
20%
Tolerance
+105C
Maximum Operating Temperature
800mΩ
ESR
5.7mm
Height
22uF
Capacitance
