خازن الکترولیت 68 میکروفاراد 35 ولت تلرانس 20% سایز 6.3 میلیمترx8 میلیمتر

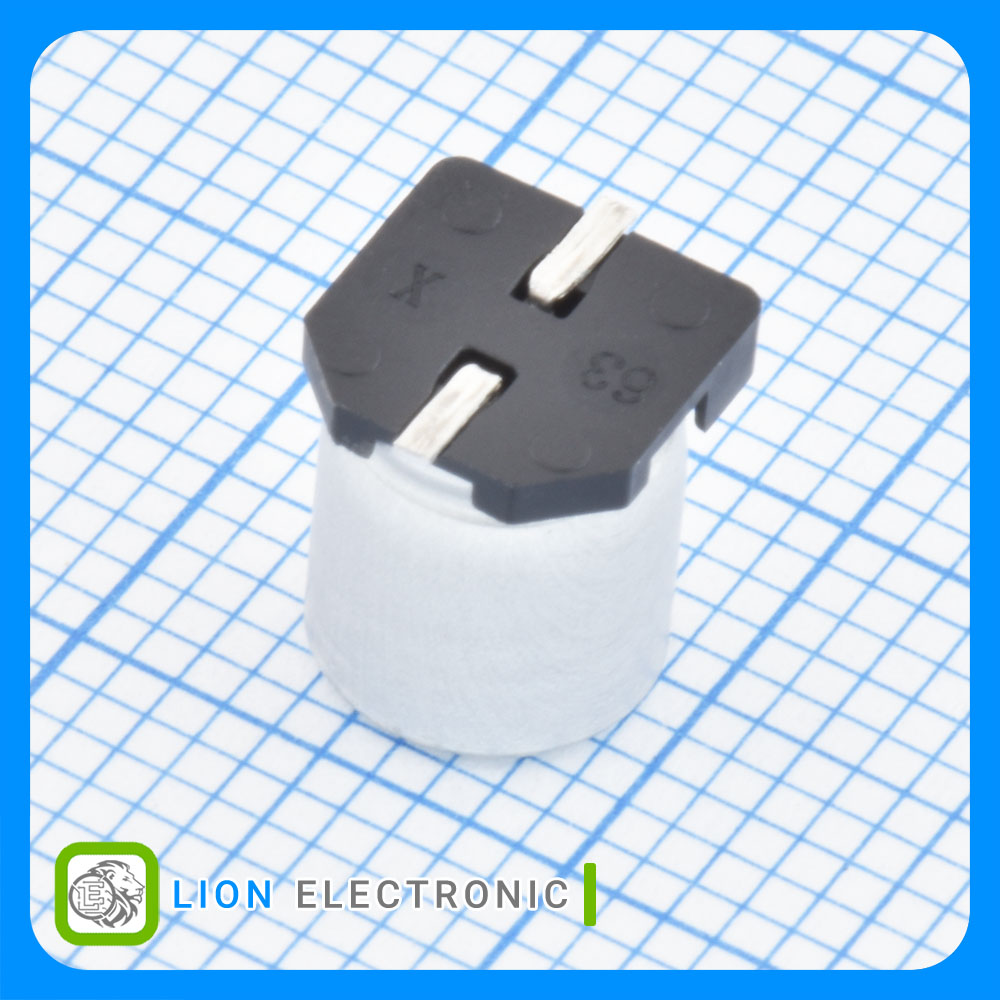

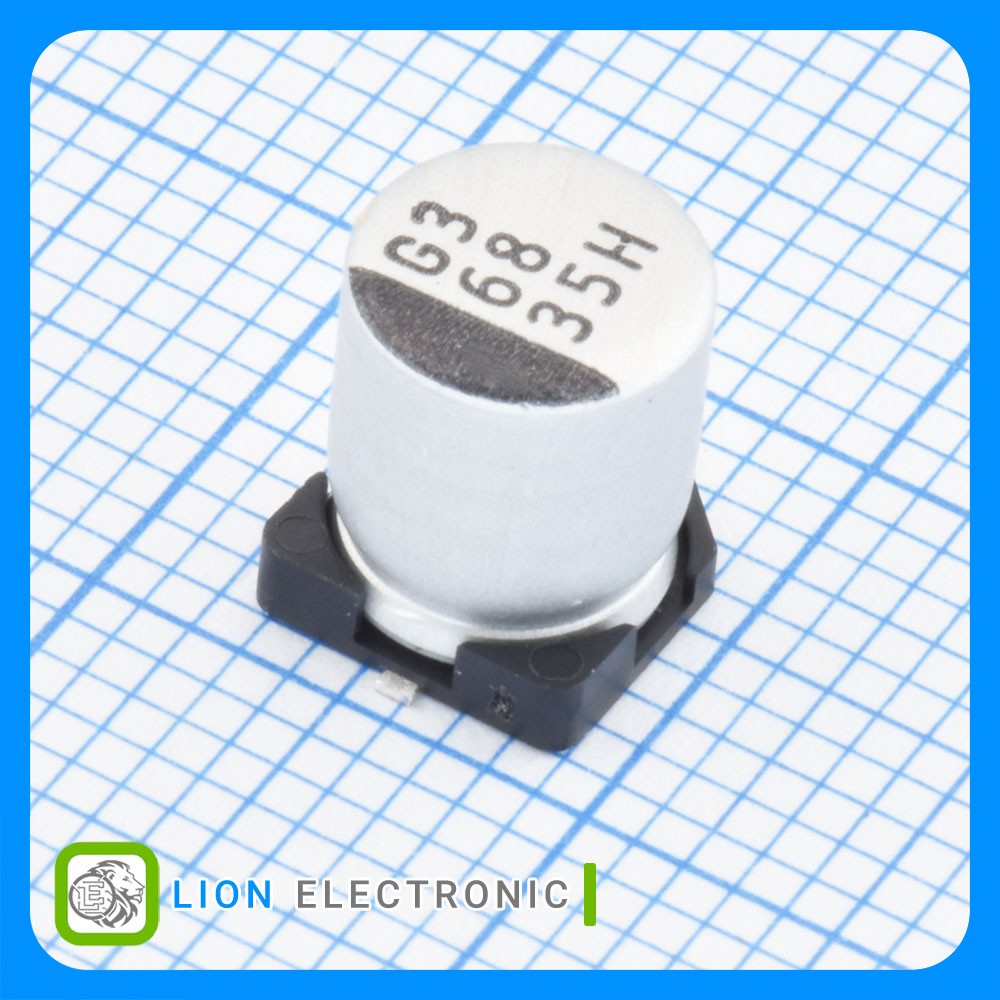

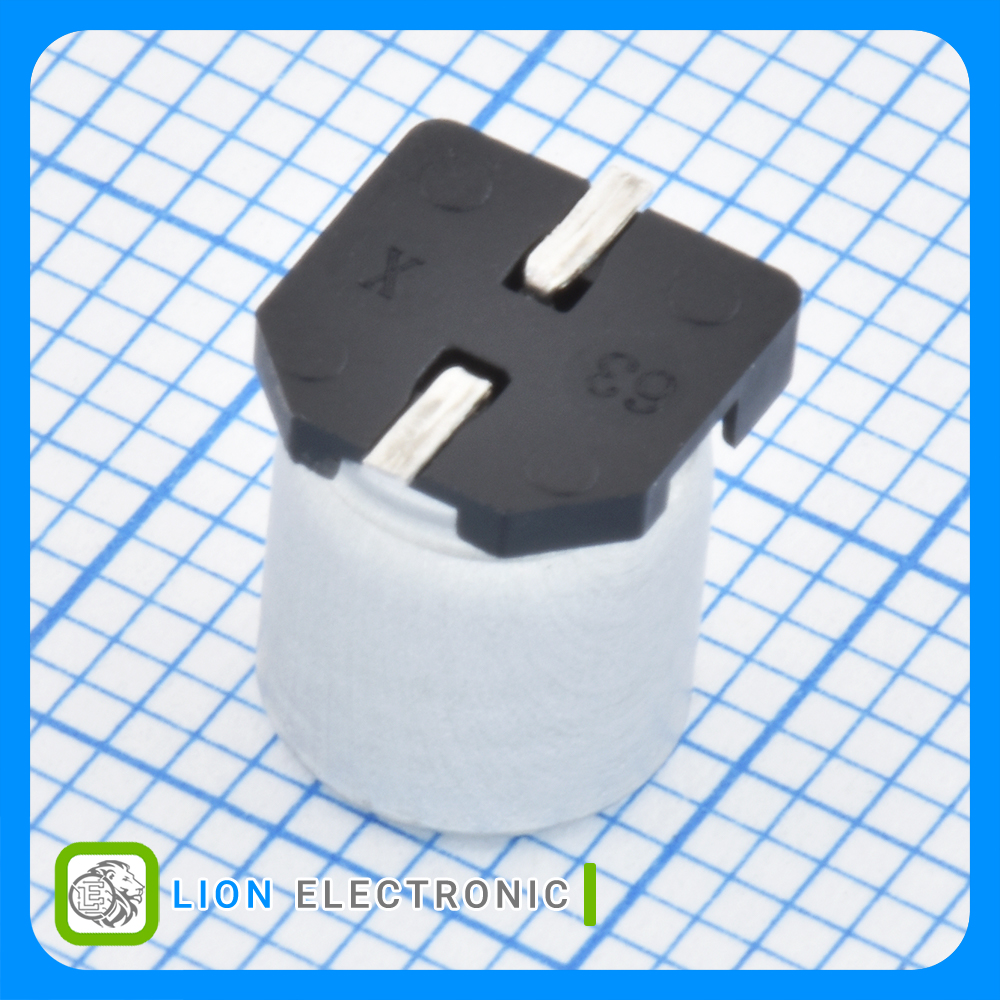

Aluminum Electrolytic Capacitor 68uF, 35V, 20% with 6.3mmx8mm Size
Specifications
- Life: 2000~5000 Hour
- Capacitance: 68uF
- Voltage Rating DC: 35VDC
- Ripple Current: 280mA
- ESR: 360mΩ
- Tolerance: 20%
- Diameter: 6.3mm
- Height: 8mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات خازن VZH680M1VTR-0607

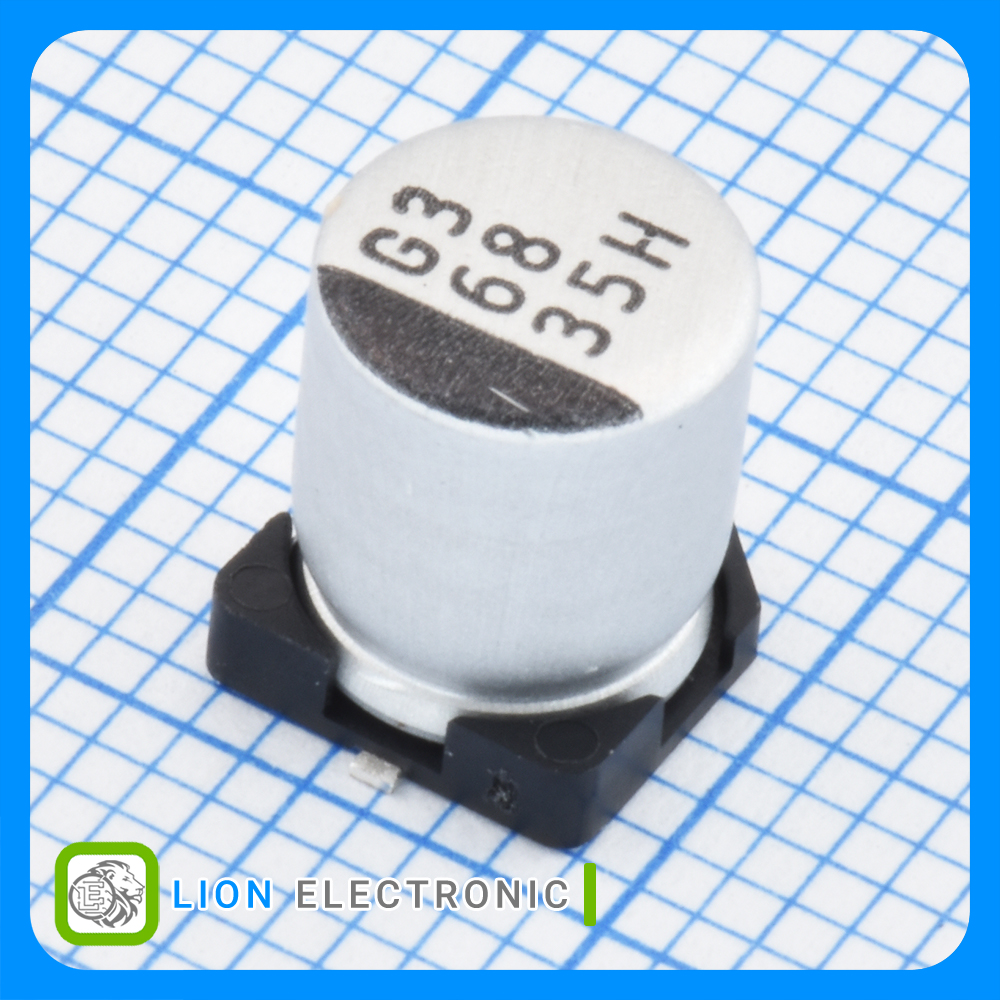

خازن VZH680M1VTR-0607
Part Number
2000~5000 Hour
Life
-55C
Minimum Operating Temperature
Reel
Packaging
6.3mm
Diameter
35VDC
Voltage Rating DC
20%
Tolerance
+105C
Maximum Operating Temperature
280mA
Ripple Current
360mΩ
ESR
8mm
Height
68uF
Capacitance
