Lelon
معرفی
خازن الکترولیت 220 میکروفاراد 25 ولت تلرانس 20% سایز 8 میلیمترx10 میلیمتر
Aluminum Electrolytic Capacitor 220uF, 25V, 20% with 8mmx10mm Size
Specifications
- Life: 2000~5000 Hour
- Capacitance: 220uF
- Voltage Rating DC: 25VDC
- Ripple Current: 450mA
- ESR: 170mΩ
- Tolerance: 20%
- Diameter: 8mm
- Height: 10mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات خازن VZH221M1ETR-0810

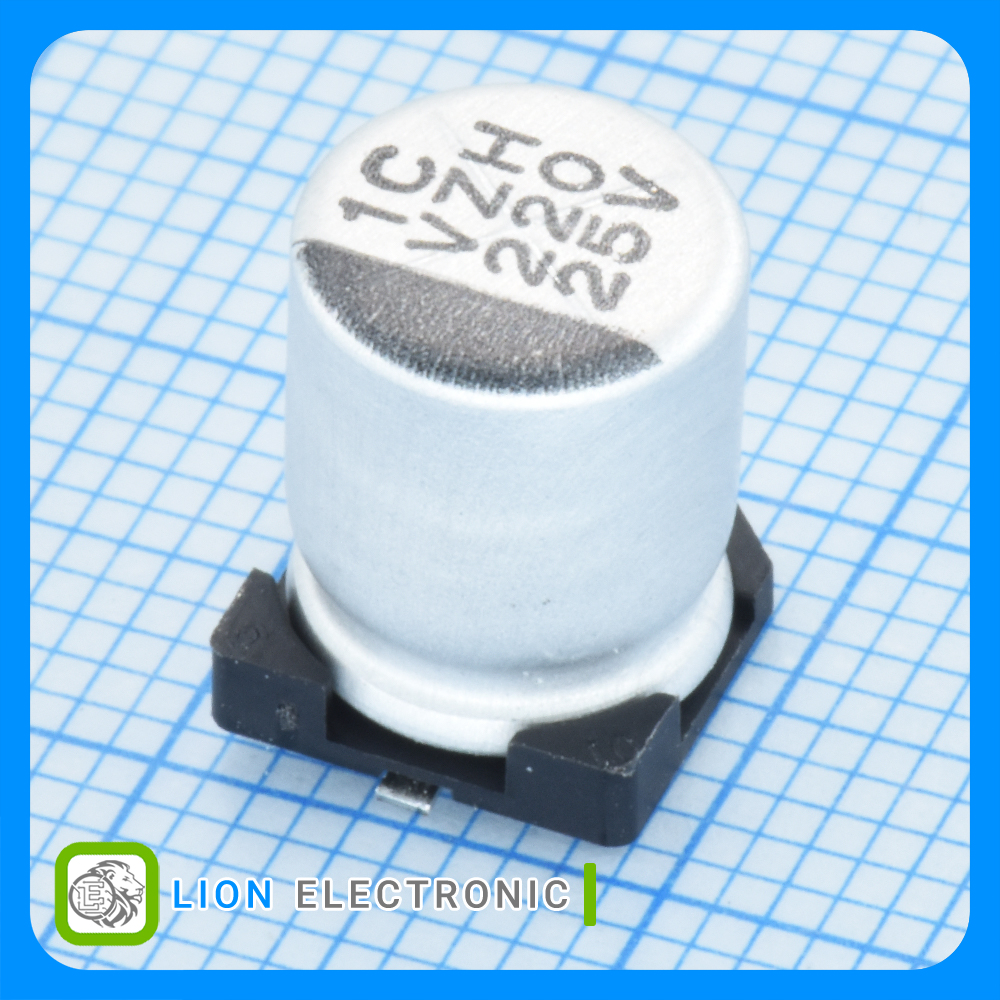

خازن VZH221M1ETR-0810
Part Number
2000~5000 Hour
Life
-55C
Minimum Operating Temperature
Reel
Packaging
25VDC
Voltage Rating DC
20%
Tolerance
+105C
Maximum Operating Temperature
8mm
Diameter
450mA
Ripple Current
170mΩ
ESR
10mm
Height
220uF
Capacitance
