Lelon
معرفی

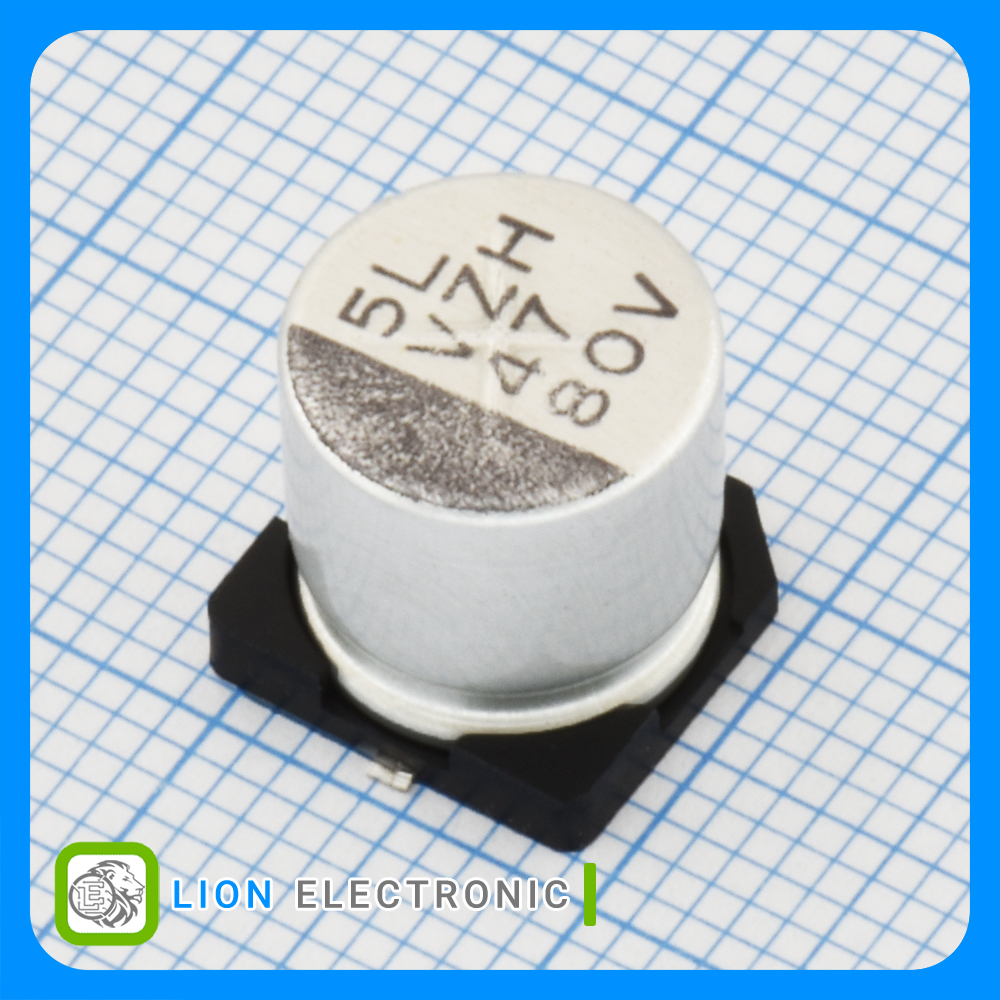

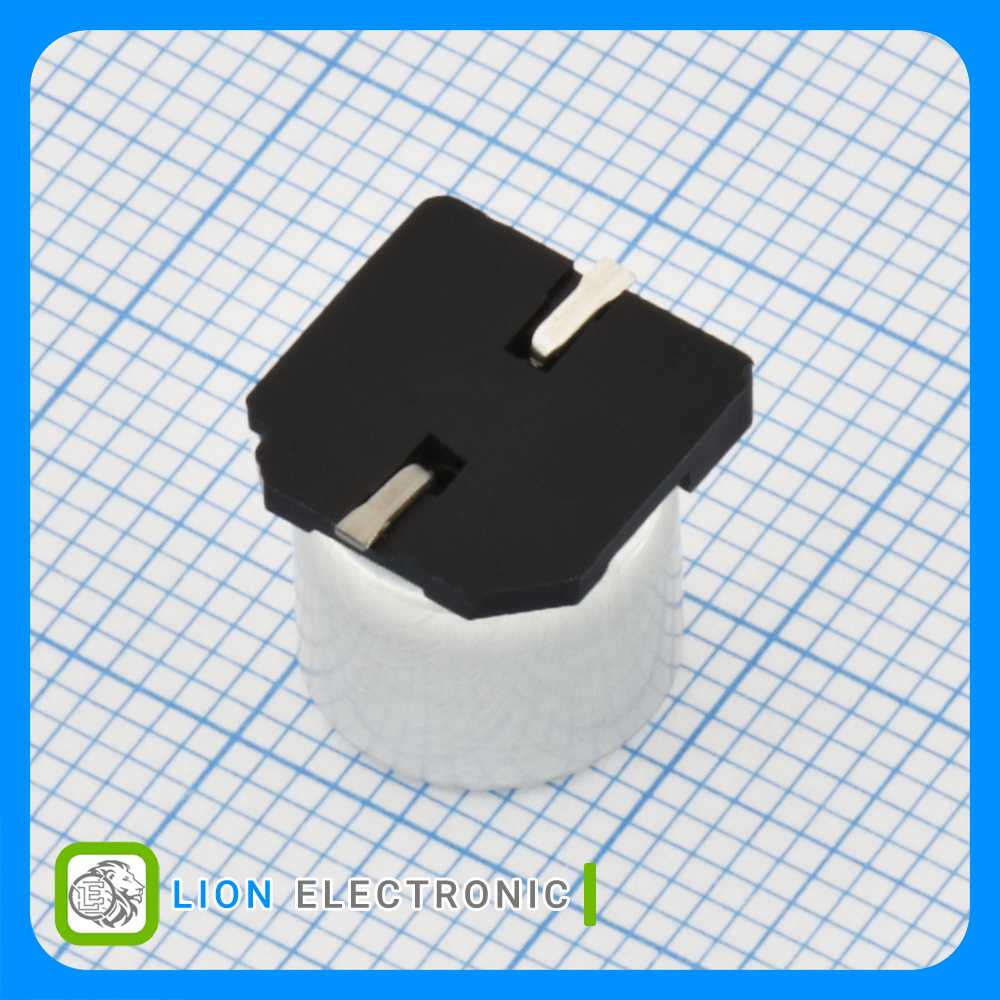

خازن الکترولیت 47 میکروفاراد 80 ولت تلرانس 20% سایز 10 میلیمترx10 میلیمتر
Aluminum Electrolytic Capacitor 47uF, 80V, 20% with 10mmx10mm Size
Specifications
- Life: 2000~5000 Hour
- Capacitance: 47uF
- Voltage Rating DC: 80VDC
- Ripple Current: 200mA
- ESR: 700mΩ
- Tolerance: 20%
- Diameter: 10mm
- Height: 10mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات خازن VZH470M1KTR-1010
خازن VZH470M1KTR-1010
Part Number
2000~5000 Hour
Life
-55C
Minimum Operating Temperature
Reel
Packaging
20%
Tolerance
+105C
Maximum Operating Temperature
200mA
Ripple Current
10mm
Diameter
80VDC
Voltage Rating DC
700mΩ
ESR
10mm
Height
47uF
Capacitance
