Lelon
معرفی
خازن الکترولیت 47 میکروفاراد 63 ولت تلرانس 20% سایز 8 میلیمترx10 میلیمتر

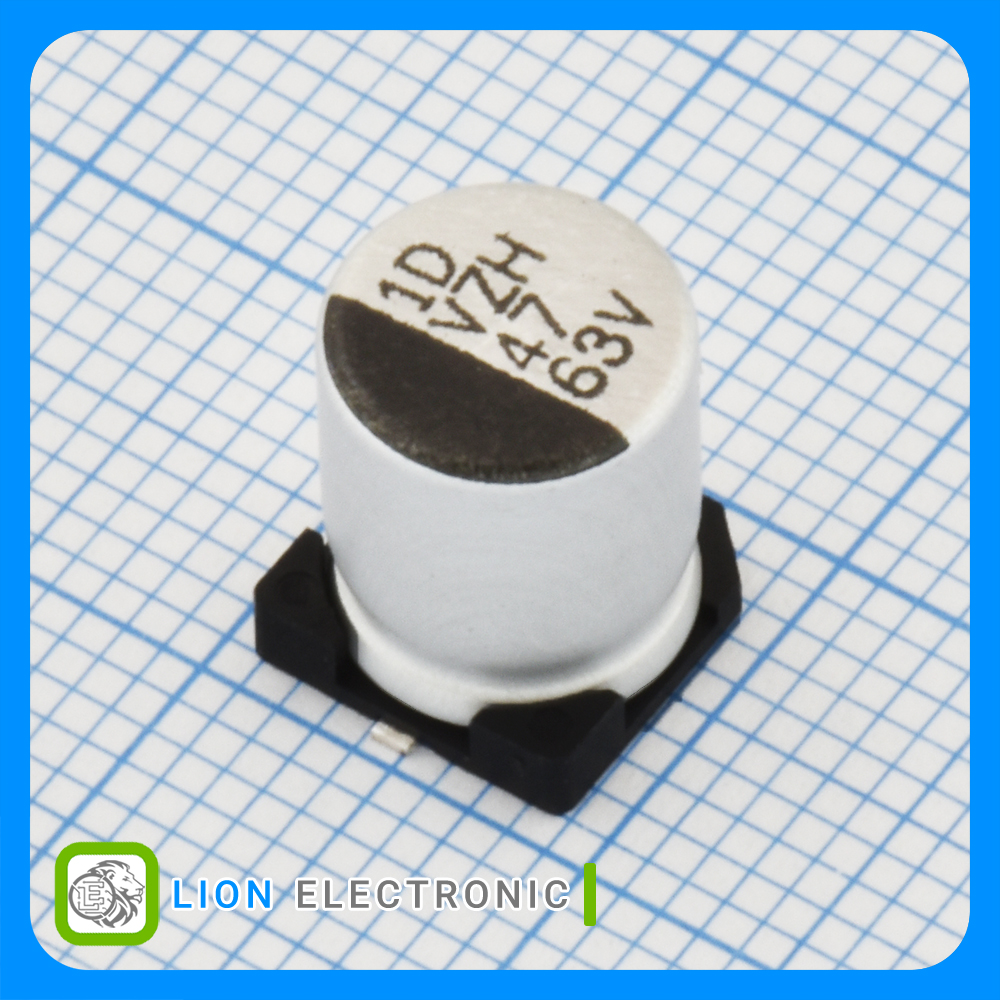

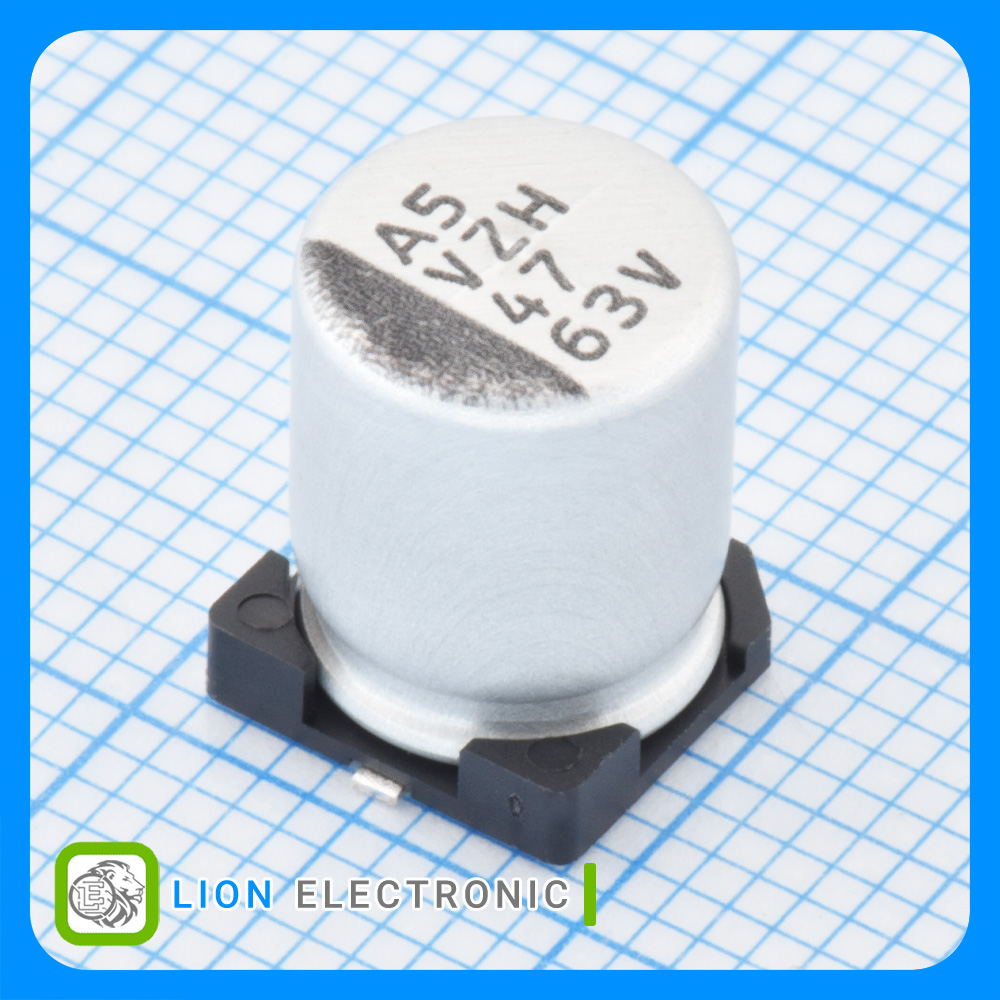

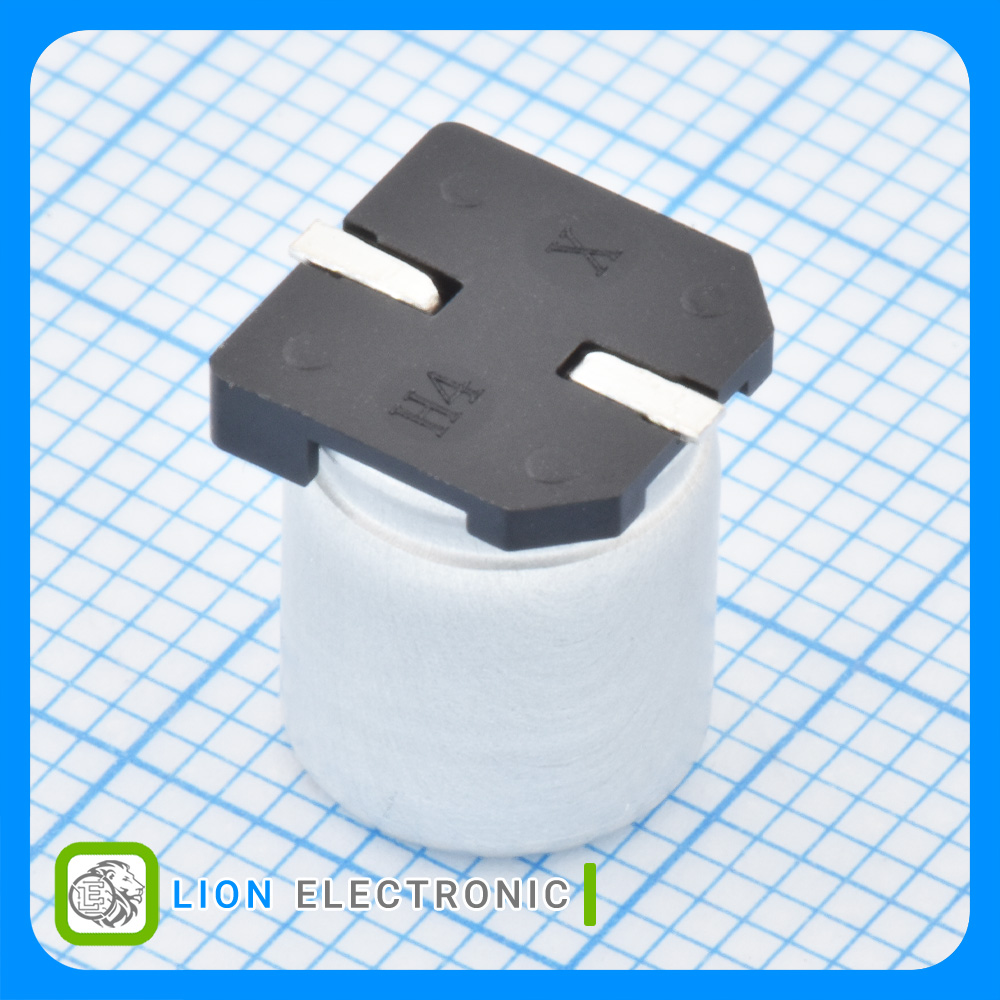

Aluminum Electrolytic Capacitor 47uF, 63V, 20% with 8mmx10mm Size
Specifications
- Life: 2000~5000 Hour
- Capacitance: 47uF
- Voltage Rating DC: 63VDC
- Ripple Current: 280mA
- ESR: 500mΩ
- Tolerance: 20%
- Diameter: 8mm
- Height: 10mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات خازن VZH470M1JTR-0810
خازن VZH470M1JTR-0810
Part Number
2000~5000 Hour
Life
-55C
Minimum Operating Temperature
Reel
Packaging
20%
Tolerance
+105C
Maximum Operating Temperature
8mm
Diameter
63VDC
Voltage Rating DC
280mA
Ripple Current
500mΩ
ESR
10mm
Height
47uF
Capacitance
