Lelon
معرفی

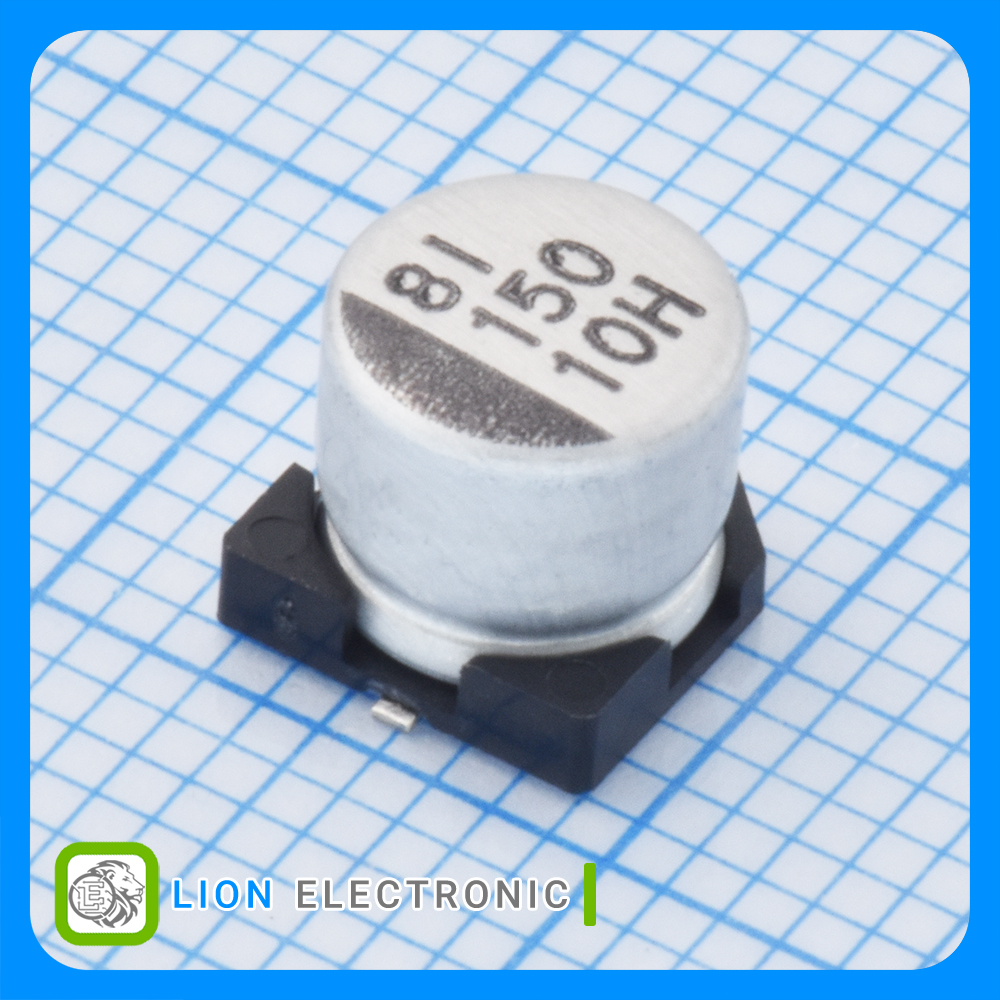

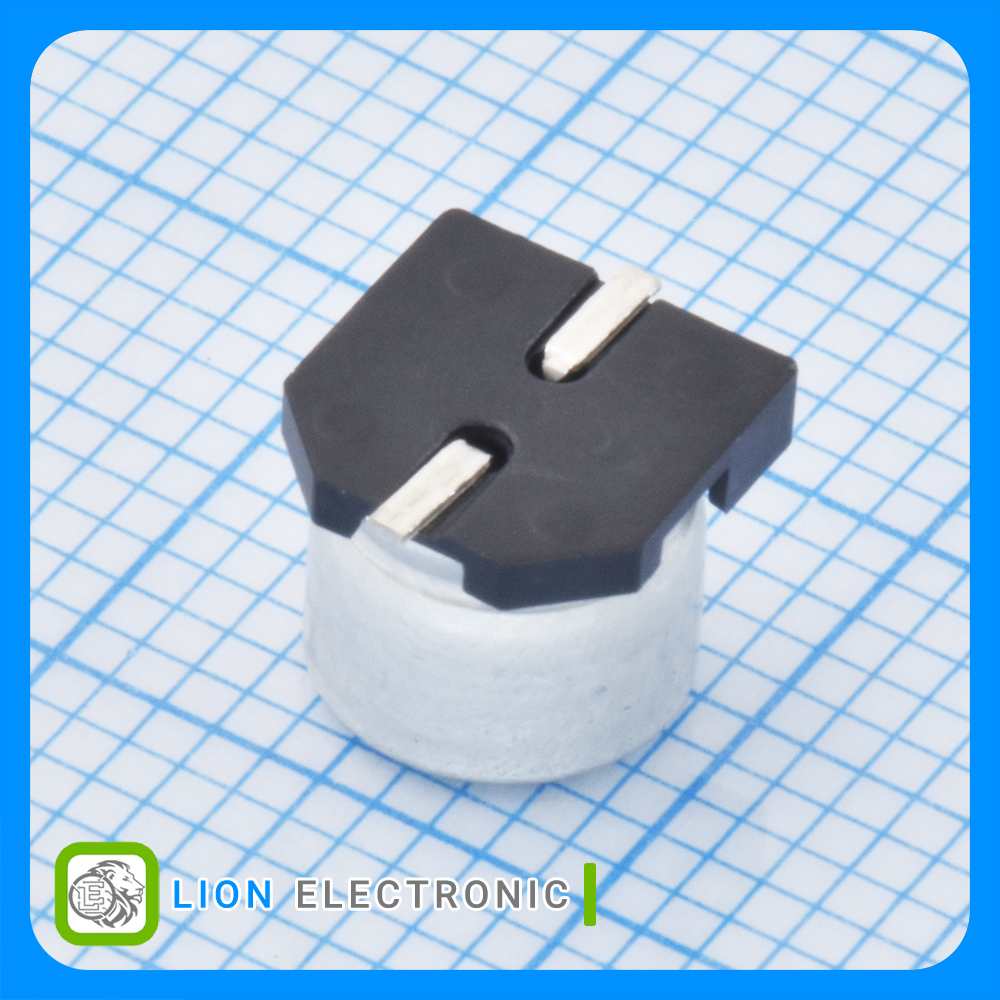

خازن الکترولیت 150 میکروفاراد 10 ولت تلرانس 20% سایز 6.3 میلیمترx5.7 میلیمتر
Aluminum Electrolytic Capacitor 150uF, 10V, 20% with 6.3mmx5.7mm Size
Specifications
- Life: 2000~5000 Hour
- Capacitance: 150uF
- Voltage Rating DC: 10VDC
- Ripple Current: 230mA
- ESR: 440mΩ
- Tolerance: 20%
- Diameter: 6.3mm
- Height: 5.7mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات خازن VZH151M1ATR-0606L
خازن VZH151M1ATR-0606L
Part Number
2000~5000 Hour
Life
-55C
Minimum Operating Temperature
10VDC
Voltage Rating DC
Reel
Packaging
6.3mm
Diameter
20%
Tolerance
+105C
Maximum Operating Temperature
230mA
Ripple Current
440mΩ
ESR
5.7mm
Height
150uF
Capacitance
