CPU and OnChip Memory
• ESP32-S3 series of SoCs embedded, Xtensa® dual-core 32-bit LX7 microprocessor, up to 240MHz
• 384 KB ROM
• 512 KB SRAM
• 16 KB SRAM in RTC
WiFi
• 802.11 b/g/n
• Bit rate: 802.11n up to 150 Mbps
• A-MPDU and A-MSDU aggregation
• 0.4 µs guard interval support
• Center frequency range of operating channel: 2412 ~ 2484 MHz
Bluetooth
• Bluetooth LE: Bluetooth 5, Bluetooth mesh
• 2 Mbps PHY
• Long range mode
• Advertising extensions
• Multiple advertisement sets
• Channel selection algorithm #2
Peripherals
• GPIO, SPI, LCD interface, Camera interface, UART, I2C, I2S, remote control, pulse counter, LED PWM, USB 1.1 OTG, USB Serial/JTAG controller, MCPWM, SDIO host, GDMA, TWAI® controller (compatible with ISO 11898-1), ADC, touch sensor, temperature sensor, timers and watchdogs Integrated
Components on Module
• 40 MHz crystal oscillator
• 8 MB SPI flash
Antenna Options

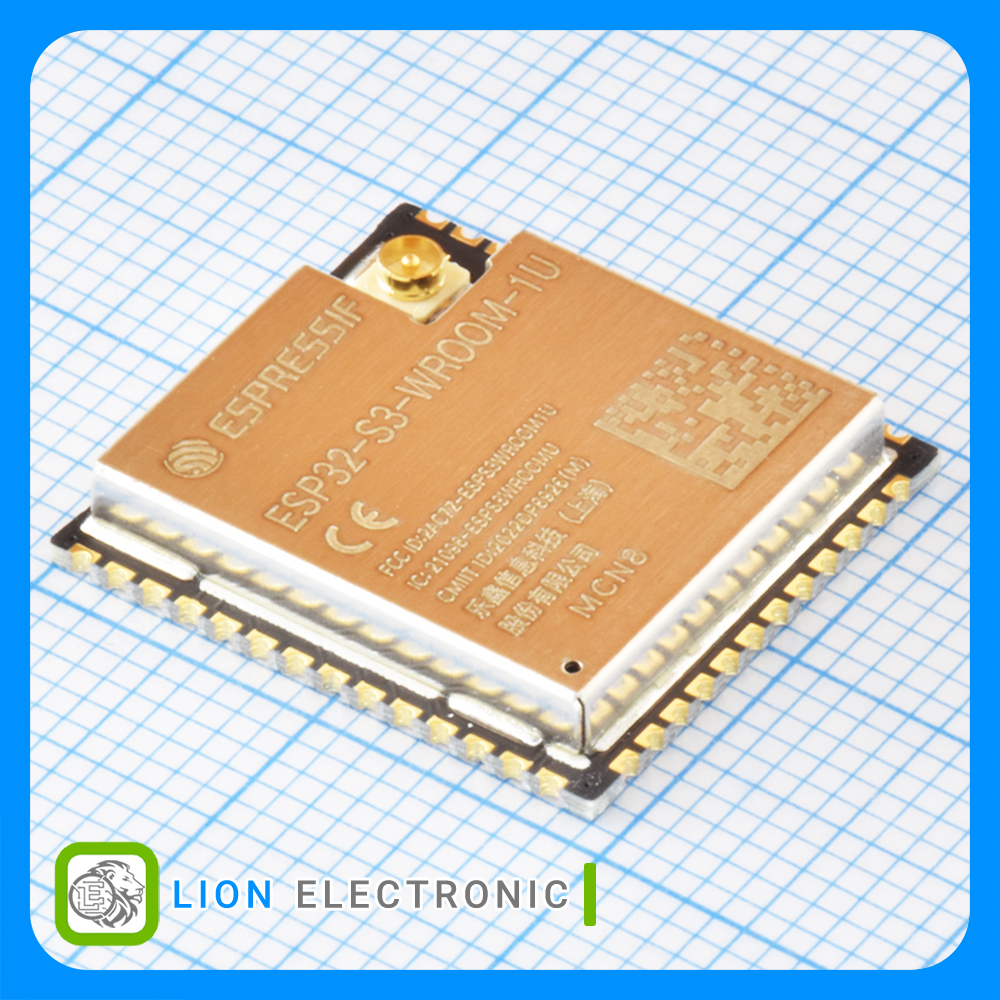

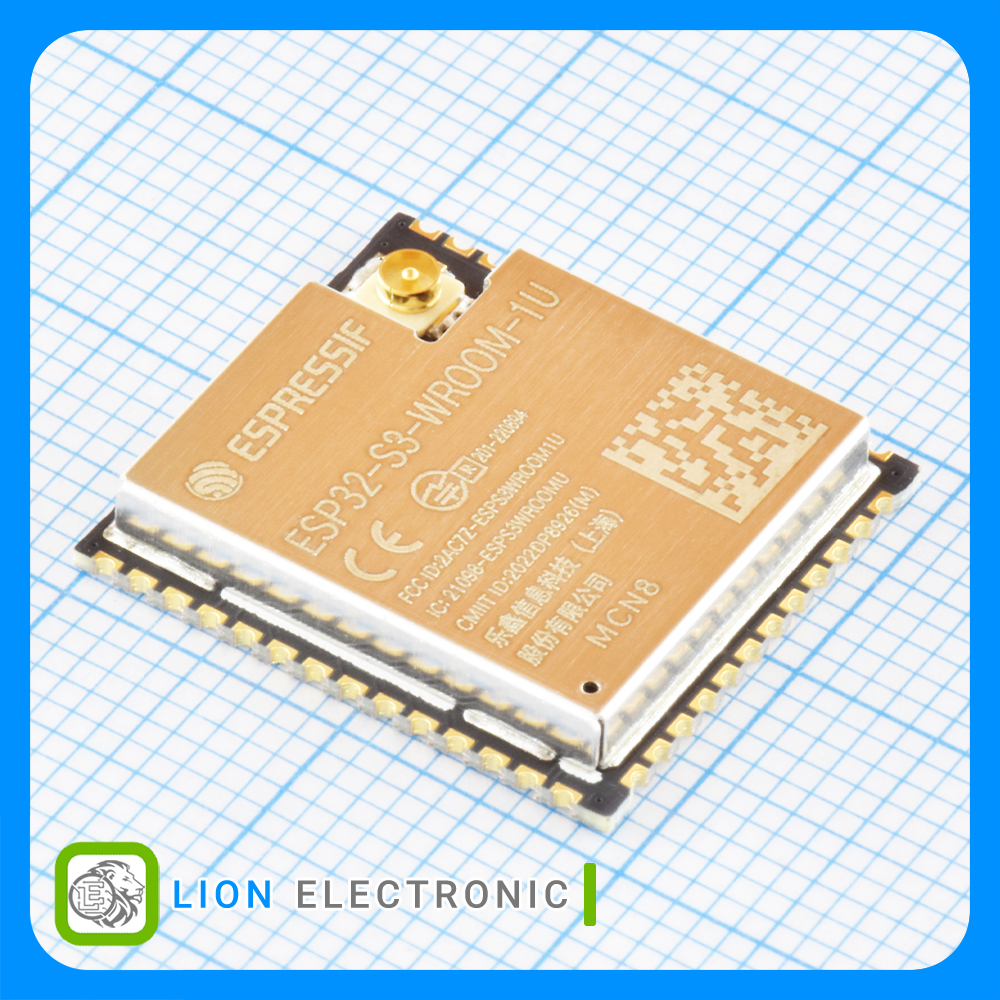

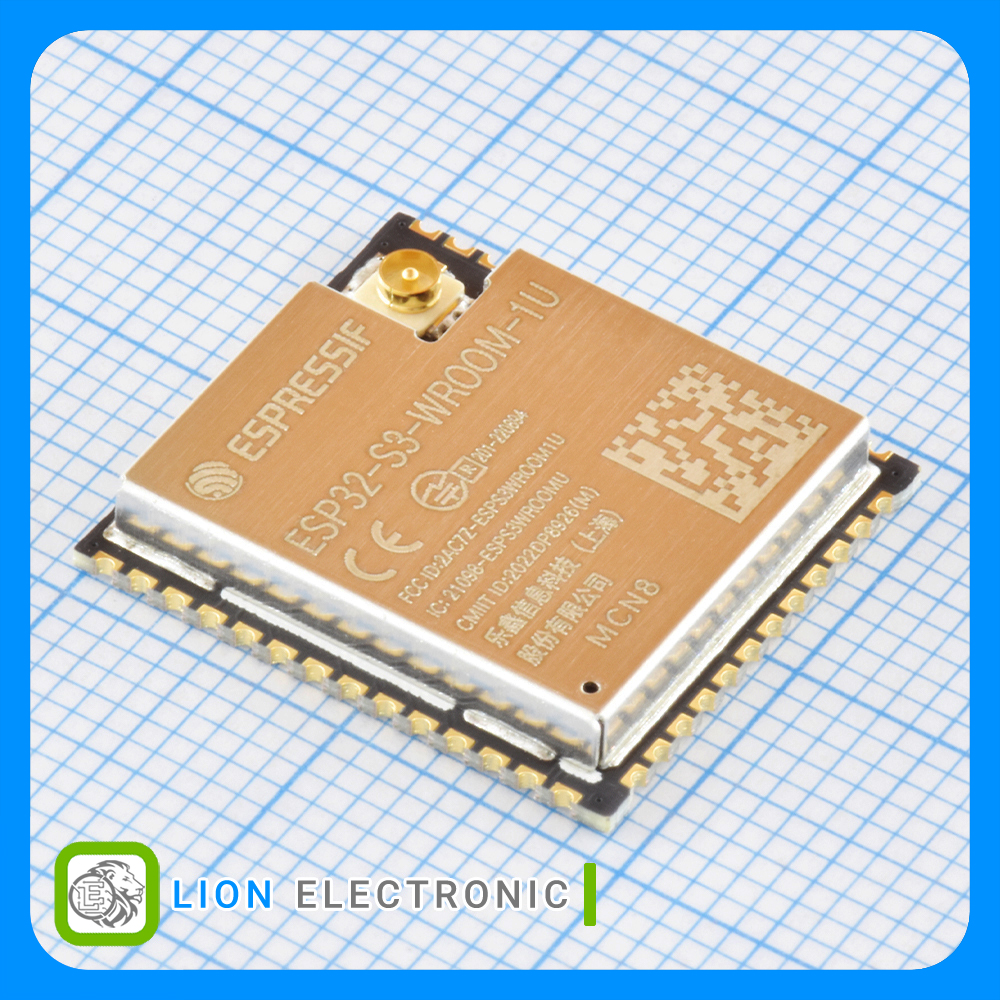

• External antenna via a connector (ESP32-S3-WROOM-1U)
Operating Conditions
• Operating voltage/Power supply: 3.0 ~ 3.6 V, -40 ~ 85 °C
