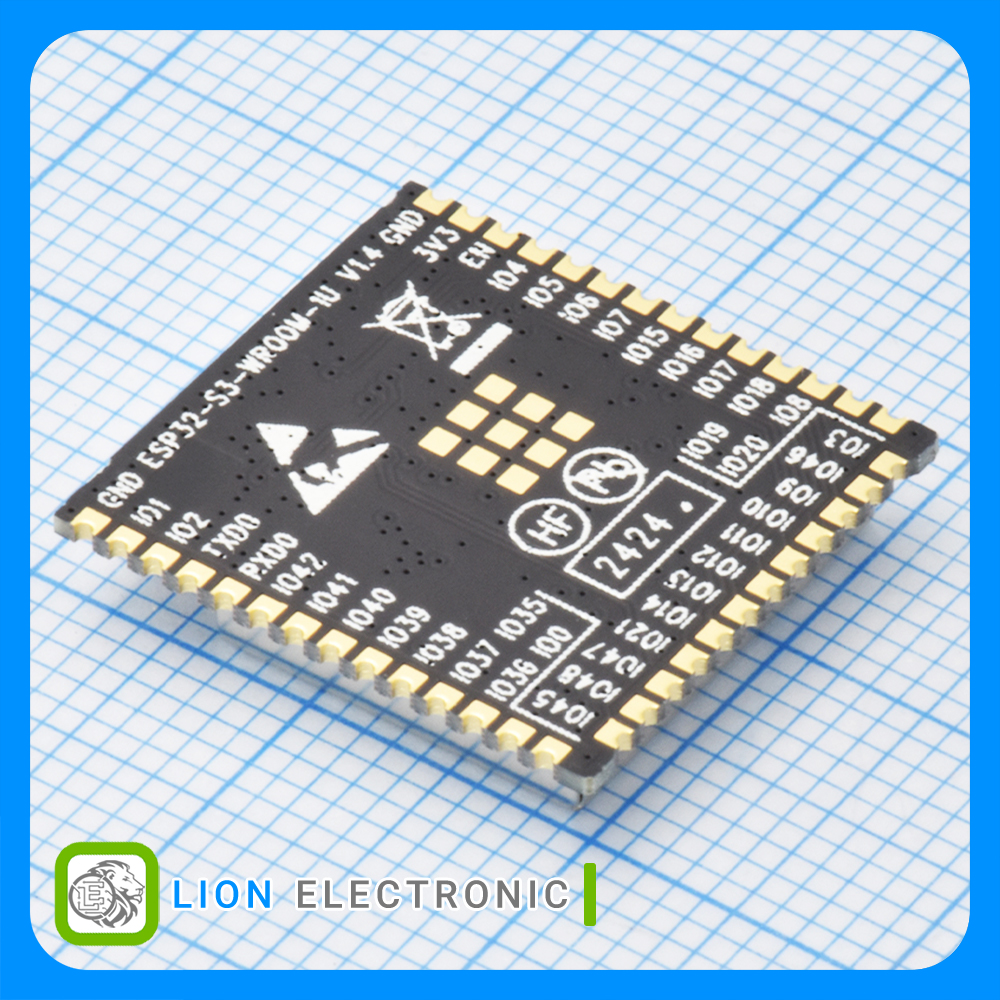

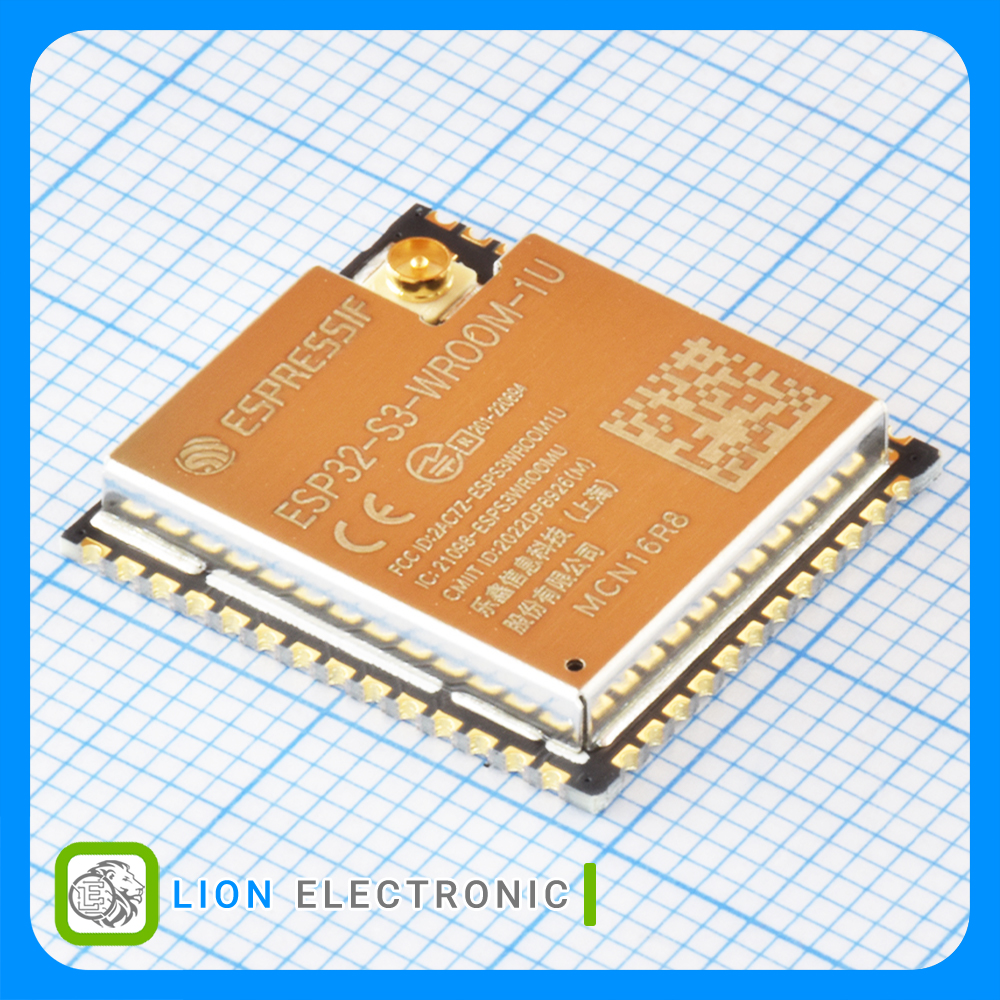

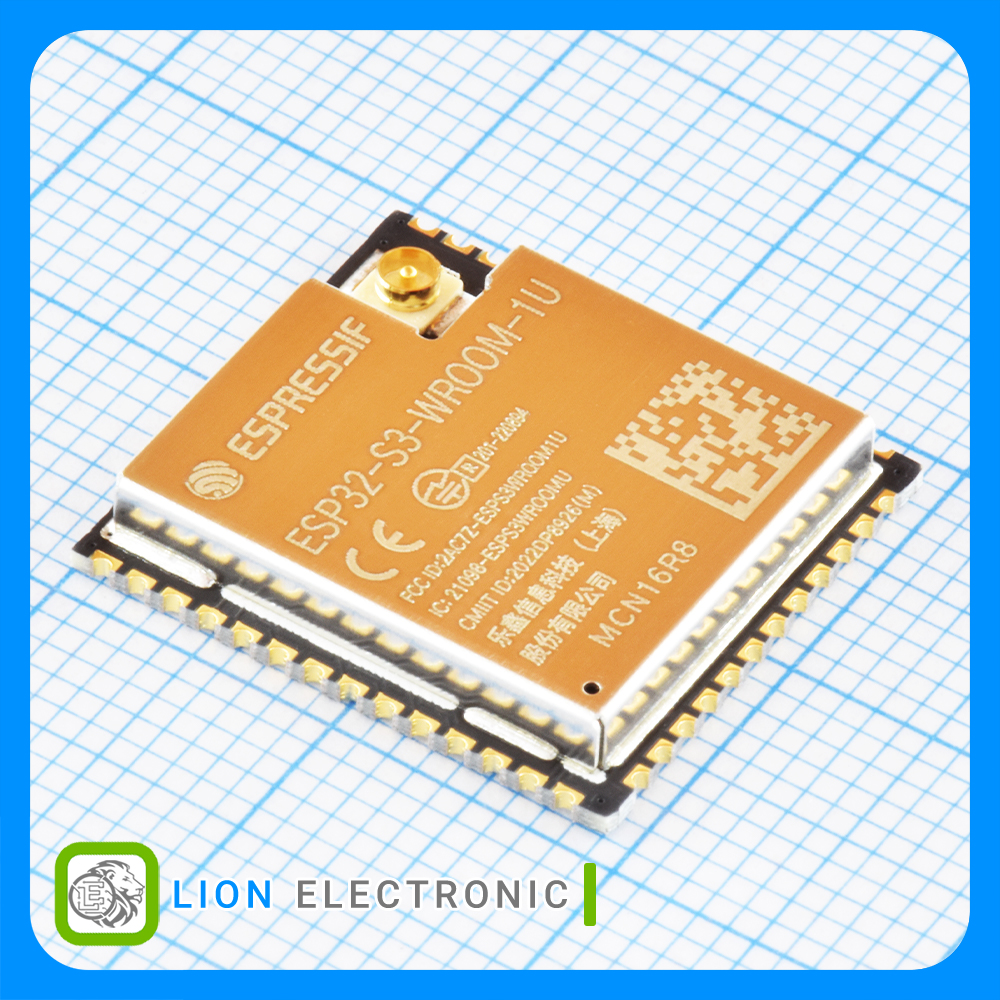

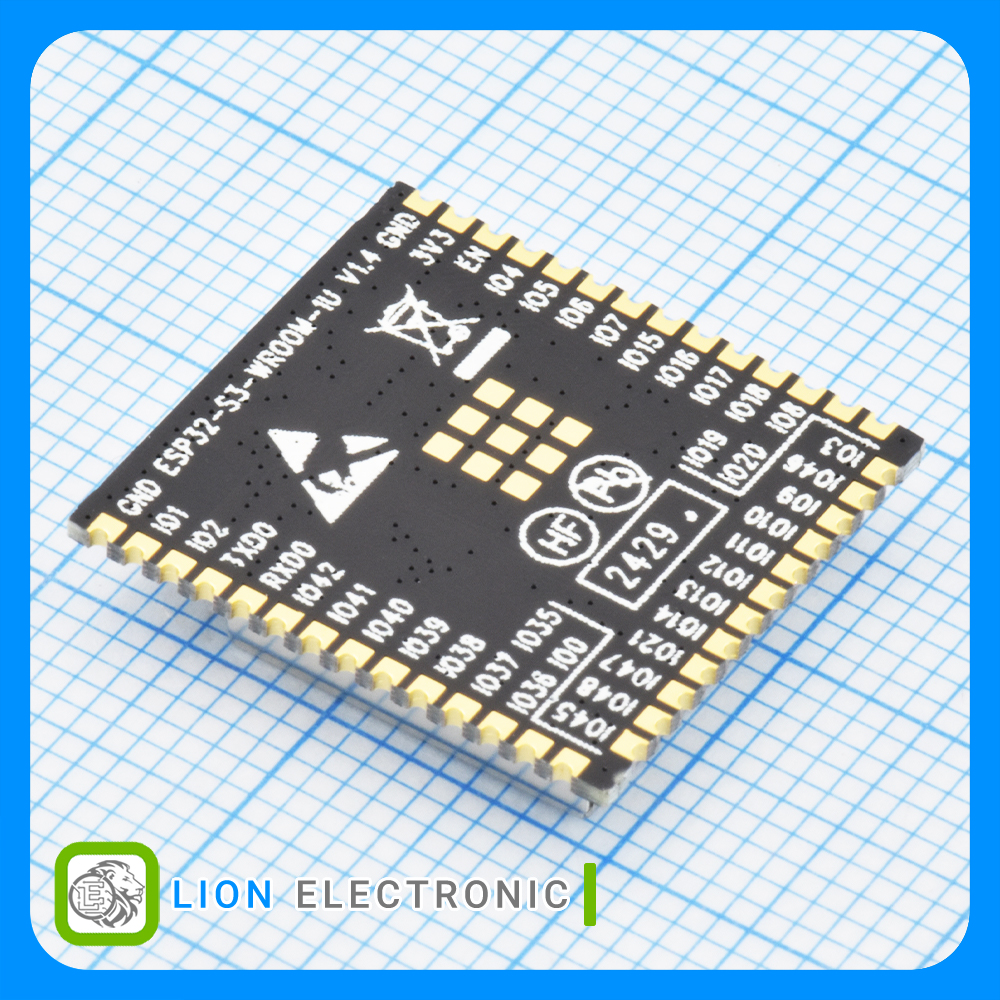

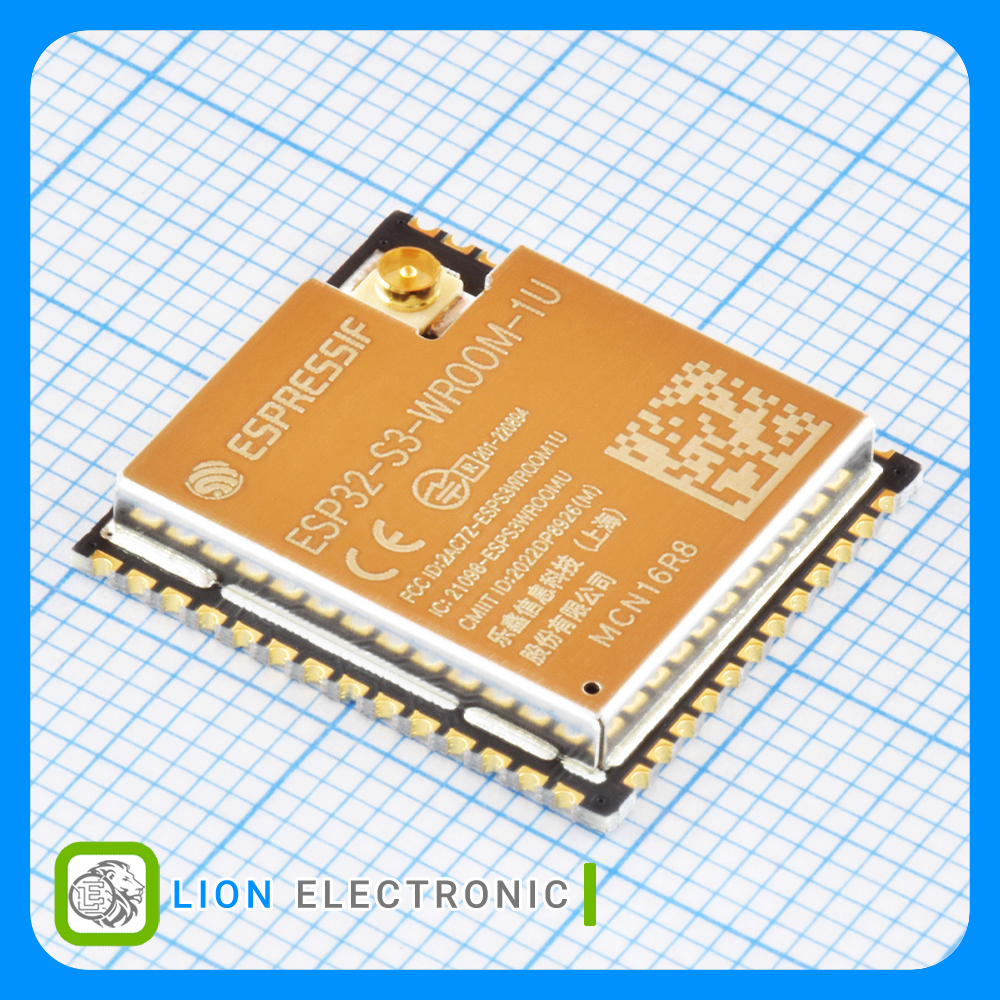

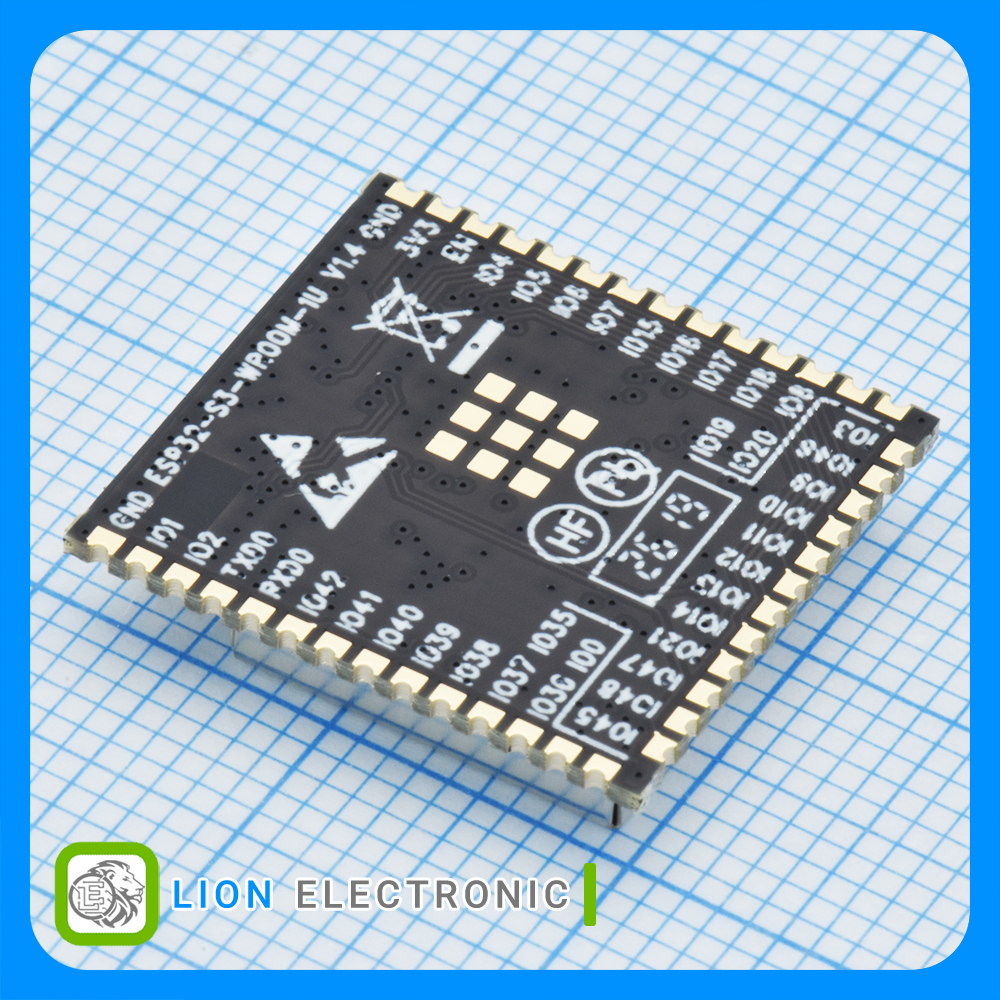

ماژول وای فای و بلوتوث ESP32-S3-WROOM-1U-N16R8

CPU and On­Chip Memory
• ESP32-S3 series of SoCs embedded, Xtensa dual-core 32-bit LX7 microprocessor, up to 240 MHz
• 384 KB ROM
• 512 KB SRAM
• 16 KB SRAM in RTC
• Up to 8 MB PSRAM

Wi­Fi
• 802.11 b/g/n
• Bit rate: 802.11n up to 150 Mbps
• A-MPDU and A-MSDU aggregation
• 0.4 µs guard interval support
• Center frequency range of operating channel: 2412 ~ 2484 MHz

Bluetooth
• Bluetooth LE: Bluetooth 5, Bluetooth mesh
• 2 Mbps PHY
• Long range mode
• Advertising extensions
• Multiple advertisement sets
• Channel selection algorithm #2

Peripherals
• GPIO, SPI, LCD interface, Camera interface, UART, I2C, I2S, remote control, pulse counter, LED PWM, USB 1.1 OTG, USB Serial/JTAG controller, MCPWM, SDIO host, GDMA, TWAI controller (compatible with ISO 11898-1), ADC, touch sensor, temperature sensor, timers and watchdogs

Integrated Components on Module
• 40 MHz crystal oscillator
• 16MB flash
• 8MB PSRAM

Antenna Options
• External antenna via a connector (ESP32-S3-WROOM-1U)

Operating Conditions
• Operating voltage/Power supply: 3.0 ~ 3.6 V
• Operating ambient temperature: –40 ~ 65 °C
