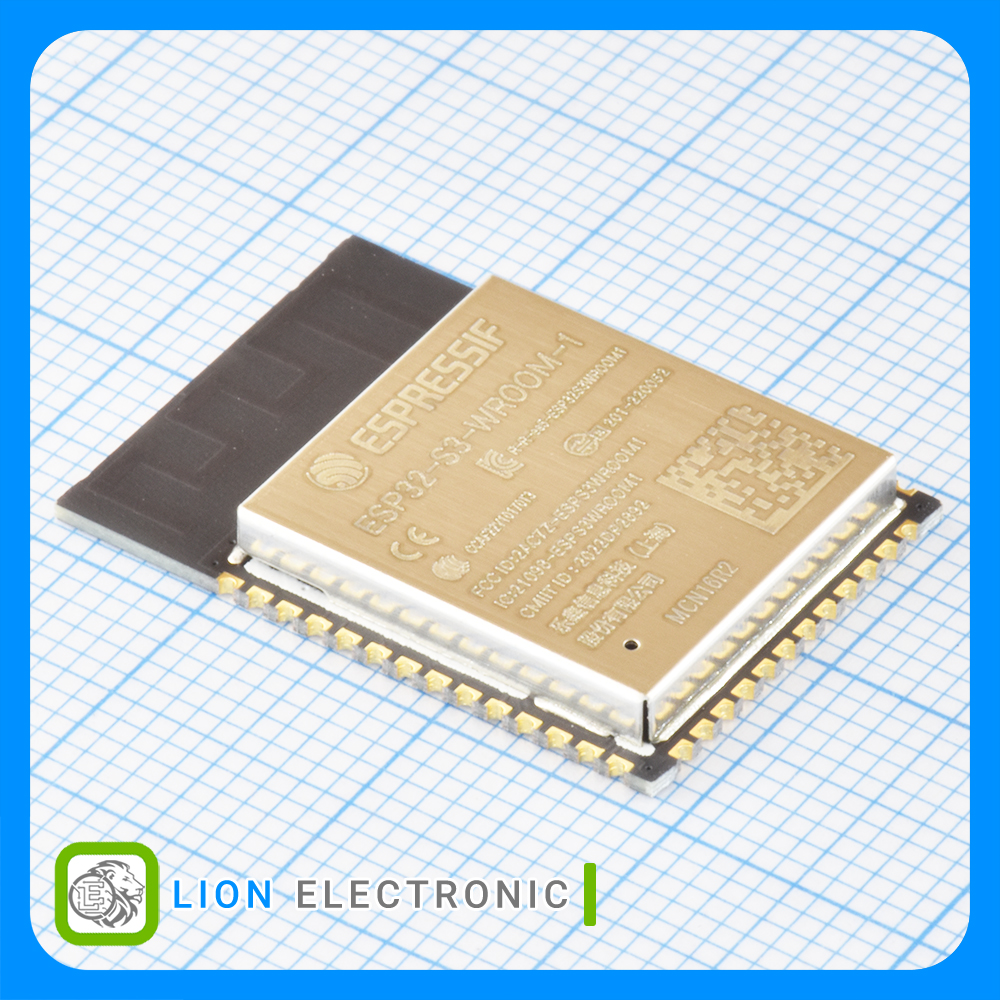

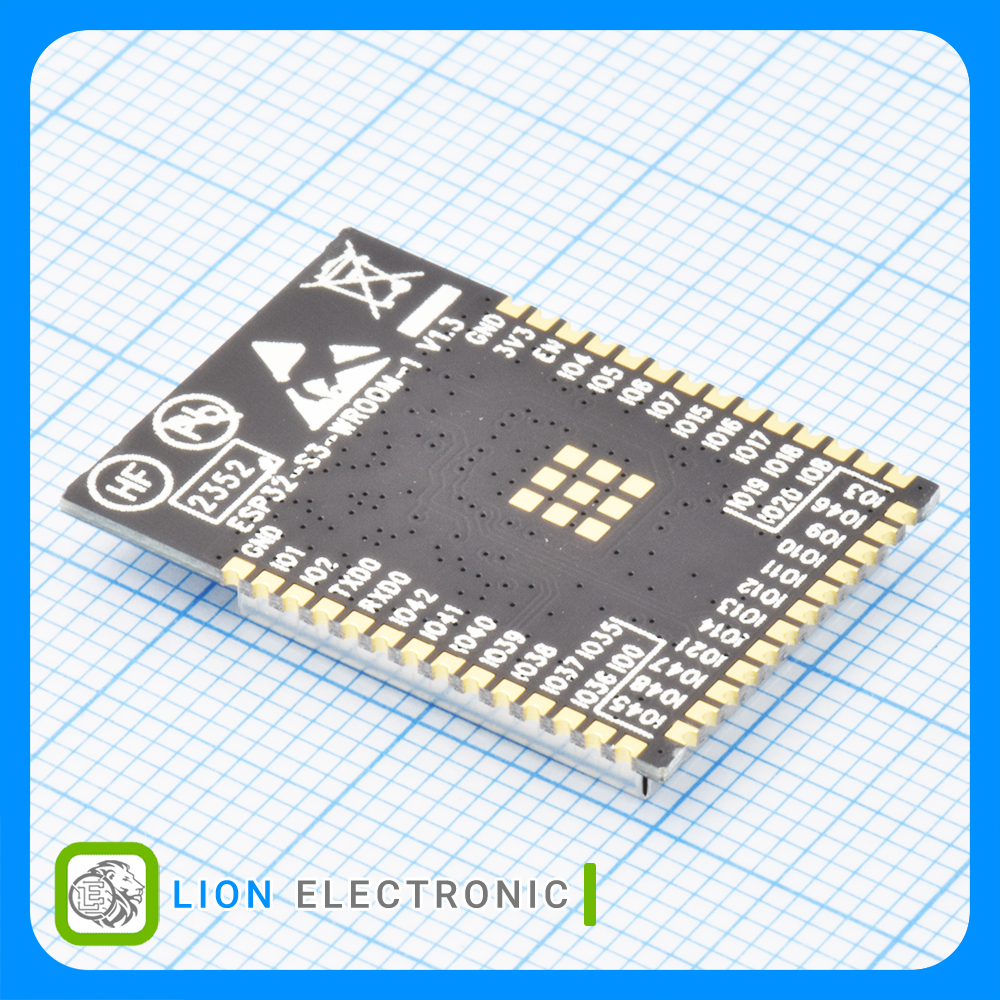

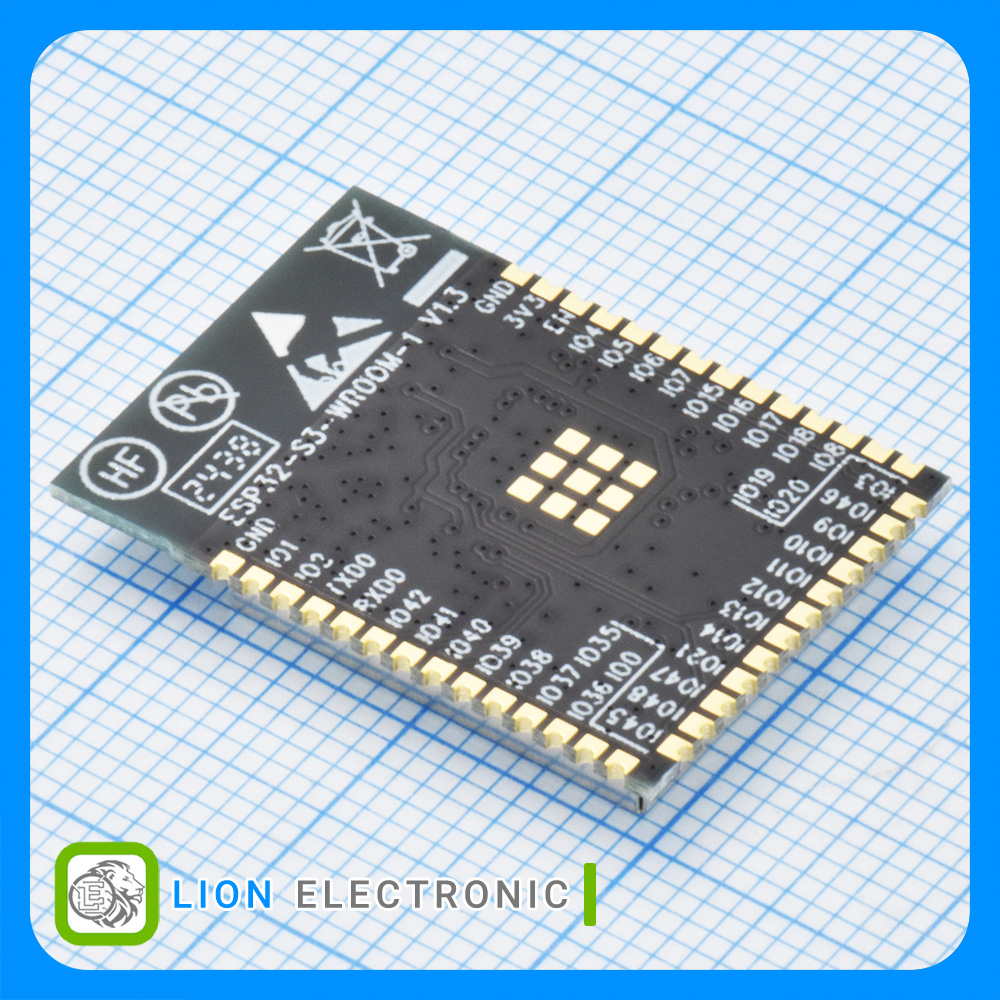

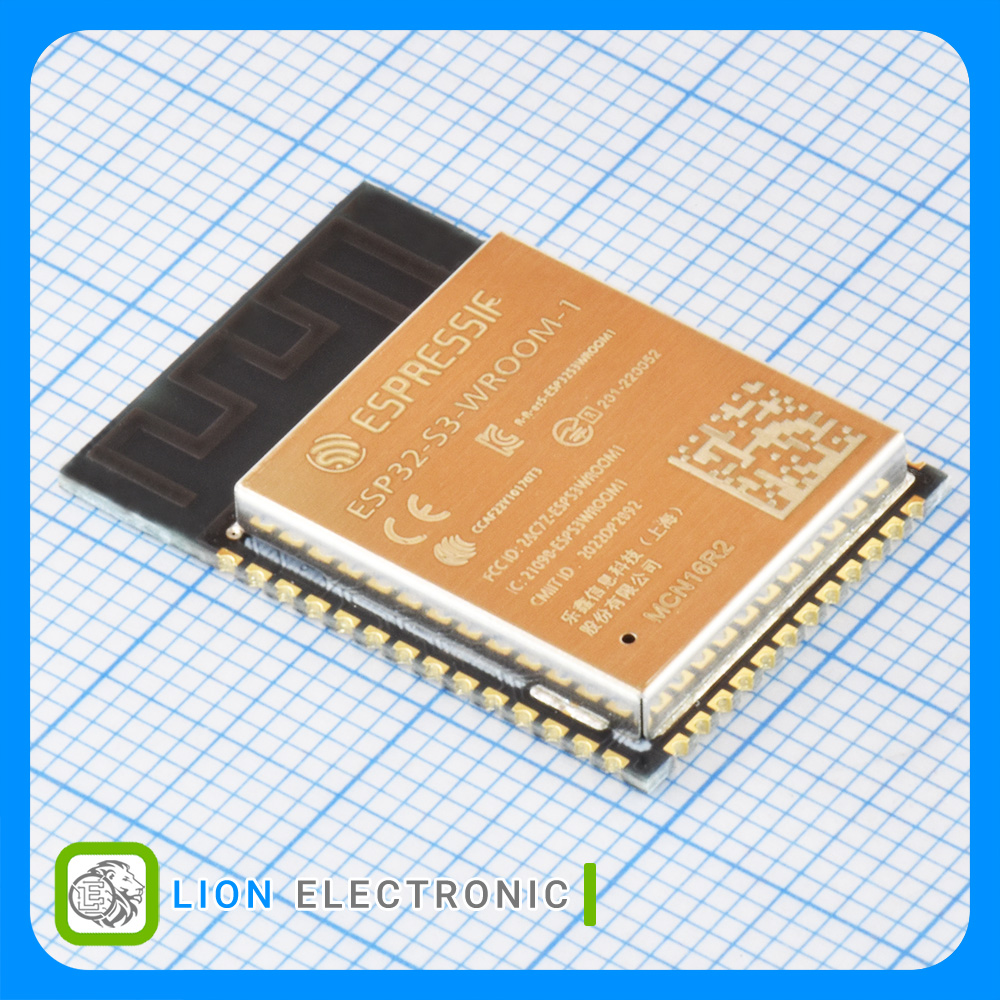

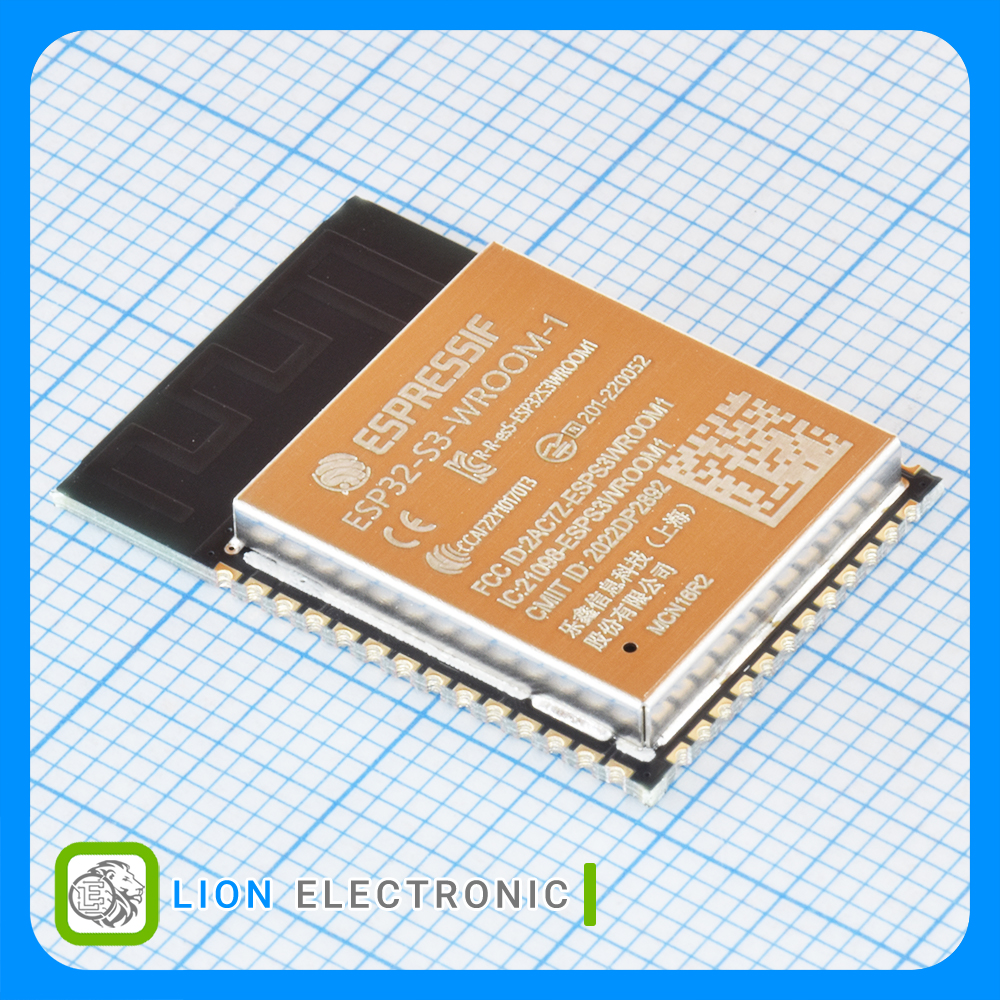

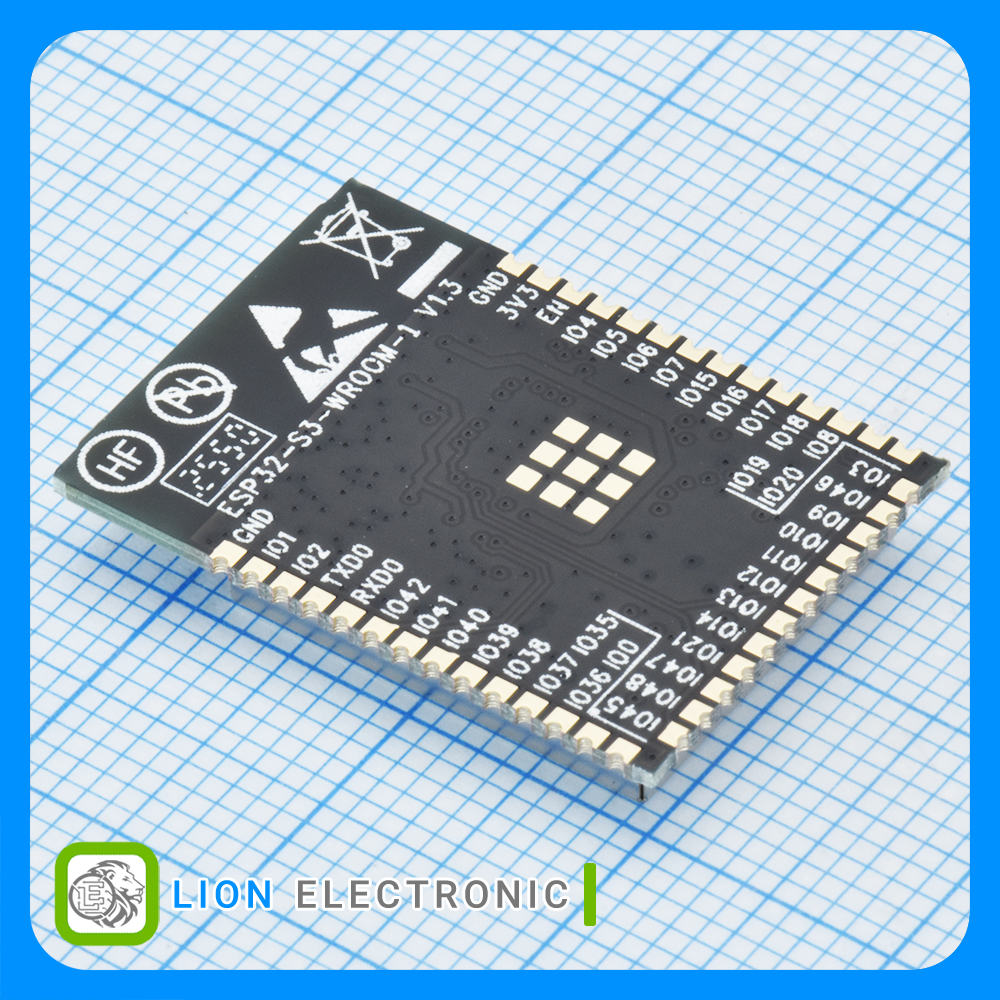

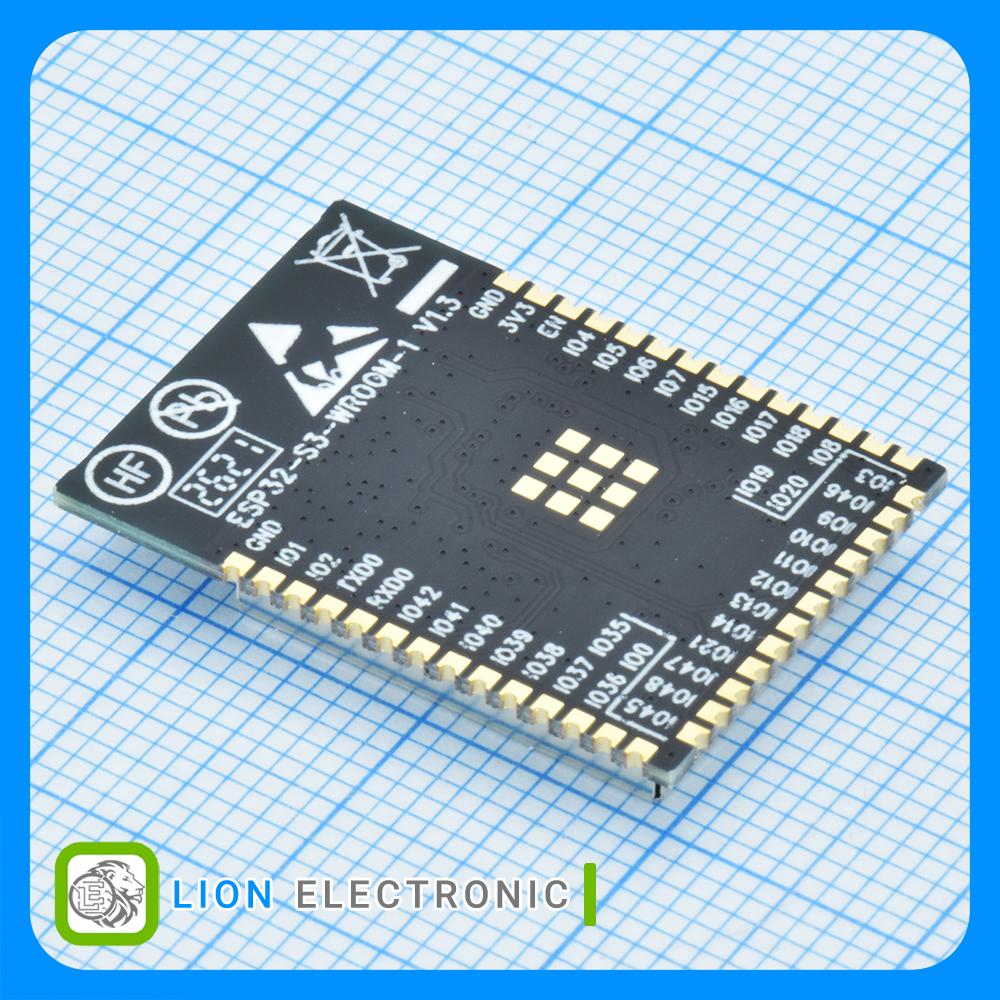

ESP32-S3-WROOM-1-N16R2
Espressif ماژول ESP32 سری ESP32-S3 با فرکانس 240 مگاهرتز، Wi-Fi 2.4 گیگاهرتز (802.11 b/g/n) و بلوتوث 5 (LE)، 36 پایه GPIO، حافظه 16MB فلش و 2MB PSRAM، ولتاژ تغذیه 3 تا 3.6 ولت با آنتن PCB روی برد
ESP32 Module ESP32-S3, 240MHz, 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), 36 GPIOs, 16MB Flash, 2MB PSRAM, 3 - 3.6V with Onboard PCB Antenna
CPU and OnChip Memory
• ESP32-S3 series of SoCs embedded, Xtensa dual-core 32-bit LX7 microprocessor, up to 240 MHz
• 384 KB ROM
• 512 KB SRAM
• 16 KB SRAM in RTC
• Up to 8 MB PSRAM
WiFi
• 802.11 b/g/n
• Bit rate: 802.11n up to 150 Mbps
• A-MPDU and A-MSDU aggregation
• 0.4 µs guard interval support
• Center frequency range of operating channel: 2412 ~ 2484 MHz
Bluetooth
• Bluetooth LE: Bluetooth 5, Bluetooth mesh
• 2 Mbps PHY
• Long range mode
• Advertising extensions
• Multiple advertisement sets
• Channel selection algorithm #2
Peripherals
• GPIO, SPI, LCD interface, Camera interface, UART, I2C, I2S, remote control, pulse counter, LED PWM, USB 1.1 OTG, USB Serial/JTAG controller, MCPWM, SDIO host, GDMA, TWAI controller (compatible with ISO 11898-1), ADC, touch sensor, temperature sensor, timers and watchdogs
Integrated Components on Module
• 40 MHz crystal oscillator
• 16 MB flash
• 2 MB PSRAM
Antenna Options
• On-board PCB antenna (ESP32-S3-WROOM-1)
Operating Conditions
• Operating voltage/Power supply: 3.0 ~ 3.6 V
• Operating ambient temperature: –40 ~ 85 °C
