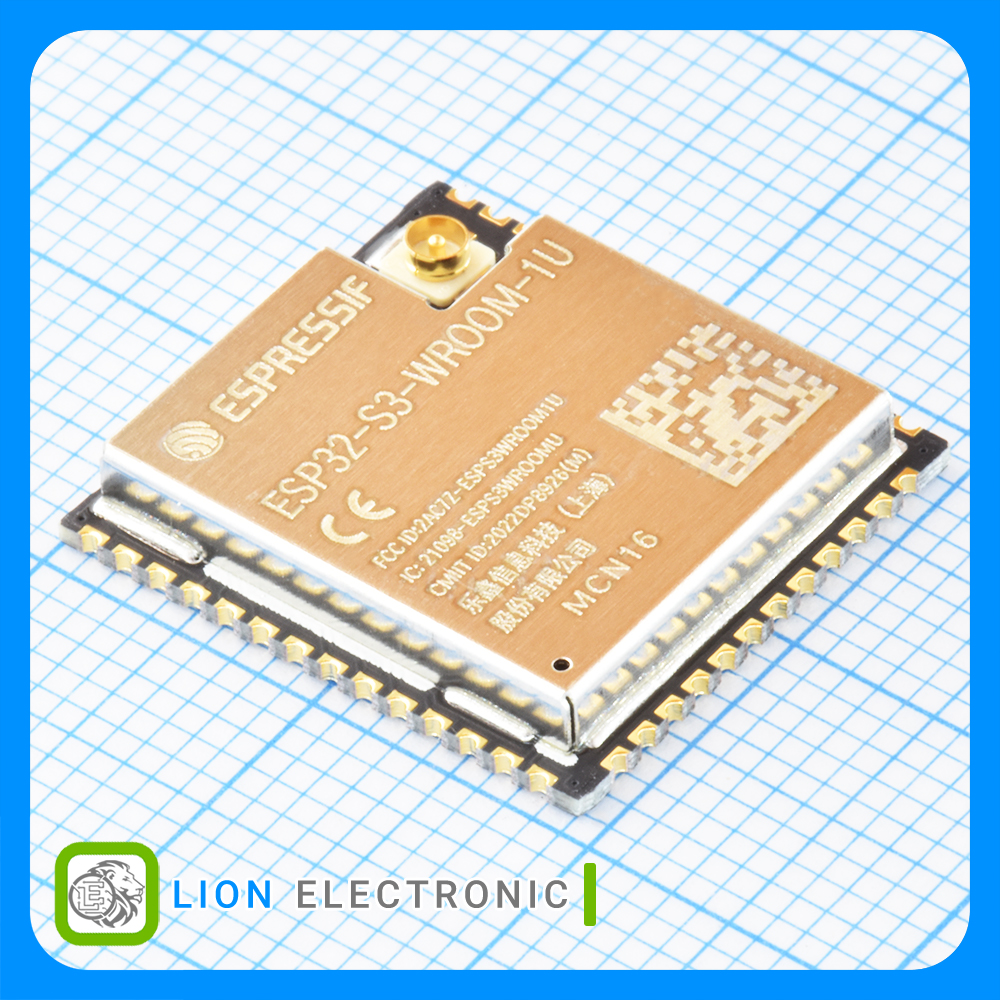

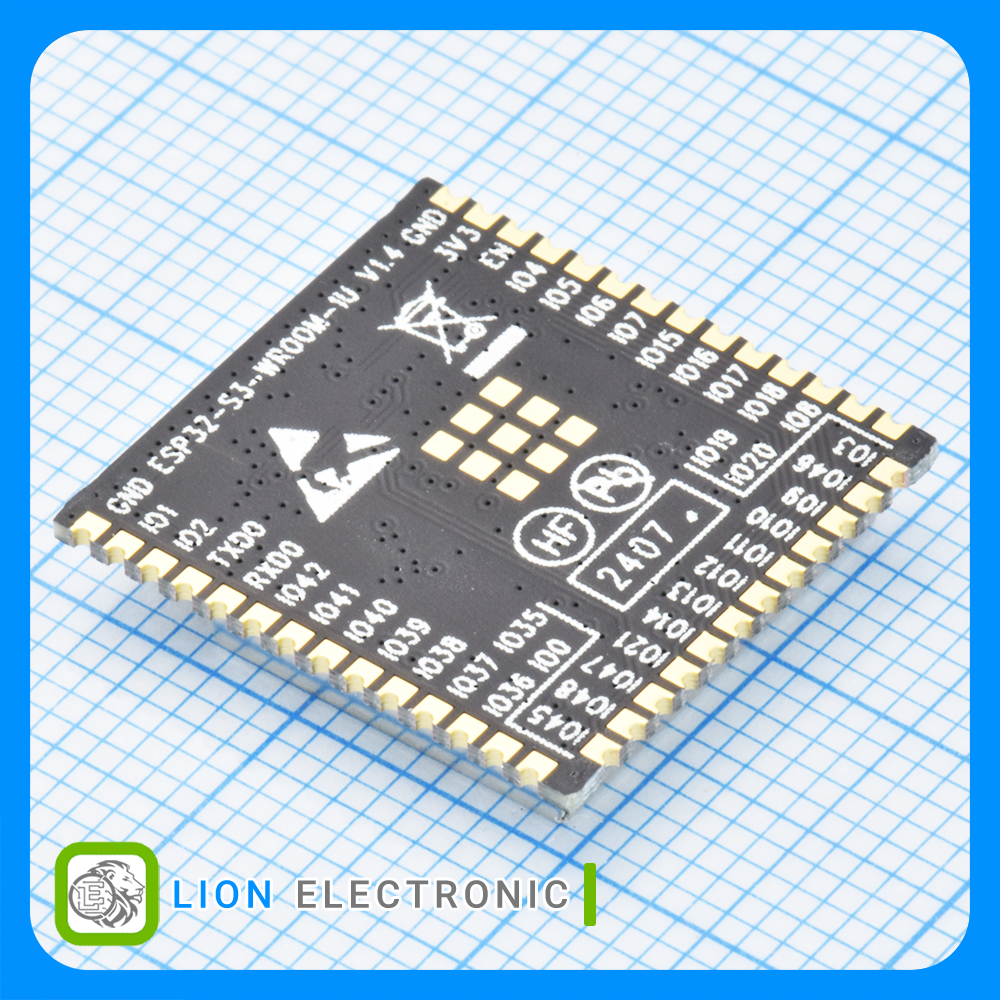

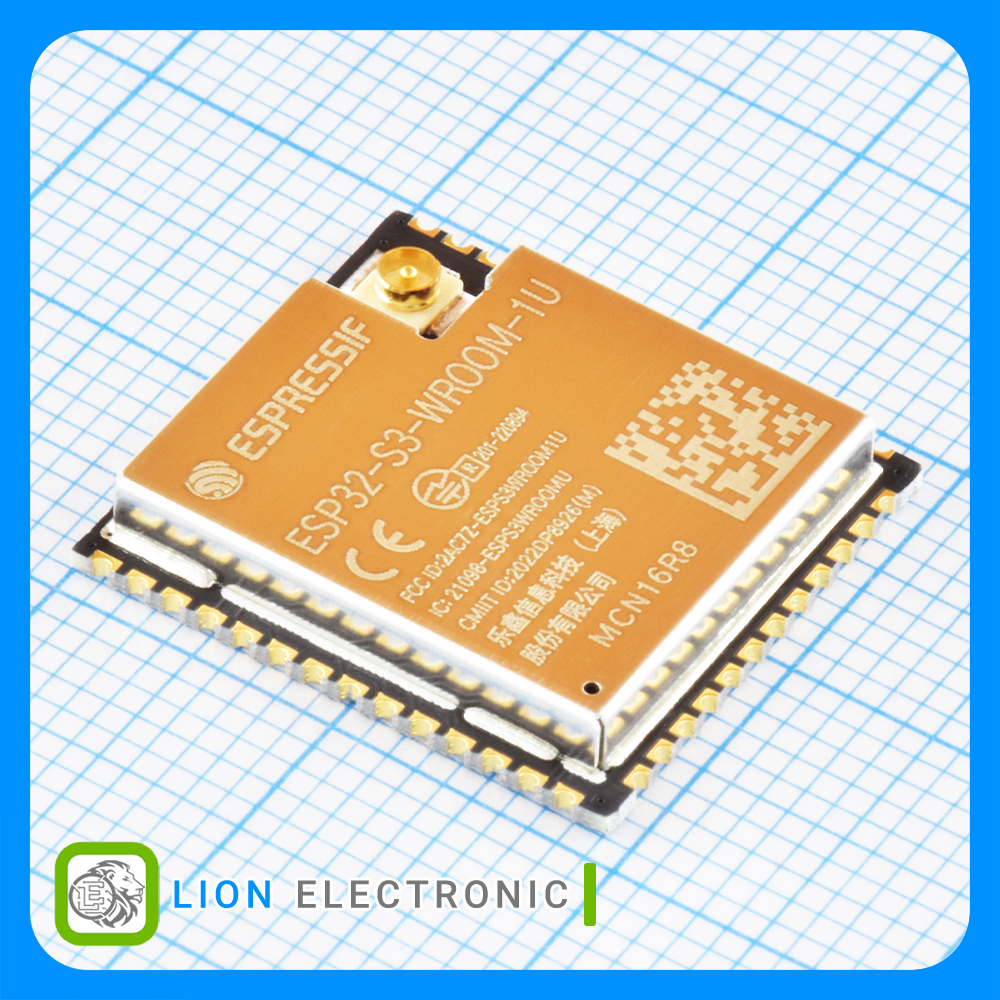

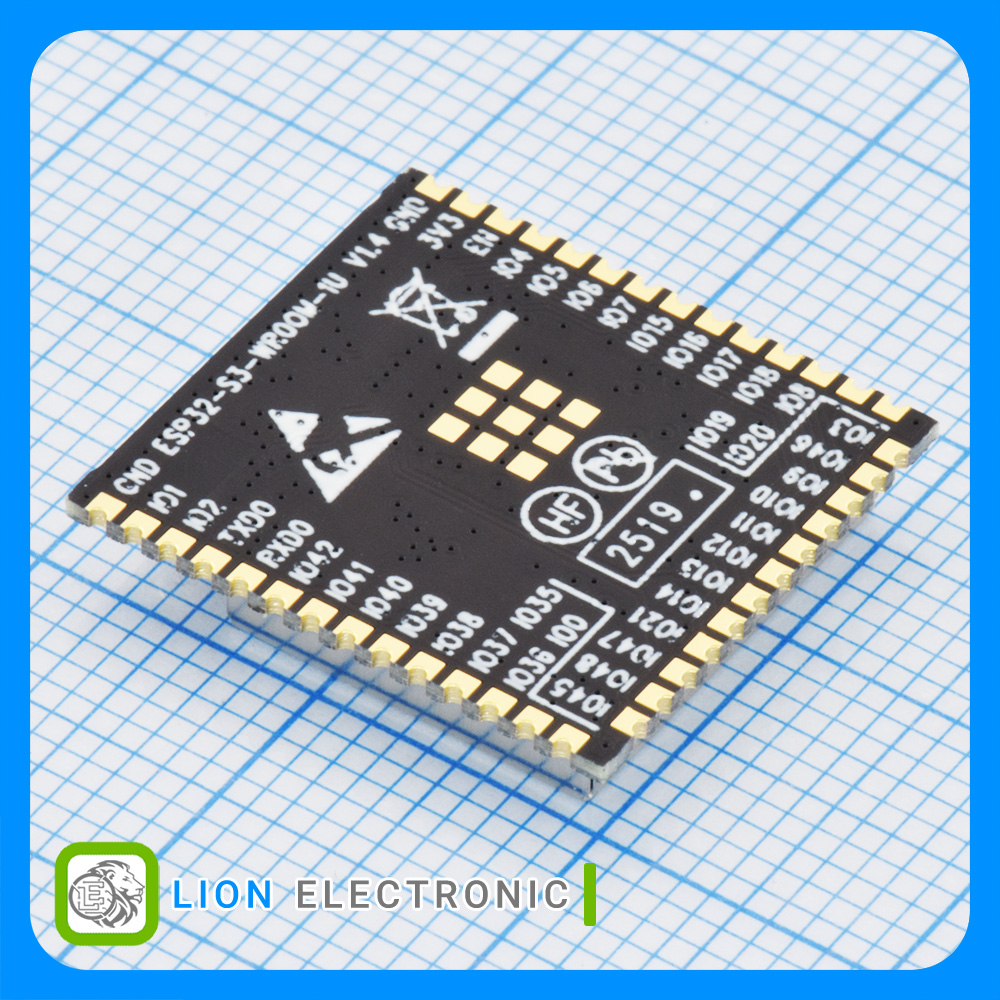

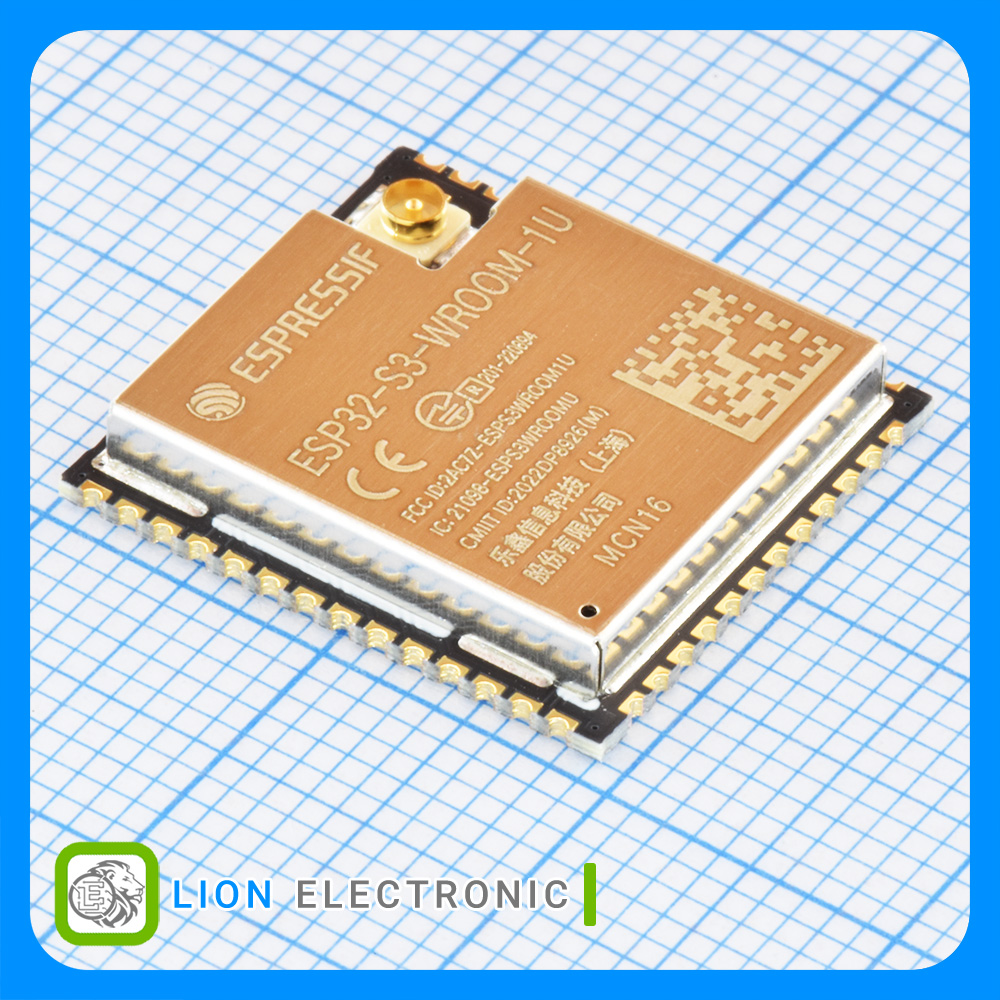

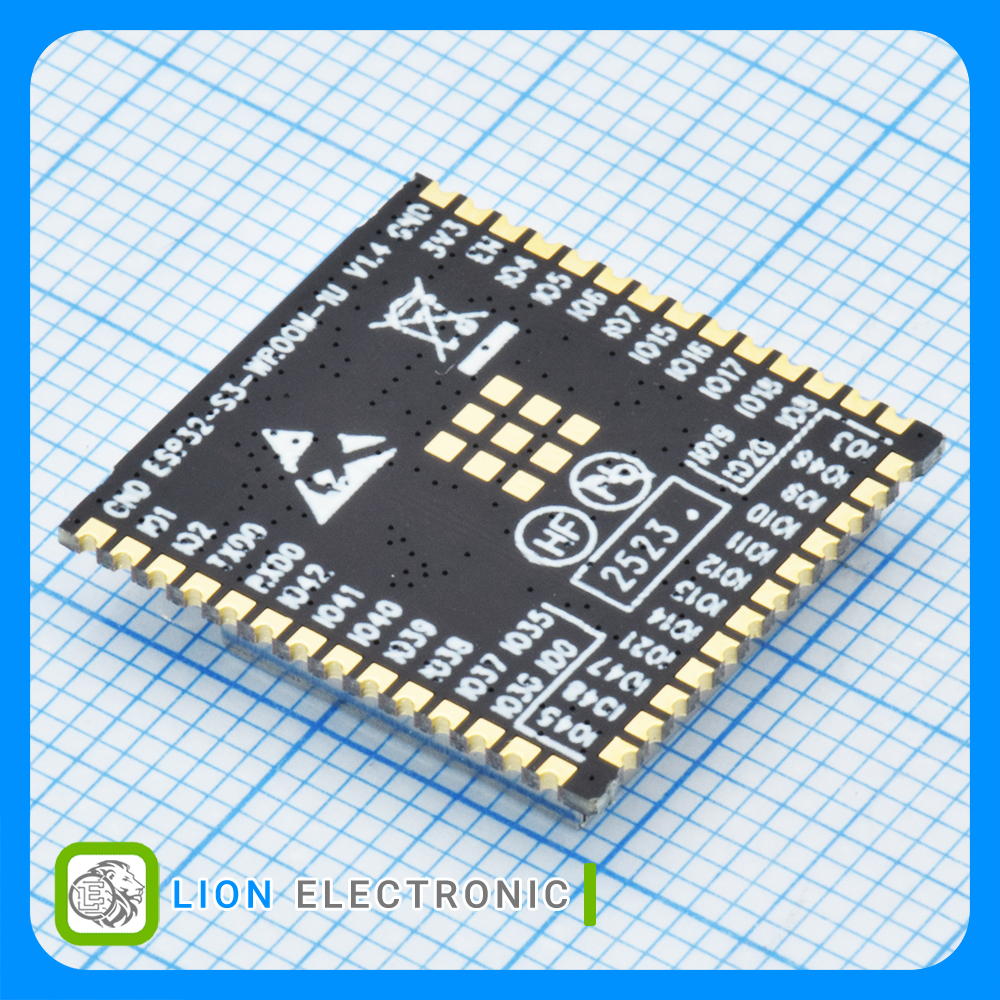

ماژول وای فای و بلوتوث ESP32-S3-WROOM-1U-N16

Part Number

ESP32-S3-WROOM-1U-N16

Datasheet

Manufacturer

Espressif

Description

2.4GHz WiFi (802.11 b/g/n) and Bluetooth 5 (LE) Module

16MB Flash

External Antenna Connector

36GPIOs

موجودی محصول

در صورت کمبود موجودی محصول می توانید آنرا به لیست استعلام اضافه نمایید تا توسط کارشناسان واحد سفارشات خارجی بررسی شده و نتیجه به شما اطلاع داده شود

قیمت محصول

تعداد	قیمت
1	2,513,170 ریال
10	2,459,698 ریال
50	2,406,226 ریال

معرفی

CPU and OnChip Memory
• ESP32-S3 series of SoCs embedded, Xtensa dual-core 32-bit LX7 microprocessor, up to 240 MHz
• 384 KB ROM
• 512 KB SRAM
• 16 KB SRAM in RTC
• Up to 8 MB PSRAM

WiFi
• 802.11 b/g/n
• Bit rate: 802.11n up to 150 Mbps
• A-MPDU and A-MSDU aggregation
• 0.4 µs guard interval support
• Center frequency range of operating channel: 2412 ~ 2484 MHz

Bluetooth
• Bluetooth LE: Bluetooth 5, Bluetooth mesh
• 2 Mbps PHY
• Long range mode
• Advertising extensions
• Multiple advertisement sets
• Channel selection algorithm #2

Peripherals
• GPIO, SPI, LCD interface, Camera interface, UART, I2C, I2S, remote control, pulse counter, LED PWM, USB 1.1 OTG, USB Serial/JTAG controller, MCPWM, SDIO host, GDMA, TWAI controller (compatible with ISO 11898-1), ADC, touch sensor, temperature sensor, timers and watchdogs

Integrated Components on Module
• 40 MHz crystal oscillator
• 16 MB flash

Antenna Options
• External antenna via a connector (ESP32-S3-WROOM-1U)

Operating Conditions
• Operating voltage/Power supply: 3.0 ~ 3.6 V
• Operating ambient temperature: –40 ~ 85 °C

مشخصات ماژول وای فای و بلوتوث ESP32-S3-WROOM-1U-N16

Part Number

ماژول وای فای و بلوتوث ESP32-S3-WROOM-1U-N16
Antenna Connector Type

IPEX
Minimum Operating Temperature

-40C
Packaging

Reel
Maximum Operating Temperature

+85C
Supply Current Transmitting

285mA, 286mA, 297mA, 355mA
Supply Current Receiving

95mA, 97mA
Dimensions

19.2mm x 18mm x 3.2mm
Frequency

2.4GHz
Interface Type

GPIO, I2C, I2S, SPI, UART
Output Power

20.5dBm
Operating Supply Voltage

3V to 3.6V
Product

Wi-Fi & Bluetooth (LE) & MCU Module
