Lelon
معرفی
خازن الکترولیت 330 میکروفاراد 10 ولت تلرانس 20% سایز 6.3 میلیمترx7.7 میلیمتر

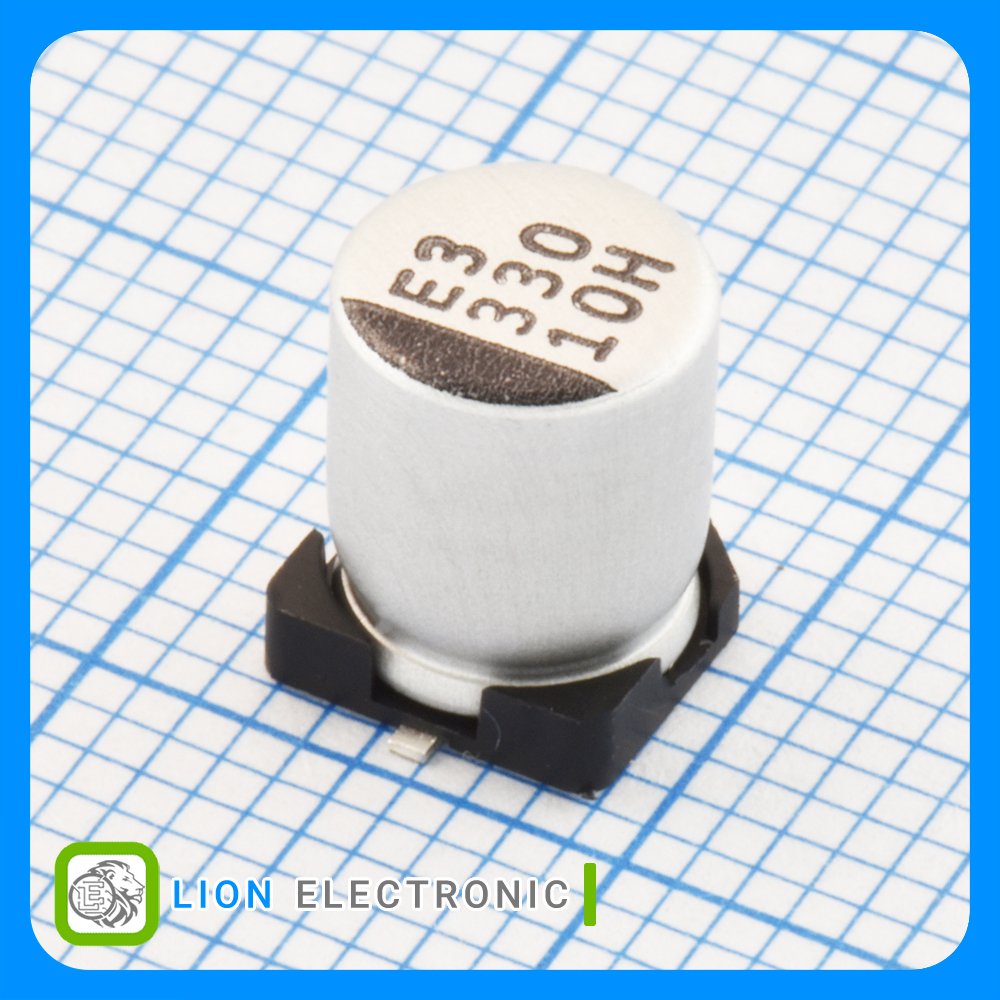

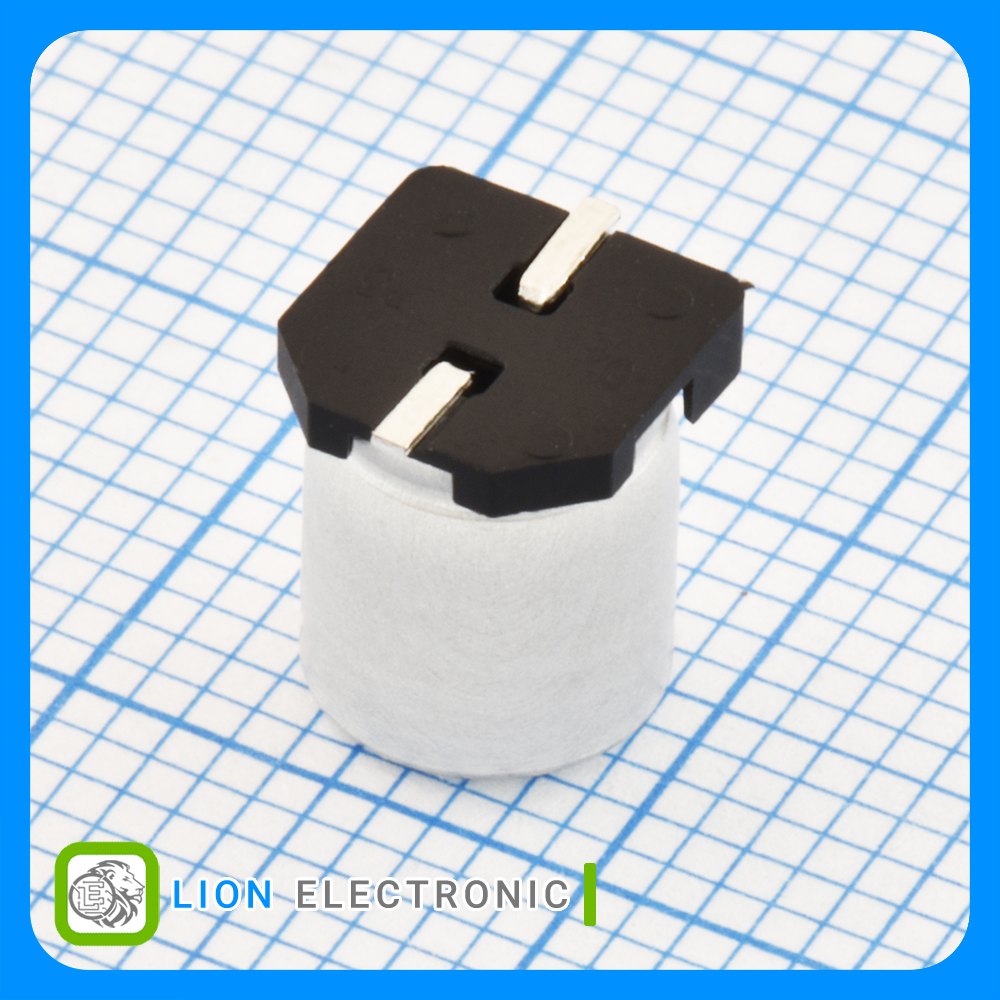

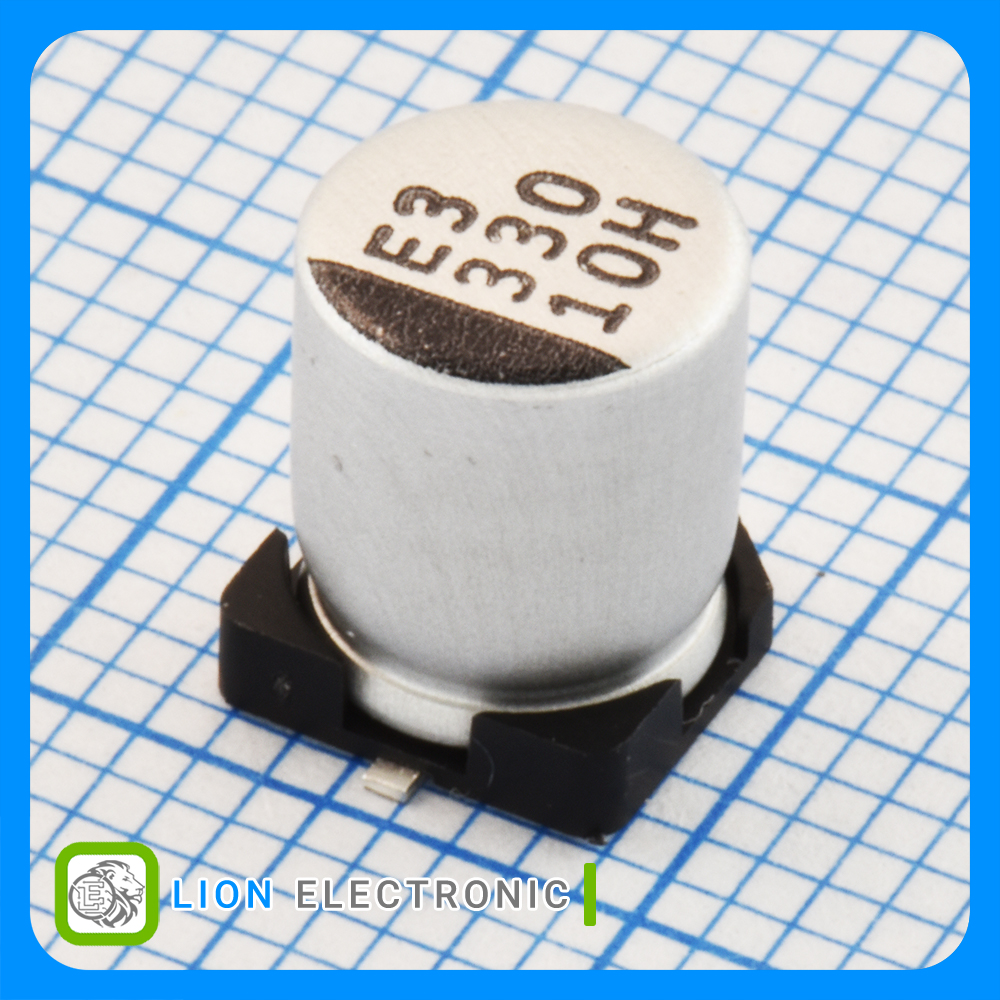

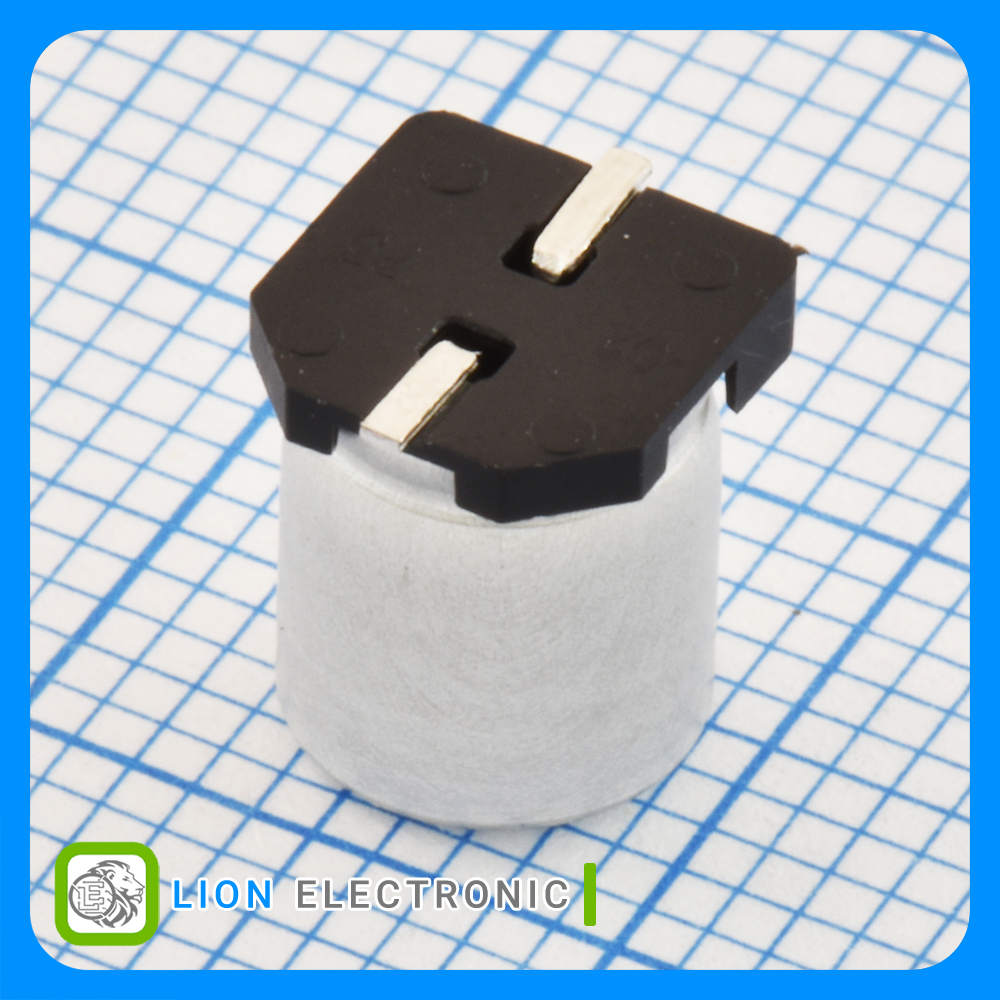

Aluminum Electrolytic Capacitor 330uF, 10V, 20% with 6.3mmx7.7mm Size
Specifications
- Life: 2000 Hour
- Capacitance: 330uF
- Voltage Rating DC: 10VDC
- Ripple Current: 450mA
- ESR: 170mΩ
- Tolerance: 20%
- Diameter: 6.3mm
- Height: 7.7mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات خازن VZH331M1ATR-0607
خازن VZH331M1ATR-0607
Part Number
2000 Hour
Life
-55C
Minimum Operating Temperature
10VDC
Voltage Rating DC
Reel
Packaging
6.3mm
Diameter
20%
Tolerance
+105C
Maximum Operating Temperature
450mA
Ripple Current
170mΩ
ESR
7.7mm
Height
330uF
Capacitance
