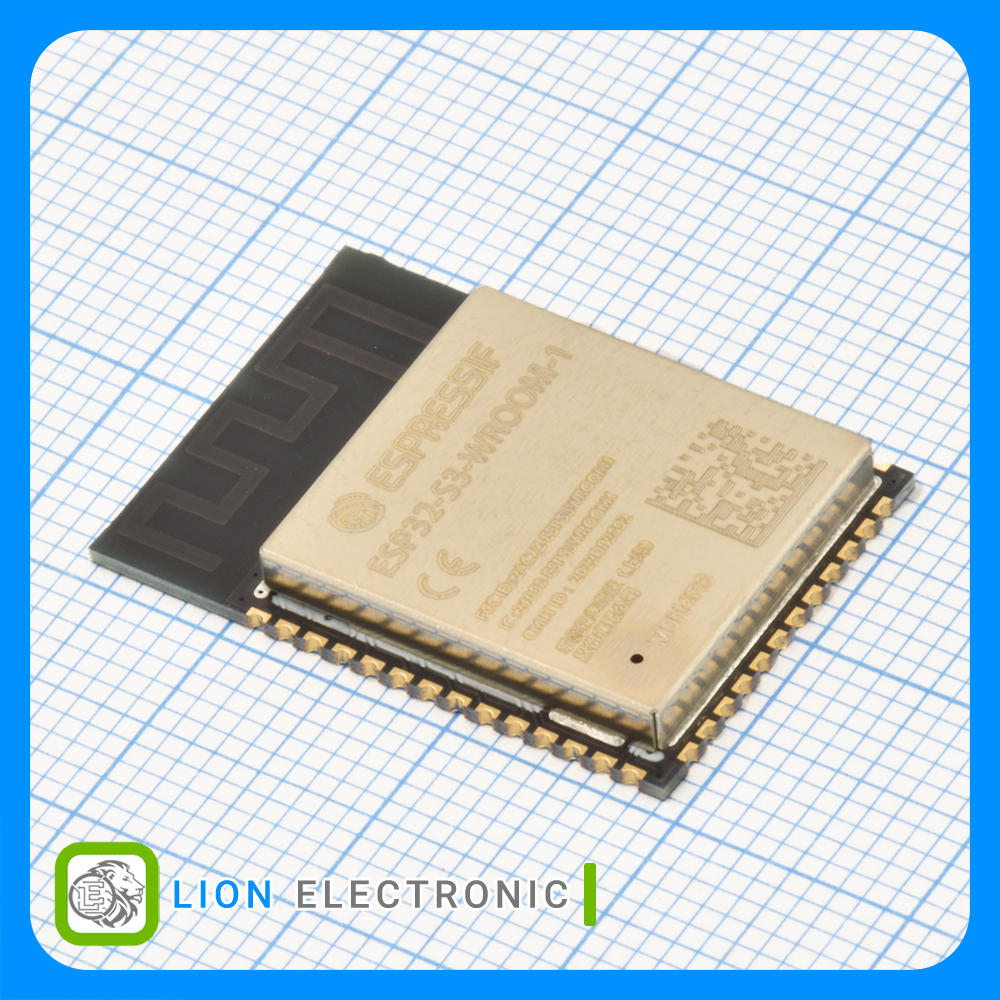

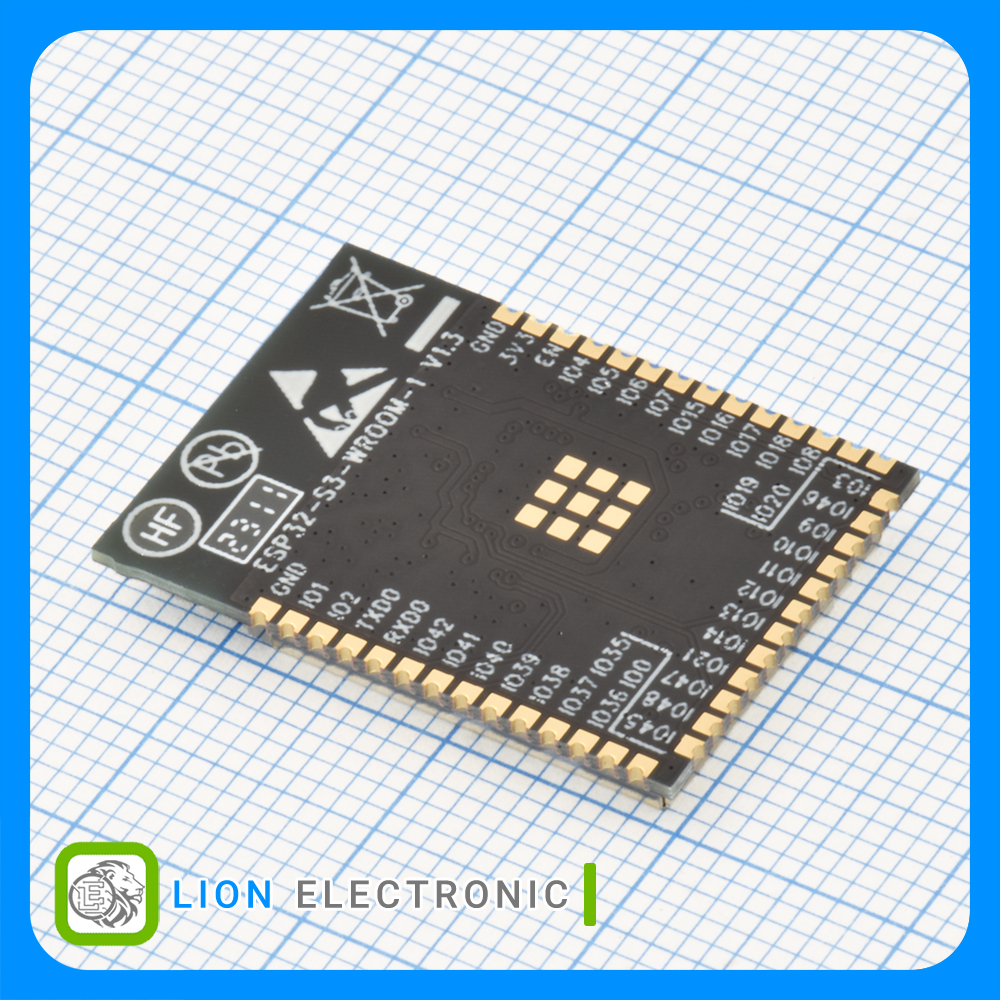

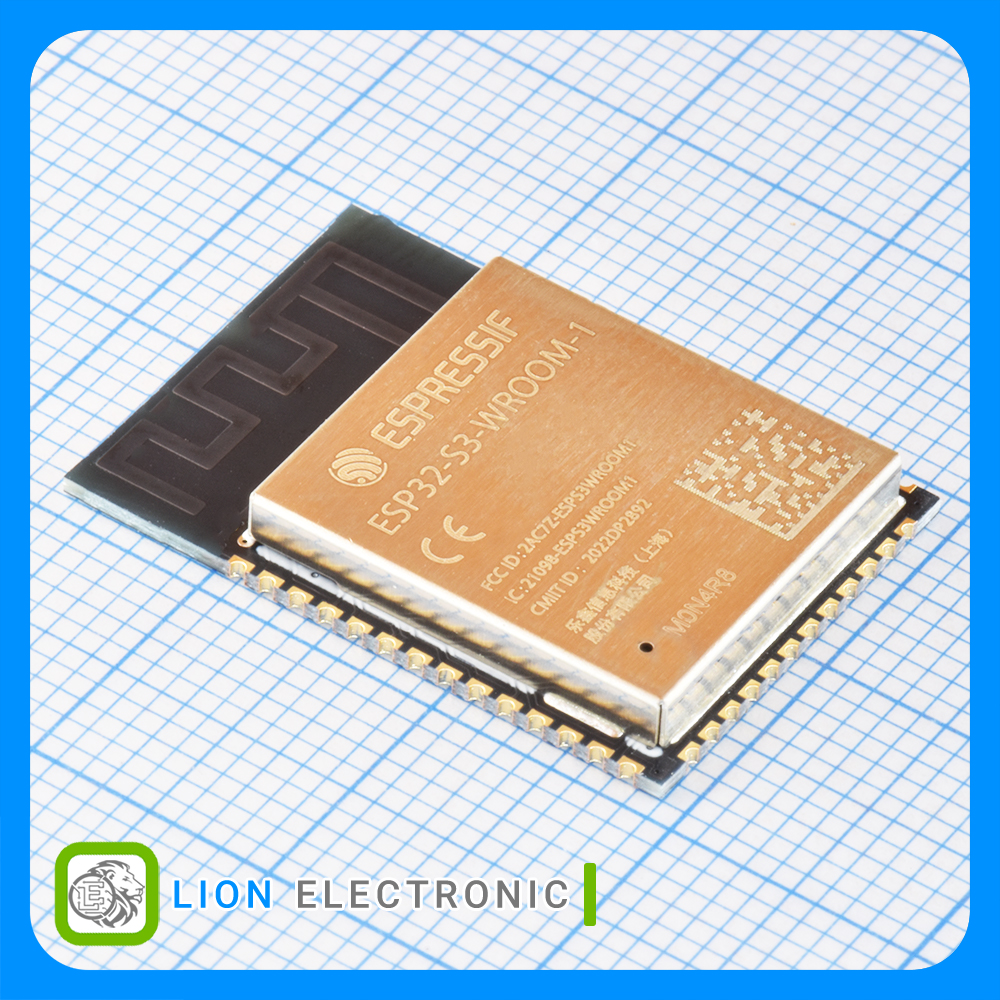

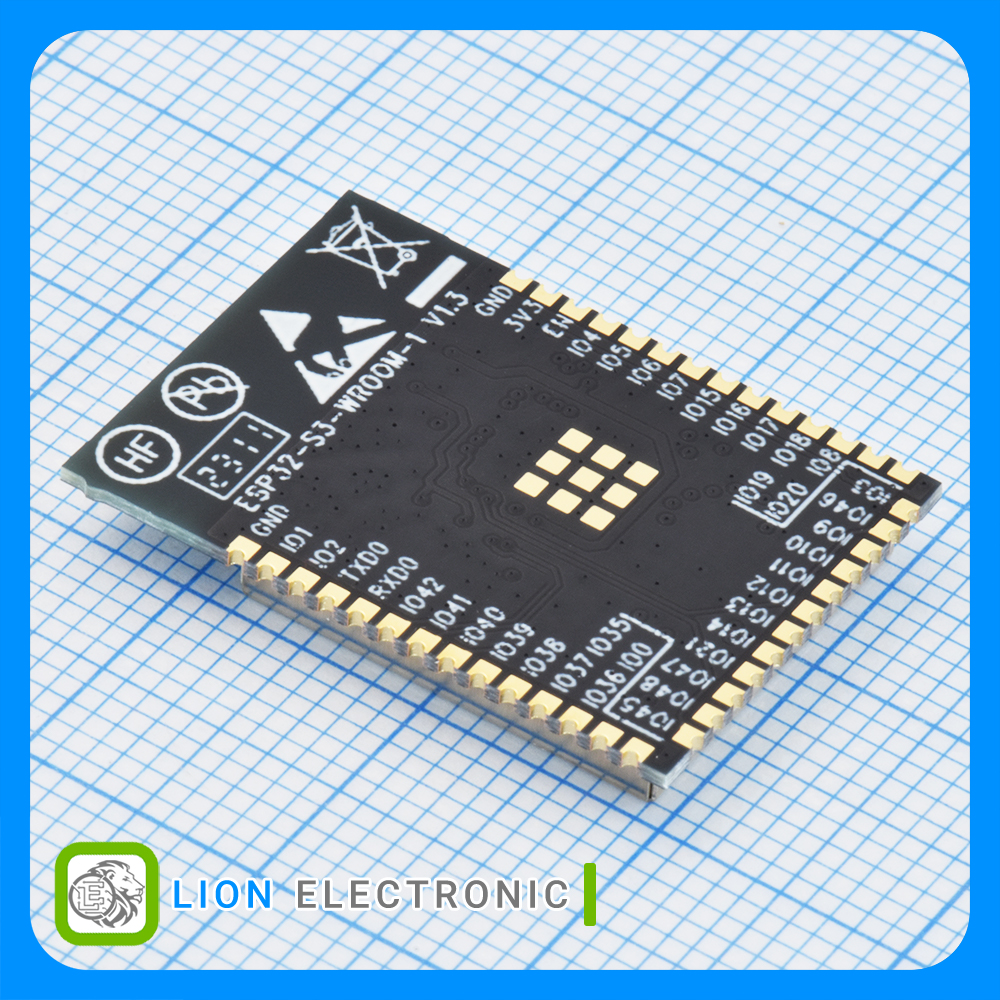

ماژول وای فای و بلوتوث ESP32-S3-WROOM-1-N4R8

ماژول وای فای و بلوتوث ESP32-S3-WROOM-1-N4R8

Part Number
ESP32-S3-WROOM-1-N4R8
Datasheet
Manufacturer
Espressif
Espressif
Description

General-Purpose Wi-Fi + Bluetooth MCU Module

4MB of Flash Memory

8MB of PSRAM

موجودی محصول
24

در صورت کمبود موجودی محصول می توانید آنرا به لیست استعلام اضافه نمایید تا توسط کارشناسان واحد سفارشات خارجی بررسی شده و نتیجه به شما اطلاع داده شود

قیمت محصول
تعداد قیمت
1 3,634,890 ریال
5 3,569,981 ریال
50 3,505,072 ریال
معرفی

ESP32-S3-WROOM-1 is a general-purpose Wi-Fi + Bluetooth MCU modules with rich peripheral interfaces, powerful neural network computing capabilities and signal processing capabilities, and are designed for artificial intelligence The two modules created in the AIoT market are suitable for a variety of application scenarios, such as wake word detection and voice command recognition, face detection and recognition, smart home, smart home appliances, smart control panels, smart speakers, etc. ESP32-S3-WROOM-1 uses PCB onboard antenna.

Features:

  • Core: Xtensa® dual-core 32-bit LX7 CPU, frequency up to 240MHz
  •  Memories:
    • 384 KB of ROM
    • 512 KB of SRAM
    • 16 KB of RTCSRAM
    • 4 MB of Flash memory
    • 8 MB of PSRAM
  • Working Voltage: 3 V to 3.6 V
    • Up to 36 GPIOs
    • 4 strapping GPIOs
    • 12 GPIOs need for flash/PSRAM
    • 2*12-bit ADC (up to 20 channels)
  • Communication interfaces
    • 2 I2C interfaces
    • 2 I2S interface
    • 4 SPI interfaces
    • 3 UART interfaces
    • 1 USB OTG interface
  • Security:
    • 4096 bit OTP
    • AES, SHA, RSA, ECC, RNG
    • Secure Boot, Flash Encryption, Digital signature, HMAC module
  • Extended temperature range: -40 to 65 °C

مشخصات ماژول وای فای و بلوتوث ESP32-S3-WROOM-1-N4R8

  • Part Number
    ماژول وای فای و بلوتوث ESP32-S3-WROOM-1-N4R8
  • Packaging
    Bulk
  • Antenna Connector Type
    PCB
  • Minimum Operating Temperature
    -40C
  • Maximum Operating Temperature
    + 65C
  • Supply Current Transmitting
    285mA, 286mA, 297mA, 355mA
  • Supply Current Receiving
    95mA, 97mA
  • Frequency
    2.4GHz
  • Dimensions
    25.5mm x 18mm x 3.1mm
  • Output Power
    20.5dBm
  • Operating Supply Voltage
    3V to 3.6V
  • Interface Type
    I2C, I2S, SPI, PWM, UART, USB
  • Product
    Wi-Fi & Bluetooth (LE) & MCU Module
