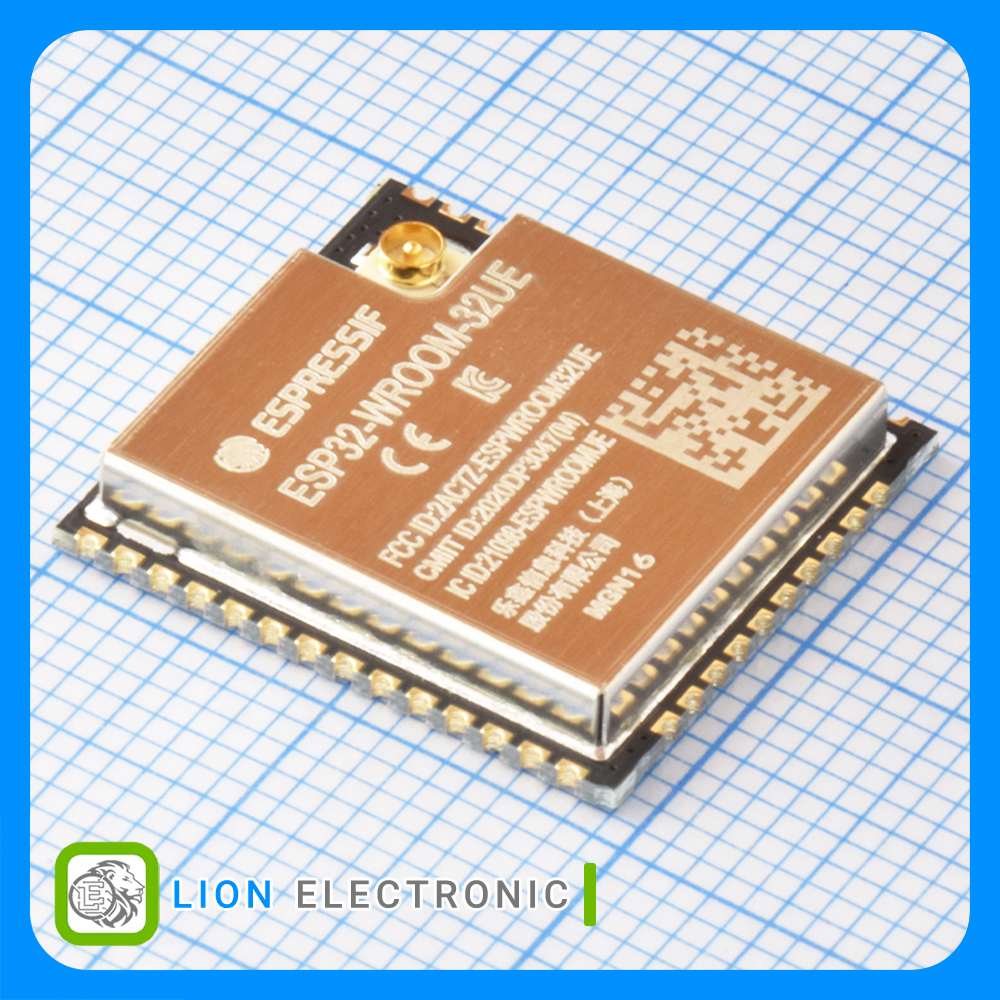

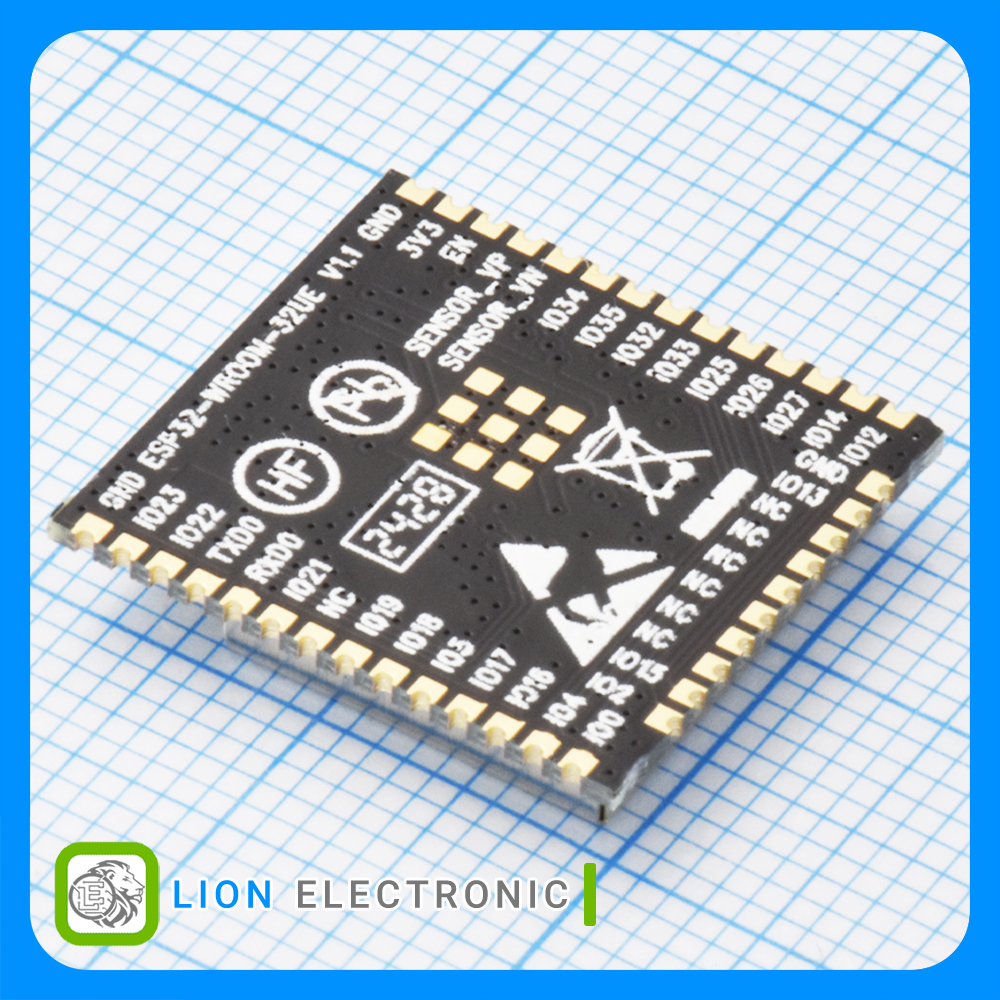

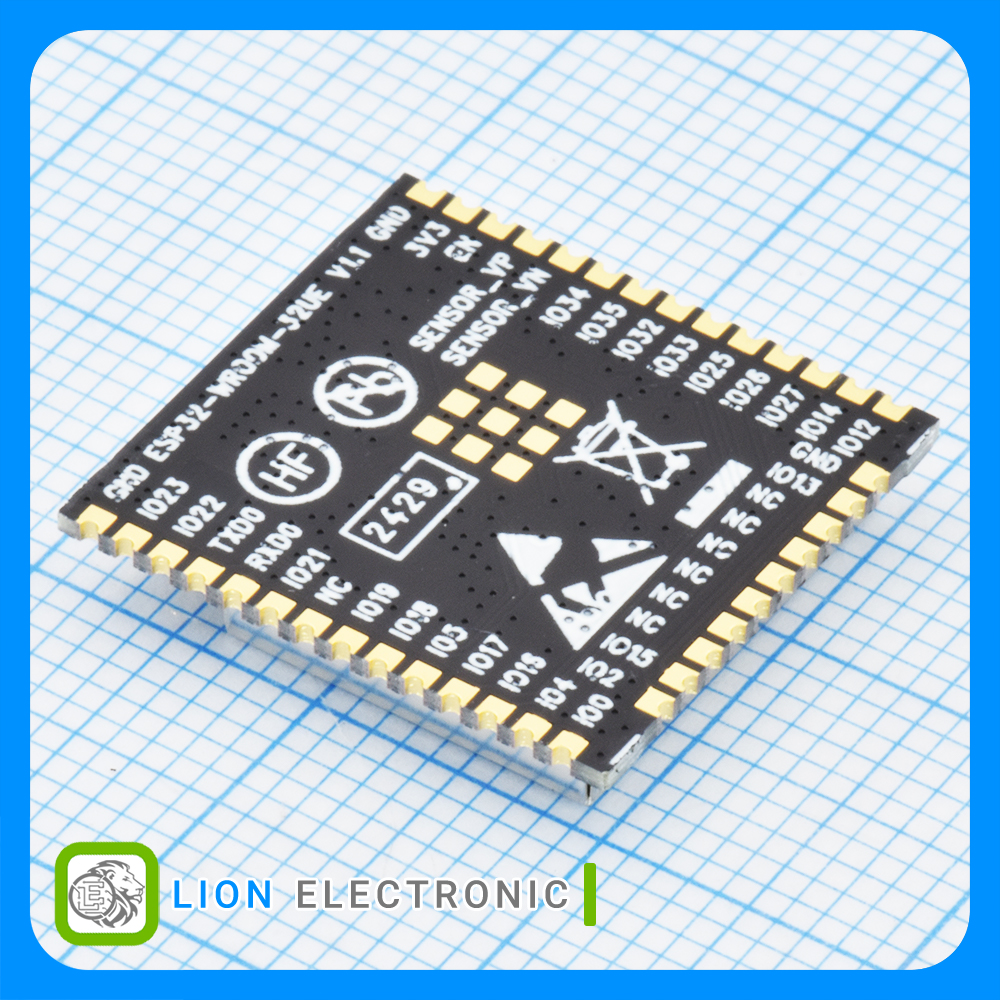

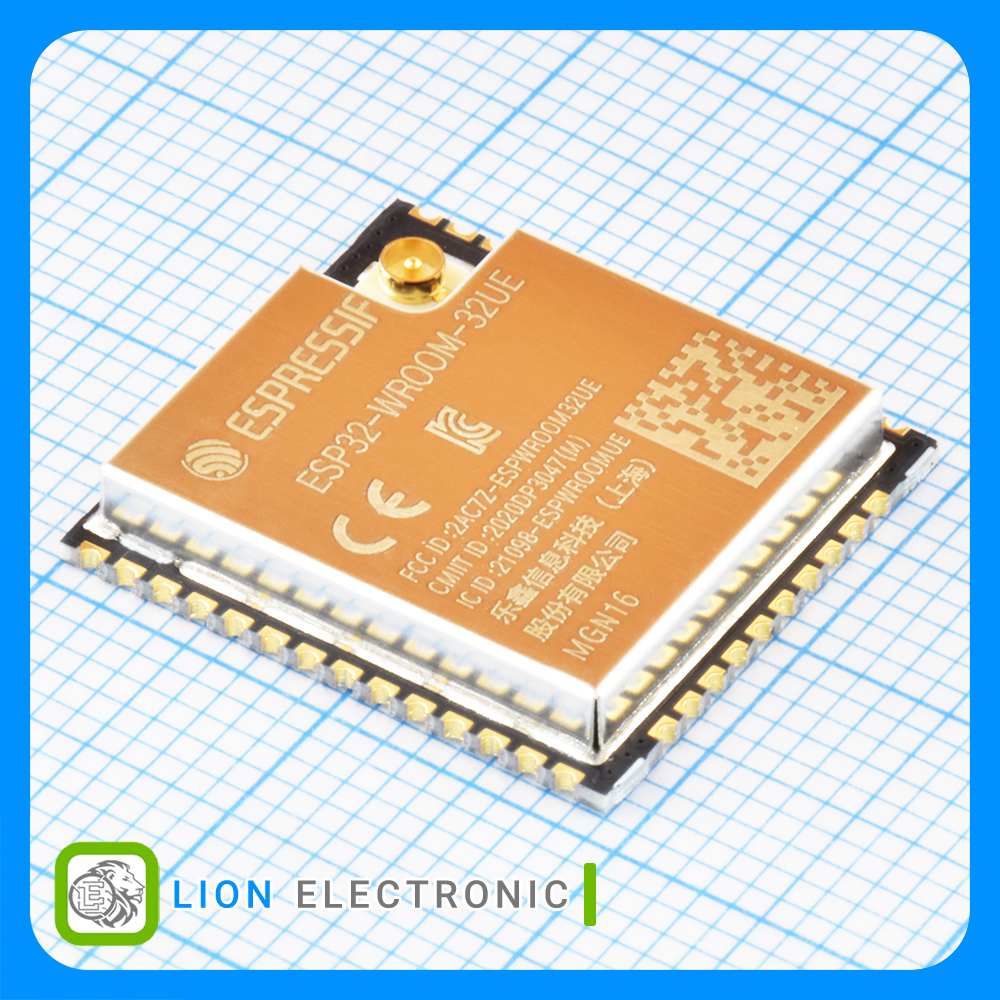

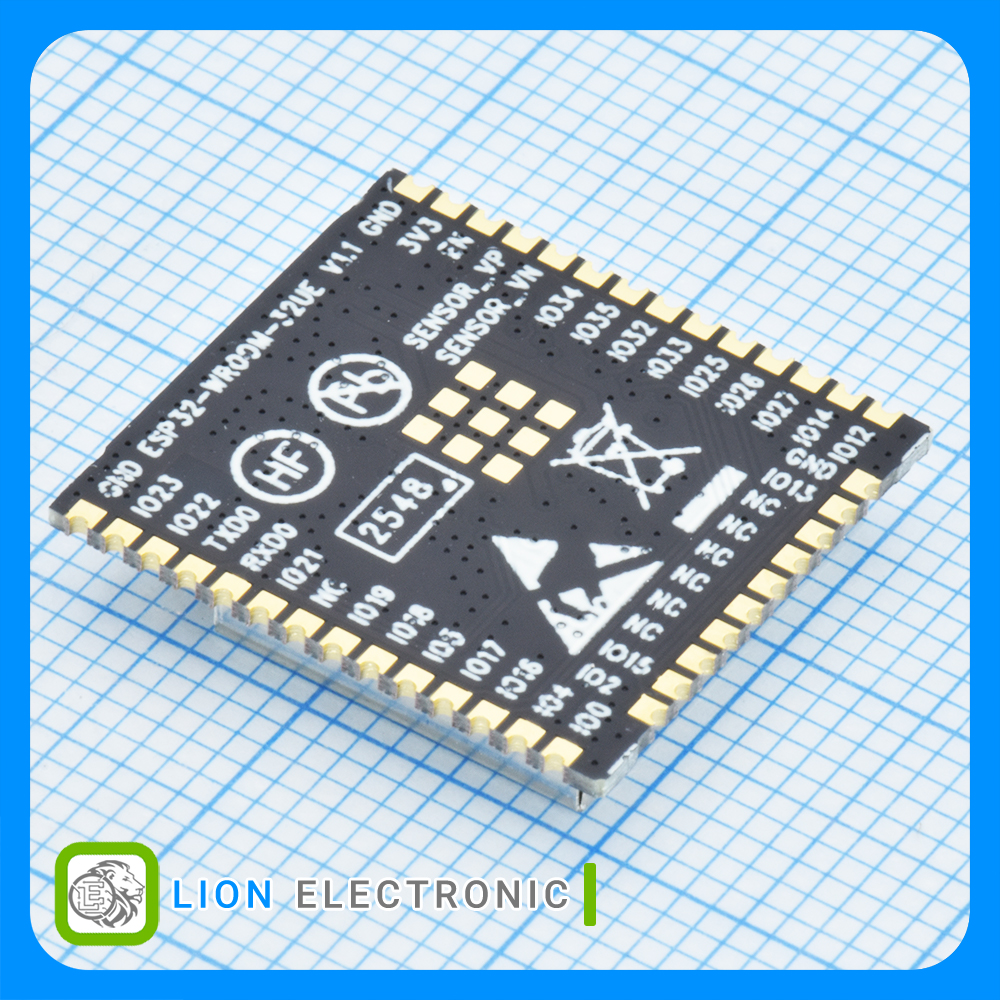

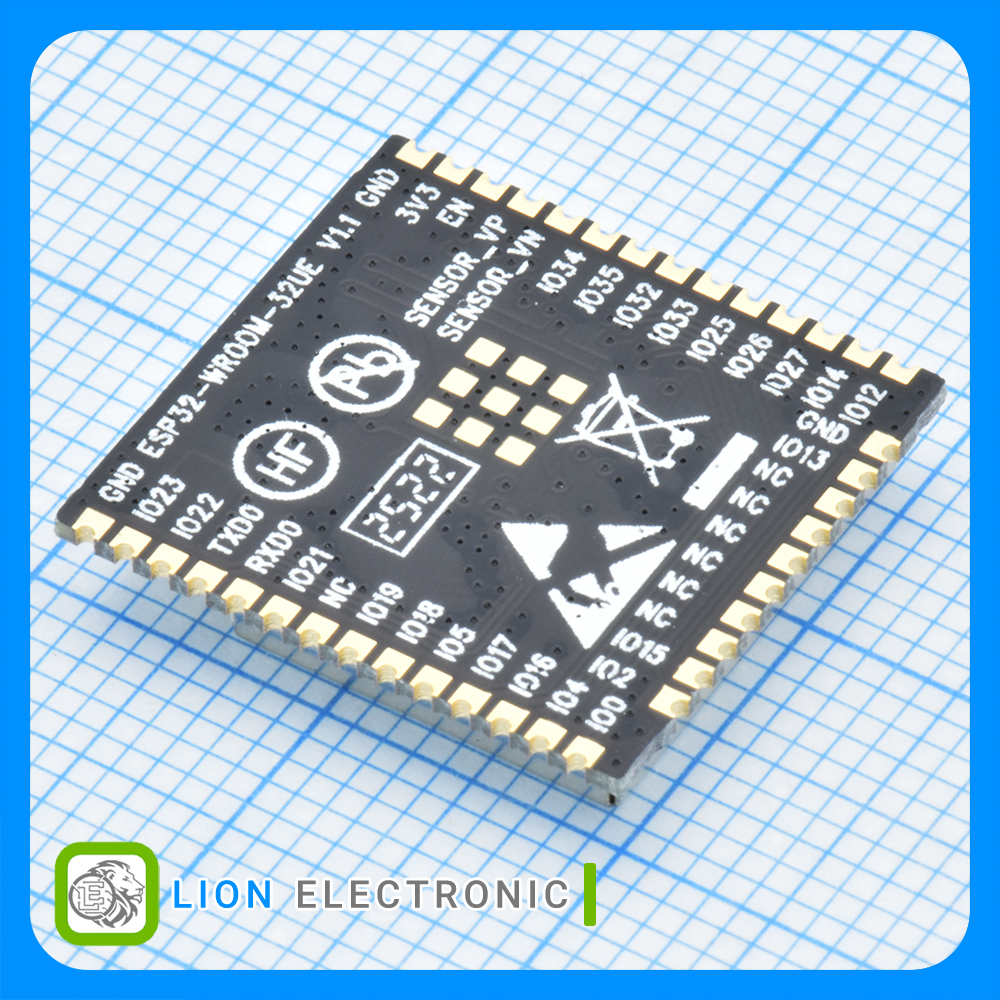

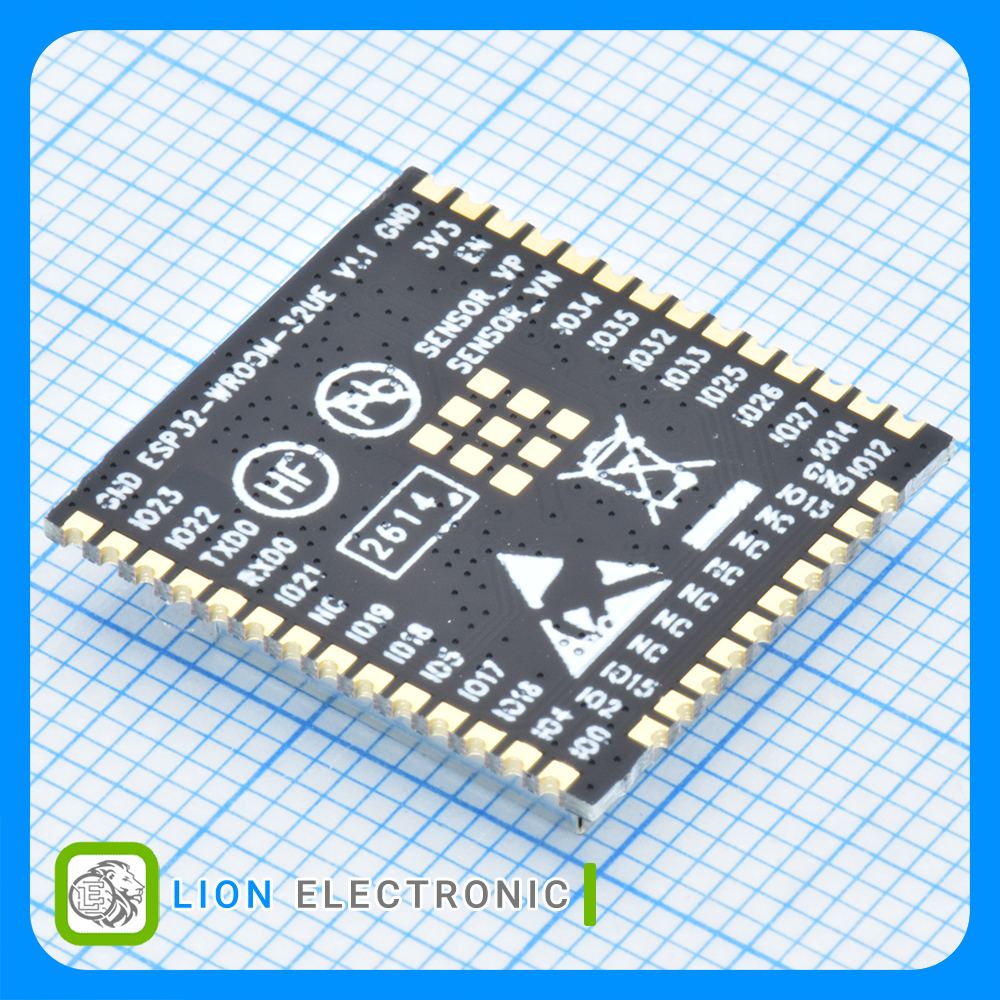

ESP32-WROOM-32UE-N16
ESP32-WROOM-32UE-N16
Part Number
3469
Lion Part
Datasheet
Espressif Manufacture
ماژول ESP32 سری ESP32 با فرکانس 240 مگاهرتز و 26 پایه GPIO، ولتاژ تغذیه 3 تا 3.6 ولت، 2.4 گیگاهرتز Wi-Fi + Bluetooth + Bluetooth LE، فلش 16MB، کانکتور آنتن خارجی با آنتن IPEX
ESP32 Module ESP32, 240MHz with 26 GPIOs, 3-3.6V, 2.4GHz Wi-Fi + Bluetooth + Bluetooth LE, 16MB Flash, External Antenna Connector with IPEX Antenna
معرفی
CPU and On-Chip Memory
- ESP32-D0WD-V3 embedded, Xtensa dual-core 32-bit LX6 microprocessor, up to 240 MHz
- 448 KB ROM
- 520 KB SRAM
- 16 KB SRAM in RTC
Wi-Fi
- 802.11 b/g/n
- Bit rate: 802.11n up to 150 Mbps
- A-MPDU and A-MSDU aggregation
- 0.4 µs guard interval support
- Center frequency range of operating channel: 2412 ~ 2484 MHz
Bluetooth
- Bluetooth v4.2 BR/EDR and BLE specifications
- Class-1, class-2 and class-3 transmitter
- AFH (Adaptive Frequency Hopping)
- NZIF receiver with –97 dBm sensitivity
Peripherals
- SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensors, ADC, DAC, TWAI® controller (compatible with ISO 11898-1), Hall sensor, timers and watchdogs
Integrated Components on Module
- 40 MHz crystal oscillator
- 16 MB SPI flash
Antenna Options
- External antenna via a connector (IPEX connector)
Operating Conditions
- Operating voltage/Power supply: 3.0 ~ 3.6 V
- Operating ambient temperature: –40 ~ 85 °C
مشخصات ماژول وایفای و بلوتوث ESP32-WROOM-32UE-N16
ماژول وایفای و بلوتوث ESP32-WROOM-32UE-N16
Part Number
IPEX
Antenna Connector Type
Reel
Packaging
-40C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
26
Number of I-Os
ESP32
Series
239mA
Supply Current Transmitting
240MHz
Frequency
18mm x 19mm x 3.2mm
Dimensions
118mA
Supply Current Receiving
I2C, I2S, PWM, SDIO, SPI, UART
Interface Type
19.5dBm
Output Power
3 - 3.6V
Operating Supply Voltage
Wi-Fi & Bluetooth (LE) & MCU Module
Product
