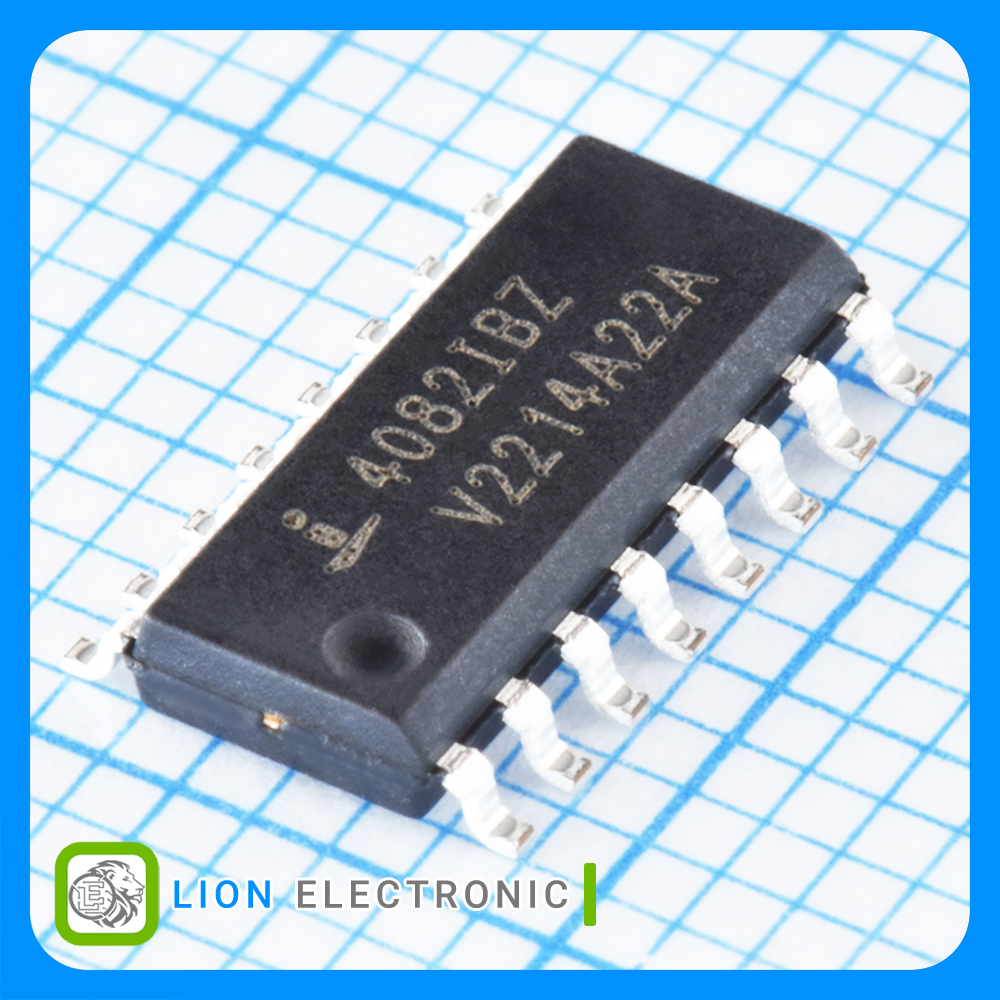

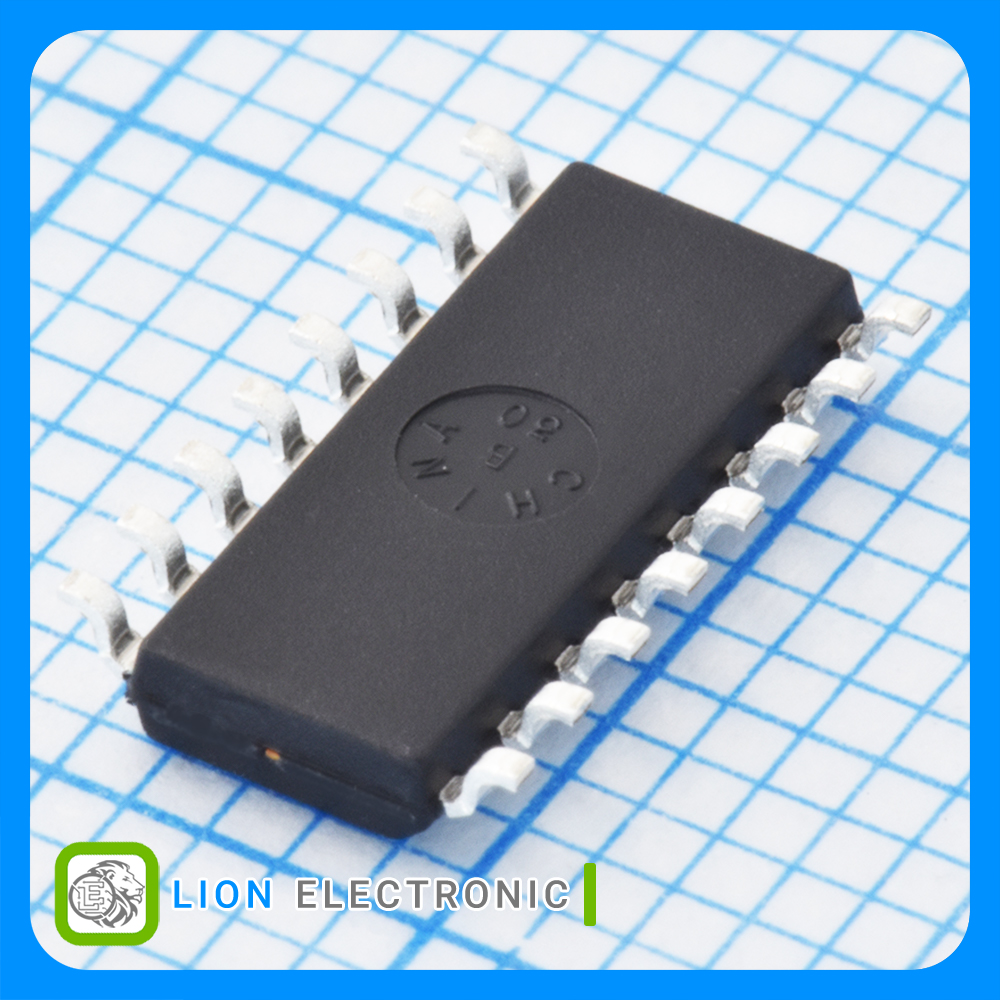

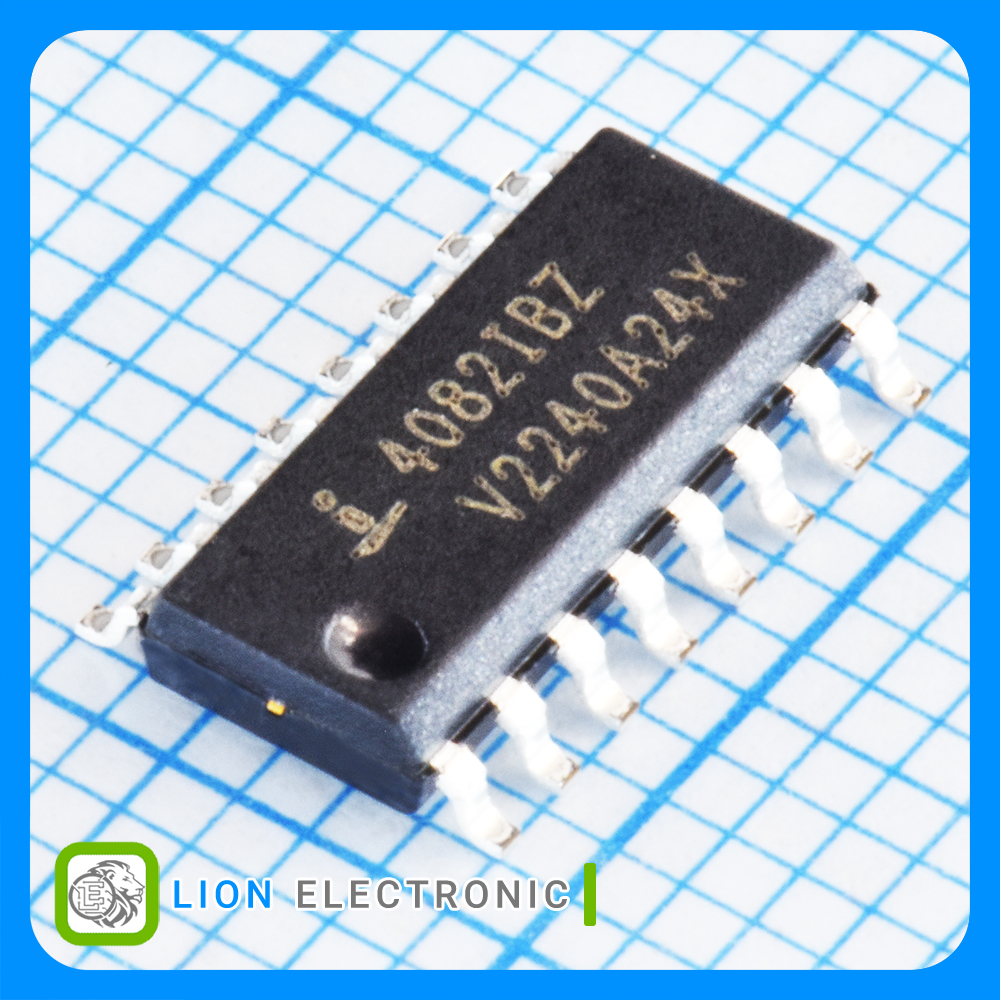

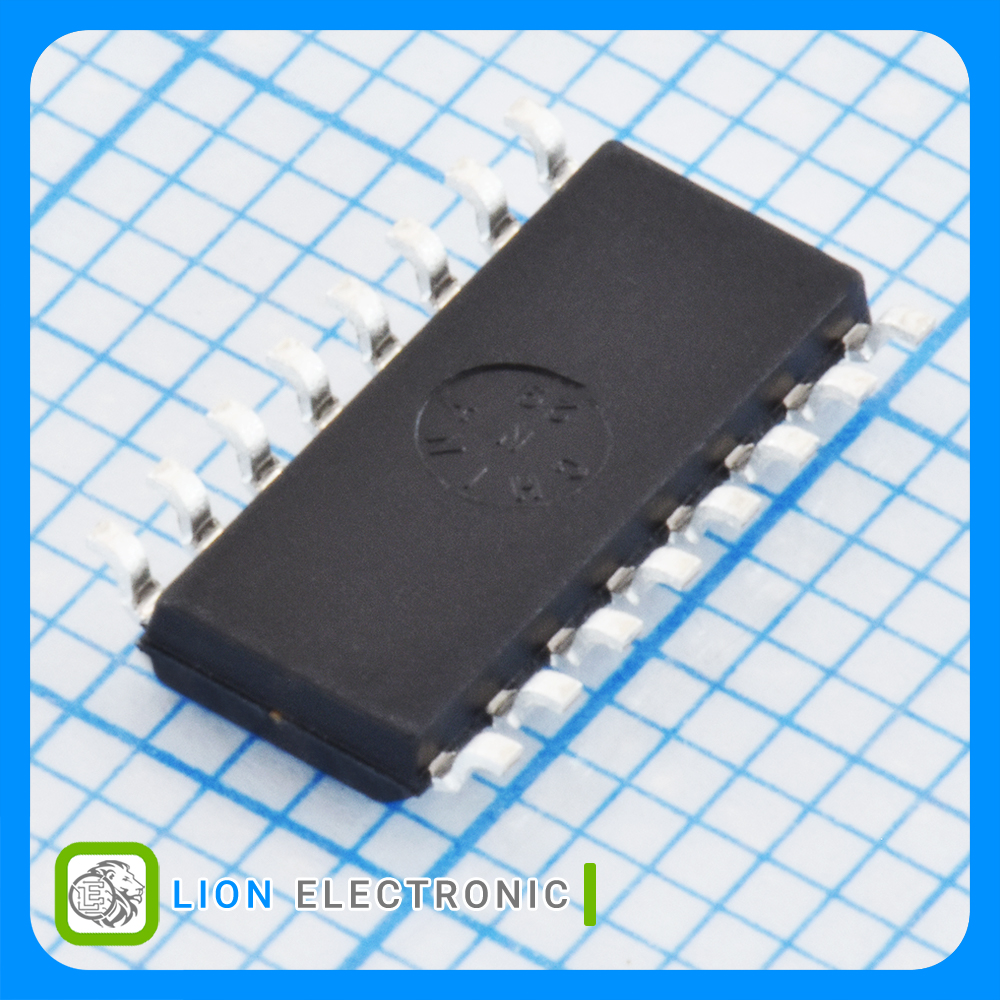

HIP4082IBZ
HIP4082IBZ
Part Number
3674
Lion Part
Datasheet
Renesas Electronics Manufacture
گیت درایور تمامپل 15 ولت جریان خروجی 1.25 آمپر با پکیج SOIC-Narrow-16
Full-Bridge Gate Driver 15V, 1.25A with SOIC-Narrow-16 Package
معرفی
گیت درایور تمامپل 15 ولت جریان خروجی 1.25 آمپر با پکیج SOIC-Narrow-16
Full-Bridge Gate Driver 15V, 1.25A with SOIC-Narrow-16 Package
Specifications
- Configuration: Full-Bridge
- Output Current: 1.25A
- Supply Voltage - Min: 8.5V
- Supply Voltage - Max: 15V
- Operating Supply Current: 6.6mA
- Dead Time: 8.5us
- Propagation Delay - Max: 150ns
- Pd - Power Dissipation: 2.3W
- Number of Outputs: 4
- Mounting Style: SMD/SMT
- Package/Case: SOIC-Narrow-16
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات گیت درایور HIP4082IBZ
گیت درایور HIP4082IBZ
Part Number
8.5us
Dead Time
-55C
Minimum Operating Temperature
4
Number of Outputs
N/A
Floating Voltage
Tube
Packaging
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
Full-Bridge
Configuration
150ns
Propagation Delay - Max
15V
Supply Voltage - Max
1.25A
Output Current
8.5V
Supply Voltage - Min
2.3W
Pd - Power Dissipation
6.6mA
Operating Supply Current
SOIC-Narrow-16
Package-Case
