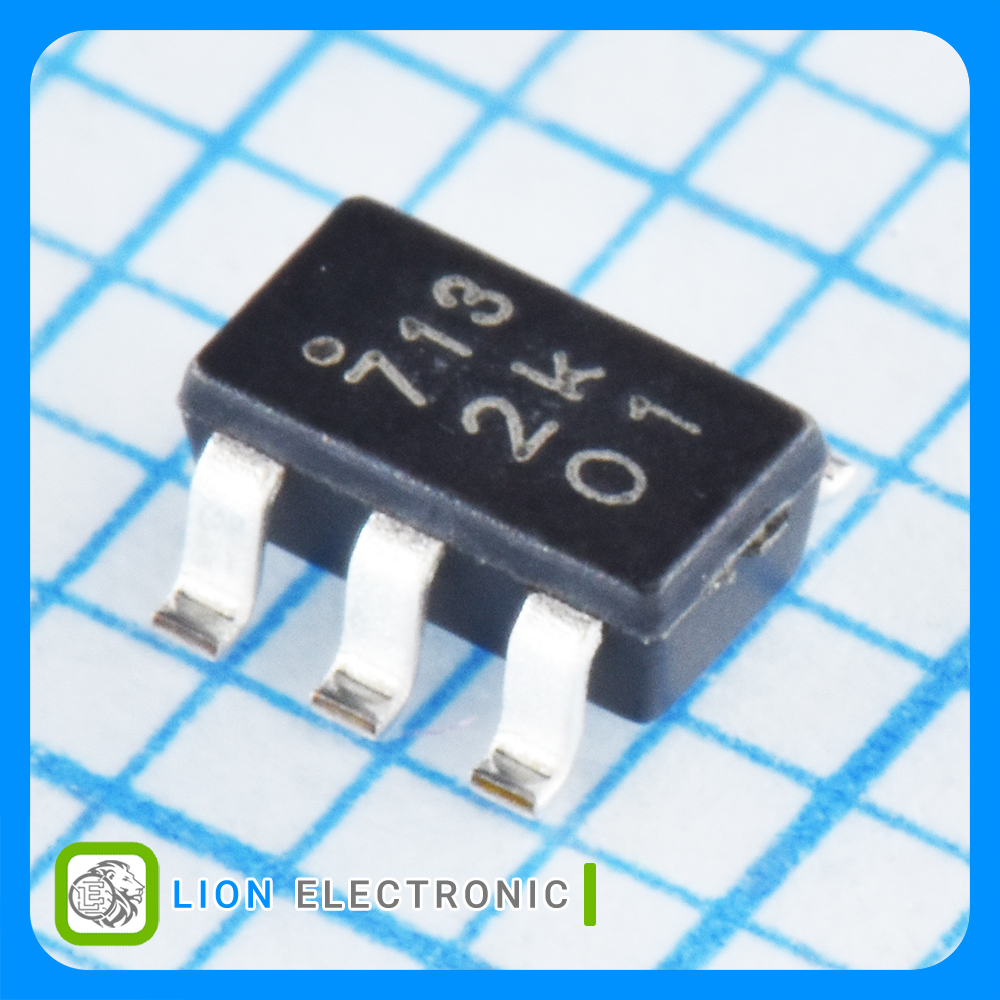

1ED44173N01BXTSA1
1ED44173N01BXTSA1
Part Number
3773
Lion Part
Datasheet
Infineon Technologies Manufacture
گیت درایور تکی 20 ولت جریان خروجی 2.6 آمپر با پکیج SOT-23-6
Single Gate Driver 20V, 2.6A with SOT-23-6 Package
معرفی
گیت درایور تکی 20 ولت جریان خروجی 2.6 آمپر با پکیج SOT-23-6
Single Gate Driver 20V, 2.6A with SOT-23-6 Package
Specifications
- Configuration: Single
- Output Current: 2.6A
- Supply Voltage - Min: 8.6V
- Supply Voltage - Max: 20V
- Operating Supply Current: 700uA
- Propagation Delay - Max: 45ns
- Pd - Power Dissipation: 500mW
- Number of Outputs: 1
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-6
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات 1ED44173N01BXTSA1
1ED44173N01BXTSA1
Part Number
1
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
N/A
Floating Voltage
SMD/SMT
Mounting Style
N/A
Dead Time
45ns
Propagation Delay - Max
+125C
Maximum Operating Temperature
Single
Configuration
500mW
Pd - Power Dissipation
20V
Supply Voltage - Max
8.6V
Supply Voltage - Min
2.6A
Output Current
700uA
Operating Supply Current
SOT-23-6
Package-Case
