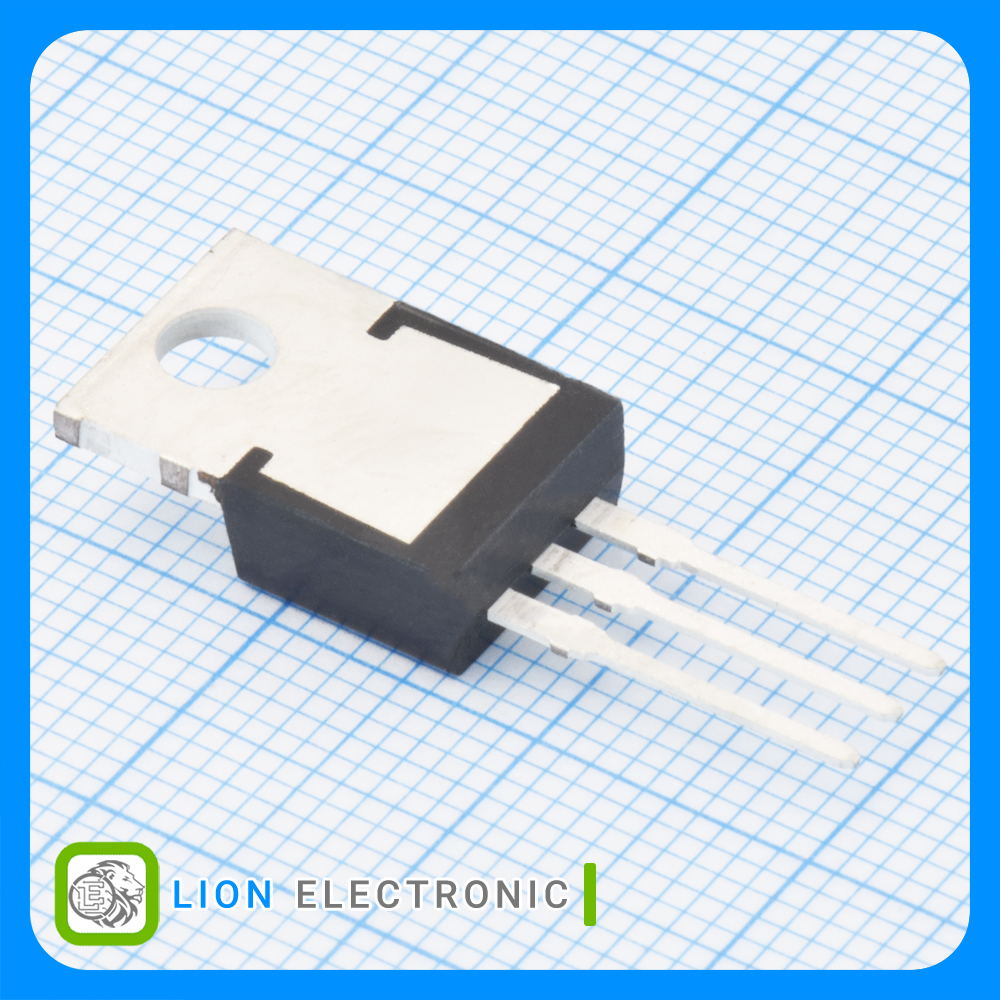

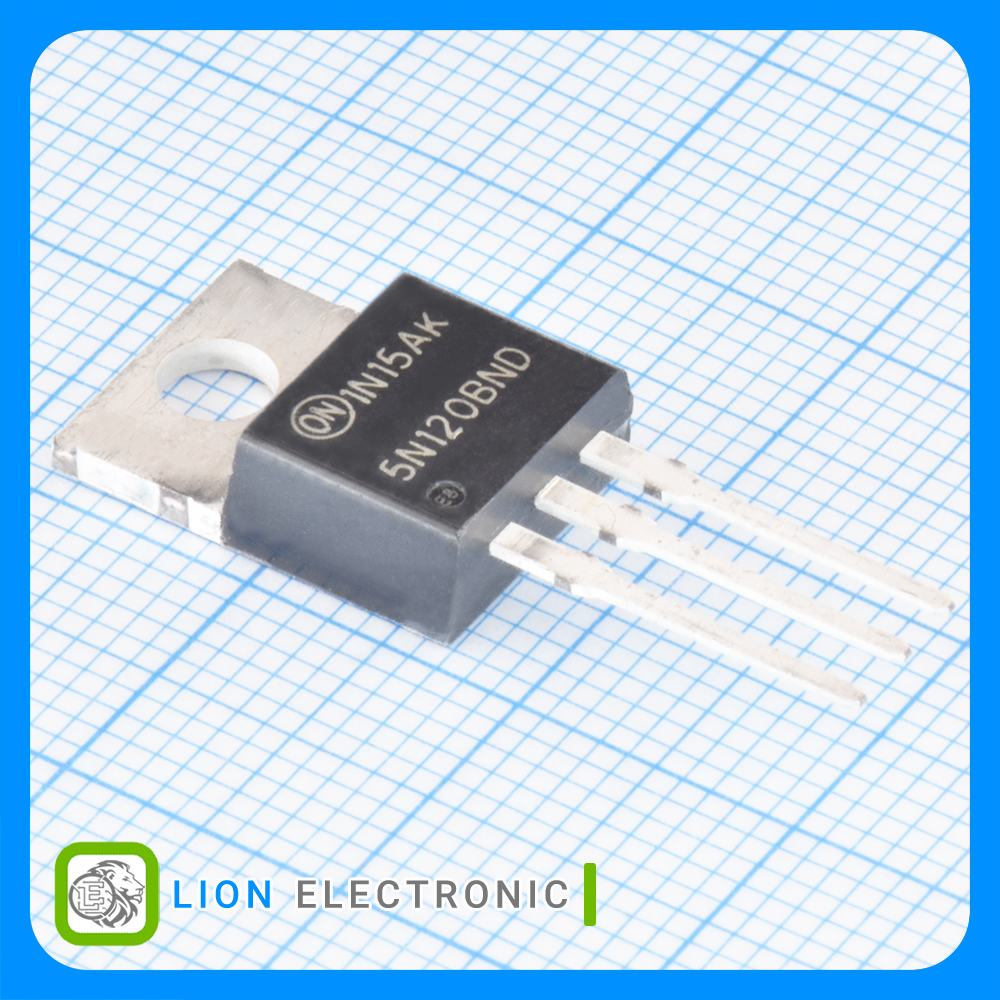

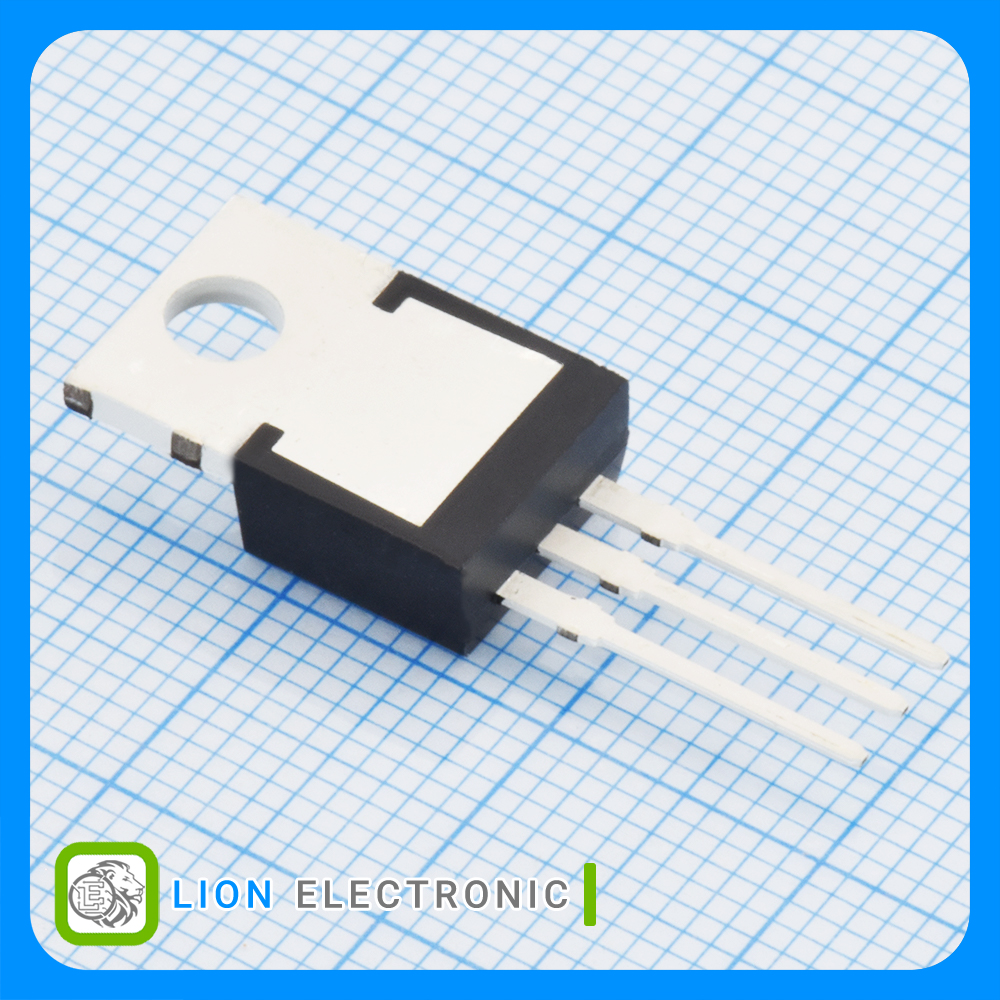

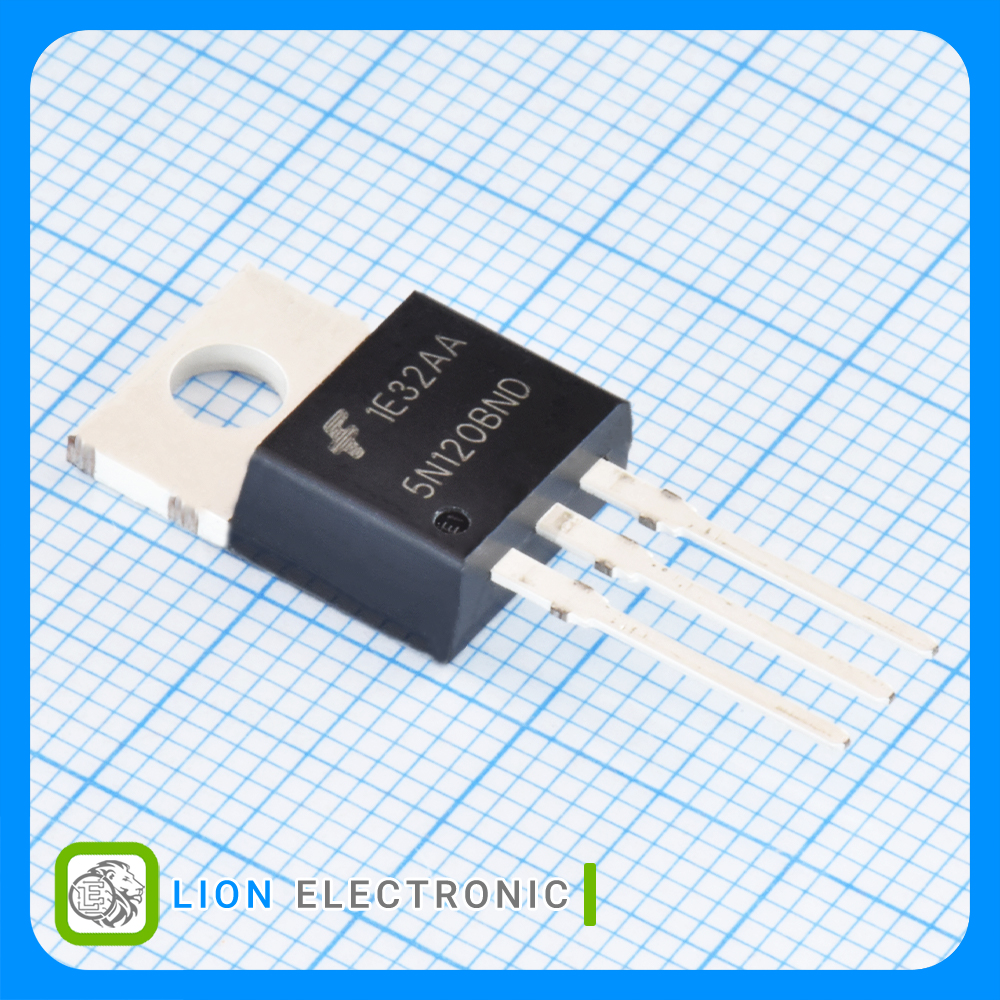

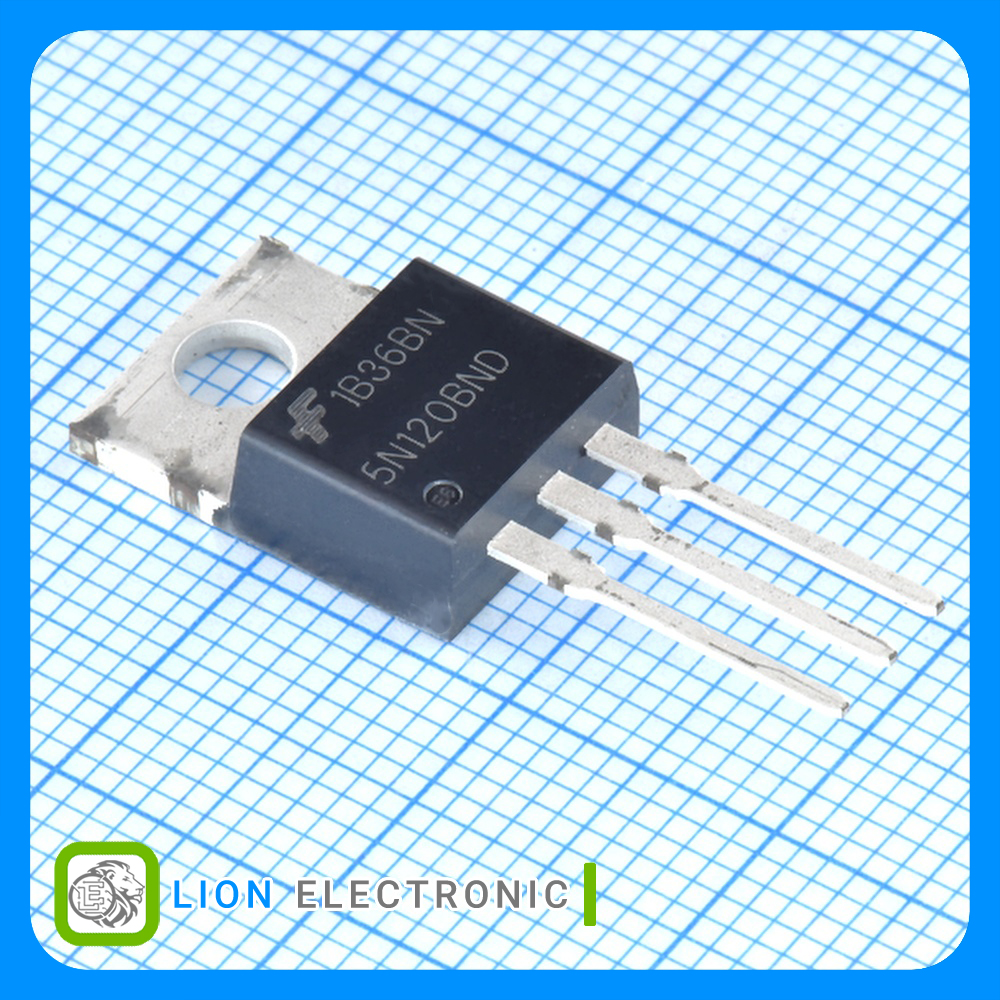

HGTP5N120BND
HGTP5N120BND
Part Number
4148
Lion Part
Datasheet
FAIRCHILD/ONSEMI Manufacture
ترانزیستور IGBT با ولتاژ 1.2 کیلوولت و جریان 21 آمپر با پکیج TO-220-3
IGBT Transistor 1.2kV, 21A with TO-220-3 Package
معرفی
ترانزیستور IGBT با ولتاژ 1.2 کیلوولت و جریان 21 آمپر با پکیج TO-220-3
IGBT Transistor 1.2kV, 21A with TO-220-3 Package
Specifications
- Technology: Si
- Collector - Emitter Voltage VCEO Max: 1.2kV
- Continuous Collector Current aT 25 c: 21A
- Collector - Emitter Saturation Voltage: 2.45V
- Maximum Gate Emitter Voltage: - 20V, 20V
- Pd - Power Dissipation: 167W
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات آی جی بی تی HGTP5N120BND
آی جی بی تی HGTP5N120BND
Part Number
- 20V, 20V
Maximum Gate Emitter Voltage
-55C
Minimum Operating Temperature
21A
Continuous Collector Current aT 25 c
Si
Technology
Tube
Packaging
Through Hole
Mounting Style
+150C
Maximum Operating Temperature
2.45V
Collector - Emitter Saturation Voltage
1.2kV
Collector - Emitter Voltage VCEO Max
167W
Pd - Power Dissipation
TO-220
Package-Case
