STGD20N45LZAG
STGD20N45LZAG
Part Number
6270
Lion Part
Datasheet
STMicroelectronics Manufacture
ترانزیستور IGBT حفاظت شده مخصوص کویل جرقه شمع، 450 ولت 25 آمپر با پکیج DPAK-3

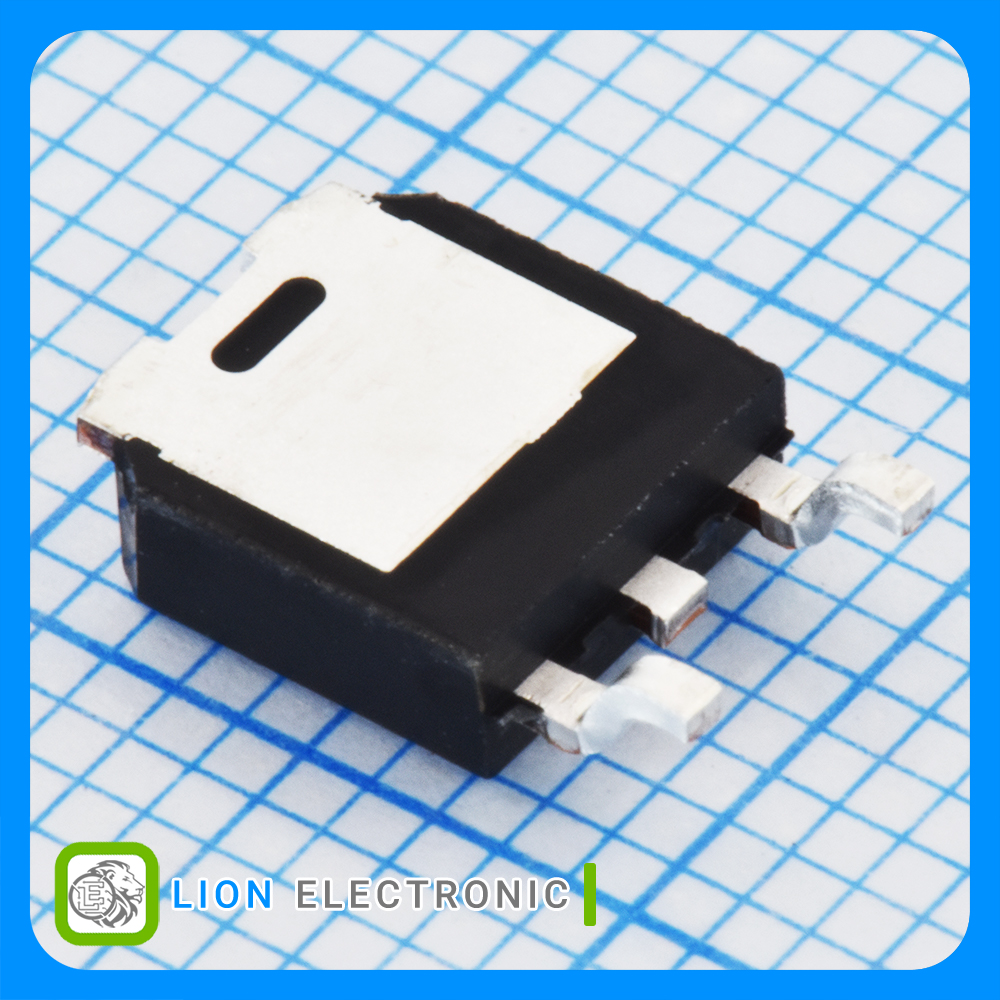

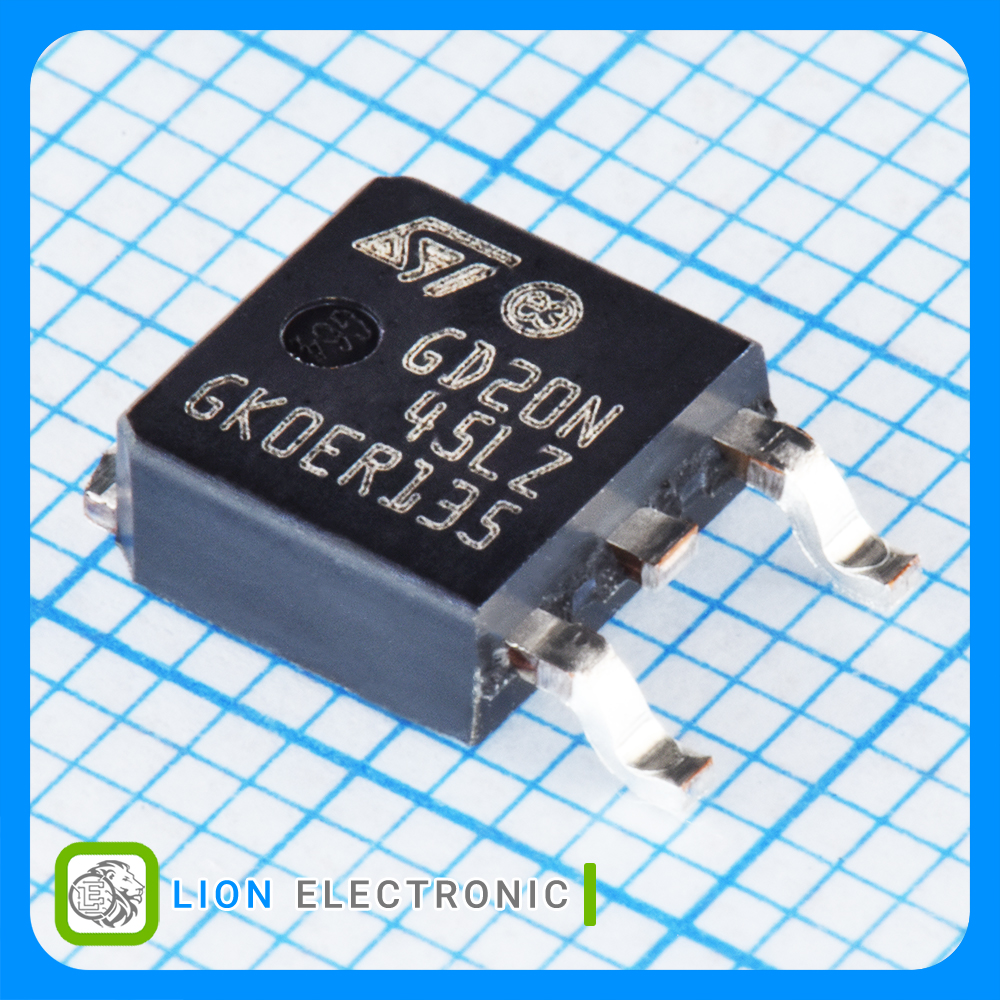

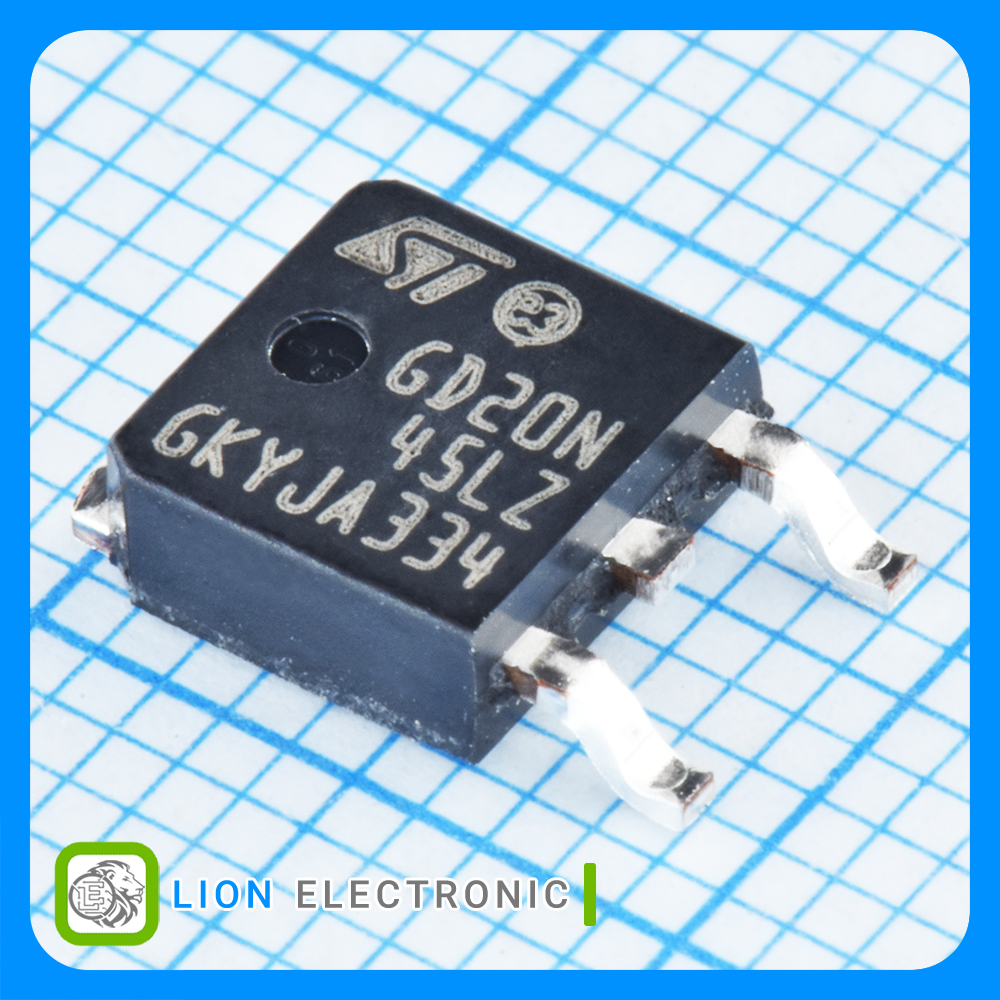

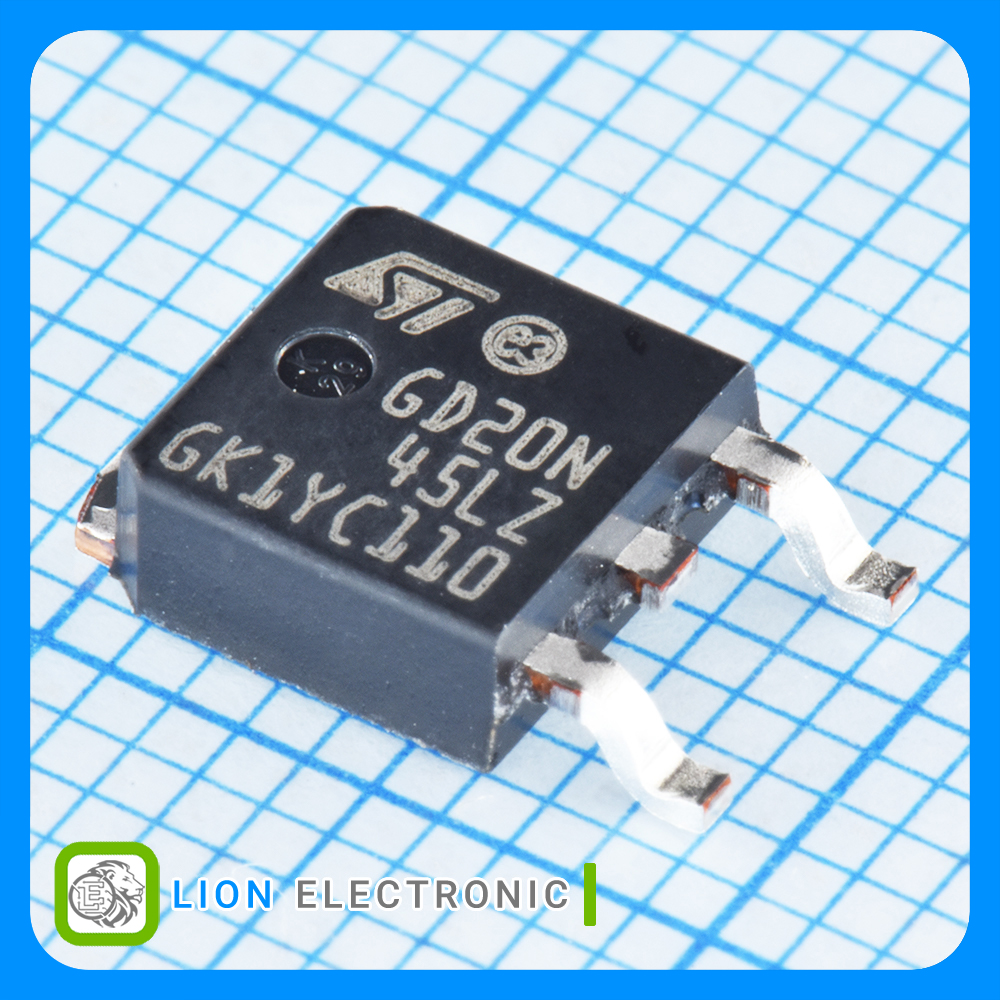

IGBT Transistor 450V, 25A with DPAK-3 Package, Protected for Spark Plug Coil
معرفی
ترانزیستور IGBT حفاظت شده مخصوص کویل جرقه شمع، 450 ولت 25 آمپر با پکیج DPAK-3
IGBT Transistor 450V, 25A with DPAK-3 Package, Protected for Spark Plug Coil
Specifications
- Technology: Si
- Collector - Emitter Voltage VCEO Max: 450V
- Continuous Collector Current aT 25 c: 25A
- Collector - Emitter Saturation Voltage: 1.25V
- Maximum Gate Emitter Voltage: 16V
- Pd - Power Dissipation: 150W
- Mounting Style: SMD/SMT
- Package/Case: DPAK
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات STGD20N45LZAG
STGD20N45LZAG
Part Number
16V
Maximum Gate Emitter Voltage
-55C
Minimum Operating Temperature
Si
Technology
Reel
Packaging
25A
Continuous Collector Current aT 25 c
SMD/SMT
Mounting Style
1.25V
Collector - Emitter Saturation Voltage
+175C
Maximum Operating Temperature
450V
Collector - Emitter Voltage VCEO Max
DPAK
Package-Case
150W
Pd - Power Dissipation
