SGT60N60FD1PN
SGT60N60FD1PN
Part Number
5173
Lion Part
Datasheet
Hangzhou Silan Microelectronics Manufacture
ترانزیستور IGBT با ولتاژ 600 ولت و جریان 60 آمپر با پکیج TO-3P

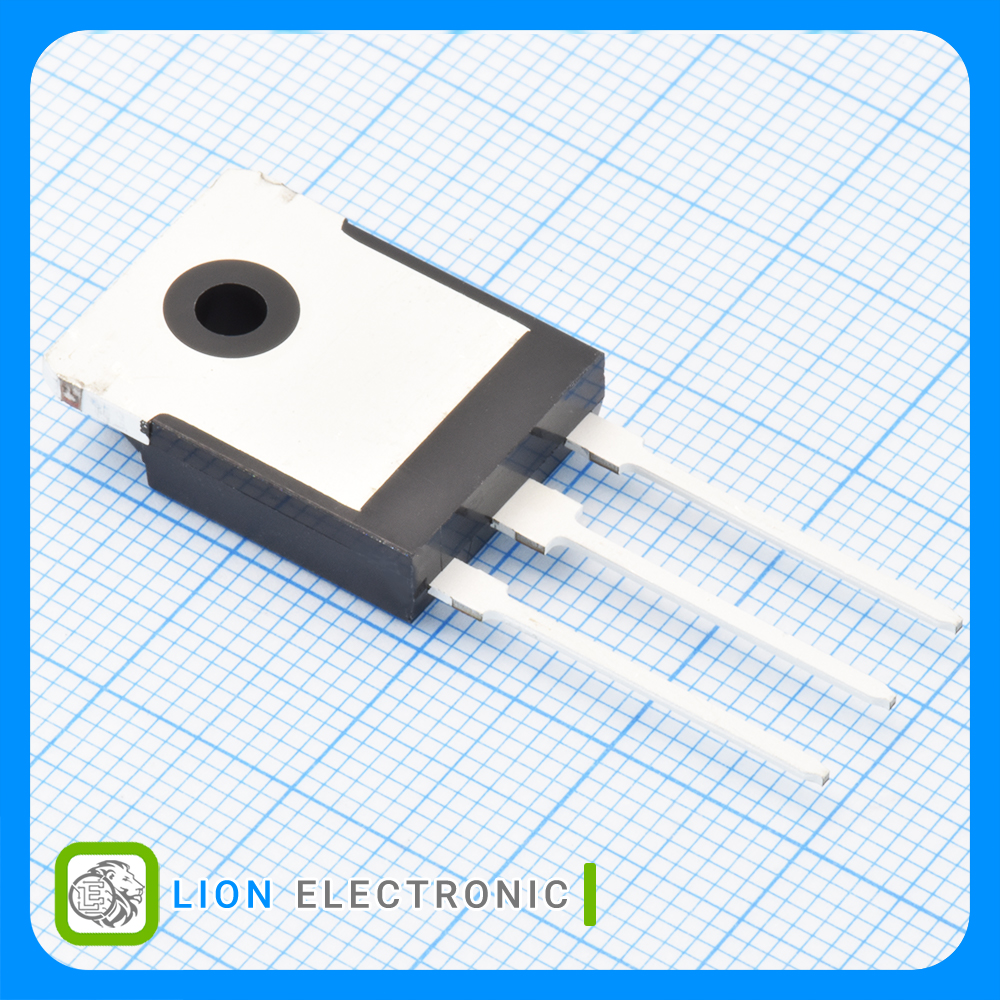

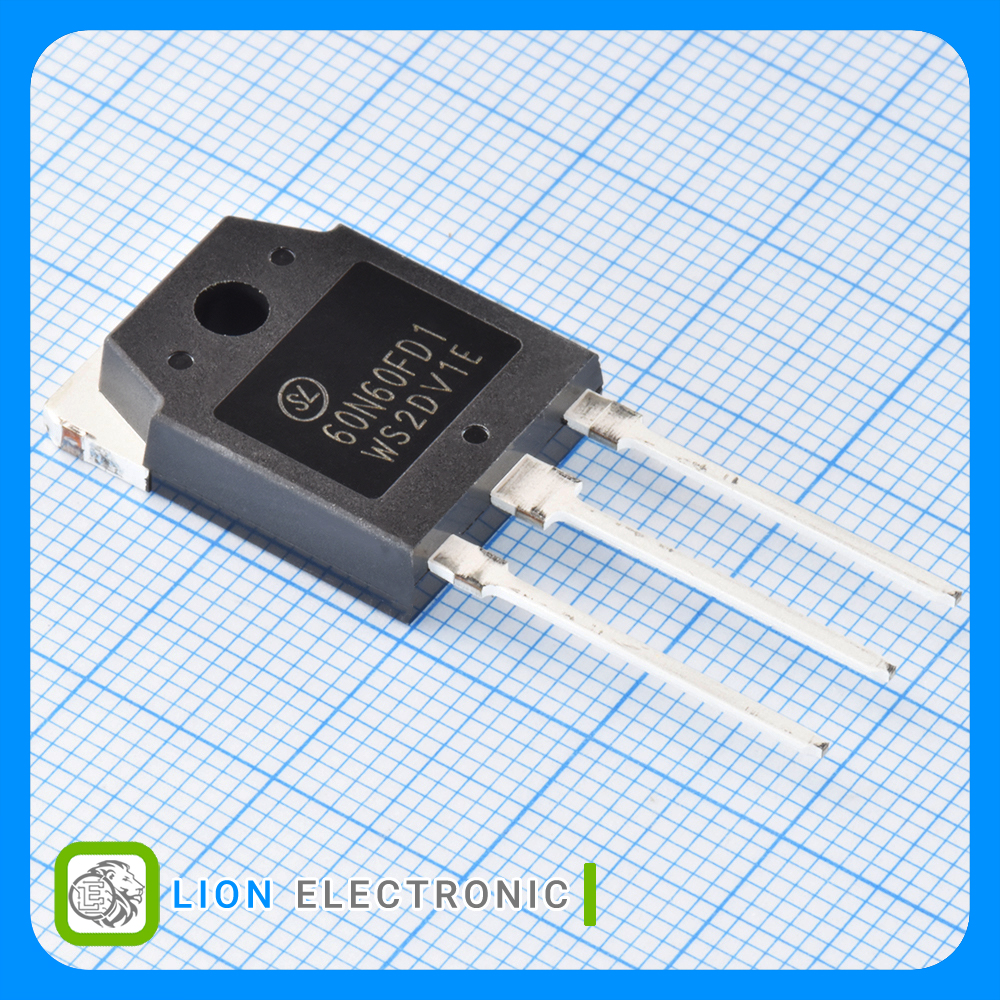

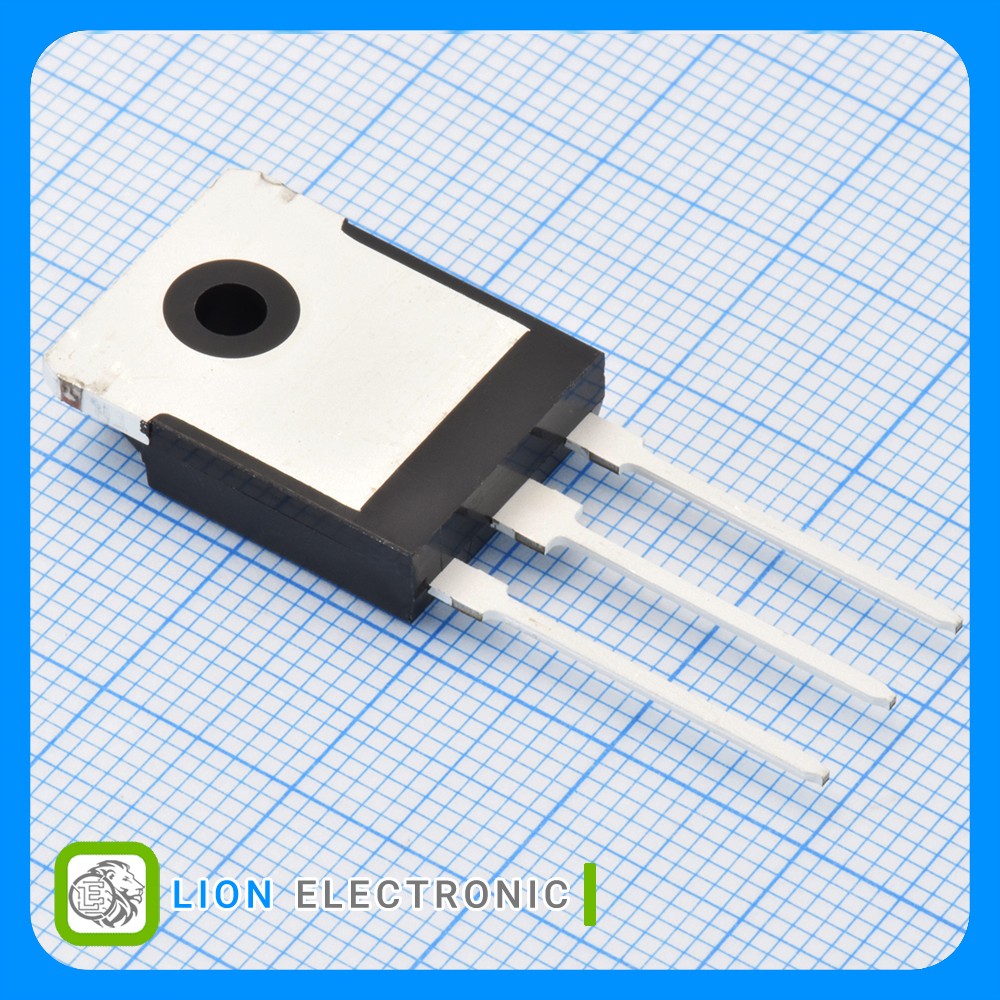

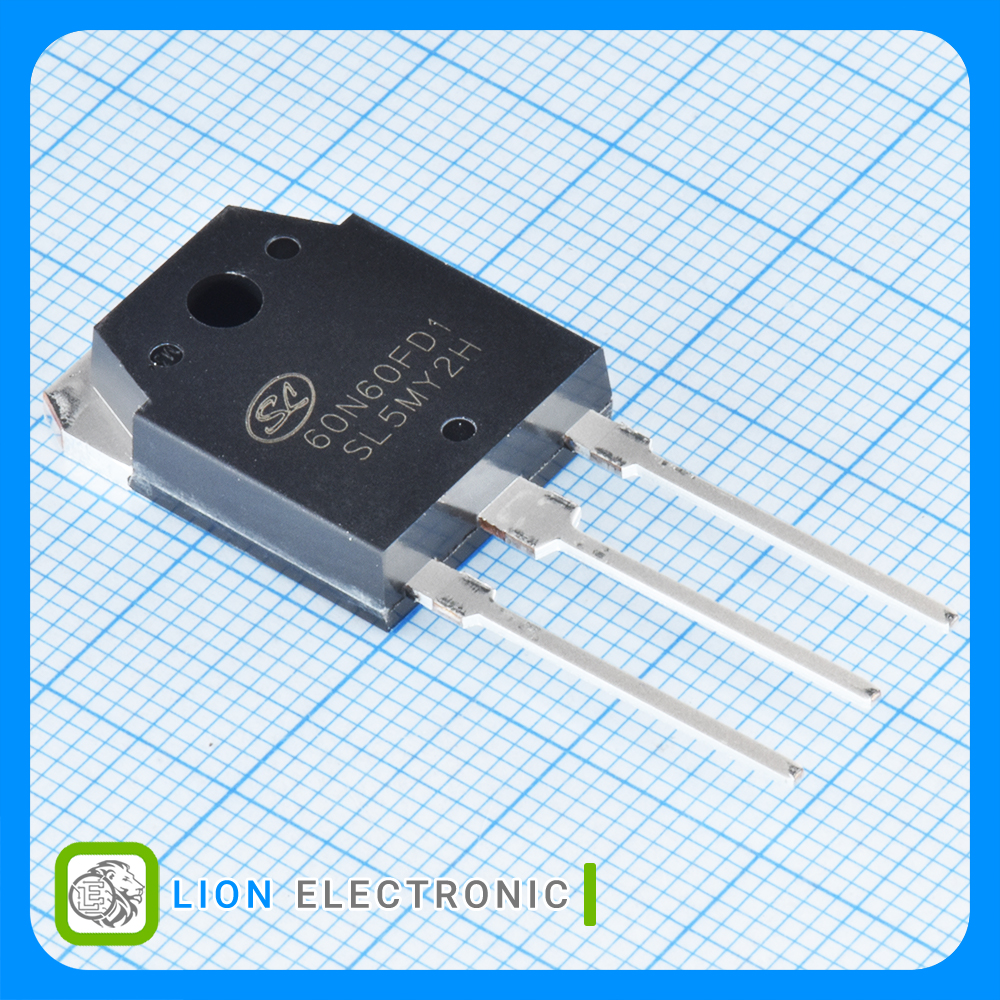

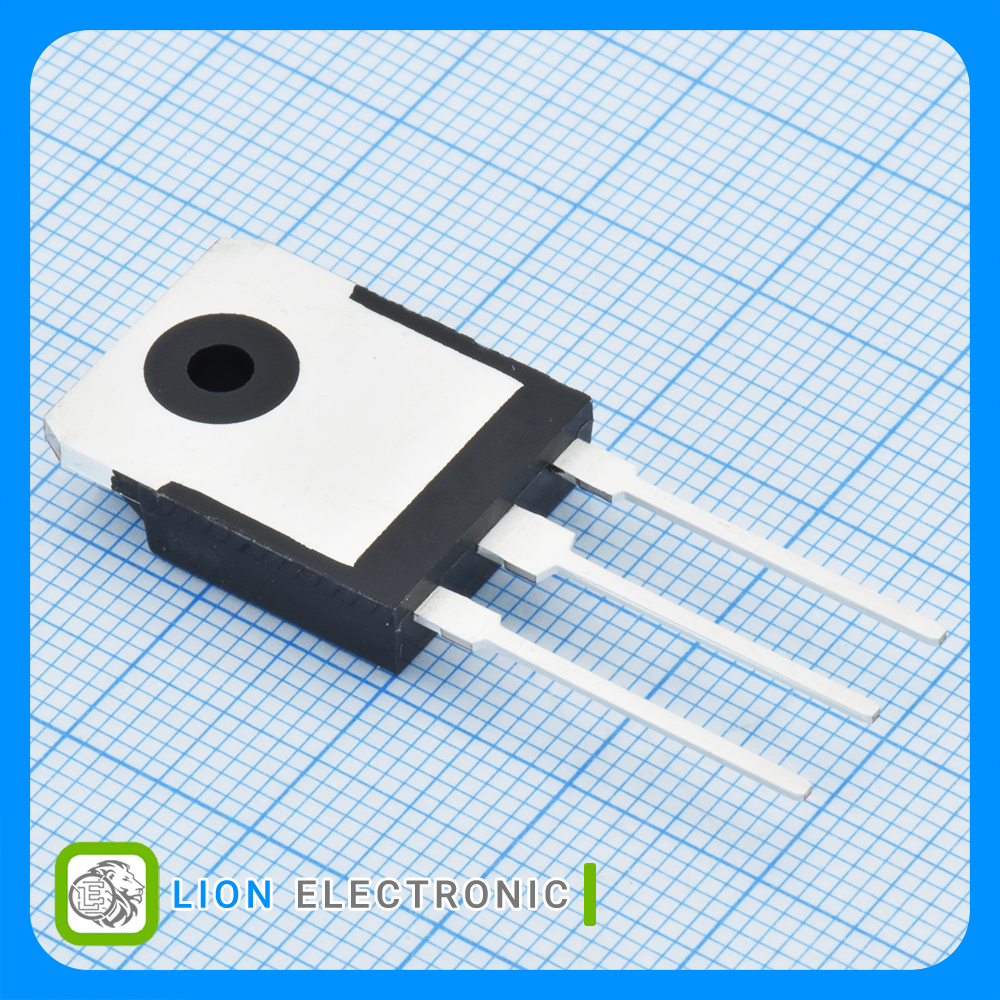

IGBT Transistor 600V, 60A with TO-3P Package
معرفی
ترانزیستور IGBT با ولتاژ 600 ولت و جریان 60 آمپر با پکیج TO-3P
IGBT Transistor 600V, 60A with TO-3P Package
Specifications
- Technology: FIELD STOP IGBT
- Collector - Emitter Voltage VCEO Max: 600V
- Continuous Collector Current aT 25 c: 120A
- Collector - Emitter Saturation Voltage: 2.2V
- Maximum Gate Emitter Voltage: - 20V, 20V
- Pd - Power Dissipation: 321W
- Mounting Style: Through Hole
- Package/Case: TO-3P
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات آی جی بی تی SGT60N60FD1PN
آی جی بی تی SGT60N60FD1PN
Part Number
- 20V, 20V
Maximum Gate Emitter Voltage
FIELD STOP IGBT
Technology
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
120A
Continuous Collector Current aT 25 c
+175C
Maximum Operating Temperature
2.2V
Collector - Emitter Saturation Voltage
600V
Collector - Emitter Voltage VCEO Max
321W
Pd - Power Dissipation
TO-3P
Package-Case
