TGAN40N120FDR
TGAN40N120FDR
Part Number
4152
Lion Part
Datasheet
Trinno Technology Manufacture
ترانزیستور IGBT 1.2 کیلوولت 80 آمپر با پکیج TO-3PN-3

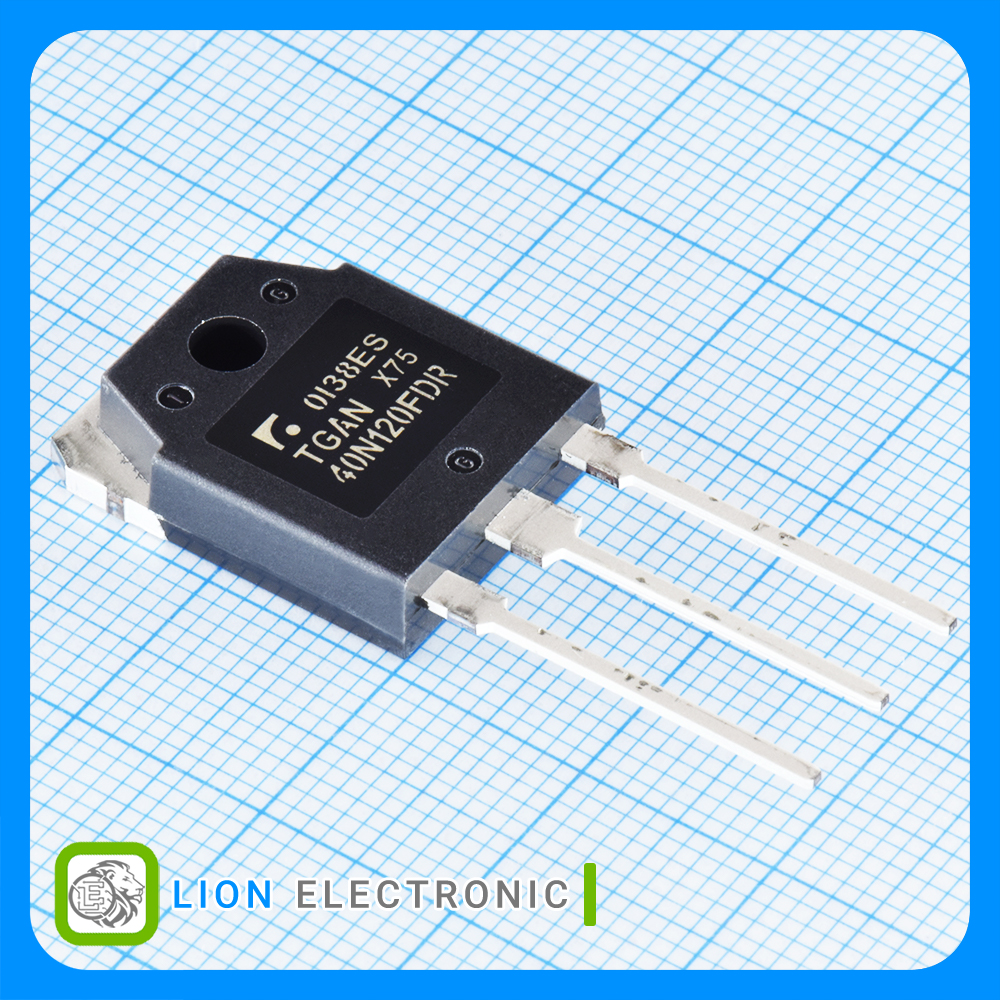

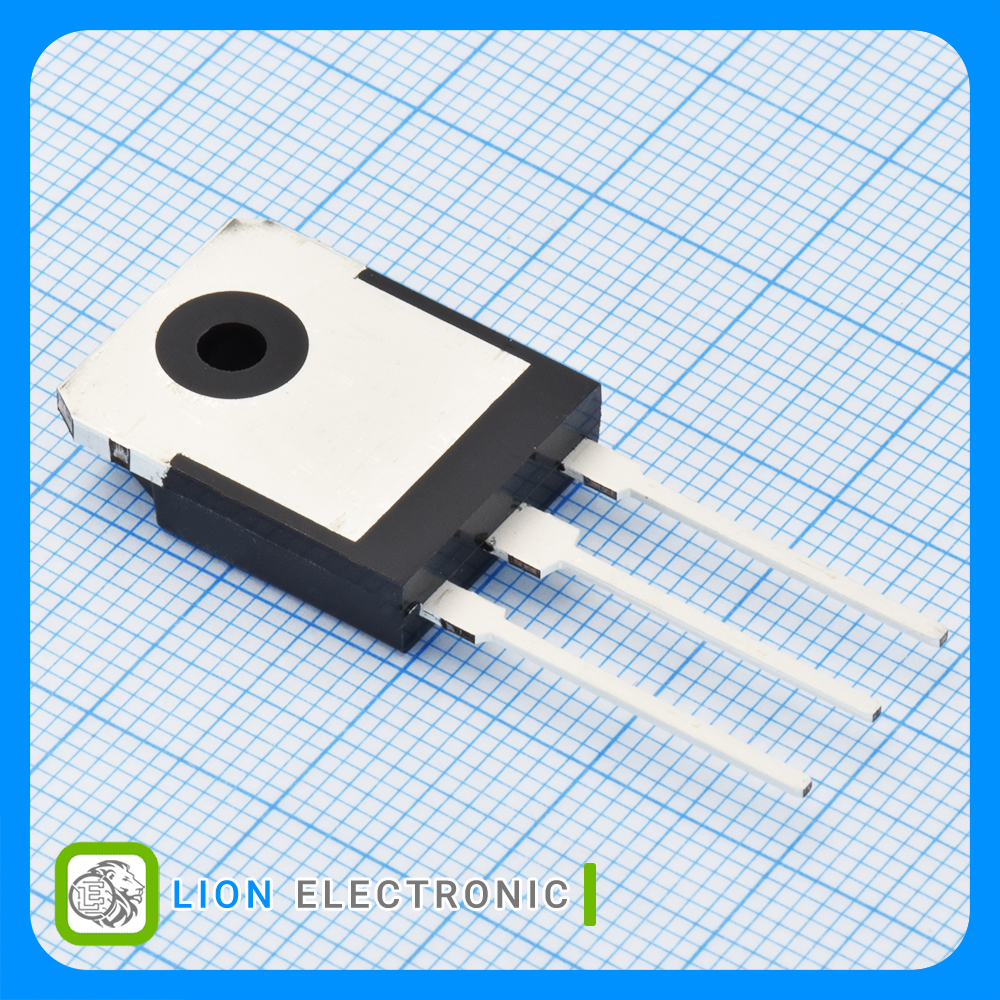

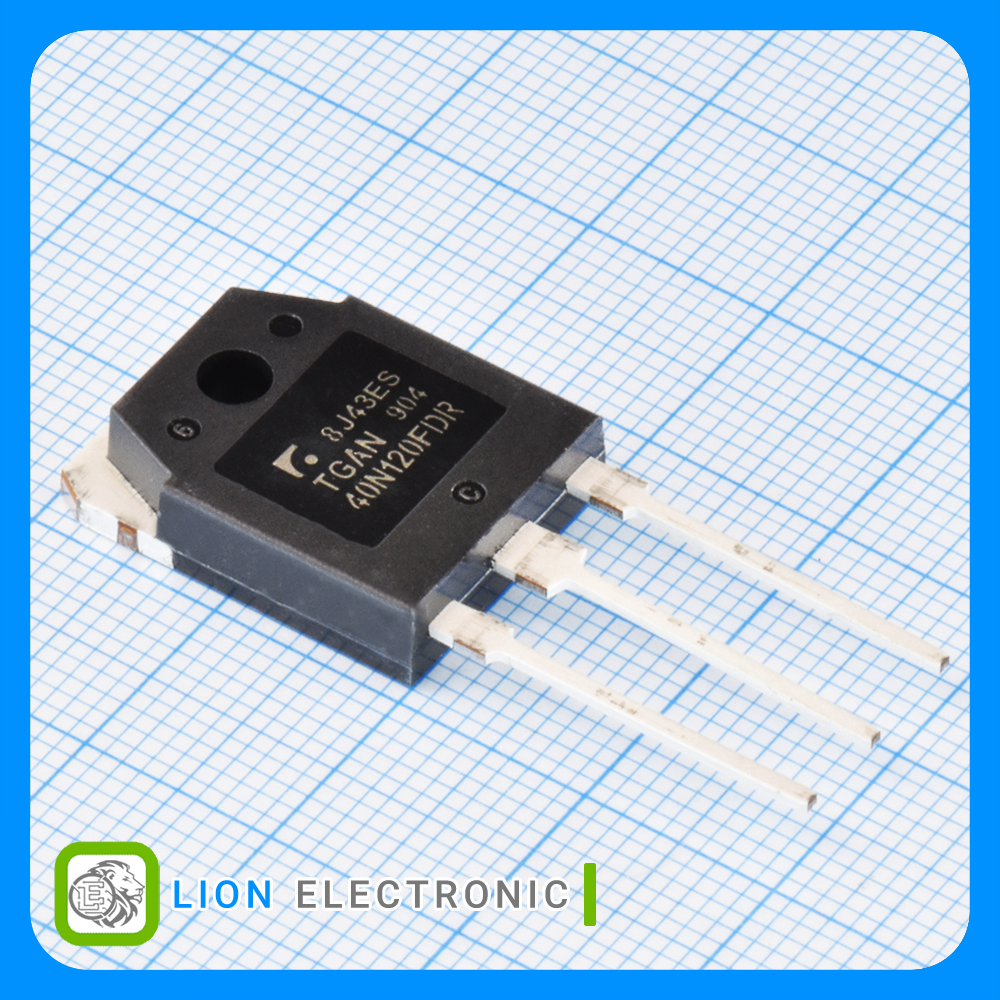

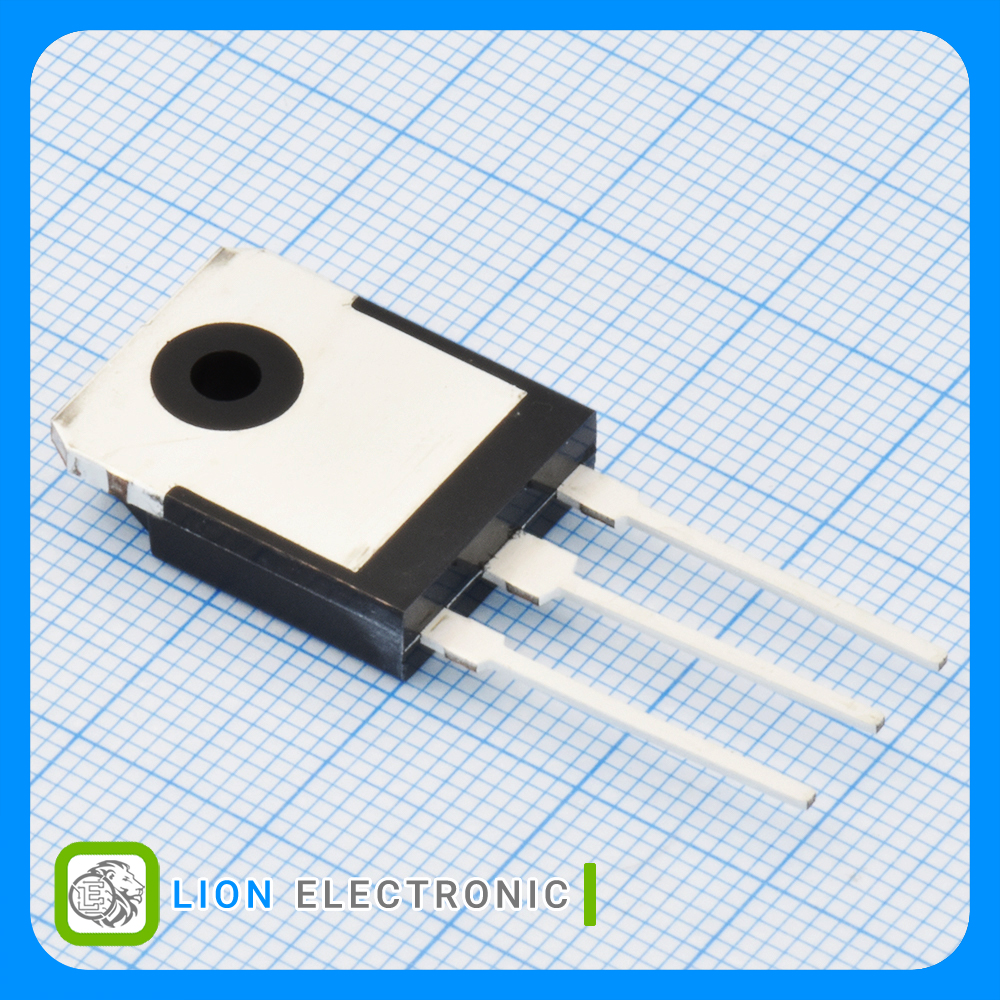

IGBT Transistor 1.2kV, 80A with TO-3PN-3 Package
معرفی
ترانزیستور IGBT 1.2 کیلوولت 80 آمپر با پکیج TO-3PN-3
IGBT Transistor 1.2kV, 80A with TO-3PN-3 Package
Specifications
- Technology: FIELD STOP IGBT
- Collector - Emitter Voltage VCEO Max: 1.2kV
- Continuous Collector Current aT 25 c: 80A
- Collector - Emitter Saturation Voltage: 2V
- Maximum Gate Emitter Voltage: 20V
- Pd - Power Dissipation: 500W
- Mounting Style: Through Hole
- Package/Case: TO-3P
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات آی جی بی تی TGAN40N120FDR
آی جی بی تی TGAN40N120FDR
Part Number
20V
Maximum Gate Emitter Voltage
FIELD STOP IGBT
Technology
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
80A
Continuous Collector Current aT 25 c
+150C
Maximum Operating Temperature
2V
Collector - Emitter Saturation Voltage
1.2kV
Collector - Emitter Voltage VCEO Max
500W
Pd - Power Dissipation
TO-3P
Package-Case
