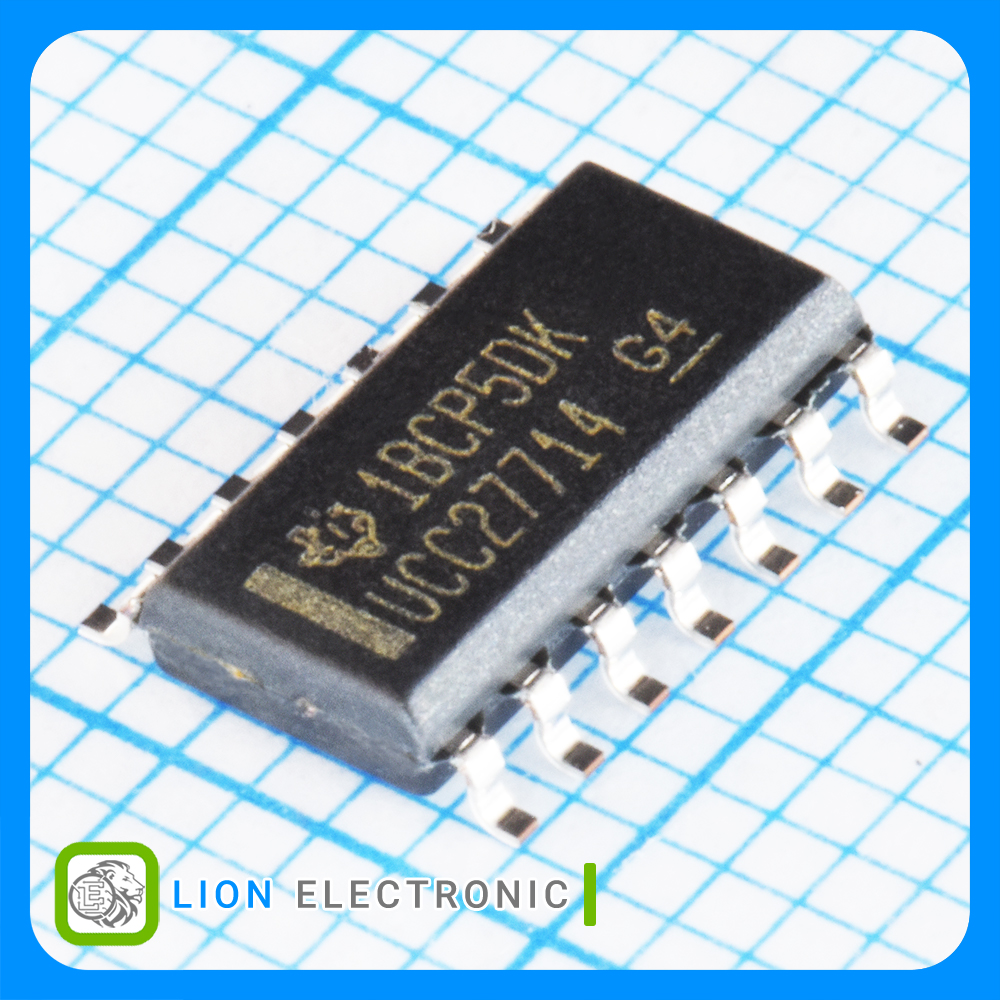

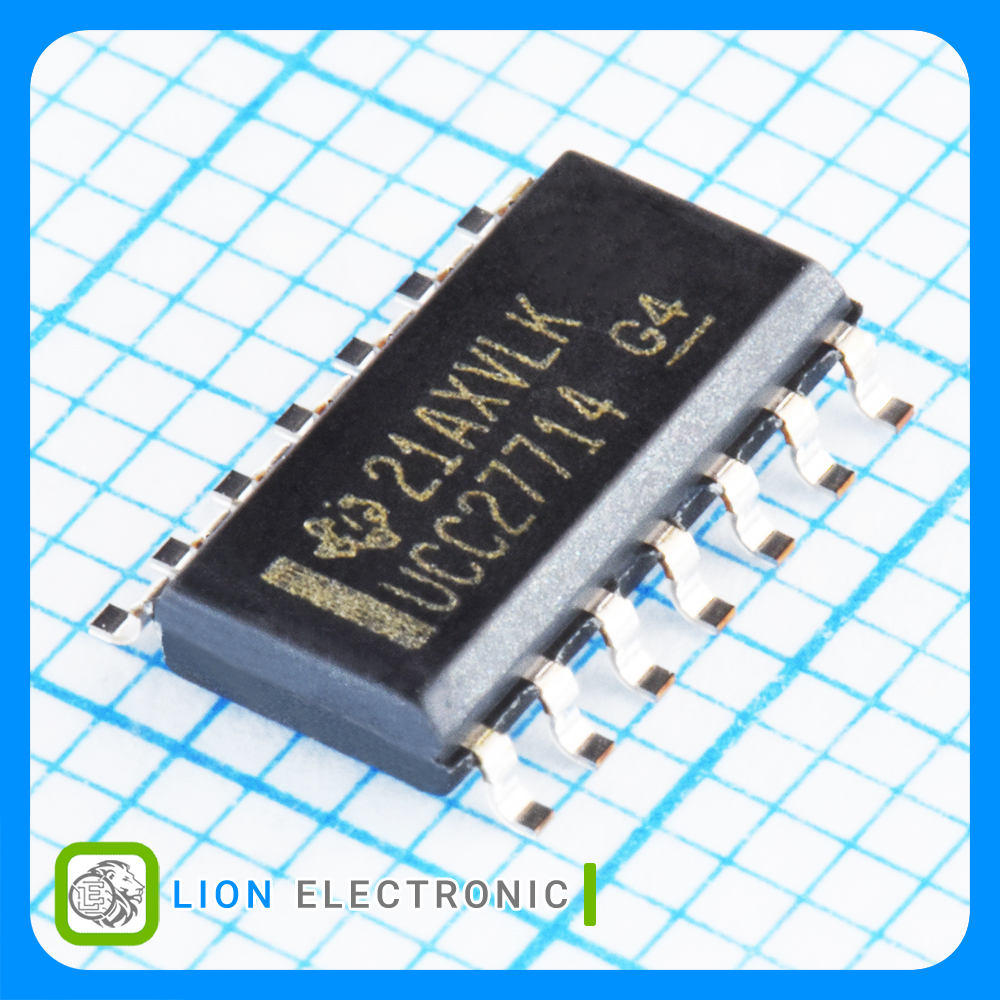

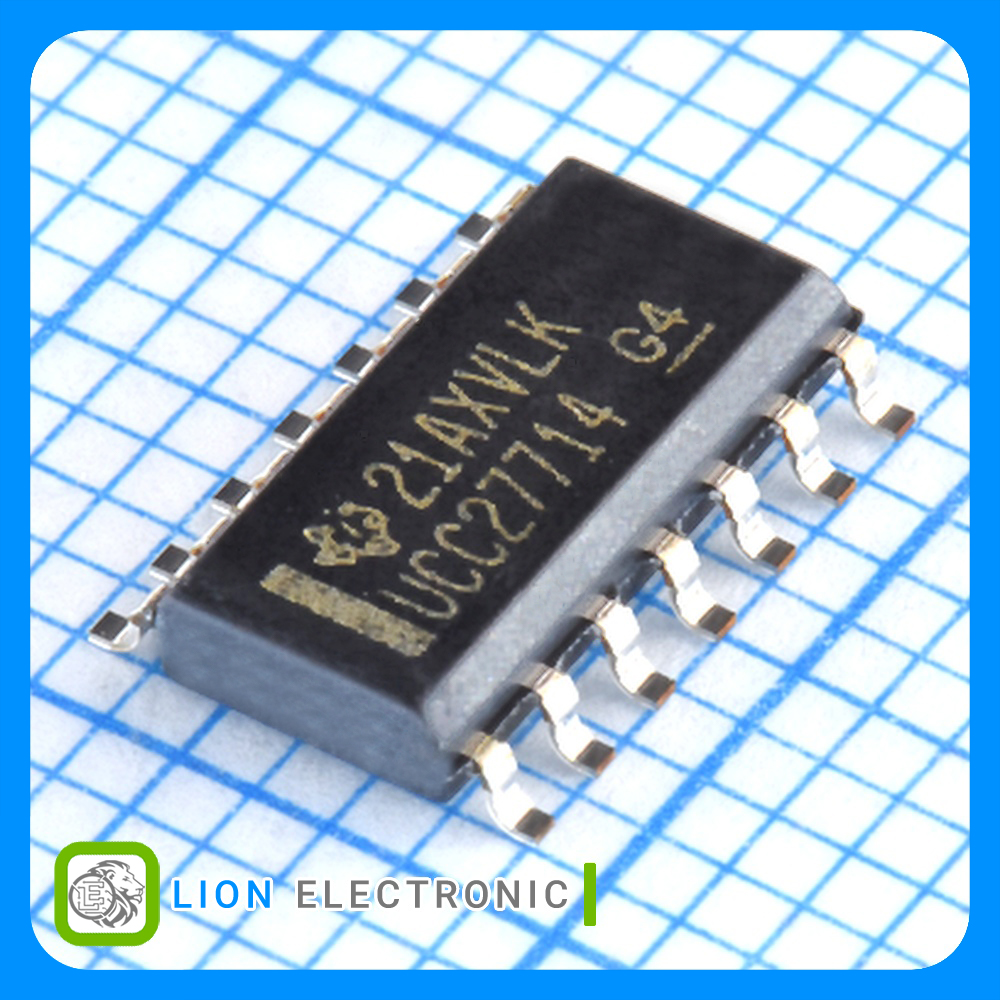

UCC27714DR
UCC27714DR
Part Number
4351
Lion Part
Datasheet
Texas Instruments Manufacture
گیت درایور نیمپل پرسرعت سمت بالا و سمت پایین 600 ولت، جریان خروجی پیک 4 آمپر، تغذیه 10 تا 17 ولت با پکیج SOIC-14
Half-Bridge High-Speed High-Side Low-Side Gate Driver, 600V Floating Voltage, 4A Peak Output, 10V to 17V Supply, with SOIC-14 Package
معرفی
گیت درایور نیمپل پرسرعت سمت بالا و سمت پایین 600 ولت، جریان خروجی پیک 4 آمپر، تغذیه 10 تا 17 ولت با پکیج SOIC-14
Half-Bridge High-Speed High-Side Low-Side Gate Driver, 600V Floating Voltage, 4A Peak Output, 10V to 17V Supply, with SOIC-14 Package
Specifications
- Configuration: Half-Bridge
- Output Current: 4A
- Supply Voltage - Min: 10V
- Supply Voltage - Max: 17V
- Operating Supply Current: 750uA
- Propagation Delay - Max: 125ns
- Floating Voltage: 600V
- Number of Outputs: 2
- Mounting Style: SMD/SMT
- Package/Case: SOIC-14
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آیسی گیت درایور UCC27714DR

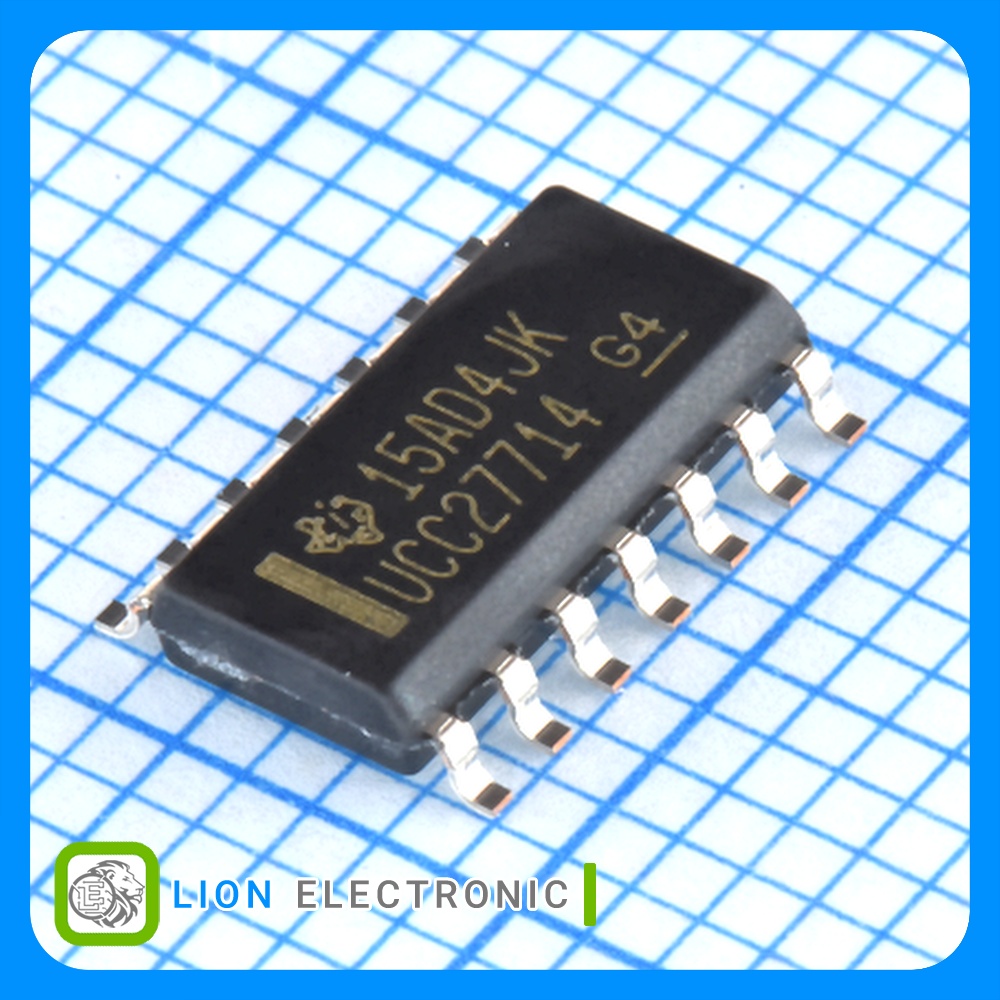

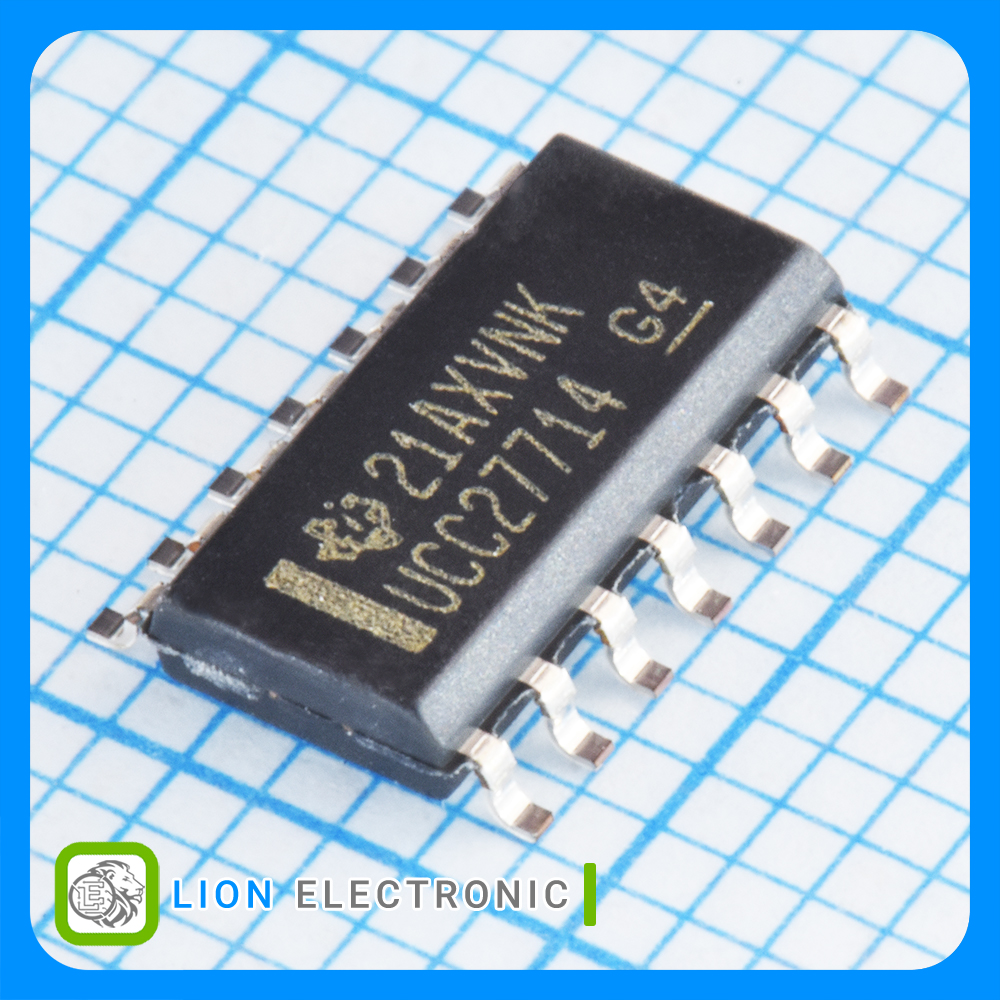

آیسی گیت درایور UCC27714DR
Part Number
2
Number of Outputs
Reel
Packaging
600V
Floating Voltage
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
N/A
Dead Time
+125C
Maximum Operating Temperature
Half-Bridge
Configuration
125ns
Propagation Delay - Max
17V
Supply Voltage - Max
10V
Supply Voltage - Min
4A
Output Current
750uA
Operating Supply Current
N/A
Pd - Power Dissipation
SOIC-14
Package-Case
