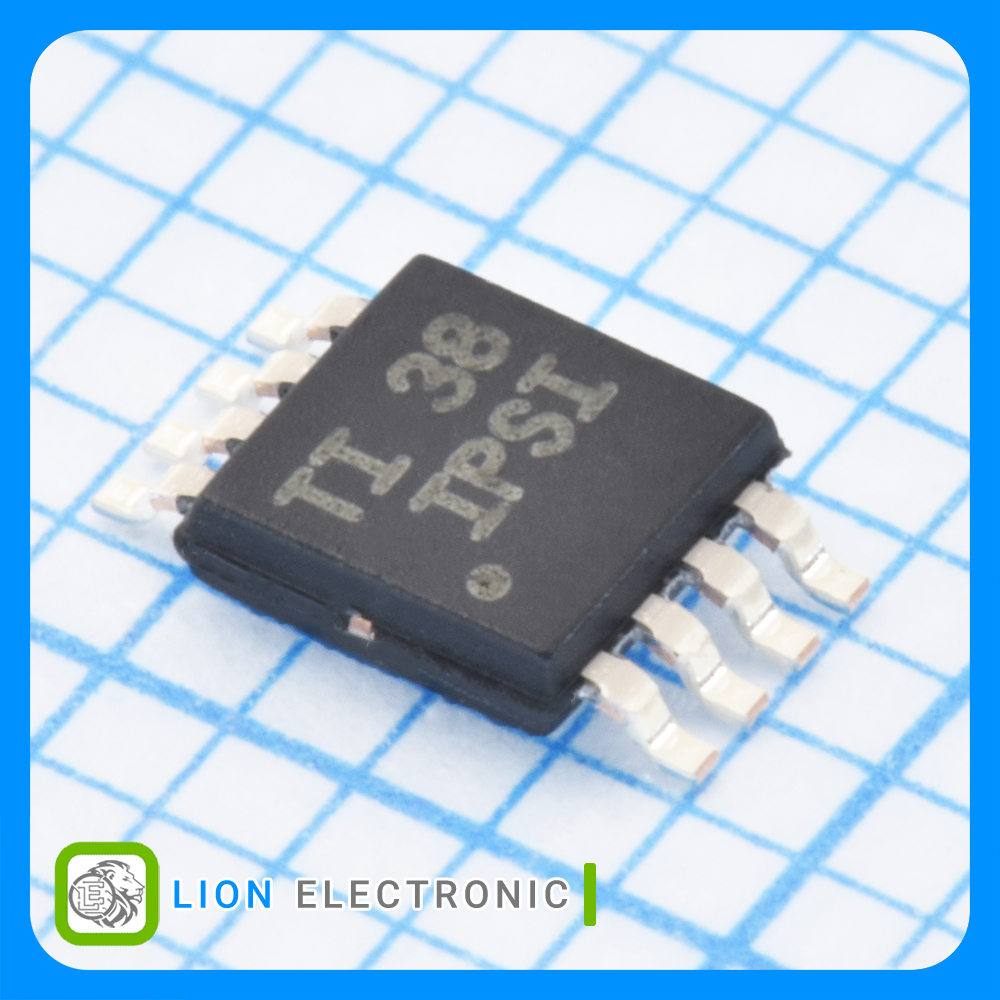

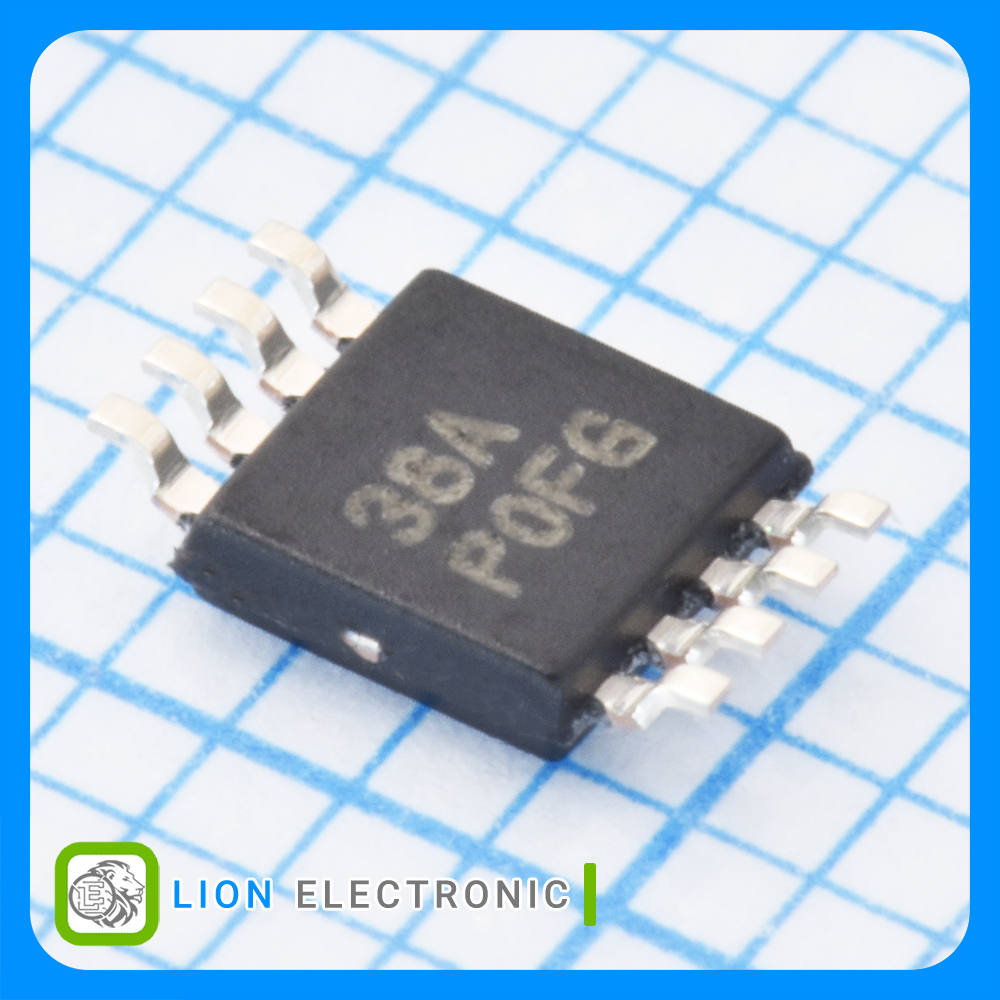

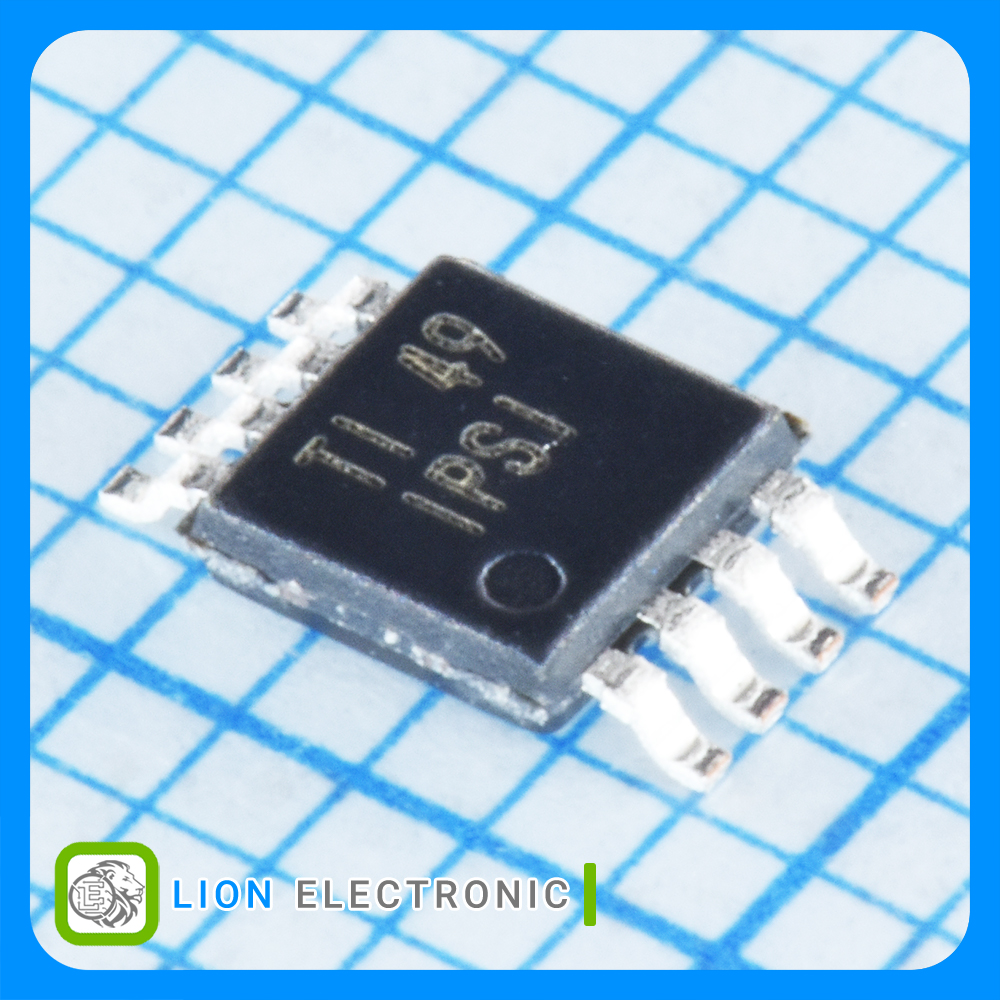

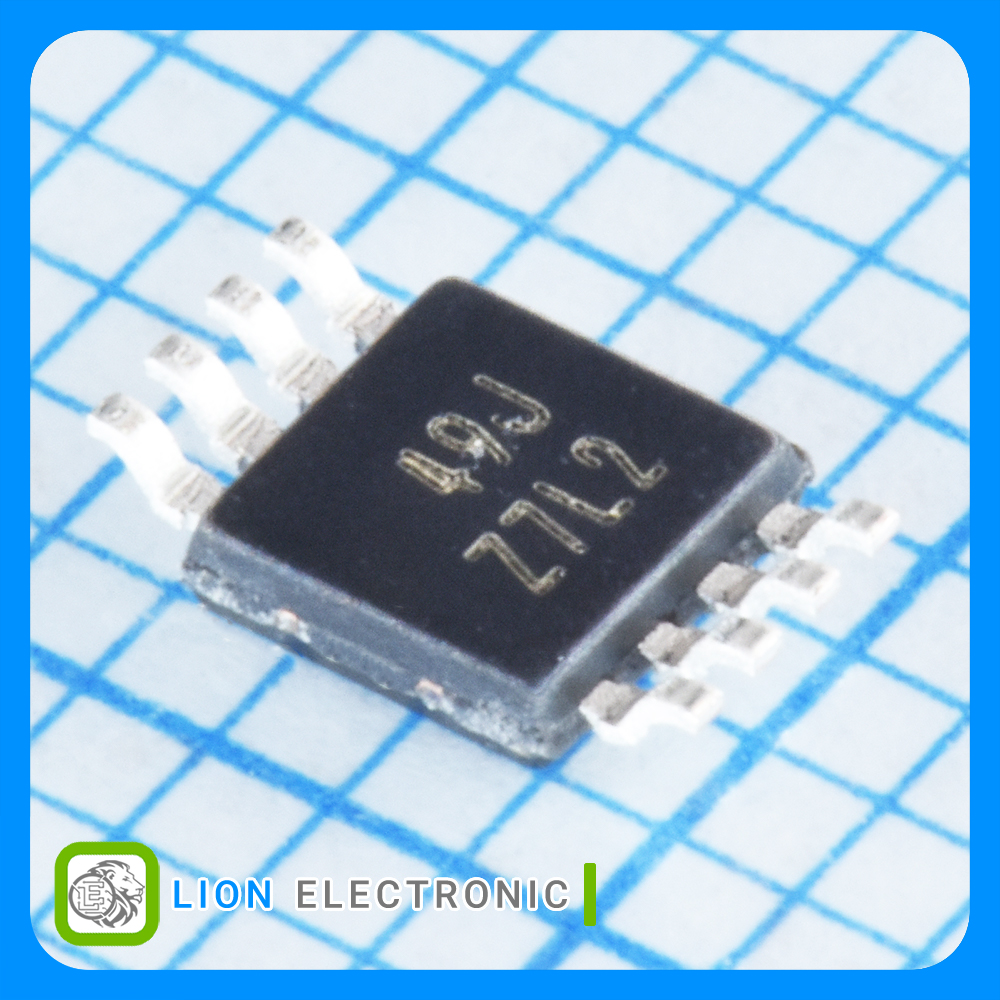

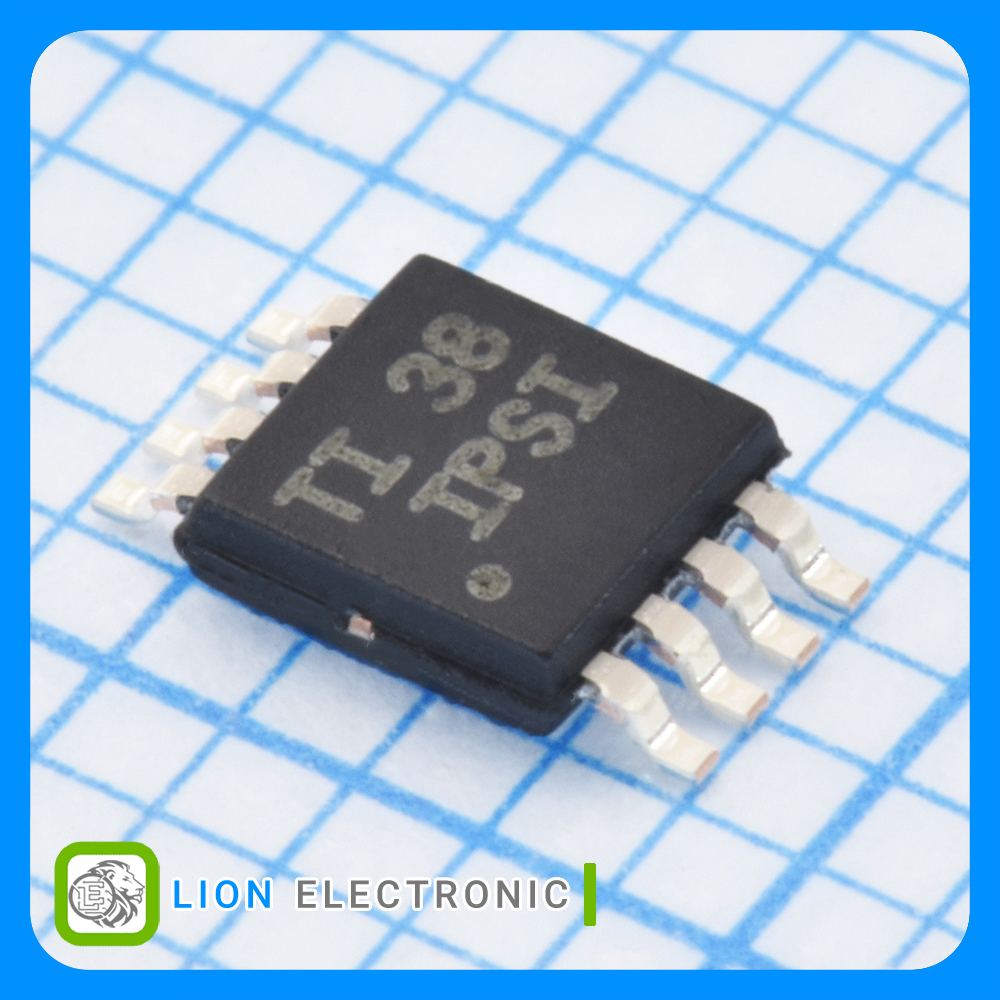

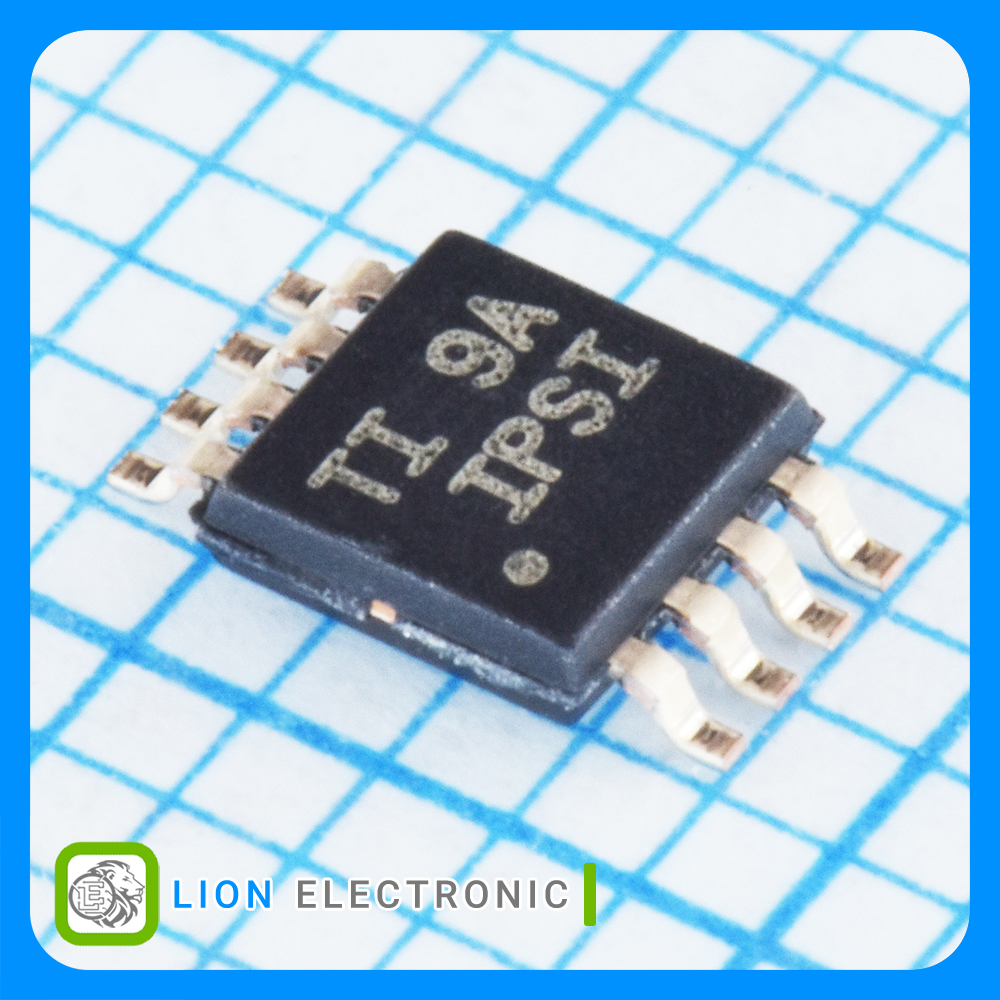

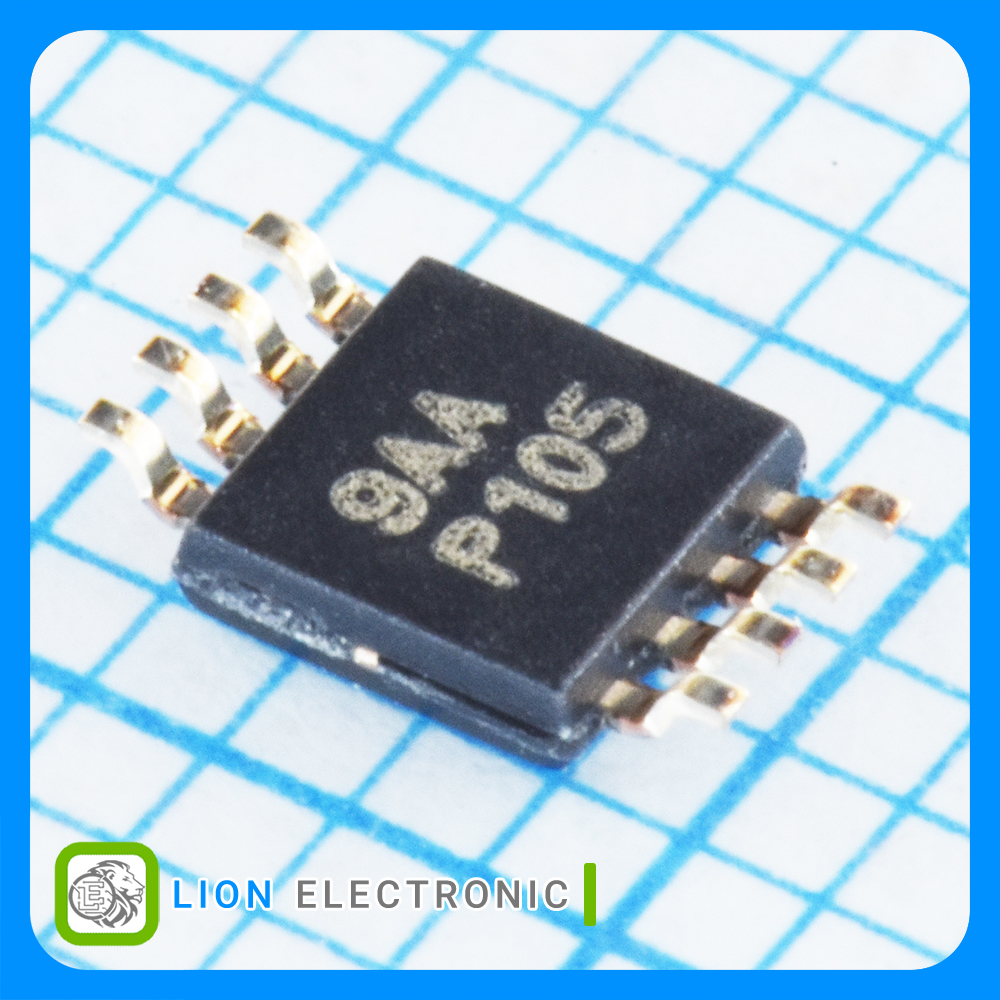

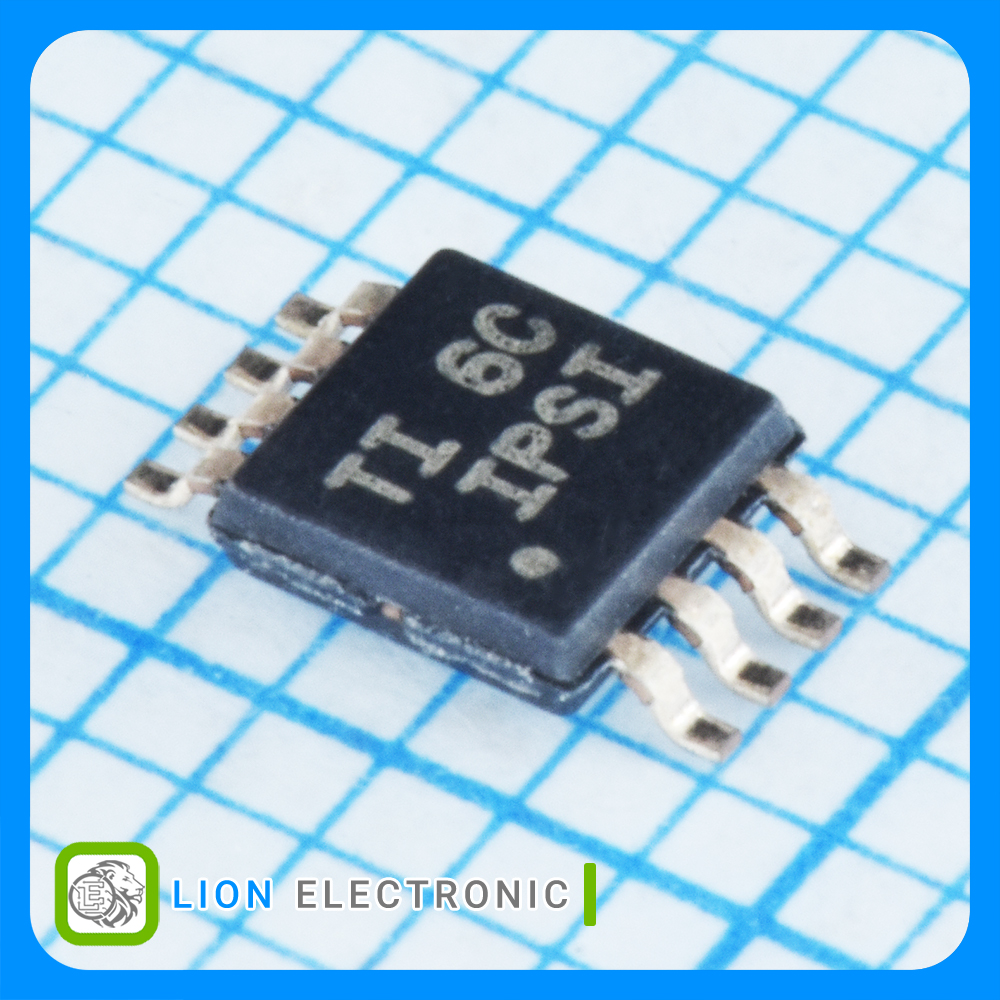

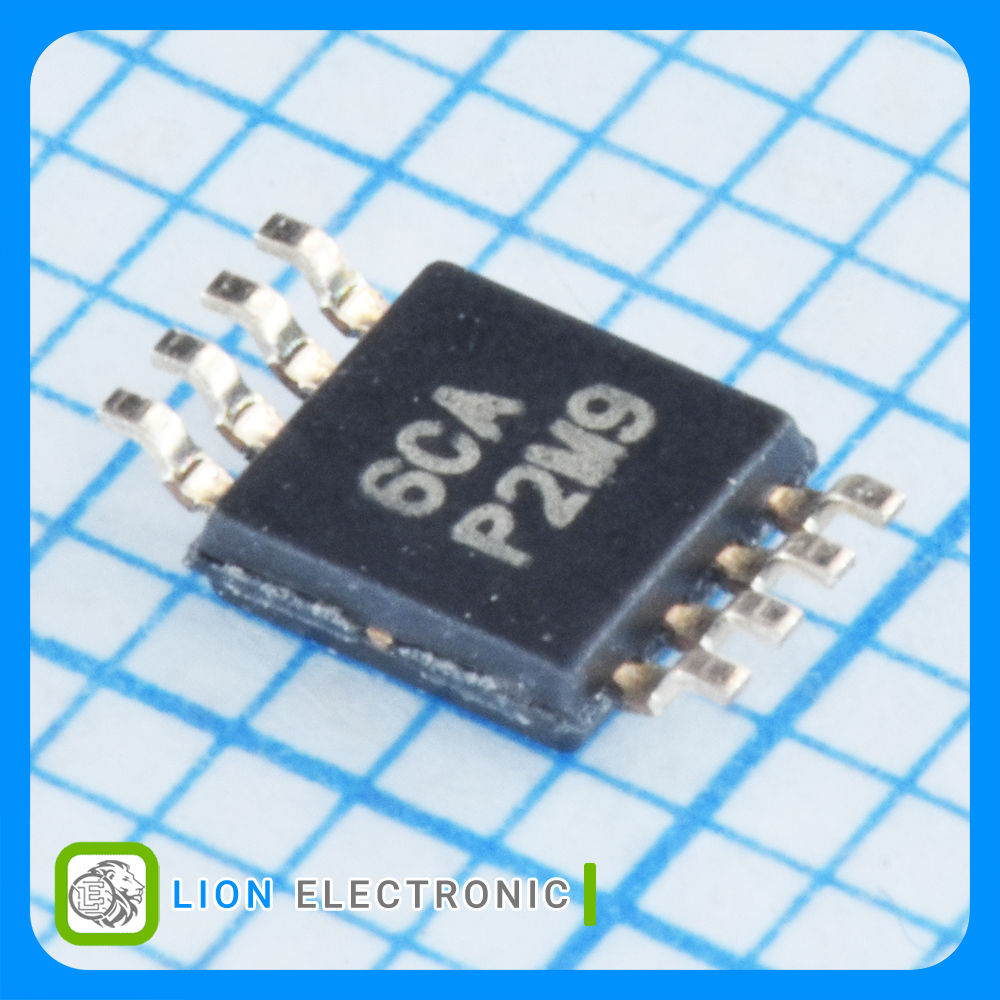

INA827AIDGKR
INA827AIDGKR
Part Number
4469
Lion Part
Datasheet
Texas Instruments Manufacture
تقویتکننده ابزاردقیق 1 کاناله 600 کیلوهرتز تغذیه 3 تا 36 ولت جریان 200 میکروآمپر با خروجی ریل تو ریل با پکیج VSSOP-8
Instrumentation Amplifier 1-Channel 600KHz 3V to 36V, 200uA, Rail-Rail Output, Instrumentation OpAmp with VSSOP-8 Package
معرفی
تقویتکننده ابزاردقیق 1 کاناله 600 کیلوهرتز تغذیه 3 تا 36 ولت جریان 200 میکروآمپر با خروجی ریل تو ریل با پکیج VSSOP-8
Instrumentation Amplifier 1-Channel 600KHz 3V to 36V, 200uA, Rail-Rail Output, Instrumentation OpAmp with VSSOP-8 Package
Specifications
- Number of Channels: 1
- SR - Slew Rate: 1.5V/us
- CMRR - Common Mode Rejection Ratio: 110dB
- Ib - Input Bias Current: 35nA
- Vos - Input Offset Voltage: 40uV
- GBP - Gain Bandwidth Product: 600KHz
- Supply Voltage - Min: 3V
- Supply Voltage - Max: 36V
- Operating Supply Current: 200uA
- Mounting Style: SMD/SMT
- Package/Case: VSSOP-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات INA827AIDGKR
INA827AIDGKR
Part Number
1
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
600KHz
GBP - Gain Bandwidth Product
40uV
Vos - Input Offset Voltage
1.5V/us
SR - Slew Rate
3V
Supply Voltage - Min
35nA
Ib - Input Bias Current
110dB
CMRR - Common Mode Rejection Ratio
200uA
Operating Supply Current
36V
Supply Voltage - Max
VSSOP-8
Package-Case
