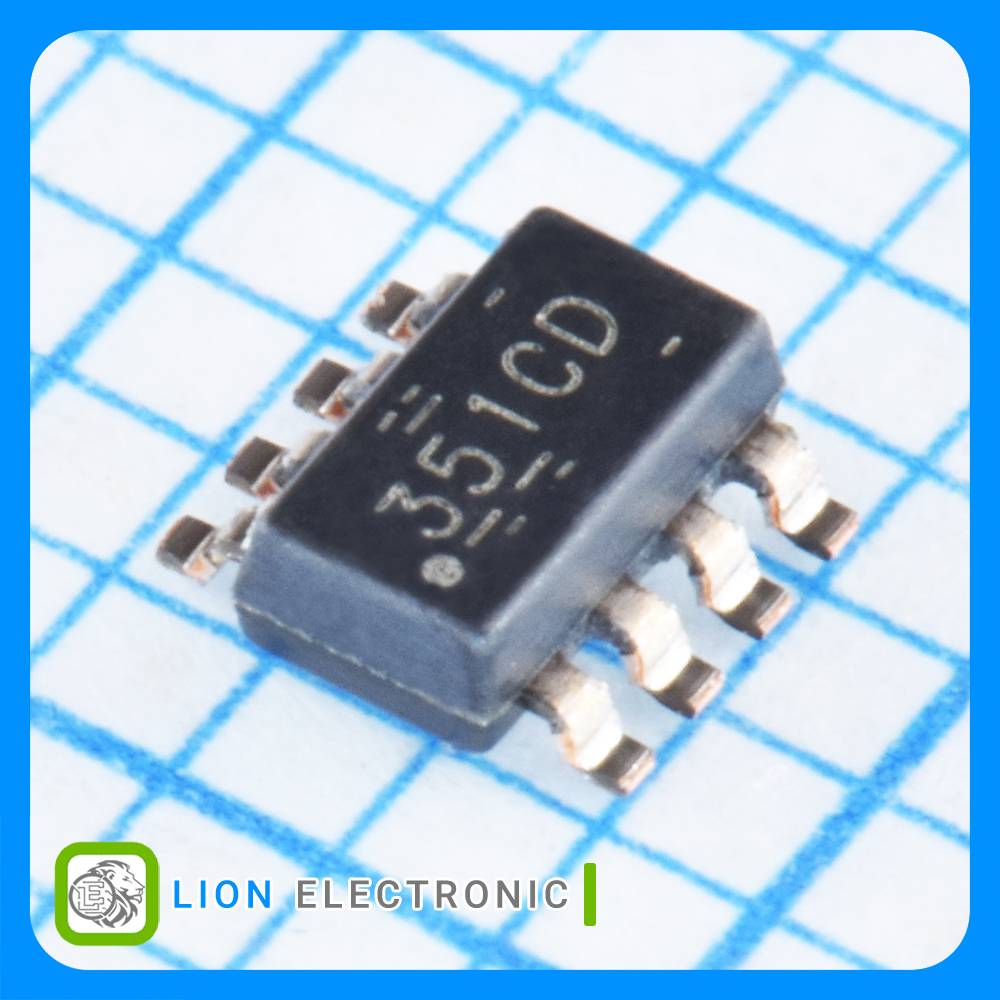

INA351CDSIDDFR
INA351CDSIDDFR
Part Number
6389
Lion Part
Datasheet
Texas Instruments Manufacture
آمپلیفایر ابزار دقیق کممصرف و بهینه از نظر هزینه و ابعاد، با گین قابل انتخاب و ولتاژ کاری ۱.۸ تا ۵.۵ ولت، دارای بافر مرجع یکپارچه
Cost and Size Optimized, Low Power, 1.8V to 5.5V Selectable Gain Instrumentation Amplifier with Integrated Reference Buffer
مشخصات INA351CDSIDDFR
INA351CDSIDDFR
Part Number
1
Number of Channels
100KHz
GBP - Gain Bandwidth Product
650fA
Ib - Input Bias Current
Reel
Packaging
-40C
Minimum Operating Temperature
200mV/us
SR - Slew Rate
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
1.8V
Supply Voltage - Min
5.5V
Supply Voltage - Max
200uV
Vos - Input Offset Voltage
95dB
CMRR - Common Mode Rejection Ratio
110µA
Operating Supply Current
SOT-23-8
Package-Case
