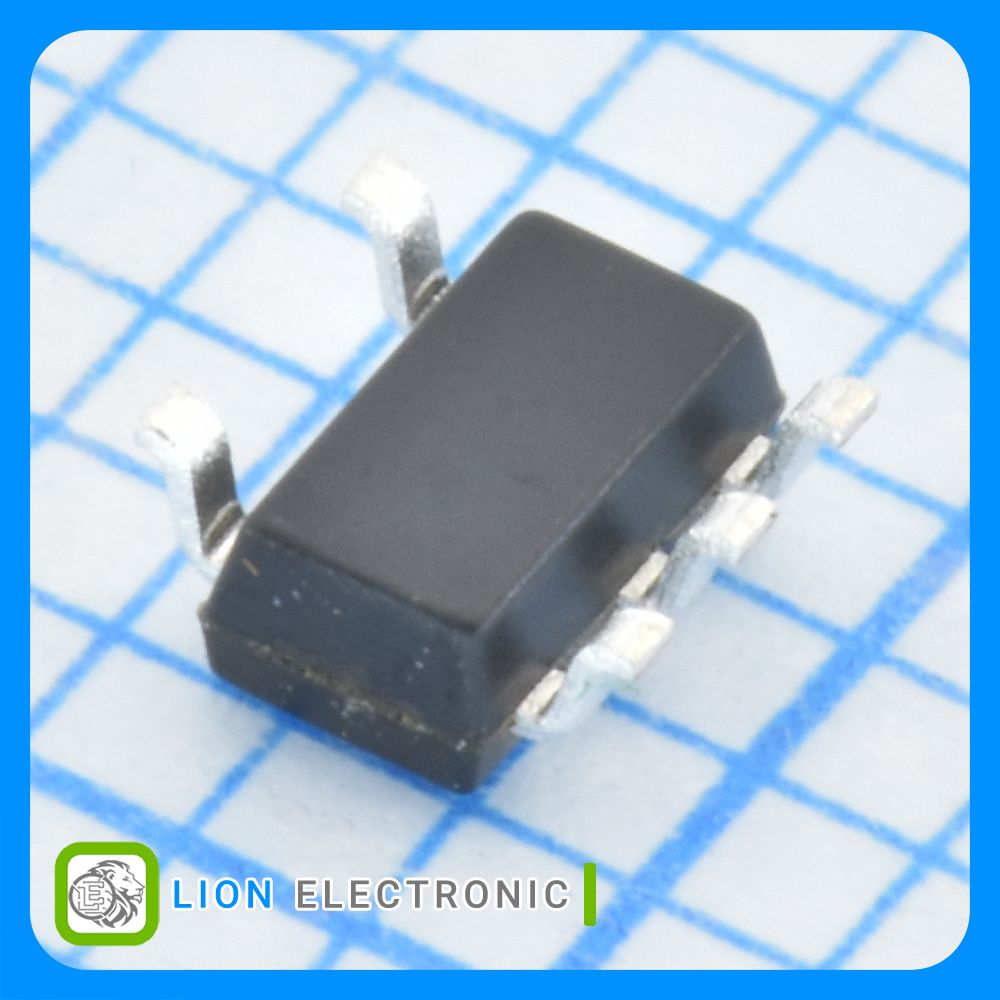

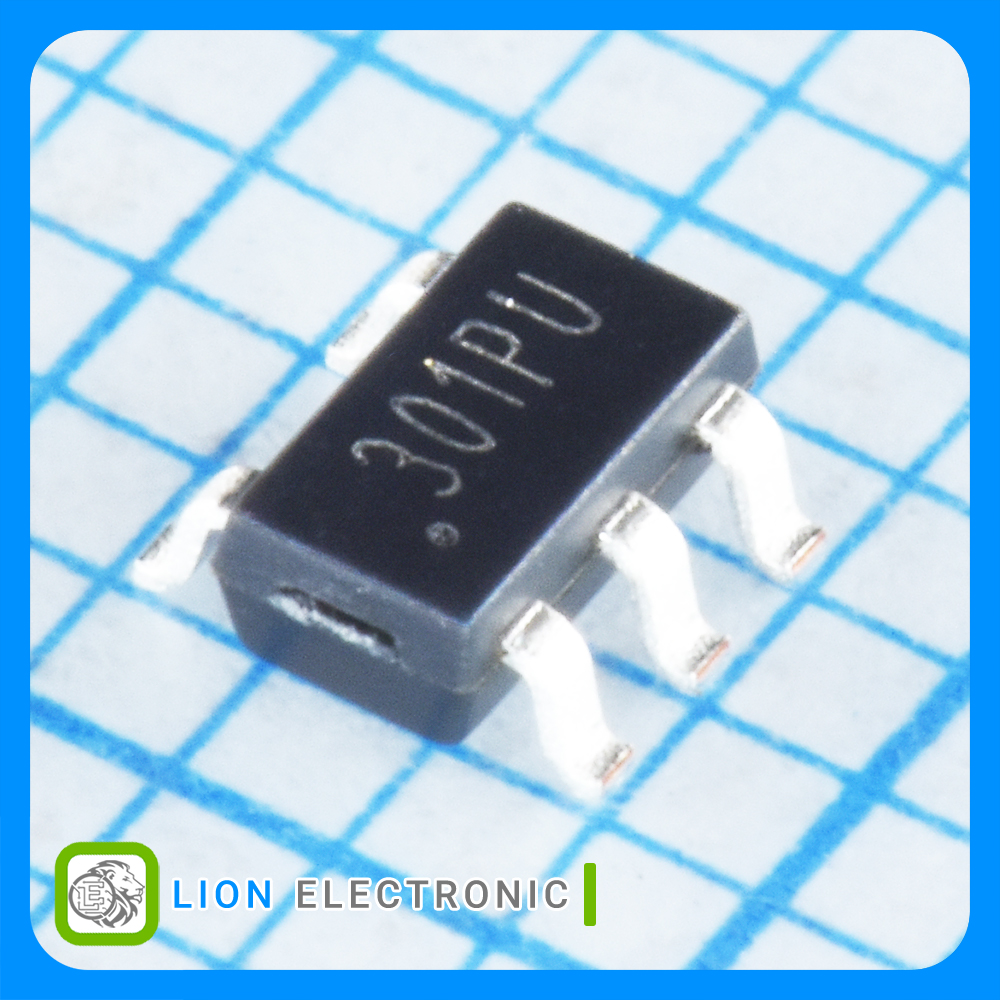

TP2301-TR
TP2301-TR
Part Number
6910
Lion Part
Datasheet
3PEAK Manufacture
تقویتکننده ابزاردقیق 1 کاناله با پهنای باند 20 مگاهرتز، اپامپ کم نویز و دقت بالا، تغذیه ±2.2 تا ±5.5 ولت با پکیج SOT-23-5
Instrumentation Amplifier 1-Channel 20MHz Bandwidth, Low Noise High Precision Op-amp, ±2.2 to ±5.5V with SOT-23-5 Package
معرفی
تقویتکننده ابزاردقیق 1 کاناله با پهنای باند 20 مگاهرتز، اپامپ کم نویز و دقت بالا، تغذیه ±2.2 تا ±5.5 ولت با پکیج SOT-23-5
Instrumentation Amplifier 1-Channel 20MHz Bandwidth, Low Noise High Precision Op-amp, ±2.2 to ±5.5V with SOT-23-5 Package
Specifications
- Number of Channels: 1
- SR - Slew Rate: 25V/us
- CMRR - Common Mode Rejection Ratio: 100dB
- Ib - Input Bias Current: 0.3pA
- Vos - Input Offset Voltage: ±7uV
- GBP - Gain Bandwidth Product: 20MHz
- Supply Voltage - Min: ±2.2
- Supply Voltage - Max: ±5.5V
- Operating Supply Current: 5mA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tape&Reel
مشخصات TP2301-TR
TP2301-TR
Part Number
1
Number of Channels
0.3pA
Ib - Input Bias Current
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
Tape&Reel
Packaging
±7uV
Vos - Input Offset Voltage
±5.5V
Supply Voltage - Max
+125C
Maximum Operating Temperature
±2.2
Supply Voltage - Min
100dB
CMRR - Common Mode Rejection Ratio
25V/us
SR - Slew Rate
20MHz
GBP - Gain Bandwidth Product
5mA
Operating Supply Current
SOT-23-5
Package-Case
