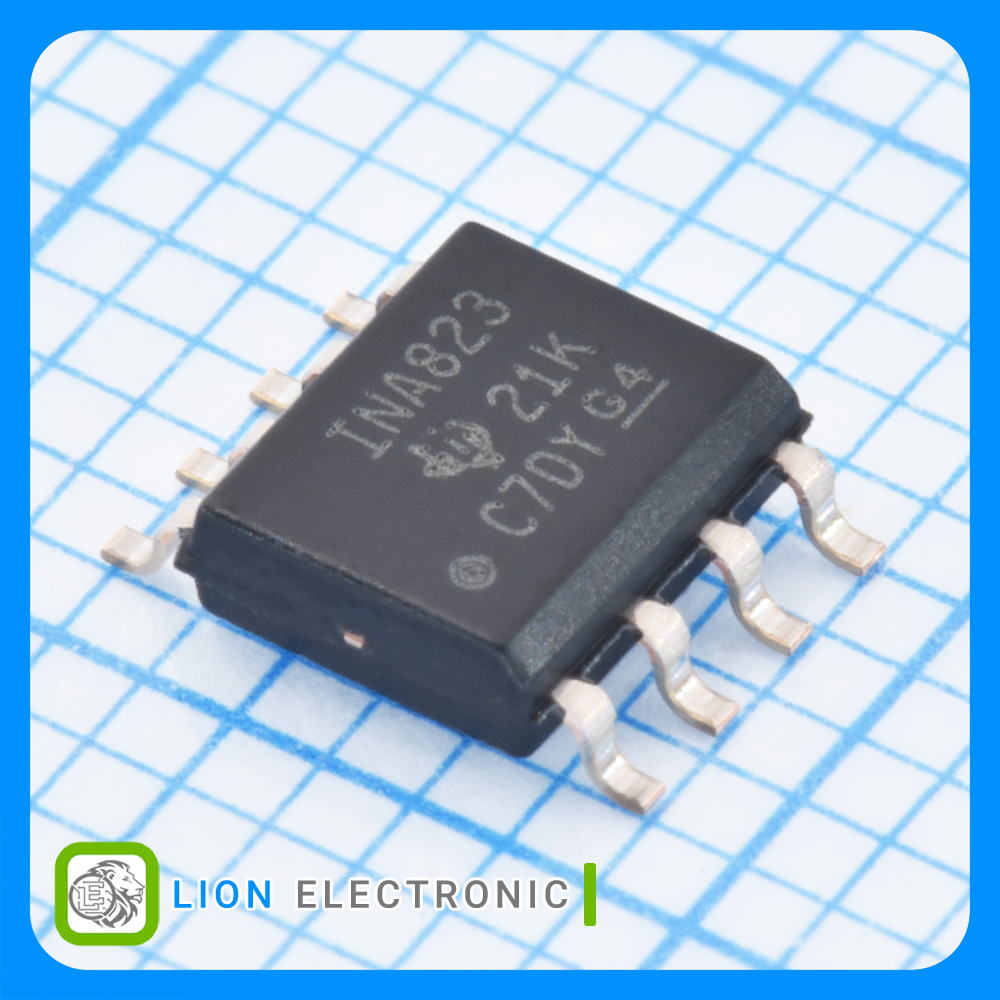

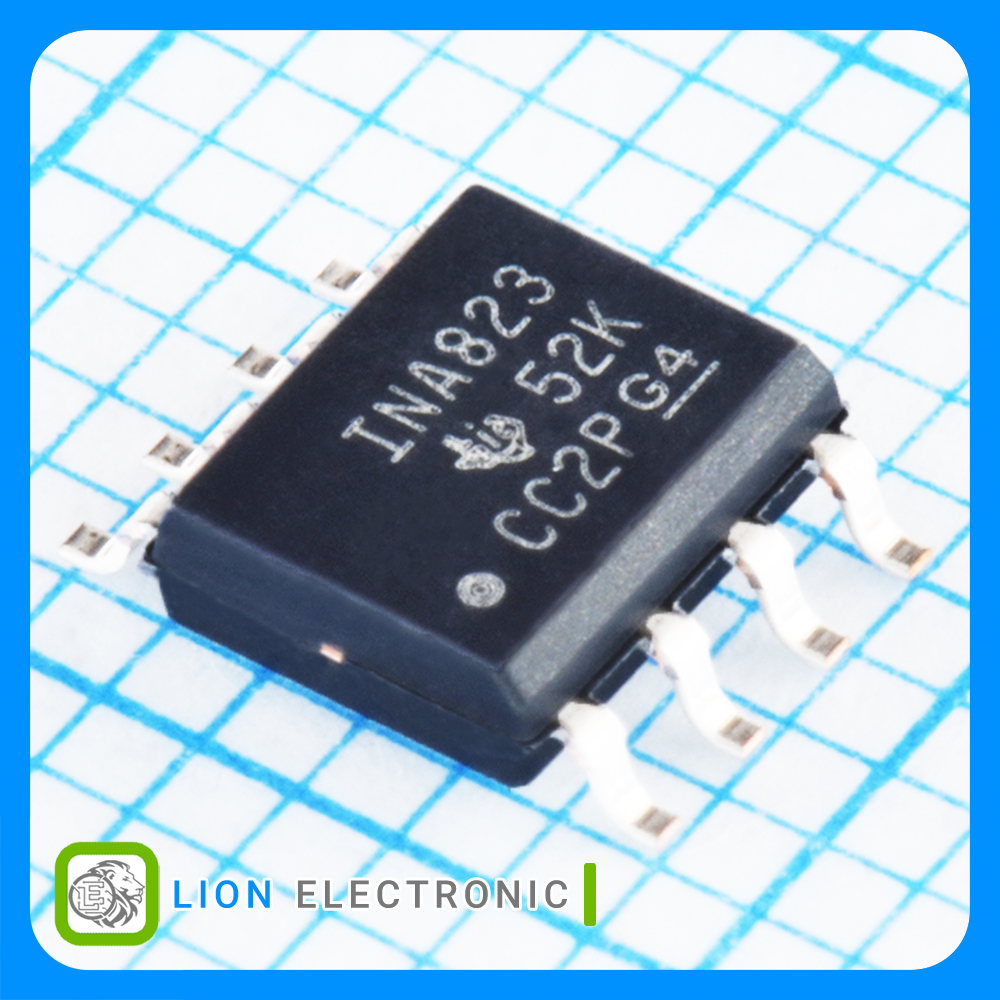

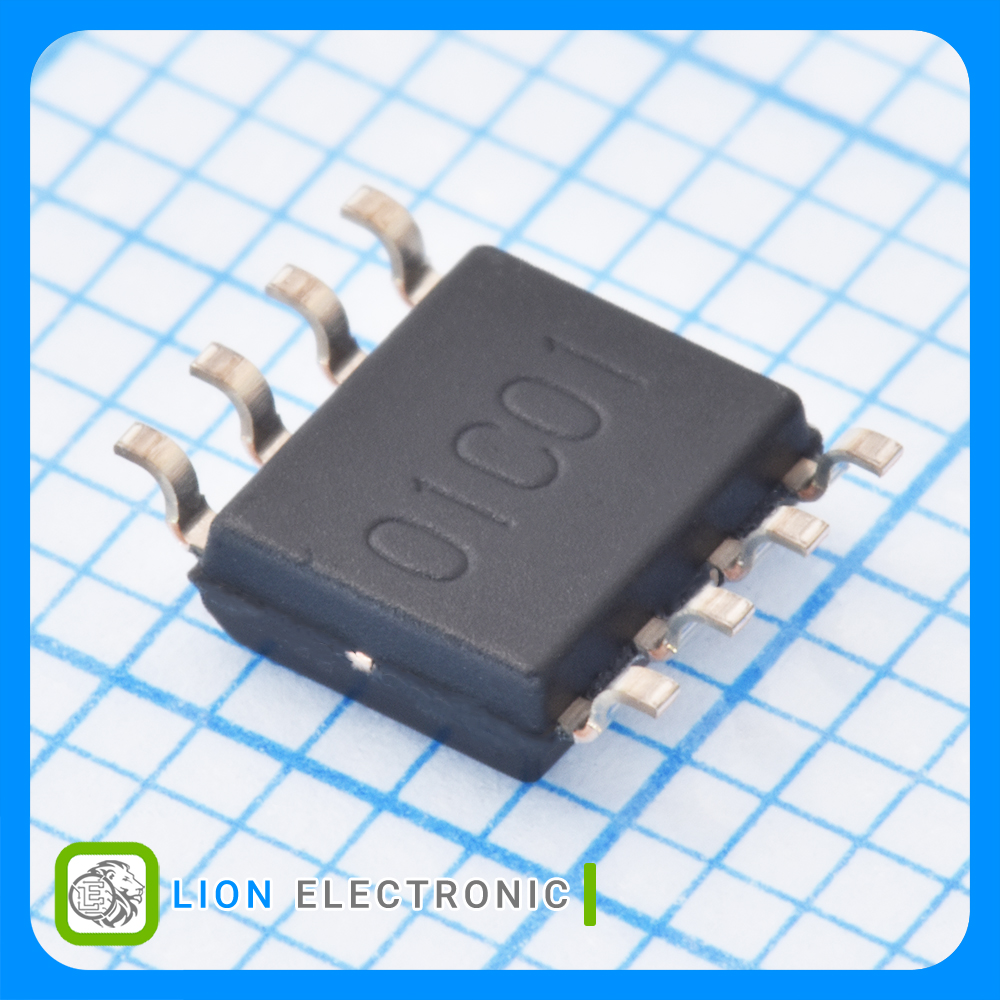

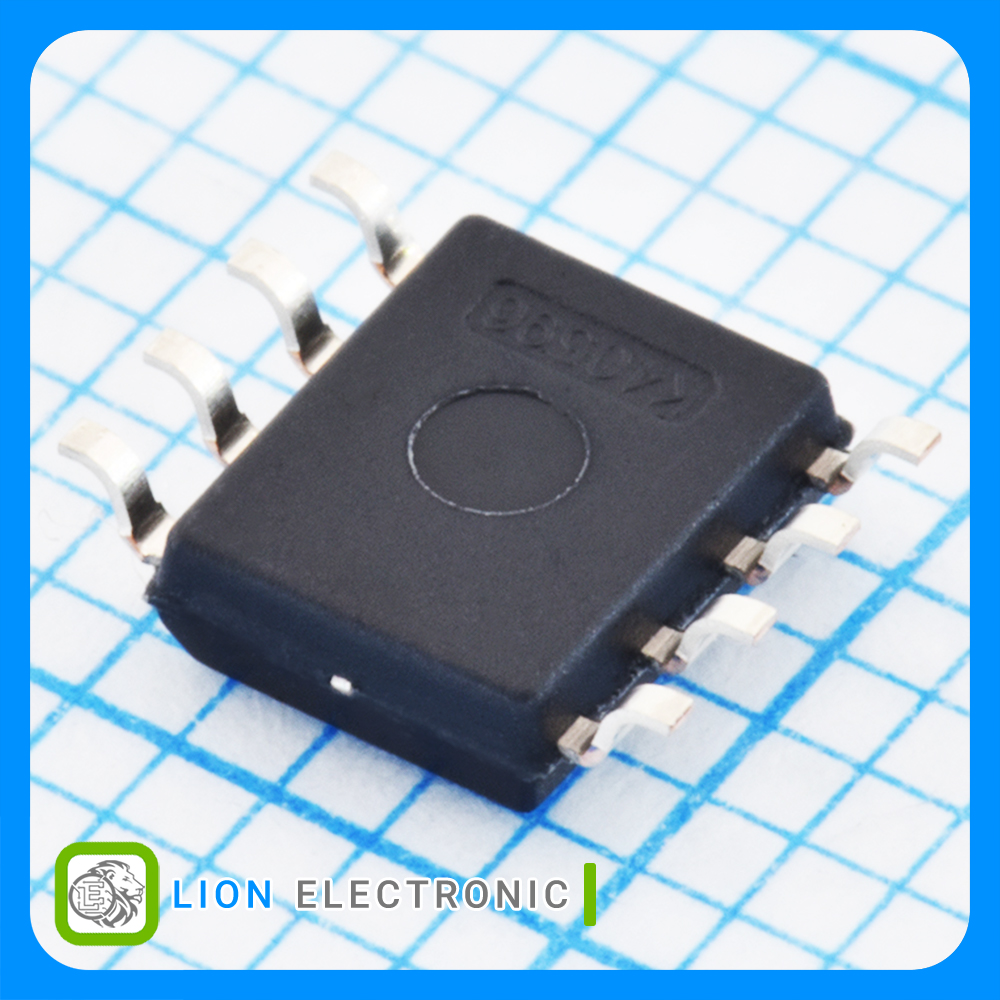

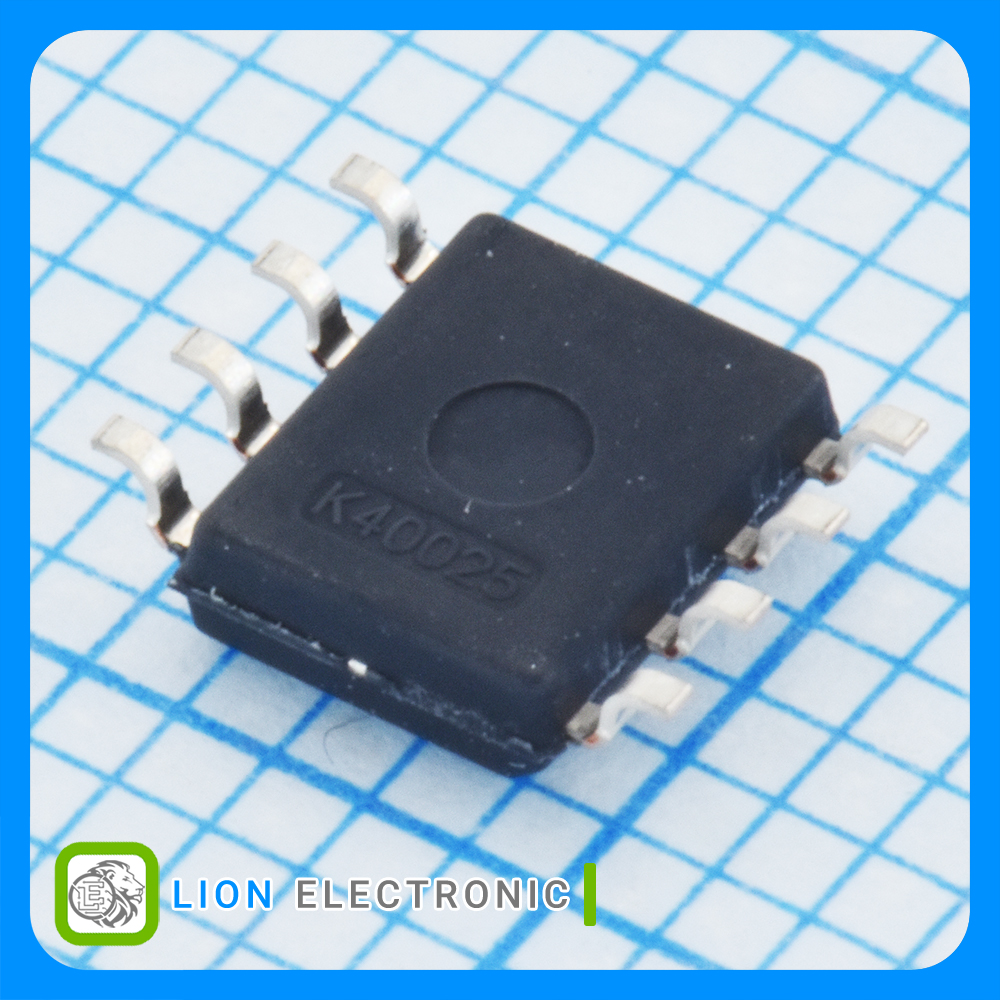

INA823DR
INA823DR
Part Number
4471
Lion Part
Datasheet
Texas Instruments Manufacture
تقویتکننده ابزاردقیق 1 کاناله 1.9 مگاهرتز تغذیه 2.7 تا 36 ولت با پکیج SOIC-8
Instrumentation Amplifier 1-Channel 1.9MHz 2.7V to 36V with SOIC-8 Package
معرفی
تقویتکننده ابزاردقیق 1 کاناله 1.9 مگاهرتز تغذیه 2.7 تا 36 ولت با پکیج SOIC-8
Instrumentation Amplifier 1-Channel 1.9MHz 2.7V to 36V with SOIC-8 Package
Specifications
- Number of Channels: 1
- SR - Slew Rate: 900mV/us
- CMRR - Common Mode Rejection Ratio: 120dB
- Ib - Input Bias Current: 1.2nA
- Vos - Input Offset Voltage: 20uV
- GBP - Gain Bandwidth Product: 1.9MHz
- Supply Voltage - Min: 2.7V
- Supply Voltage - Max: 36V
- Operating Supply Current: 180uA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ INA823DR

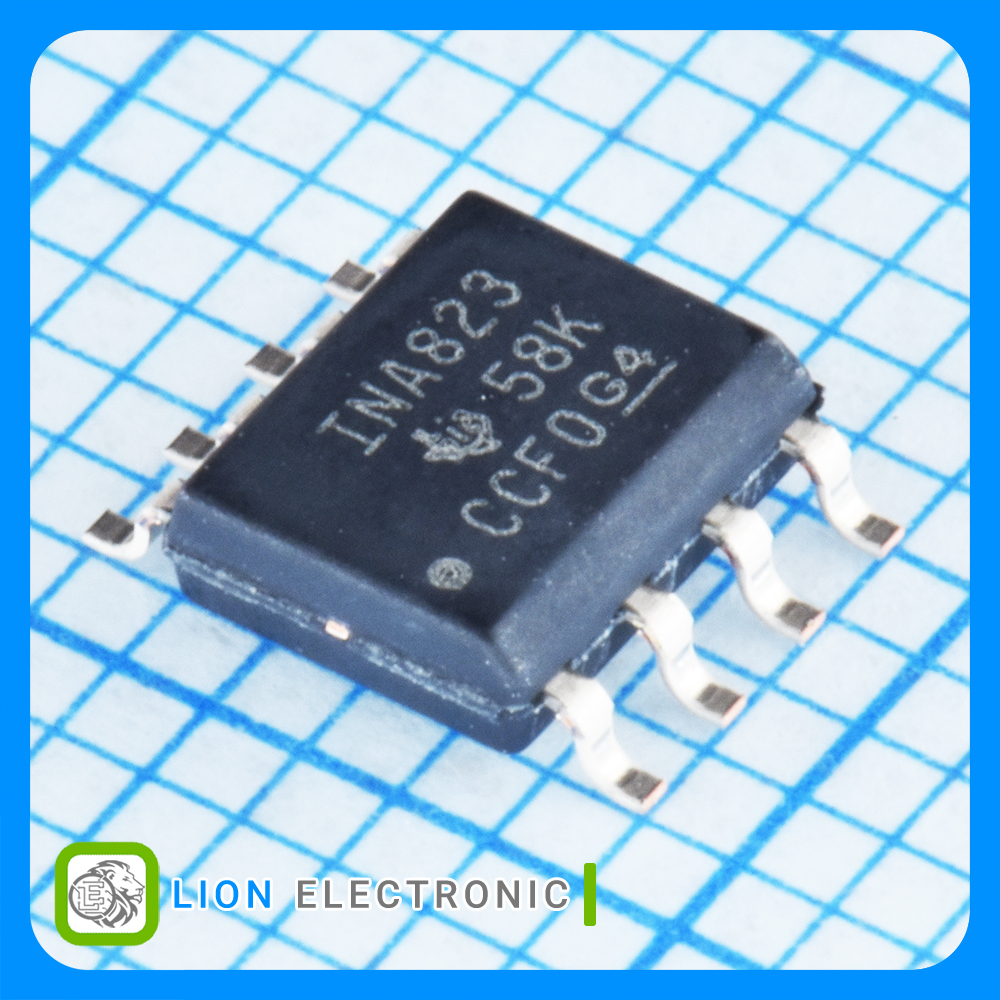

آپ امپ INA823DR
Part Number
1
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
20uV
Vos - Input Offset Voltage
900mV/us
SR - Slew Rate
+125C
Maximum Operating Temperature
1.9MHz
GBP - Gain Bandwidth Product
1.2nA
Ib - Input Bias Current
2.7V
Supply Voltage - Min
120dB
CMRR - Common Mode Rejection Ratio
180uA
Operating Supply Current
36V
Supply Voltage - Max
SOIC-8
Package-Case
