هیچ نظری برای این محصول ثبت نشده است. LMV932MA

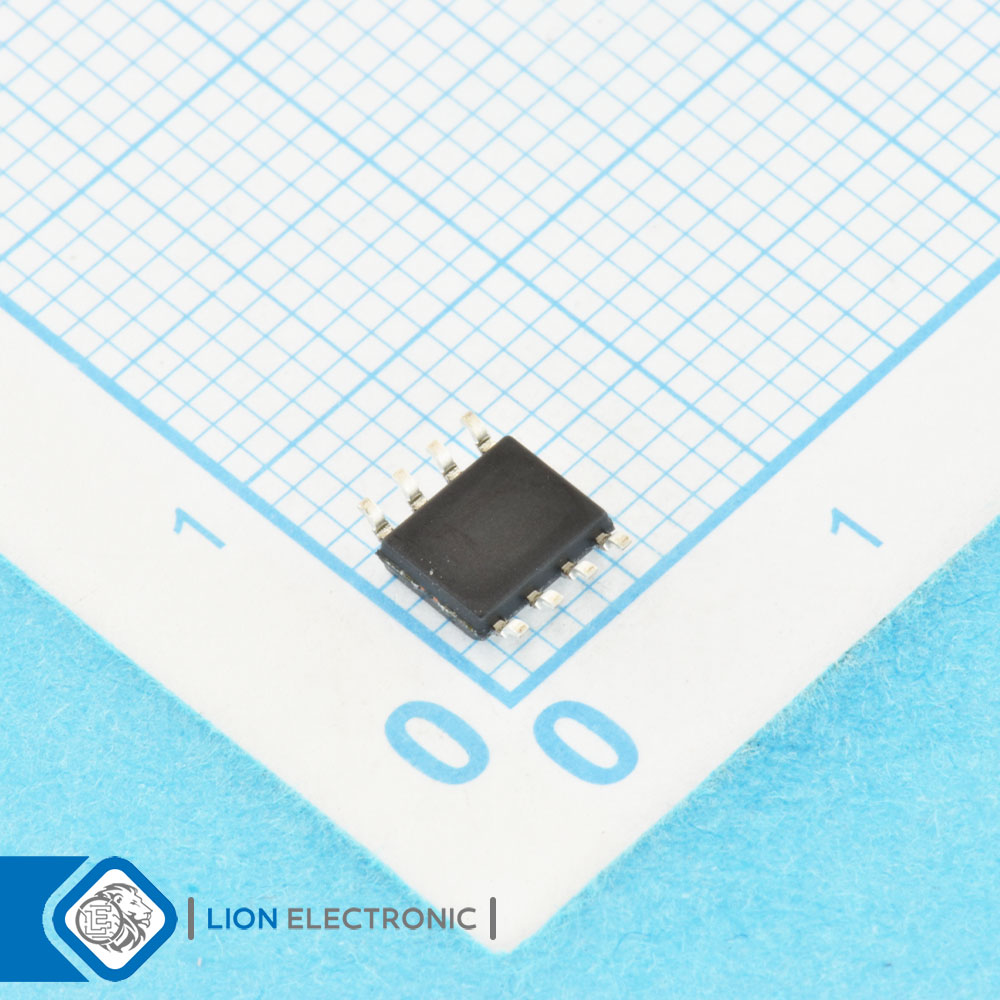

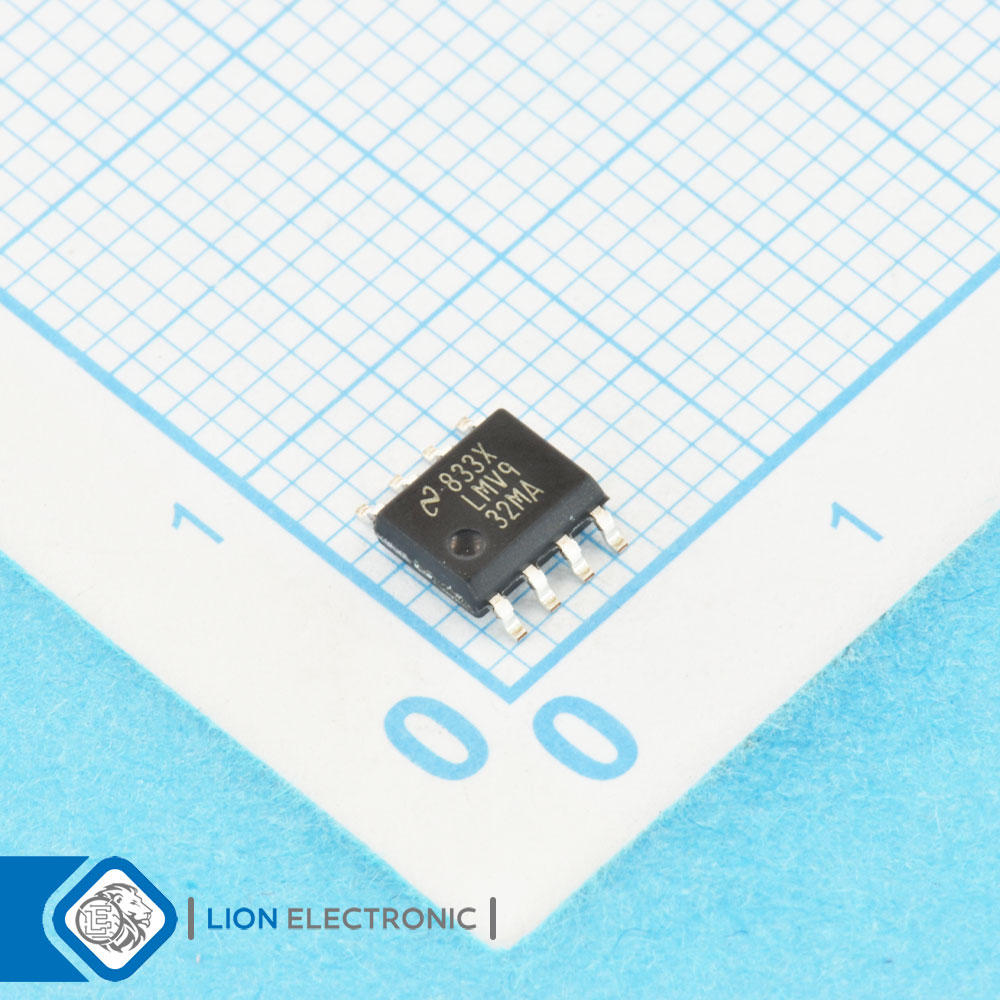

LMV932MA
Part Number
National Semiconductor
Mfr
Operational Amplifiers - Op Amps NRND, alternate is LMV932MA
Description
Datasheet
LMV932MA
Part Number
125C+
Maximum Operating Temperature
5V
Supply Voltage - Max
60dB to 86dB
CMRR - Common Mode Rejection Ratio
40C-
Minimum Operating Temperature
No Shutdown
Shutdown
0.42V/us
SR - Slew Rate
1.5MHz
GBP - Gain Bandwidth Product
5.5mV
Vos - Input Offset Voltage
SOIC-8
Package-Case
35nA
Ib - Input Bias Current
8mA
Output Current per Channel
2
Number of Channels
116uA
Operating Supply Current
Tube
Packaging
LMV932-N
Series
SMD/SMT
Mounting Style
1.8V
Supply Voltage - Min
