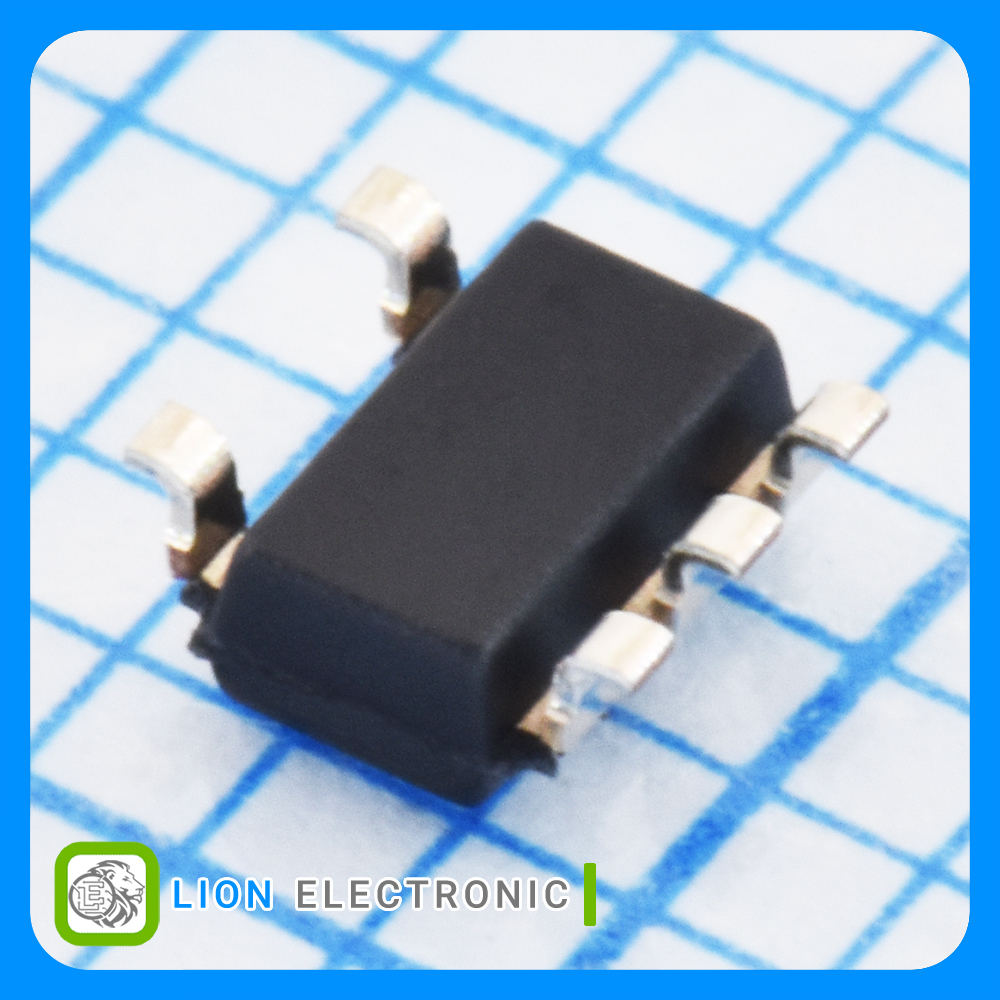

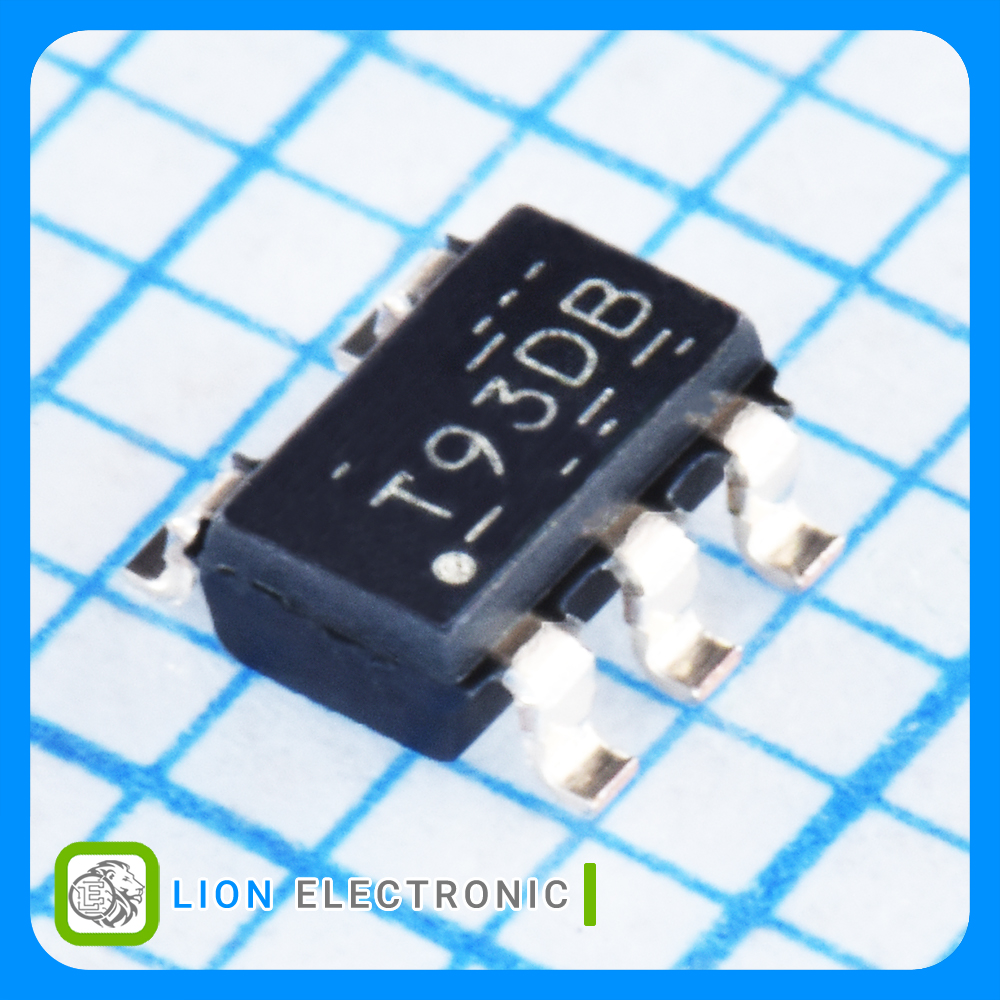

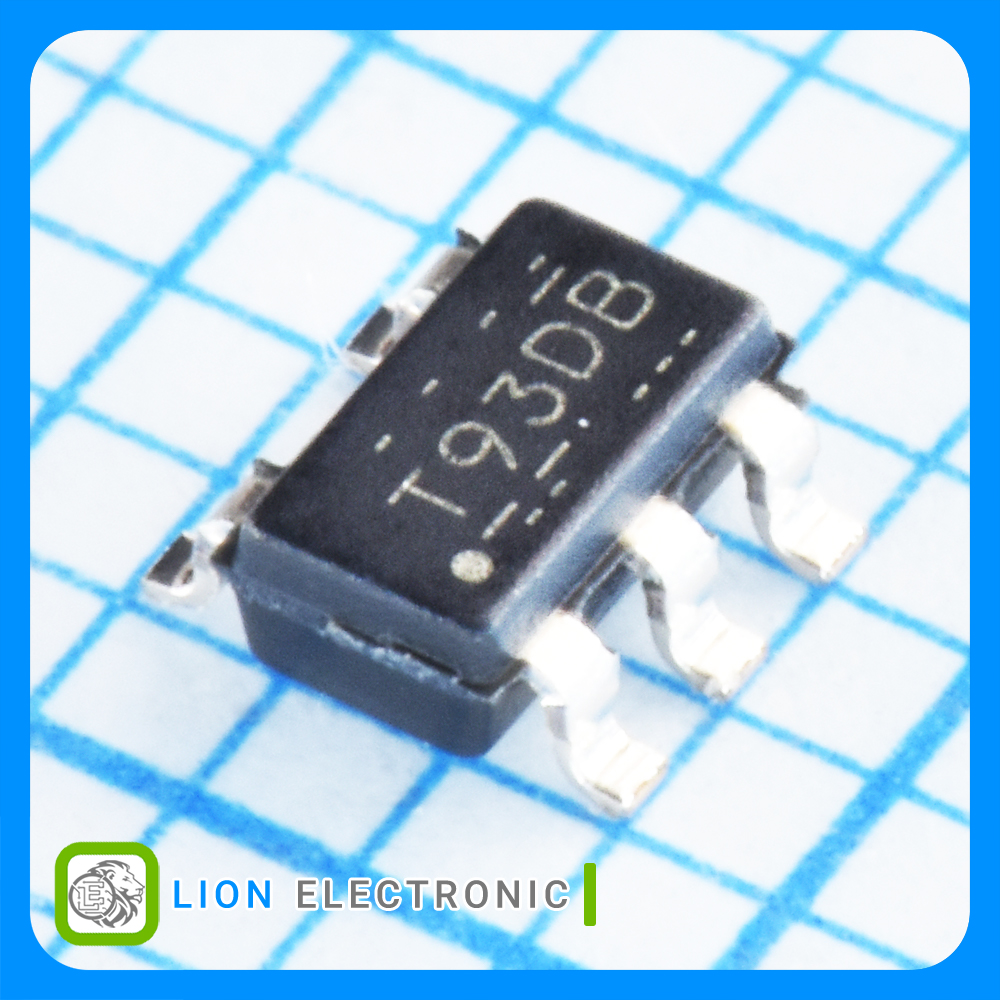

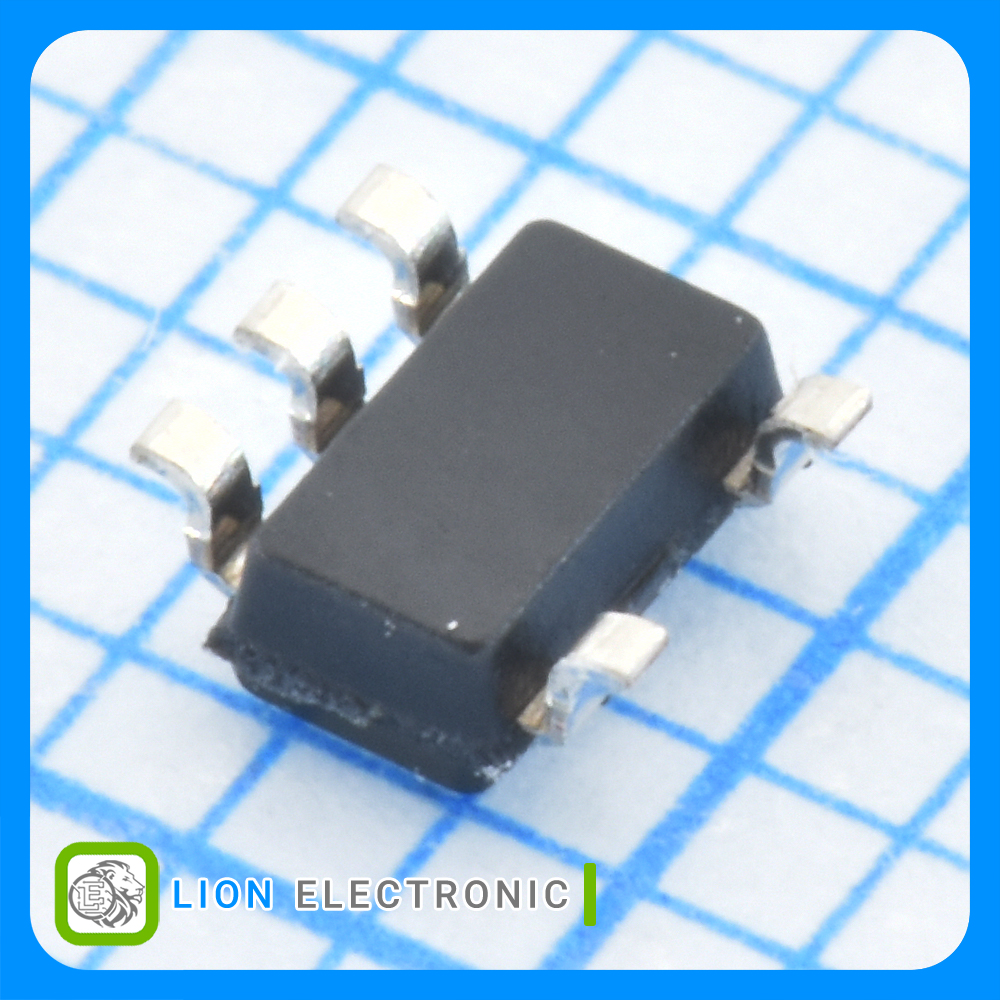

TLV9361IDBVR
TLV9361IDBVR
Part Number
6197
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ تک کاناله 10.6 مگاهرتز با خروجی ریل تو ریل، تغذیه تا 40 ولت، سرعت چرخش 25 ولت بر میکروثانیه، دارای EMIRR، پکیج SOT-23-5
1-Channel Op-Amp, 10.6MHz GBW, rail-to-rail output, 40V supply, 25V/µs slew rate, EMIRR filtering, SOT-23-5 package
معرفی
آپامپ تک کاناله 10.6 مگاهرتز با خروجی ریل تو ریل، تغذیه تا 40 ولت، سرعت چرخش 25 ولت بر میکروثانیه، دارای EMIRR، پکیج SOT-23-5
1-Channel Op-Amp, 10.6MHz GBW, rail-to-rail output, 40V supply, 25V/µs slew rate, EMIRR filtering, SOT-23-5 package
Specifications
- Number of Channels: 1
- Output Current per Channel: 60mA
- SR - Slew Rate: 25V/us
- GBP - Gain Bandwidth Product: 10.6MHz
- CMRR - Common Mode Rejection Ratio: 110dB
- Ib - Input Bias Current: 10pA
- Vos - Input Offset Voltage: ±400uV
- Supply Voltage - Max: 40V
- Supply Voltage - Min: 4.5V
- Operating Supply Current: 2.6mA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات TLV9361IDBVR
TLV9361IDBVR
Part Number
1
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
10pA
Ib - Input Bias Current
+125C
Maximum Operating Temperature
60mA
Output Current per Channel
±400uV
Vos - Input Offset Voltage
10.6MHz
GBP - Gain Bandwidth Product
110dB
CMRR - Common Mode Rejection Ratio
25V/us
SR - Slew Rate
4.5V
Supply Voltage - Min
40V
Supply Voltage - Max
2.6mA
Operating Supply Current
SOT-23-5
Package-Case
