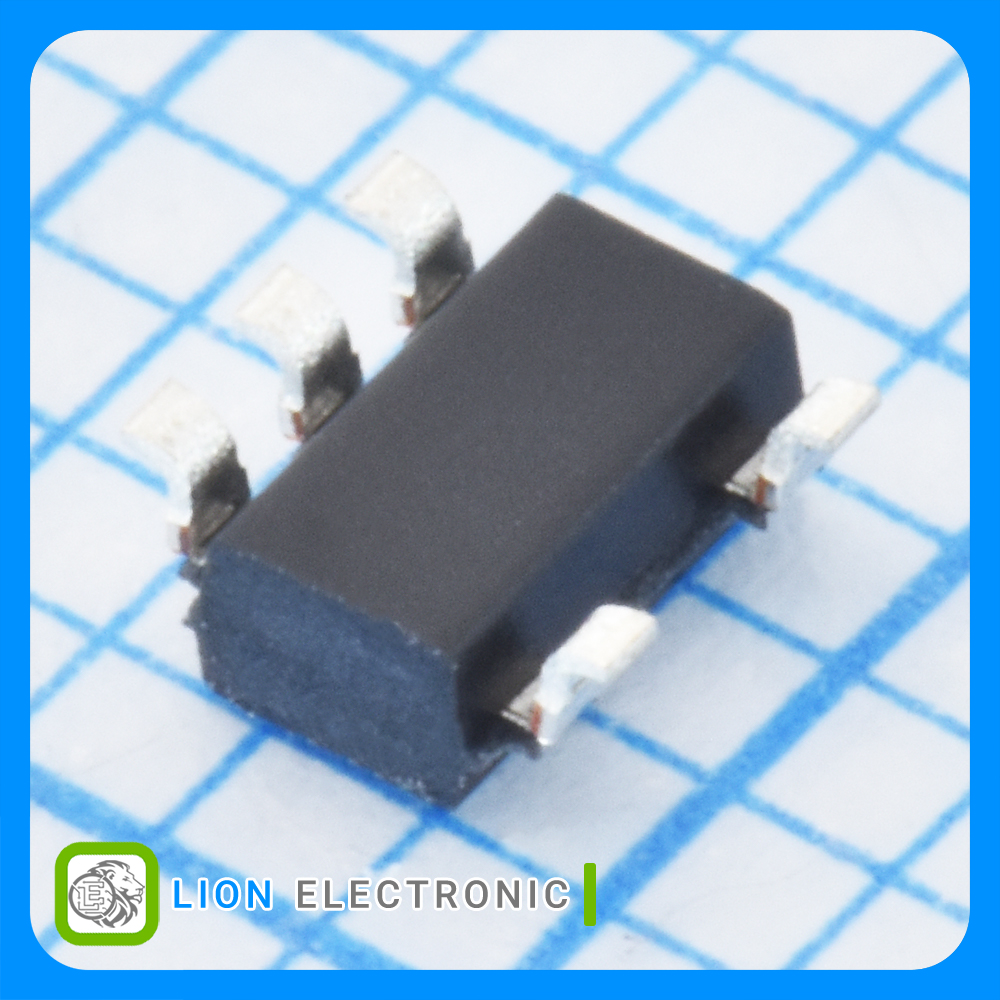

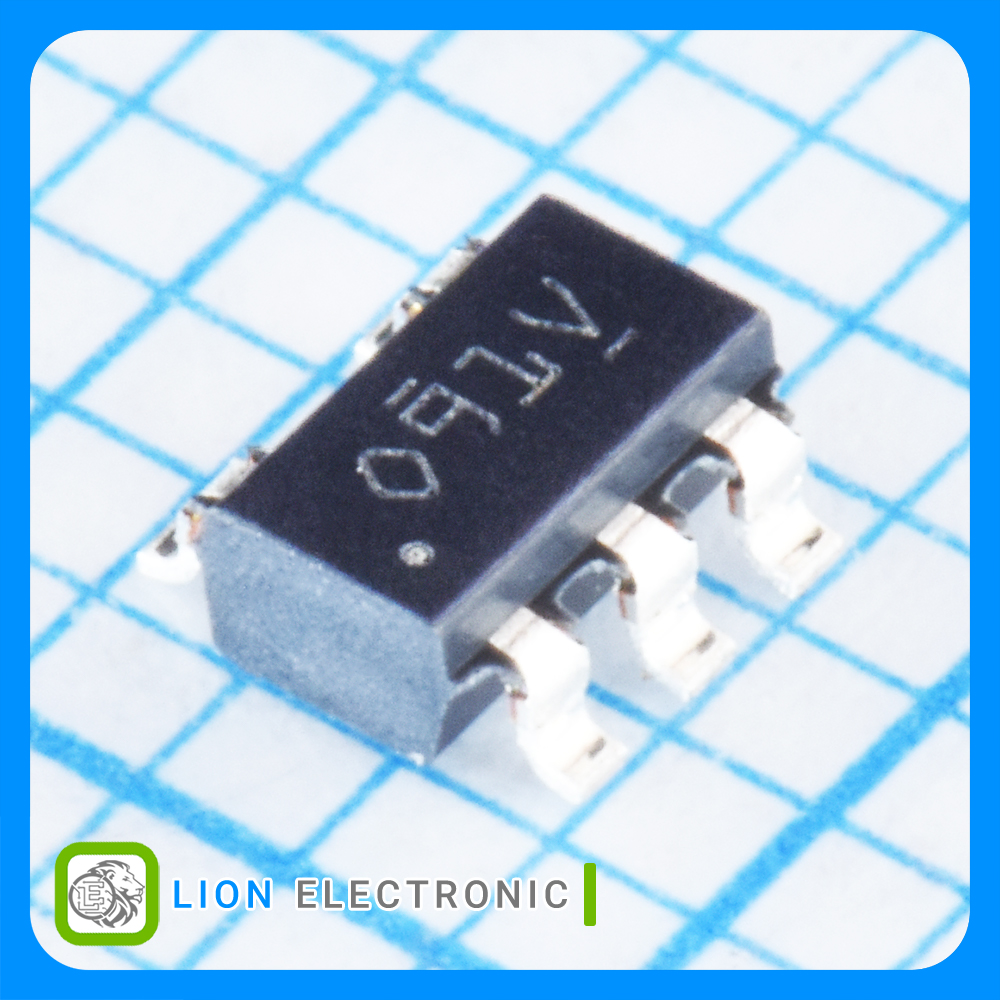

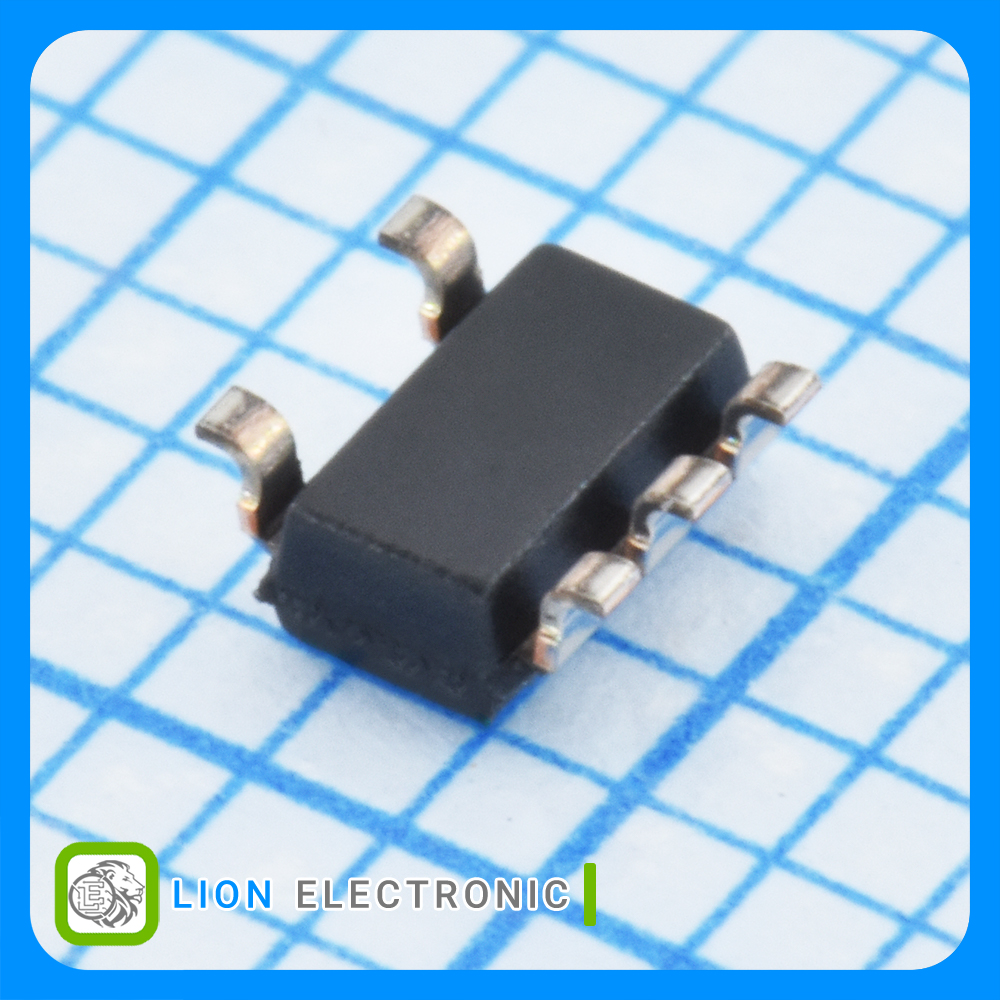

OPA991IDBVR
OPA991IDBVR
Part Number
5896
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 1 کاناله با پهنای باند 4.5 مگاهرتز ریل تو ریل و نویز کم با پکیج SOT-23-5
Operational Amplifier 1-Channel, 4.5MHz, 40V Rail-to-Rail Input/Output, Low Offset Voltage, Low Noise with SOT-23-5 Package
معرفی
آپامپ 1 کاناله با پهنای باند 4.5 مگاهرتز ریل تو ریل و نویز کم با پکیج SOT-23-5
Operational Amplifier 1-Channel, 4.5MHz, 40V Rail-to-Rail Input/Output, Low Offset Voltage, Low Noise with SOT-23-5 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 75mA
- SR - Slew Rate: 21V/us
- GBP - Gain Bandwidth Product: 4.5MHz
- CMRR - Common Mode Rejection Ratio: 130dB
- Ib - Input Bias Current: 10pA
- Vos - Input Offset Voltage: 125uV
- Supply Voltage - Max: 40V
- Supply Voltage - Min: 2.7V
- Operating Supply Current: 560uA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ ام OPA991IDBVR

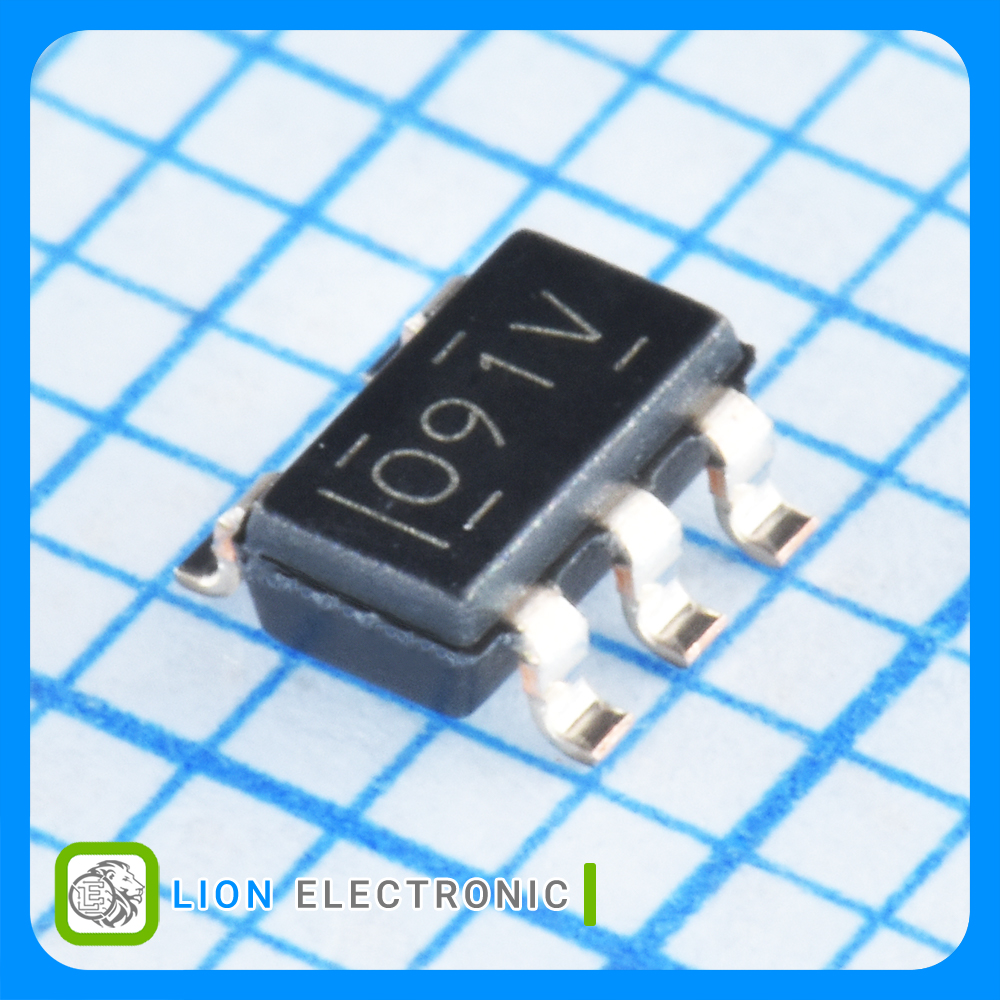

آپ ام OPA991IDBVR
Part Number
1
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
10pA
Ib - Input Bias Current
+125C
Maximum Operating Temperature
125uV
Vos - Input Offset Voltage
75mA
Output Current per Channel
2.7V
Supply Voltage - Min
4.5MHz
GBP - Gain Bandwidth Product
21V/us
SR - Slew Rate
130dB
CMRR - Common Mode Rejection Ratio
40V
Supply Voltage - Max
560uA
Operating Supply Current
SOT-23-5
Package-Case
