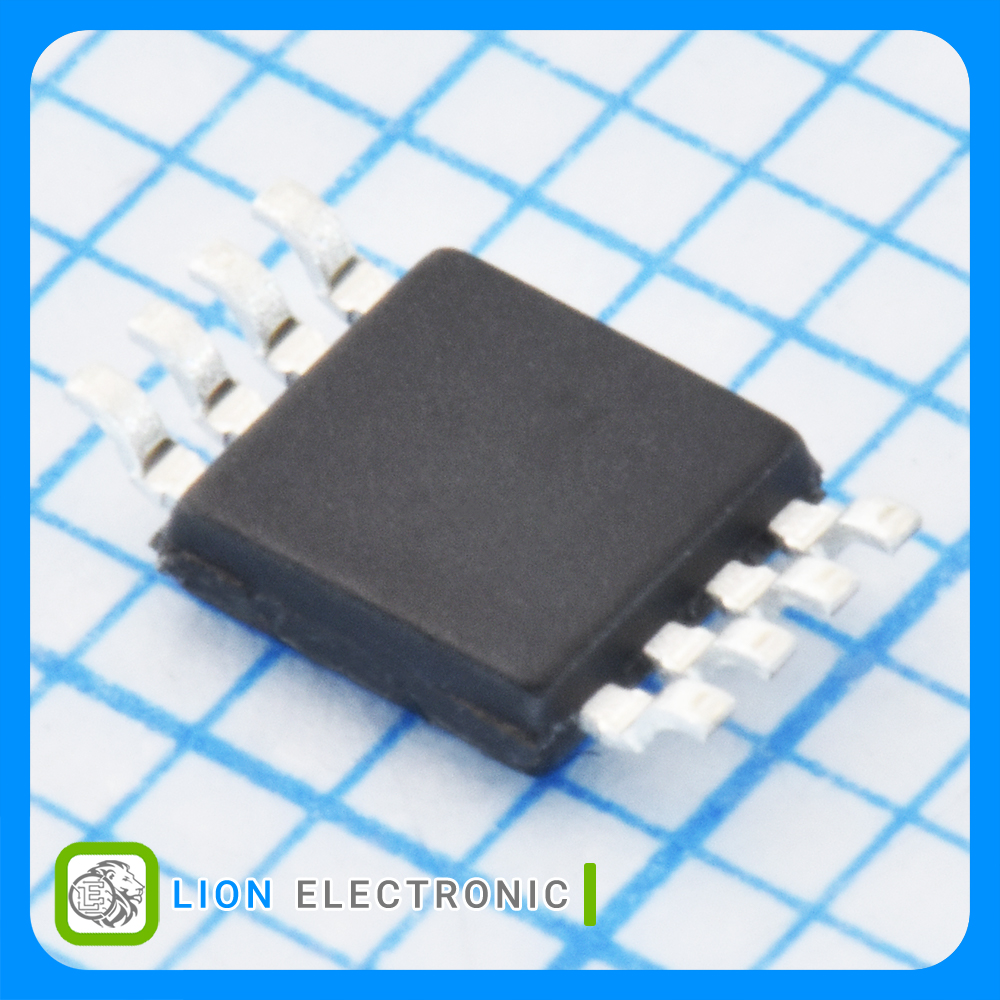

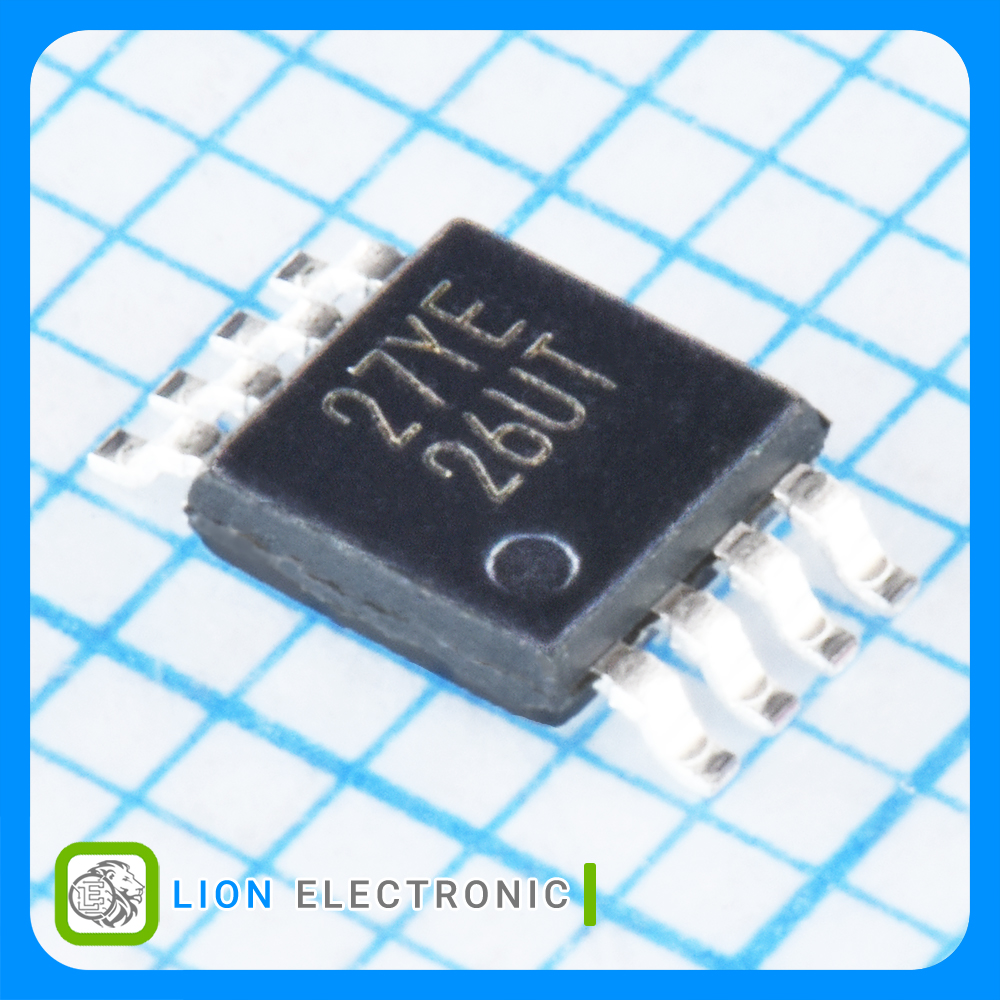

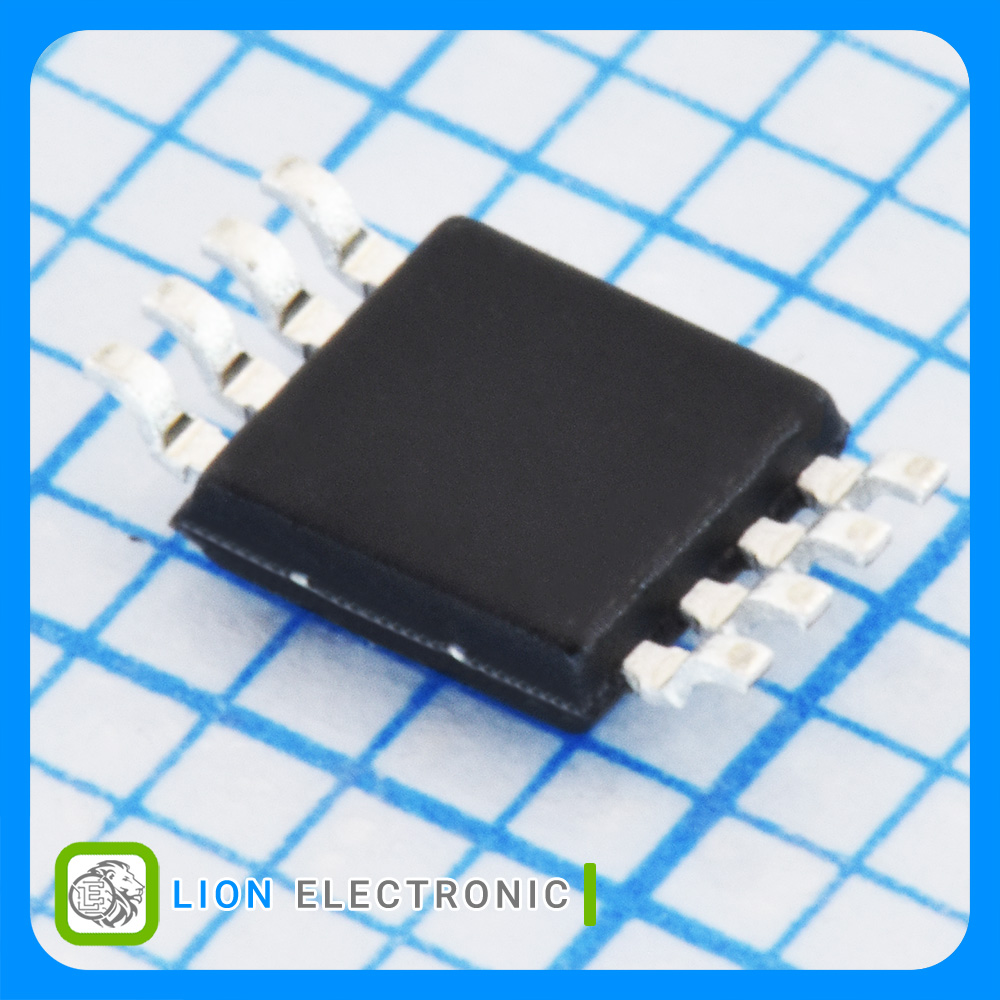

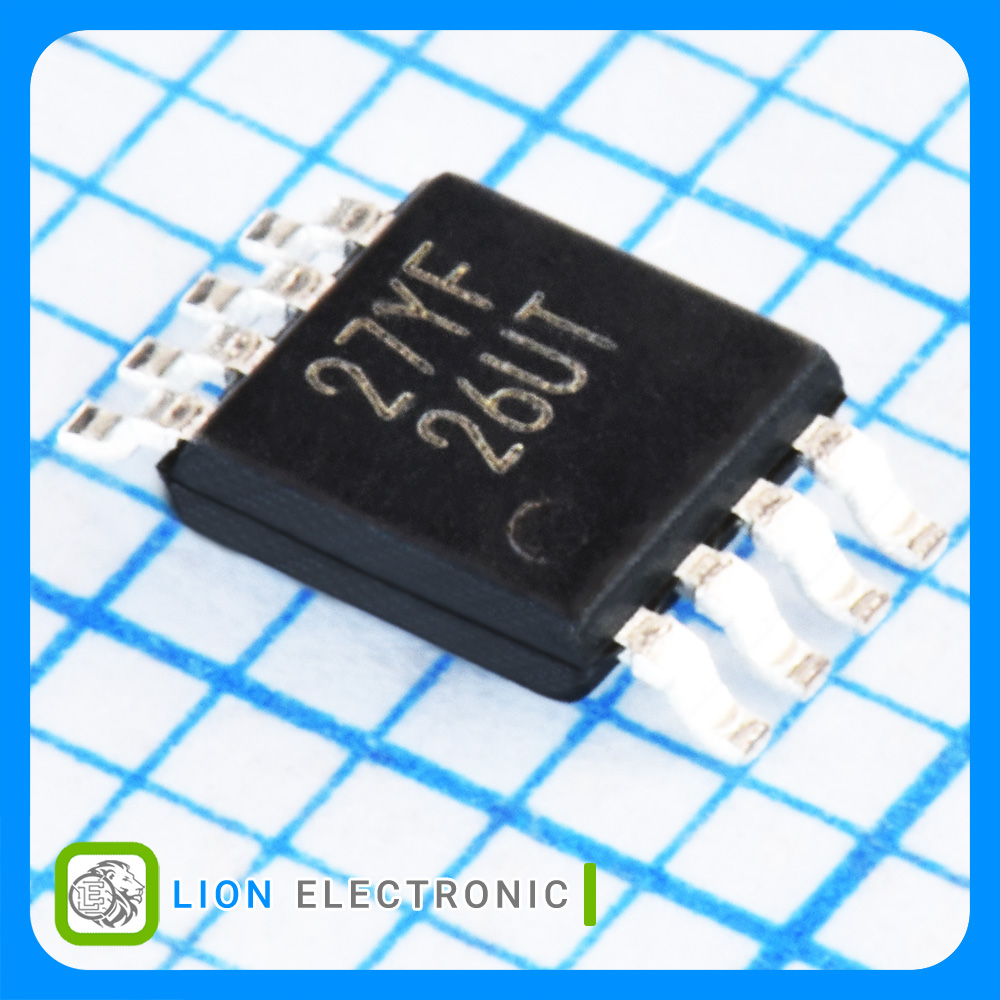

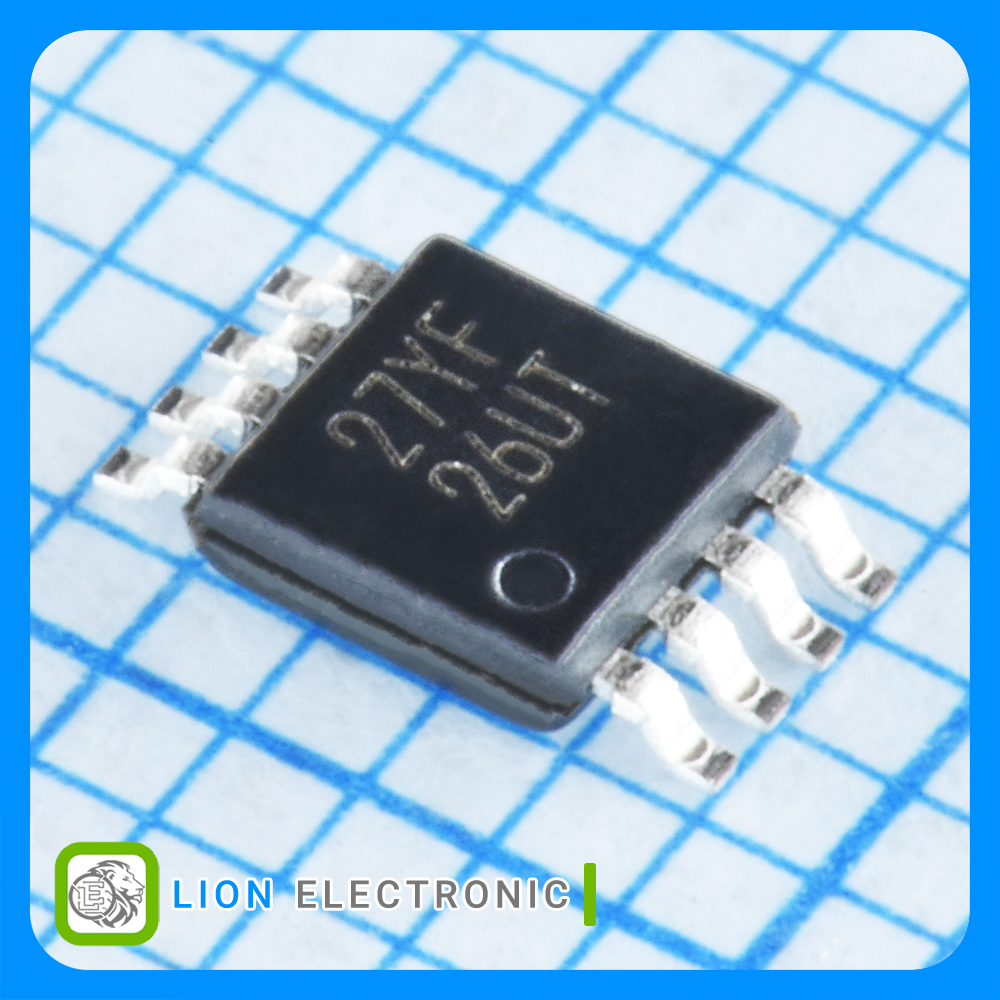

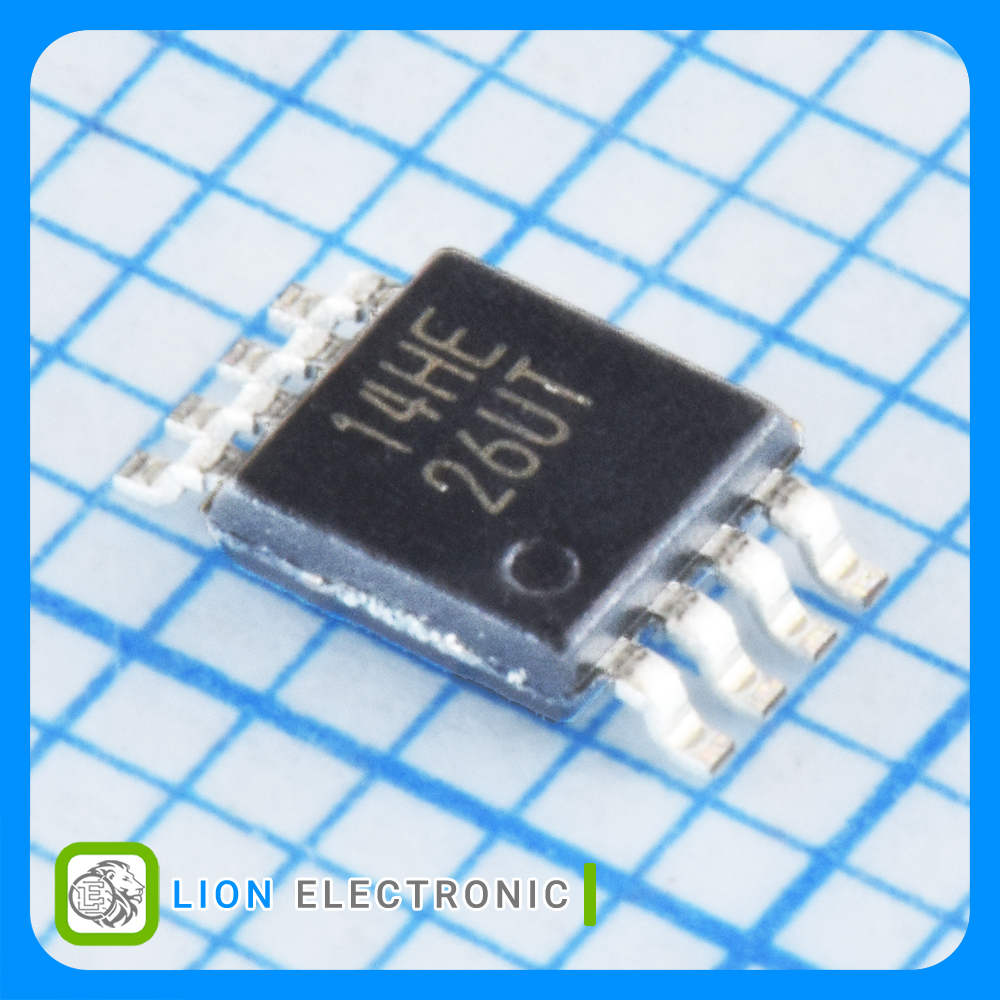

OPA2991IDGKR
OPA2991IDGKR
Part Number
5897
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 2 کاناله با پهنای باند 4.5 مگاهرتز و پکیج VSSOP-8
Operational Amplifier 2-Channel, 4.5MHz with VSSOP-8 Package
معرفی
آپامپ 2 کاناله با پهنای باند 4.5 مگاهرتز و پکیج VSSOP-8
Operational Amplifier 2-Channel, 4.5MHz with VSSOP-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 75mA
- SR - Slew Rate: 21V/us
- GBP - Gain Bandwidth Product: 4.5MHz
- CMRR - Common Mode Rejection Ratio: 130dB
- Ib - Input Bias Current: 10pA
- Vos - Input Offset Voltage: 125uV
- Supply Voltage - Max: 40V
- Supply Voltage - Min: 2.7V
- Operating Supply Current: 560uA
- Mounting Style: SMD/SMT
- Package/Case: VSSOP-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ OPA2991IDGKR
آپ امپ OPA2991IDGKR
Part Number
2
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
10pA
Ib - Input Bias Current
+125C
Maximum Operating Temperature
125uV
Vos - Input Offset Voltage
75mA
Output Current per Channel
2.7V
Supply Voltage - Min
4.5MHz
GBP - Gain Bandwidth Product
21V/us
SR - Slew Rate
130dB
CMRR - Common Mode Rejection Ratio
40V
Supply Voltage - Max
560uA
Operating Supply Current
VSSOP-8
Package-Case
