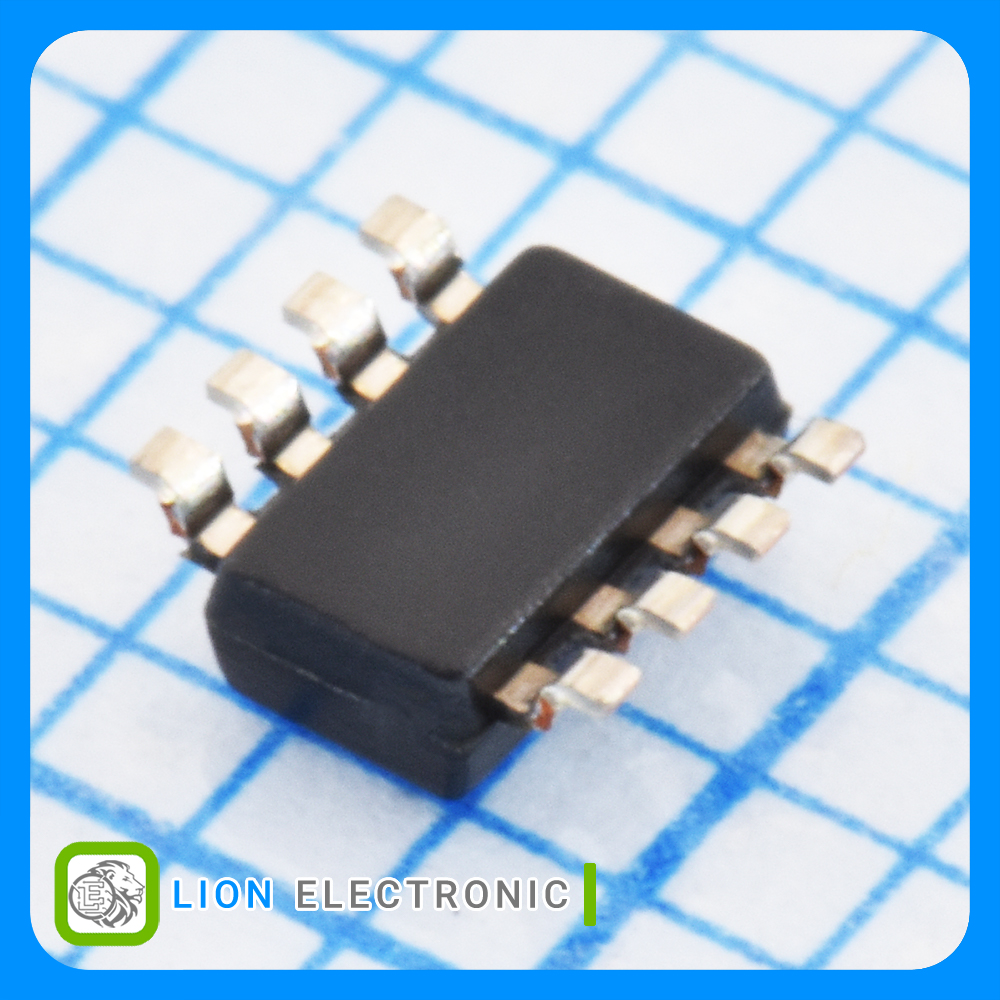

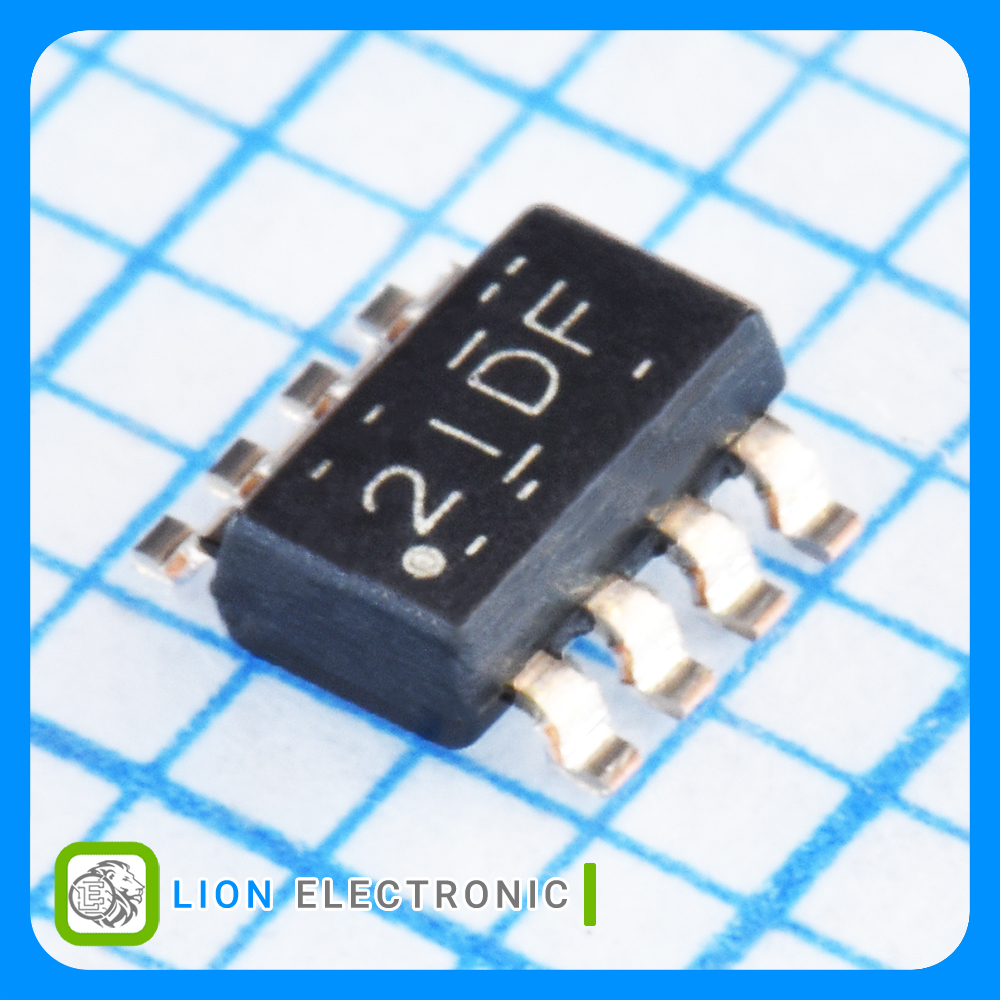

TLV9362IDDFR
TLV9362IDDFR
Part Number
6198
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 2 کاناله TLV9362 با پهنای باند 10.6 مگاهرتز، تغذیه تا 40 ولت، خروجی ریل تو ریل و فیلترینگ EMIRR با پکیج TSOT-23-8
TLV9362 2-Channel Rail-to-Rail Output Op-Amp, 10.6MHz GBW, 40V Supply, EMIRR Filtering, TSOT-23-8 Package
معرفی
آپامپ 2 کاناله TLV9362 با پهنای باند 10.6 مگاهرتز، تغذیه تا 40 ولت، خروجی ریل تو ریل و فیلترینگ EMIRR با پکیج TSOT-23-8
TLV9362 2-Channel Rail-to-Rail Output Op-Amp, 10.6MHz GBW, 40V Supply, EMIRR Filtering, TSOT-23-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 60mA
- SR - Slew Rate: 25V/us
- GBP - Gain Bandwidth Product: 10.6MHz
- CMRR - Common Mode Rejection Ratio: 110dB
- Ib - Input Bias Current: 10pA
- Vos - Input Offset Voltage: ±400uV
- Supply Voltage - Max: 40V
- Supply Voltage - Min: 4.5V
- Operating Supply Current: 2.6mA
- Mounting Style: SMD/SMT
- Package/Case: TSOT-23-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات TLV9362IDDFR
TLV9362IDDFR
Part Number
2
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
10pA
Ib - Input Bias Current
+125C
Maximum Operating Temperature
60mA
Output Current per Channel
±400uV
Vos - Input Offset Voltage
10.6MHz
GBP - Gain Bandwidth Product
110dB
CMRR - Common Mode Rejection Ratio
25V/us
SR - Slew Rate
4.5V
Supply Voltage - Min
40V
Supply Voltage - Max
2.6mA
Operating Supply Current
SOT-23-8
Package-Case
