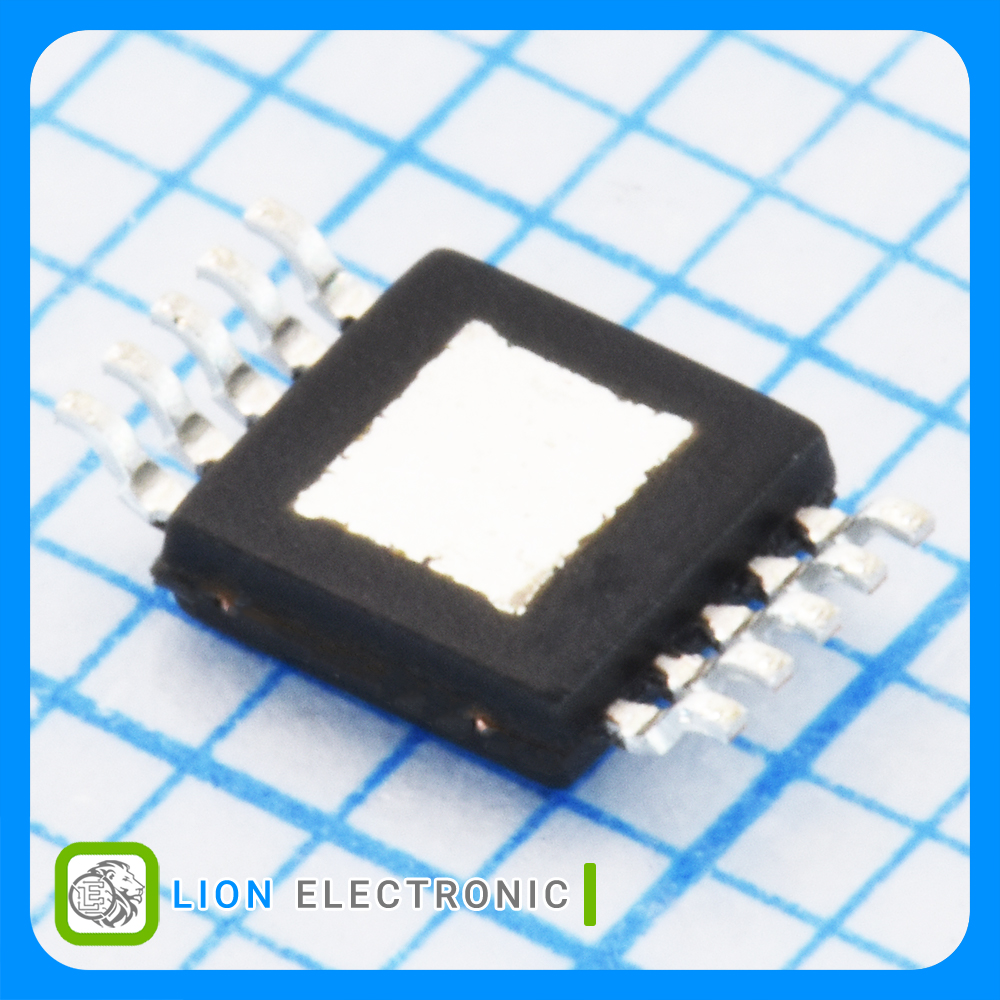

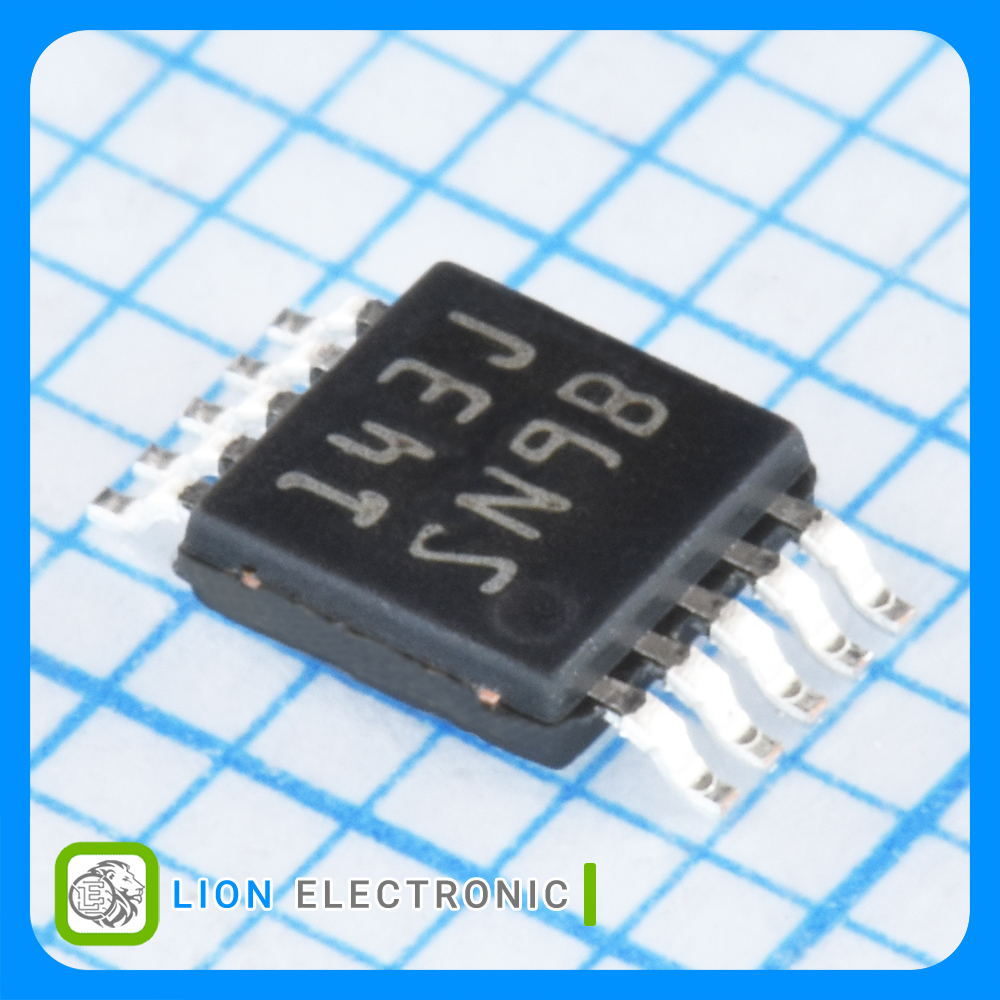

LM25011AMY
LM25011AMY
Part Number
4592
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور سوئیچینگ کاهنده 42 ولت 2 آمپر با فرکانس 2 مگاهرتز و پکیج HVSSOP-10
Buck Switching Regulator 42V, 2A 2MHz with HVSSOP-10 Package
معرفی
رگولاتور سوئیچینگ کاهنده 42 ولت 2 آمپر با فرکانس 2 مگاهرتز و پکیج HVSSOP-10
Buck Switching Regulator 42V, 2A 2MHz with HVSSOP-10 Package
Specifications
- Topology: Buck
- Switching Frequency: 2MHz
- Number of Outputs: 1
- Output Voltage: 2.51 - 40V
- Output Current: 2A
- Synchronous Rectification: No
- Input Voltage Min: 6V
- Input Voltage Max: 42V
- Mounting Style: SMD/SMT
- Package/Case: HVSSOP-10
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات LM25011AMY
LM25011AMY
Part Number
No
Synchronous Rectification
1
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
Buck
Topology
+125C
Maximum Operating Temperature
42V
Input Voltage Max
6V
Input Voltage Min
2A
Output Current
2MHz
Switching Frequency
2.51 - 40V
Output Voltage
HVSSOP-10
Package-Case
