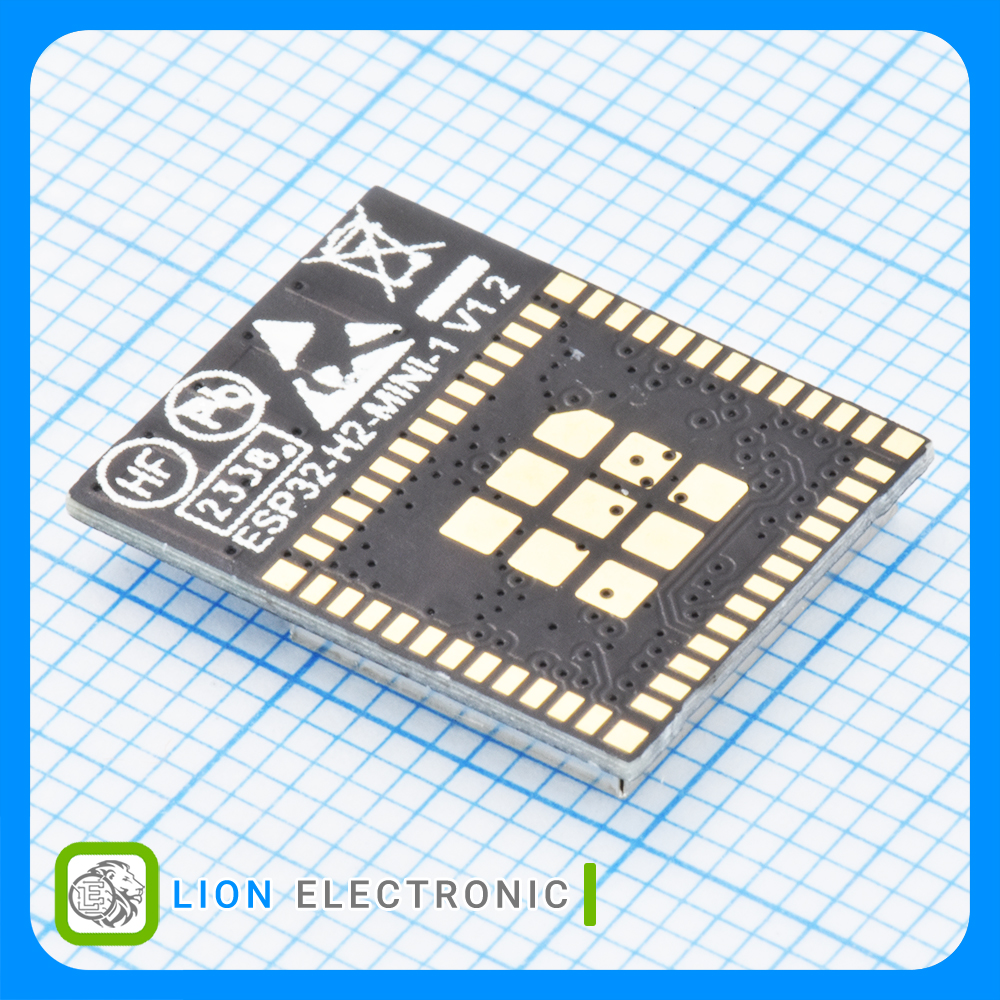

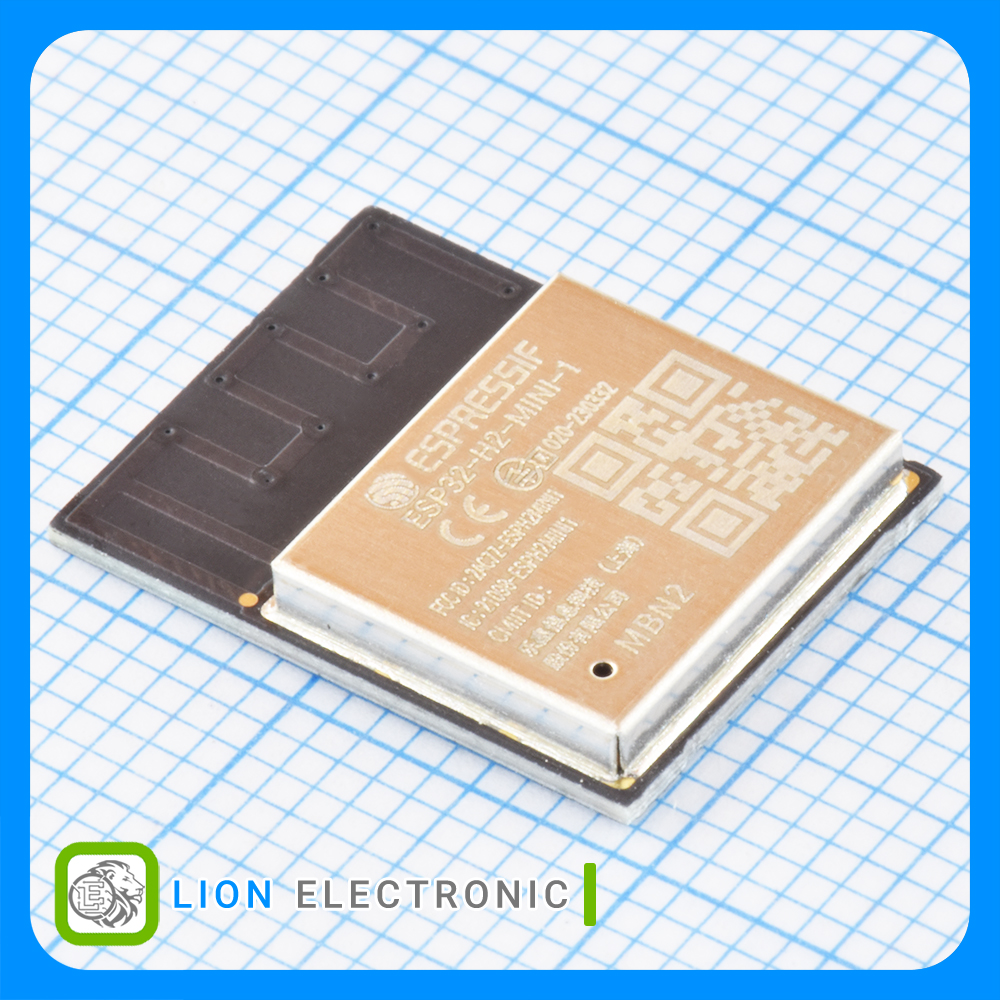

ماژول وای فای و بلوتوث ESP32-H2-MINI-1-N2
Espressif
معرفی
CPU and On-Chip Memory
- ESP32-H2 embedded, RISC-V single-core 32-bit microprocessor, up to 96 MHz
- 128 KB ROM
- 320 KB SRAM
- 4 KB LP (Low-power) Memory
Wi-Fi
- Not supported
Bluetooth
- Bluetooth Low Energy (Bluetooth 5.3 certified)
- Speed: 125 kbps, 500 kbps, 1 Mbps, 2 Mbps
- Advertising extensions
- Multiple advertisement sets
- Channel selection algorithm #2
- LE audio support
- 802.15.4 (Zigbee and Thread)
- IEEE 802.15.4-compliant
- Supports Thread and Zigbee protocols
- 2.4 GHz band with O-QPSK modulation, data rate of 250 kbps
Peripherals
- 19 GPIOs
- GPIO, SPI, UART, I2C, I2S, LED PWM controller, General DMA controller, USB Serial/JTAG controller, MCPWM, TWAI® controller (compatible with ISO 11898-1), SAR ADC, temperature sensor, timers and watchdogs
Integrated Components on Module
- 32 MHz crystal oscillator
- 2 MB In-package flash
Antenna Options
- On-board PCB antenna
Operating Conditions
- Operating voltage/Power supply: 3.0 ~ 3.6 V
- Operating ambient temperature: –40 ~ 85 °C
مشخصات ماژول وای فای و بلوتوث ESP32-H2-MINI-1-N2
ماژول وای فای و بلوتوث ESP32-H2-MINI-1-N2
Part Number
Reel
Packaging
-40C
Minimum Operating Temperature
PCB
Antenna Connector Type
26mA, 35mA, 55mA, 112mA
Supply Current Transmitting
+105C
Maximum Operating Temperature
19
Number of I-Os
13.2mm x 16.6mm x 2.4mm
Dimensions
25mA
Supply Current Receiving
ESP32-H2
Series
96MHz
Frequency
GPIO, I2C, I2S, SPI, UART
Interface Type
18.5dBm
Output Power
Multiprotocol Modules
Product
3 - 3.6V
Operating Supply Voltage
