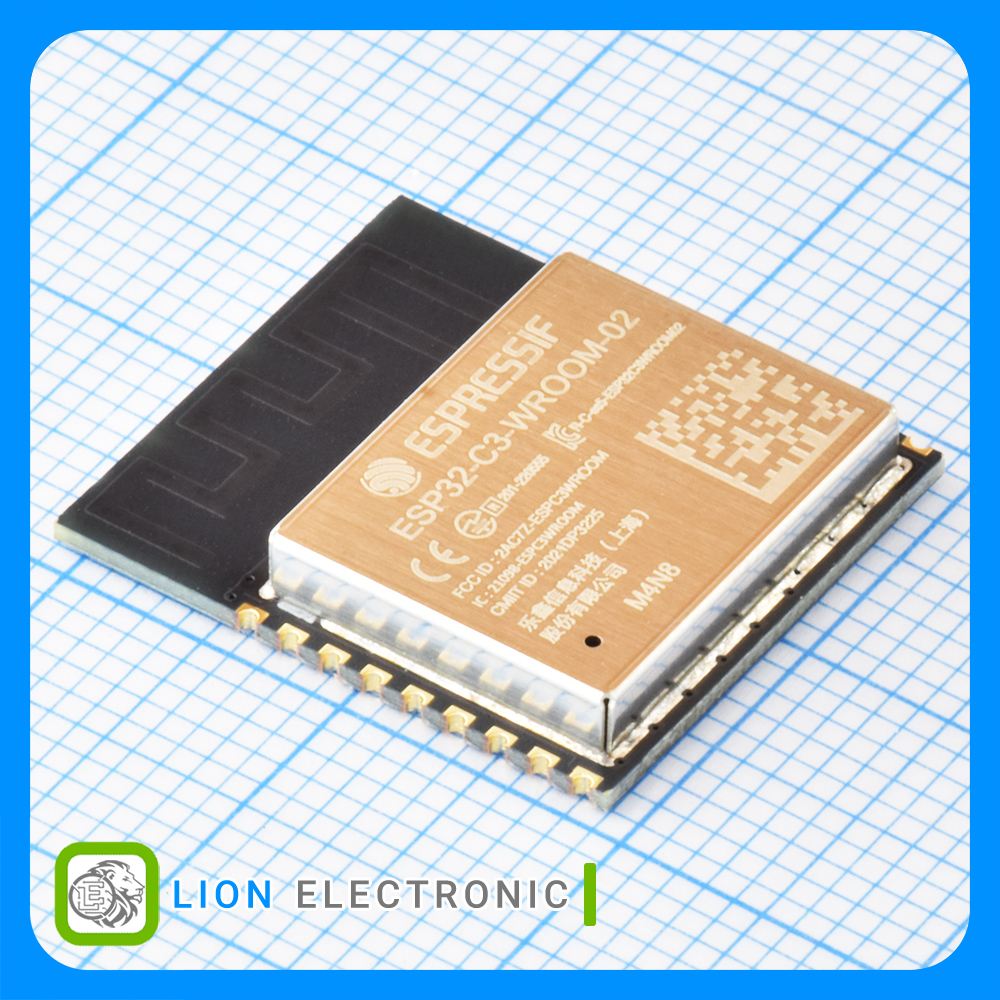

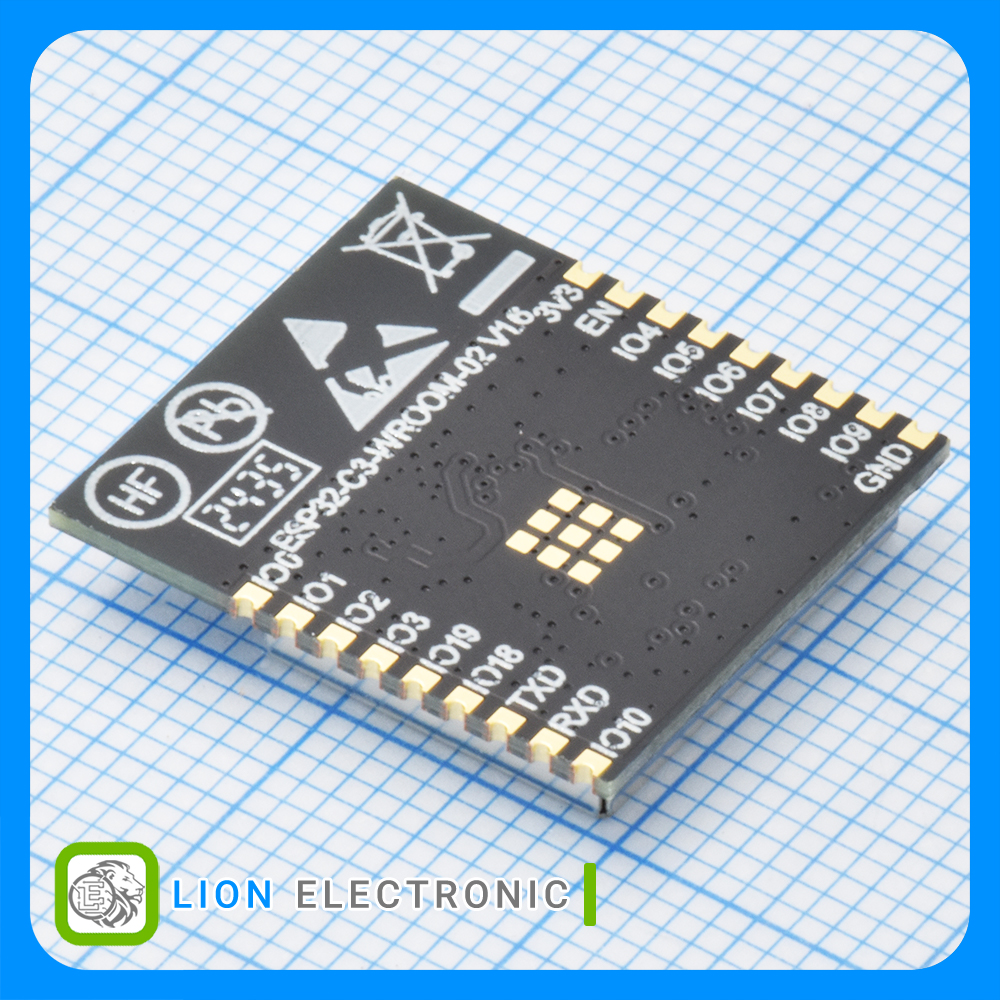

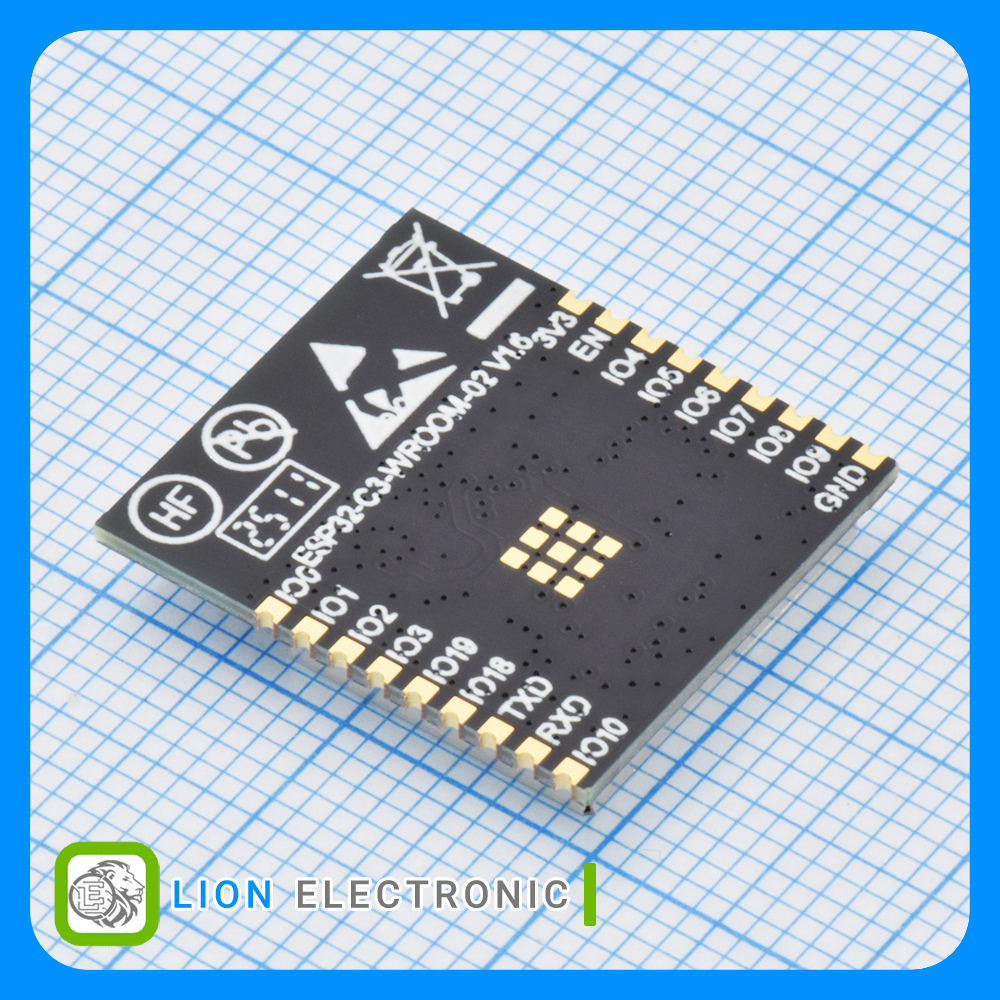

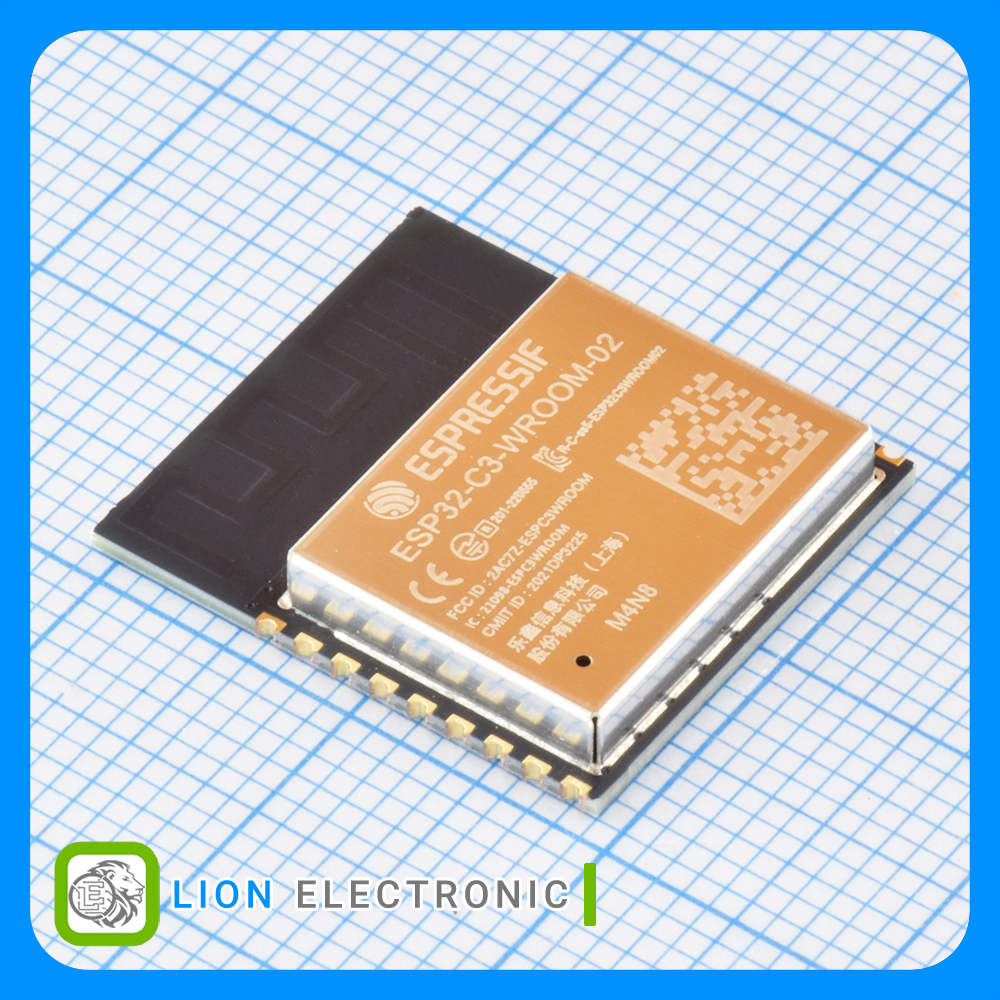

ماژول ESP32-C3-WROOM-02-N8

ماژول ESP32-C3-WROOM-02-N8

Part Number
ESP32-C3-WROOM-02-N8
Datasheet
Manufacturer
Espressif
Espressif
Description

2.4GHz Wi­Fi (802.11 b/g/n) and Bluetooth 5 Module
Built Around ESP32­C3 Series of SoCs, RISC­V Single ­core Microprocessor
8MB Quad SPI Flash
15 GPIOs
On­board PCB antenna

موجودی محصول
29

در صورت کمبود موجودی محصول می توانید آنرا به لیست استعلام اضافه نمایید تا توسط کارشناسان واحد سفارشات خارجی بررسی شده و نتیجه به شما اطلاع داده شود

قیمت محصول
تعداد قیمت
1 1,797,124 ریال
10 1,746,500 ریال
100 1,708,533 ریال
معرفی

Features:

CPU and On­Chip Memory

• ESP32-C3 embedded, 32-bit RISC-V single-core processor, up to 160 MHz

• 384 KB ROM

• 400 KB SRAM (16 KB for cache)

• 8 KB SRAM in RTC



Wi­Fi

• IEEE 802.11 b/g/n-compliant

• Center frequency range of operating channel: 2412 ~ 2484 MHz

• Supports 20 MHz, 40 MHz bandwidth in 2.4 GHz band

• 1T1R mode with data rate up to 150 Mbps

• Wi-Fi Multimedia (WMM)

• TX/RX A-MPDU, TX/RX A-MSDU

• Immediate Block ACK

• Fragmentation and defragmentation

• Transmit opportunity (TXOP)

• Automatic Beacon monitoring (hardware TSF)

• 4 × virtual Wi-Fi interfaces

• Simultaneous support for Infrastructure BSS in Station mode, SoftAP mode, Station + SoftAP mode, and promiscuous mode Note that when ESP32-C3 series scans in Station mode, the SoftAP channel will change along with the Station channel

• 802.11mc FTM



Bluetooth

• Bluetooth LE: Bluetooth 5, Bluetooth mesh

• Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps

• Advertising extensions

• Multiple advertisement sets

• Channel selection algorithm #2

• Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna



Peripherals

• GPIO, SPI, UART, I2C, I2S, remote control peripheral, LED PWM controller, general DMA controller, TWAI® controller (compatible with ISO 11898-1, i.e. CAN Specification 2.0), USB Serial/JTAG controller, temperature sensor, SAR ADC, general-purpose timers, watchdog timers Integrated Components on Module

• 40 MHz crystal oscillator

• SPI flash



Antenna Options

• On-board PCB antenna



Operating Conditions

• Operating voltage/Power supply: 3.0 ~ 3.6 V

• Operating ambient temperature: – 85 °C version module: –40 ~ 85 °C





مشخصات ماژول ESP32-C3-WROOM-02-N8

  • Part Number
    ماژول ESP32-C3-WROOM-02-N8
  • Minimum Operating Temperature
    -40C
  • Antenna Connector Type
    PCB
  • Packaging
    Reel
  • Maximum Operating Temperature
    +85C
  • Supply Current Transmitting
    280mA, 285mA, 345mA
  • Supply Current Receiving
    82mA, 84mA
  • Dimensions
    18mm x 20mm x 3.2mm
  • Frequency
    2.412GHz to 2.484GHz
  • Operating Supply Voltage
    3V to 3.6V
  • Product
    WiFi & Bluetooth Module
  • Interface Type
    -
