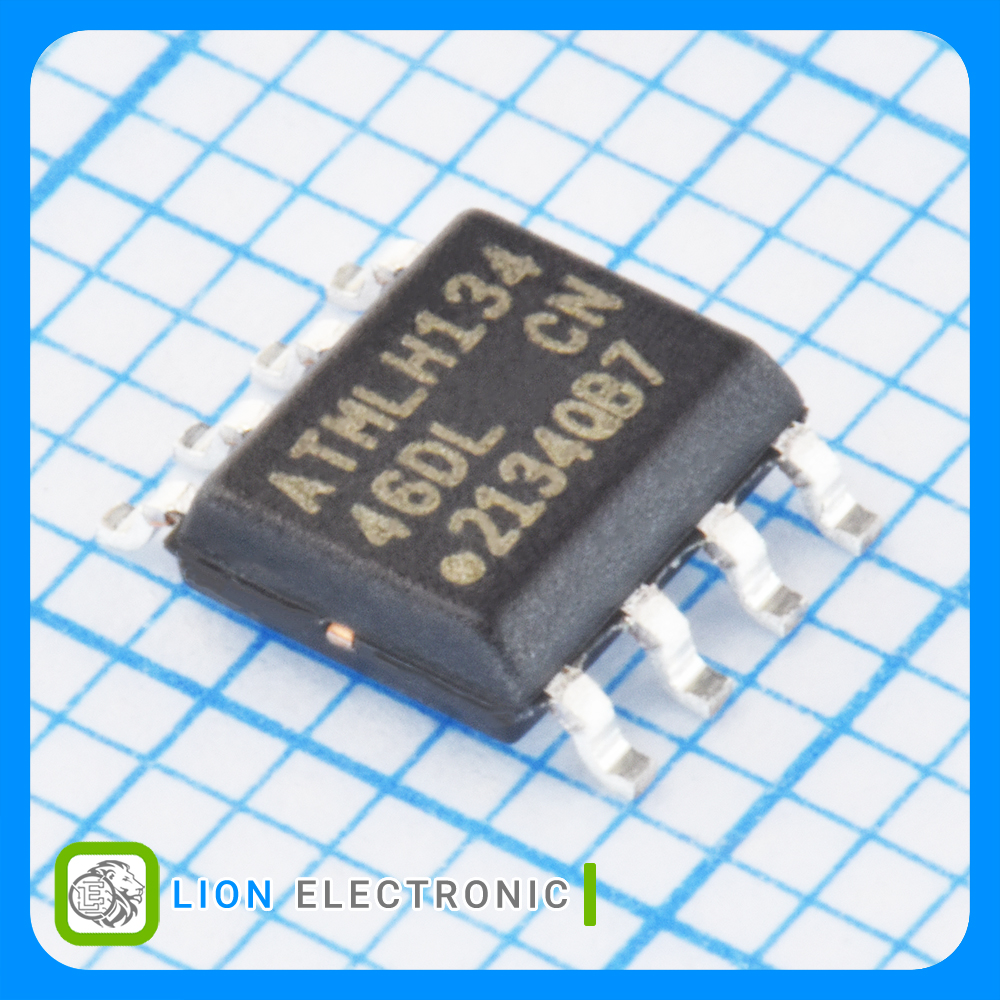

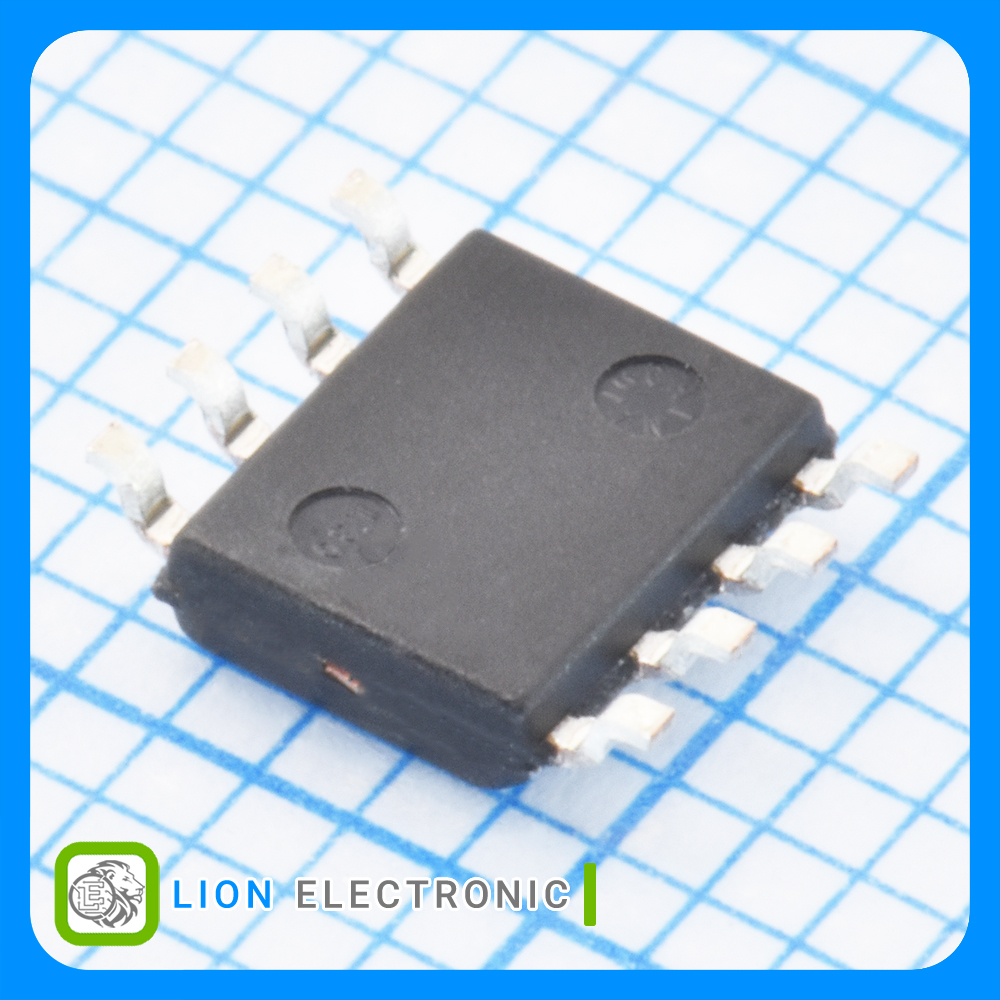

AT93C46DN-SH
AT93C46DN-SH
Part Number
518
Lion Part
Datasheet
Microchip Technology Manufacture
حافظه EEPROM با ظرفیت 1 کیلوبیت با رابط سه سیمه (3-Wire)، Microwire، سریال و پکیج SOIC-8، سازماندهی 128x8 یا 64x16
EEPROM 1kbit with 3-Wire, Microwire, Serial Interface and SOIC-8 Package, 128 x 8 or 64 x 16 Organization
معرفی
حافظه EEPROM با ظرفیت 1 کیلوبیت با رابط سه سیمه (3-Wire)، Microwire، سریال و پکیج SOIC-8، سازماندهی 128x8 یا 64x16
EEPROM 1kbit with 3-Wire, Microwire, Serial Interface and SOIC-8 Package, 128 x 8 or 64 x 16 Organization
Specifications
- Interface Type: 3-Wire, Microwire, Serial
- Memory Size: 1kbit
- Organization: 128 x 8, 64 x 16
- Access Time: 250ns
- Data Retention: 100Year
- Supply Voltage - Min: 1.8V
- Supply Voltage - Max: 5.5V
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات AT93C46DN-SH
AT93C46DN-SH
Part Number
1kbit
Memory Size
100Year
Data Retention
128 x 8, 64 x 16
Organization
2MHz
Maximum Clock Frequency
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
250ns
Access Time
2mA
Supply Current - Max
3-Wire, Microwire, Serial
Interface Type
EEPROM
Product Type
1.8V
Supply Voltage - Min
5.5V
Supply Voltage - Max
2.5V
Operating Supply Voltage
2mA
Operating Supply Current
SOIC-8
Package-Case
