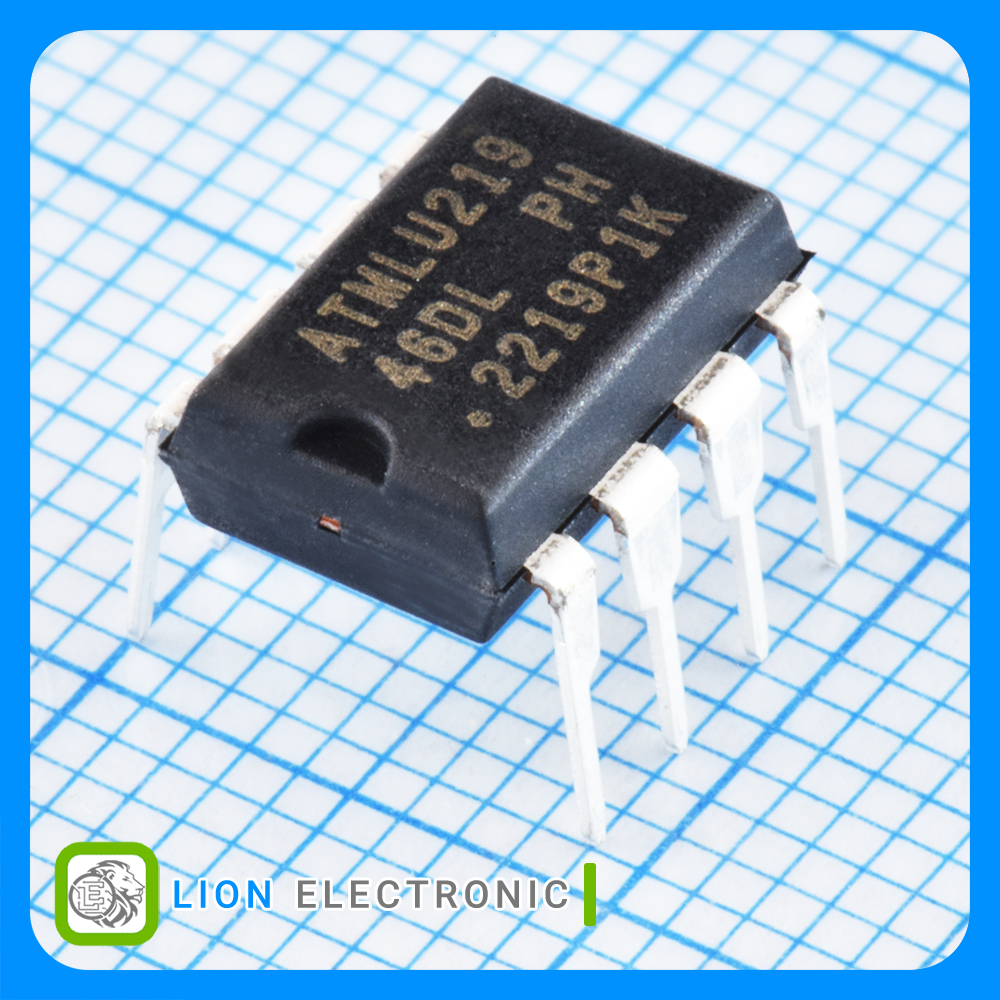

AT93C46D-PU
AT93C46D-PU
Part Number
519
Lion Part
Datasheet
ATMEL/MICROCHIP Manufacture
حافظه EEPROM 1 کیلو بیت با رابط سه سیمه (3-Wire)، Microwire، سریال و پکیج DIP-8، سازماندهی 128 x 8 یا 64 x 16
EEPROM 1kbit with 3-Wire, Microwire, Serial Interface and DIP-8 Package, 128 x 8 or 64 x 16 Organization
معرفی
حافظه EEPROM 1 کیلو بیت با رابط سه سیمه (3-Wire)، Microwire، سریال و پکیج DIP-8، سازماندهی 128 x 8 یا 64 x 16
EEPROM 1kbit with 3-Wire, Microwire, Serial Interface and DIP-8 Package, 128 x 8 or 64 x 16 Organization
Specifications
- Interface Type: 3-Wire, Microwire, Serial
- Memory Size: 1kbit
- Organization: 128 x 8, 64 x 16
- Access Time: 250ns
- Data Retention: 100Year
- Supply Voltage - Min: 1.8V
- Supply Voltage - Max: 5.5V
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات AT93C46D-PU
AT93C46D-PU
Part Number
1kbit
Memory Size
100Year
Data Retention
128 x 8, 64 x 16
Organization
2MHz
Maximum Clock Frequency
-40C
Minimum Operating Temperature
Tube
Packaging
+85C
Maximum Operating Temperature
250ns
Access Time
Through Hole
Mounting Style
2mA
Supply Current - Max
3-Wire, Microwire, Serial
Interface Type
EEPROM
Product Type
1.8V
Supply Voltage - Min
5.5V
Supply Voltage - Max
1.8V
Operating Supply Voltage
DIP-8
Package-Case
2mA
Operating Supply Current
