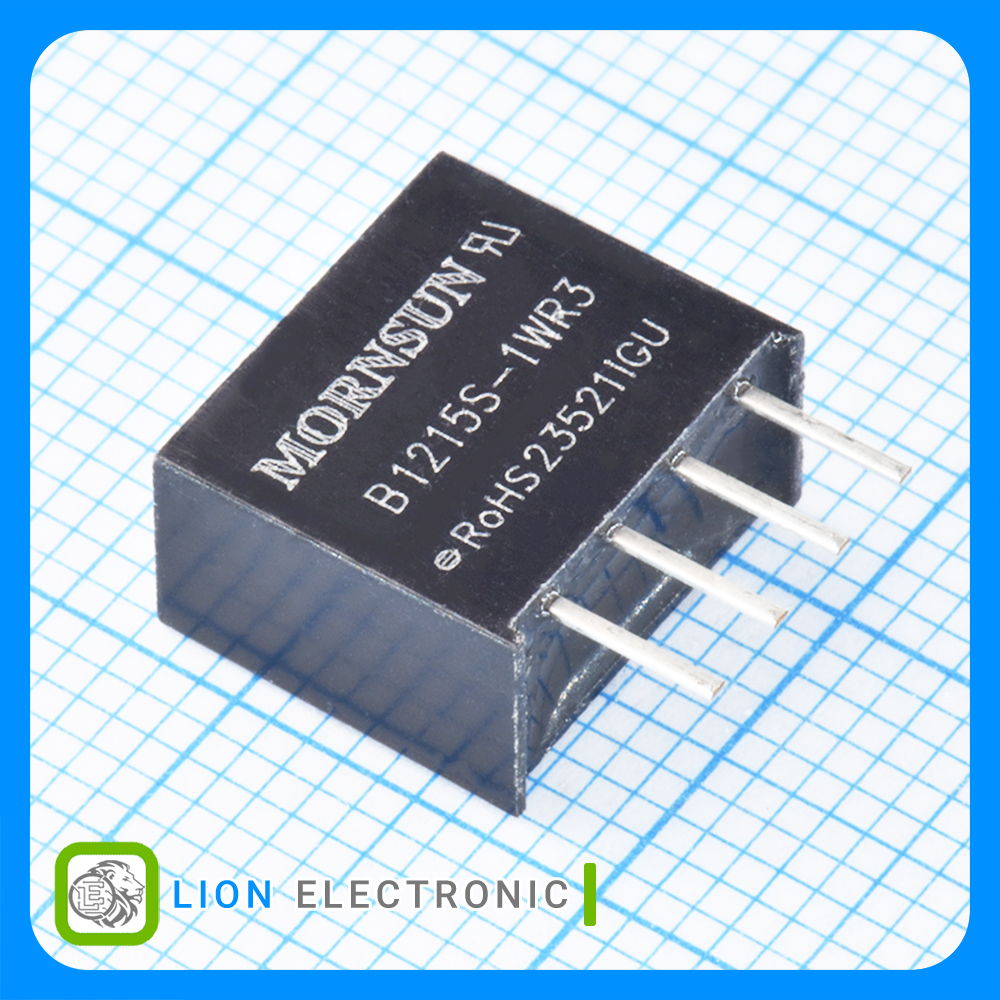

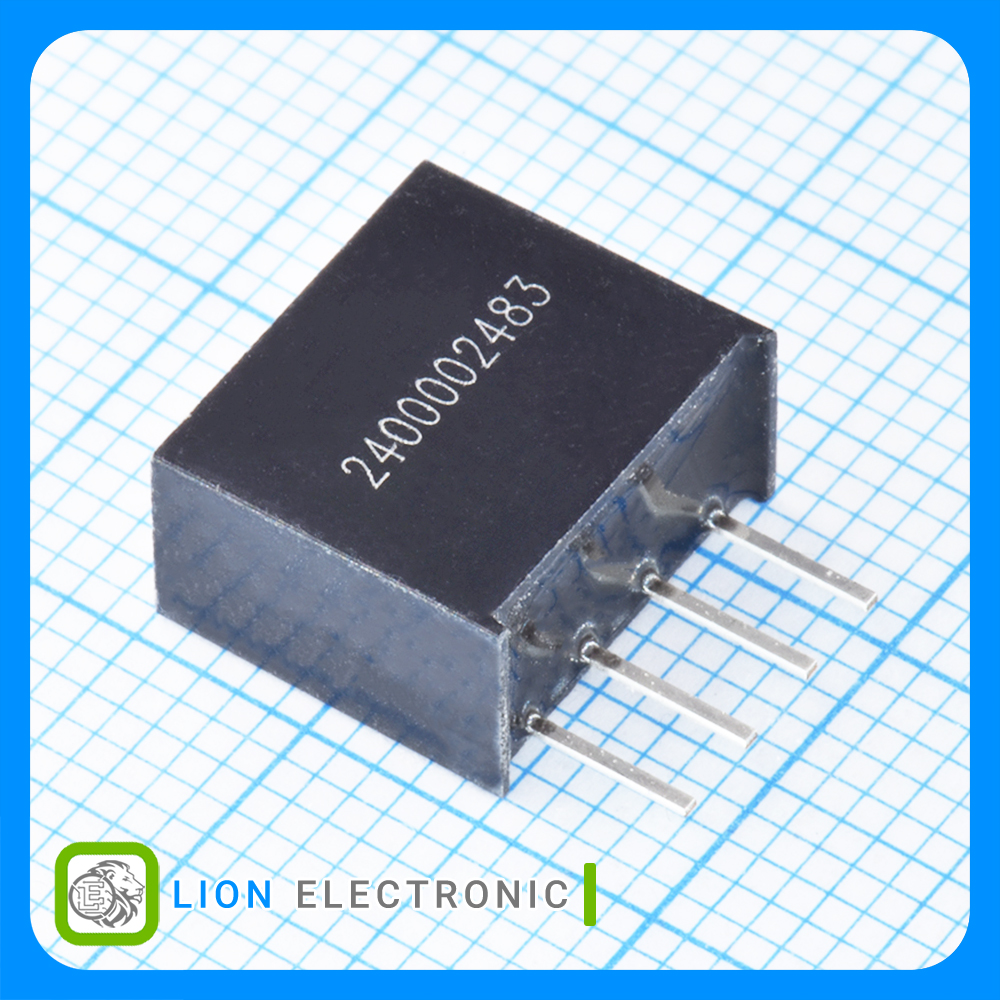

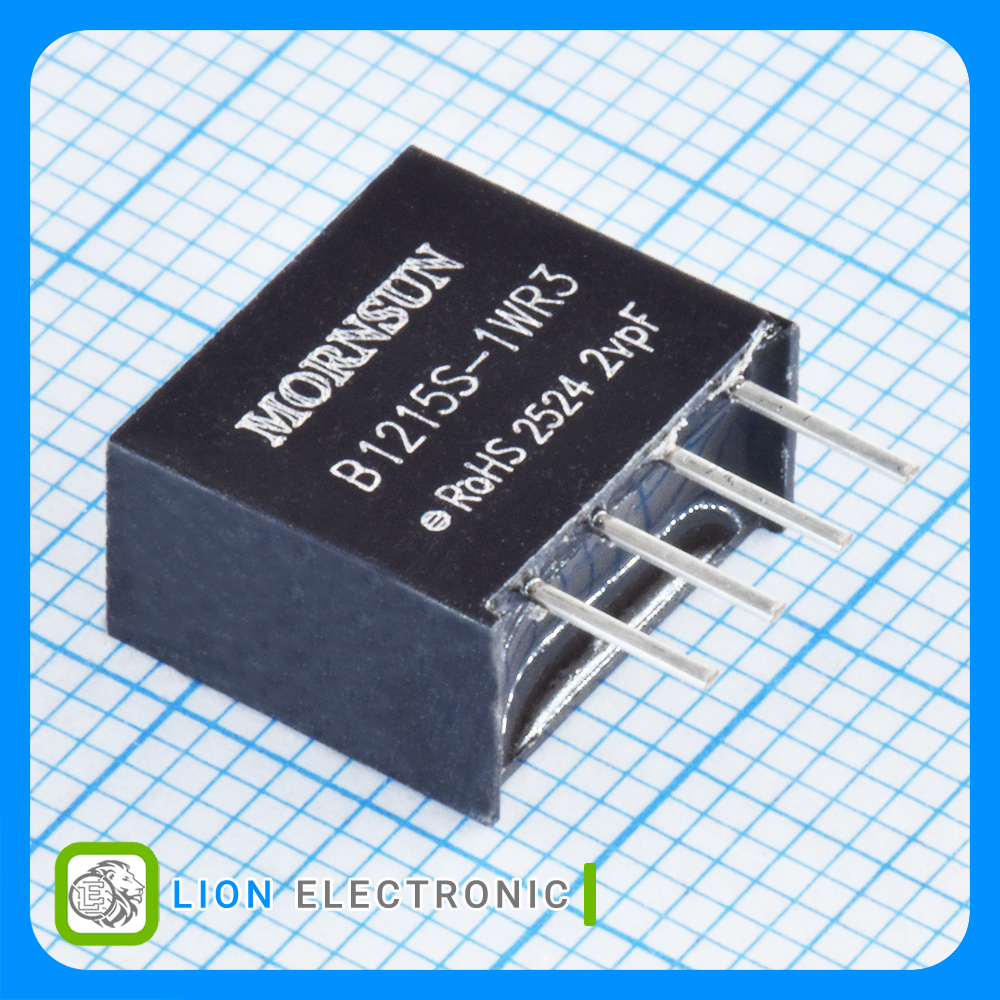

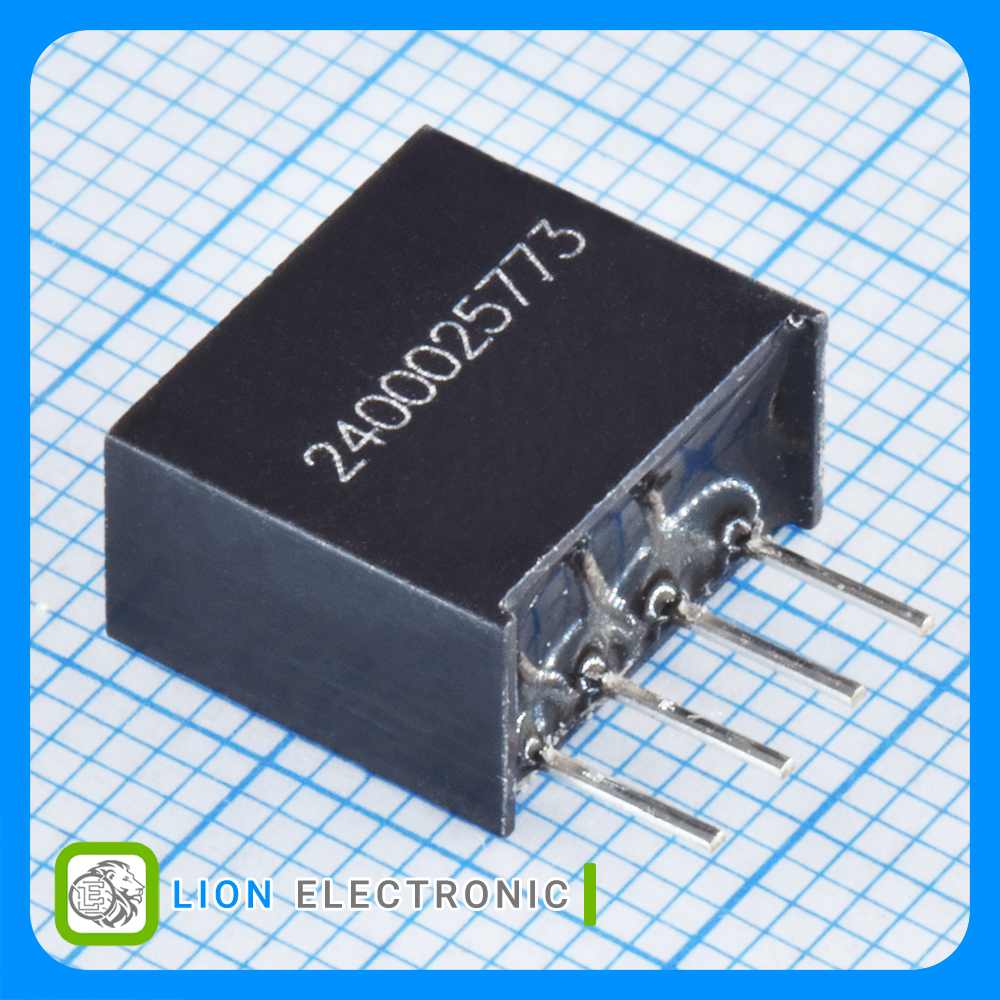

B1215S-1WR3
B1215S-1WR3
Part Number
5210
Lion Part
Datasheet
MORNSUN Manufacture
مبدل دیسی به دیسی ایزوله ورودی 12 ولت خروجی 15 ولت 67 میلیآمپر توان 1 وات ایزولاسیون 1.5 کیلوولت با ابعاد 11.60x6.00x10.16mm
1W Isolated DC-DC Converter, Fixed Input Voltage, Unregulated Single Output, 12V in, 15V 67mA out, 1.5kVDC Isolation with 11.60x6.00x10.16mm Size
معرفی
مبدل دیسی به دیسی ایزوله ورودی 12 ولت خروجی 15 ولت 67 میلیآمپر توان 1 وات ایزولاسیون 1.5 کیلوولت با ابعاد 11.60x6.00x10.16mm
1W Isolated DC-DC Converter, Fixed Input Voltage, Unregulated Single Output, 12V in, 15V 67mA out, 1.5kVDC Isolation with 11.60x6.00x10.16mm Size
Specifications
- Number of Outputs: 1
- Package/Case Size: 11.60x6.00x10.16mm
- Isolation Voltage: 1.5kVDC
- Output Current - Channel 1: 67mA
- Output Voltage - Channel 1: 15V
- Output Voltage - Channel 2: N/A
- Output Power: 1W
- Output Current - Channel 2: N/A
- Input Voltage: 12V
- Mounting Style: Through Hole
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
مشخصات B1215S-1WR3
B1215S-1WR3
Part Number
1
Number of Outputs
11.60x6.00x10.16mm
Package-Case Size
1.5kVDC
Isolation Voltage
67mA
Output Current - Channel 1
15V
Output Voltage - Channel 1
-40C
Minimum Operating Temperature
N/A
Output Voltage - Channel 2
Through Hole
Mounting Style
+105C
Maximum Operating Temperature
N/A
Output Current - Channel 2
1W
Output Power
12V
Input Voltage
