B0503S-1WR3
B0503S-1WR3
Part Number
5212
Lion Part
Datasheet
MORNSUN Manufacture
مبدل دیسی به دیسی ایزوله ورودی 5 ولت خروجی 3.3 ولت 303 میلیآمپر توان 1 وات ایزولاسیون 1.5 کیلوولت با ابعاد 11.60x6.00x10.16mm

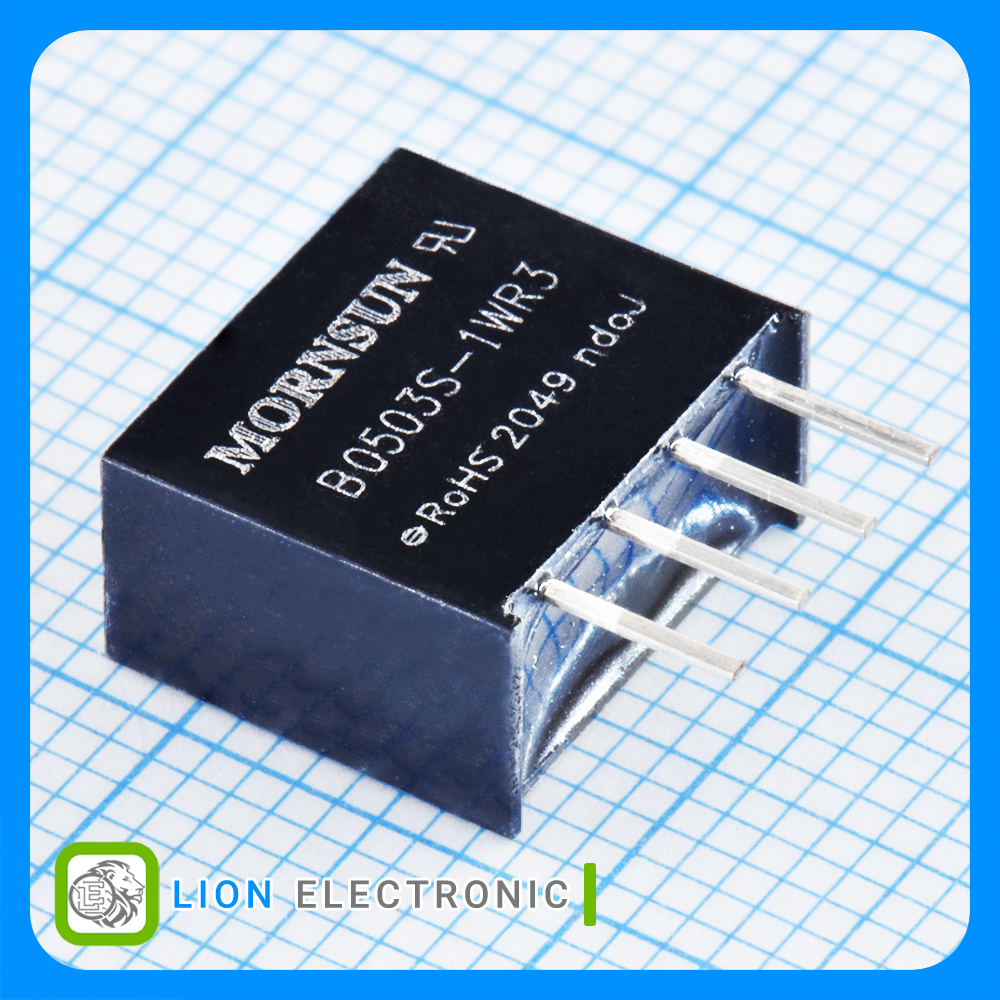

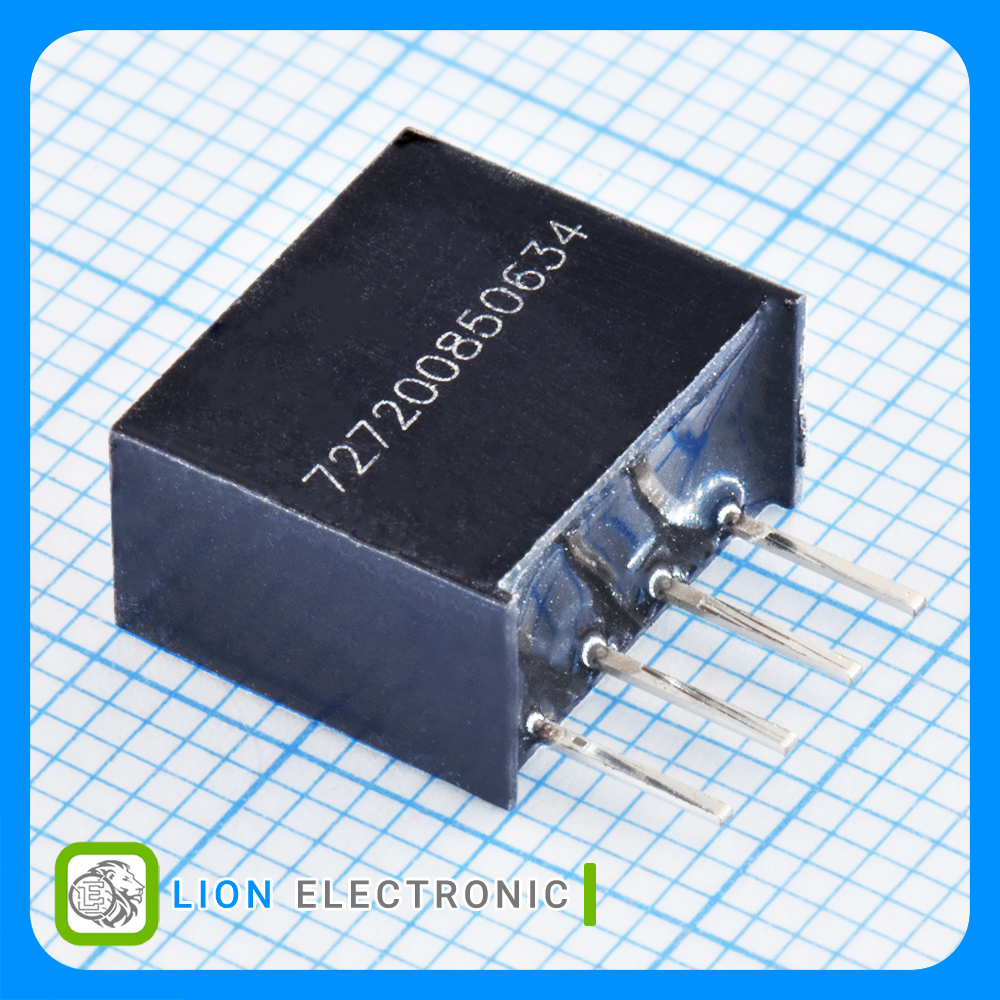

1W Isolated DC-DC Converter, Fixed Input Voltage, Unregulated Single Output, 5V in, 3.3V 303mA out, 1.5kVDC Isolation with 11.60x6.00x10.16mm Size
معرفی
مبدل دیسی به دیسی ایزوله ورودی 5 ولت خروجی 3.3 ولت 303 میلیآمپر توان 1 وات ایزولاسیون 1.5 کیلوولت با ابعاد 11.60x6.00x10.16mm
1W Isolated DC-DC Converter, Fixed Input Voltage, Unregulated Single Output, 5V in, 3.3V 303mA out, 1.5kVDC Isolation with 11.60x6.00x10.16mm Size
Specifications
- Number of Outputs: 1
- Output Voltage - Channel 1: 3.3V
- Package/Case Size: 11.60x6.00x10.16mm
- Isolation Voltage: 1.5kVDC
- Output Voltage - Channel 2: N/A
- Output Power: 1W
- Output Current - Channel 2: N/A
- Output Current - Channel 1: 303mA
- Input Voltage: 5V
- Mounting Style: Through Hole
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
مشخصات B0503S-1WR3
B0503S-1WR3
Part Number
1
Number of Outputs
3.3V
Output Voltage - Channel 1
11.60x6.00x10.16mm
Package-Case Size
1.5kVDC
Isolation Voltage
-40C
Minimum Operating Temperature
N/A
Output Voltage - Channel 2
Through Hole
Mounting Style
+105C
Maximum Operating Temperature
N/A
Output Current - Channel 2
1W
Output Power
303mA
Output Current - Channel 1
5V
Input Voltage
