Espressif
معرفی
Module interfaces:
SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, Two-Wire Automotive Interface (TWAI®), compatible with ISO11898-1 (CAN Specification 2.0)
مشخصات ماژول ESP32-WROOM-32U-N4

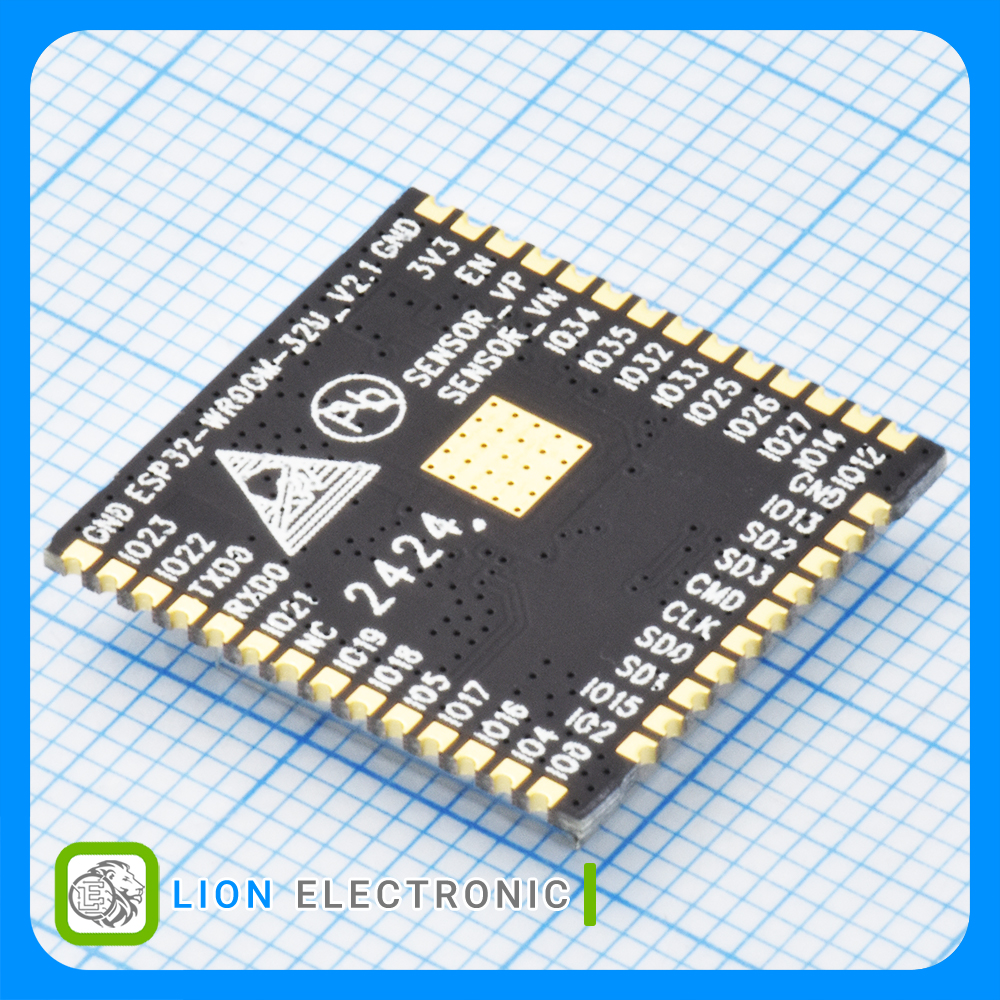

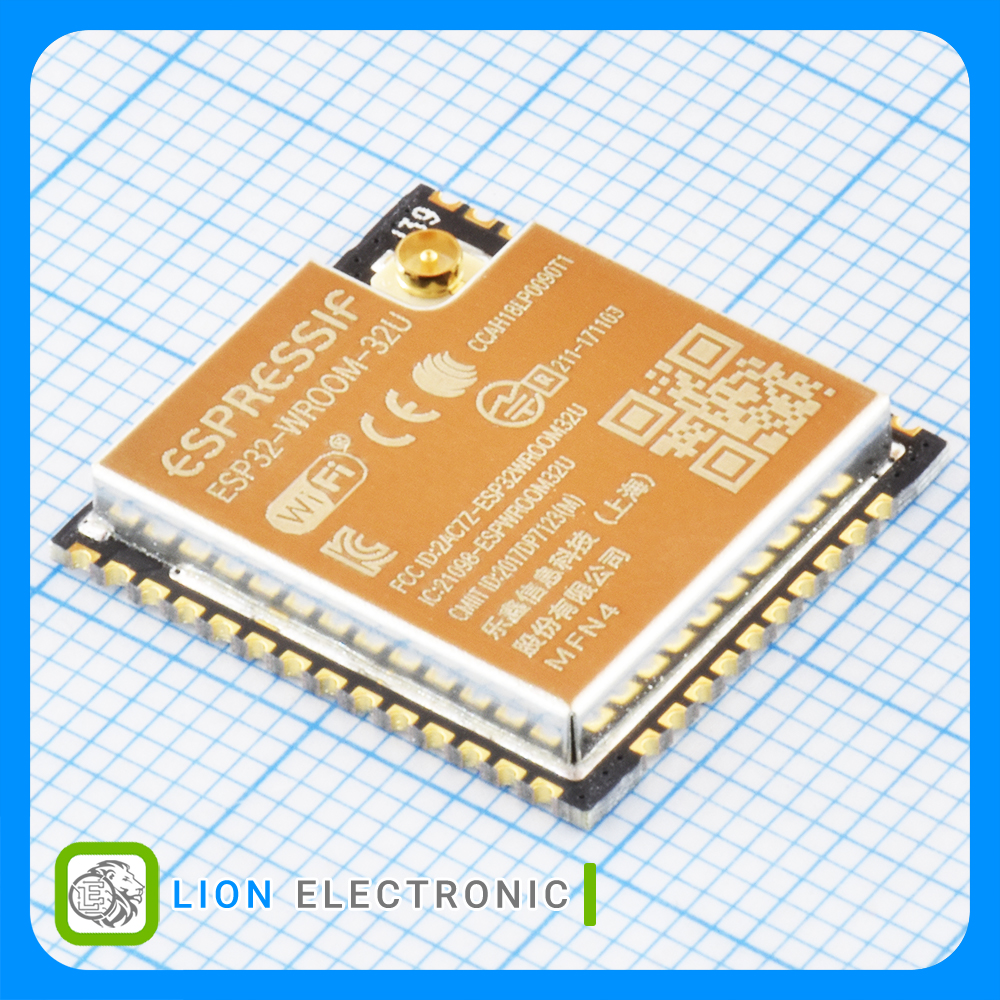

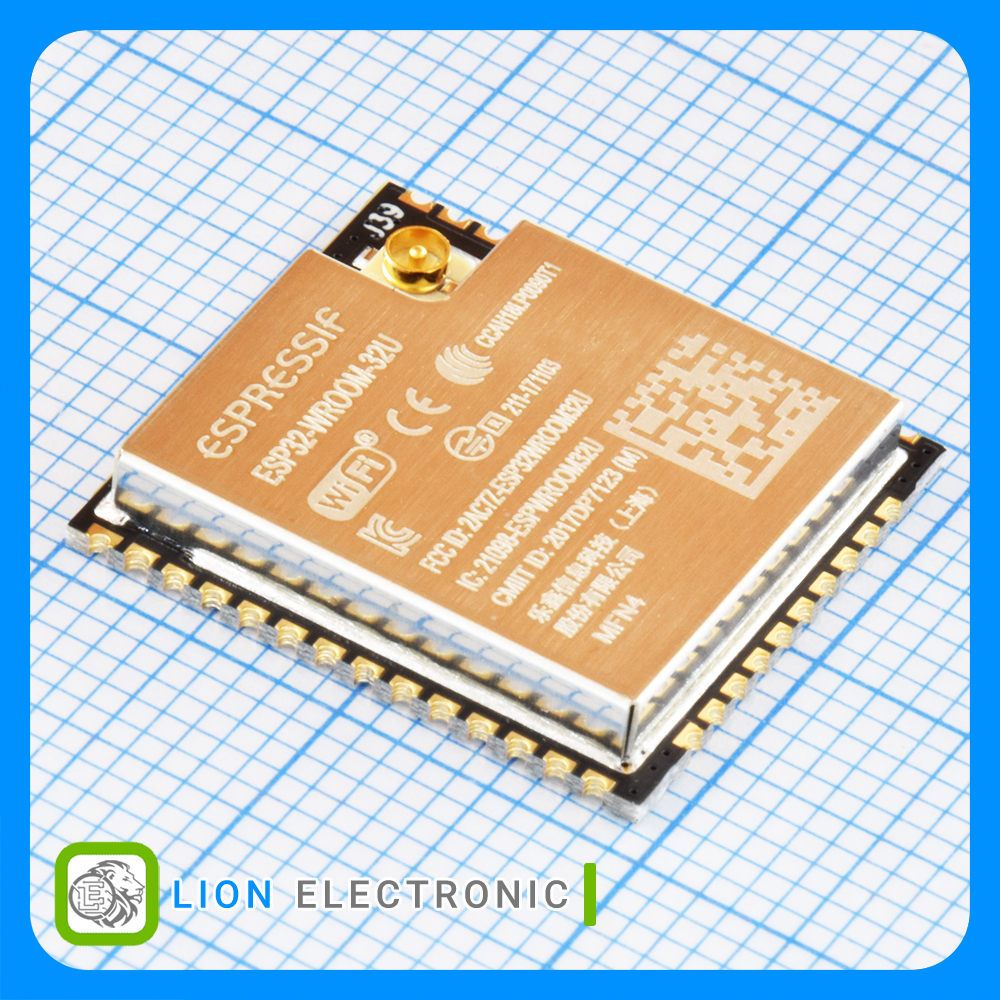

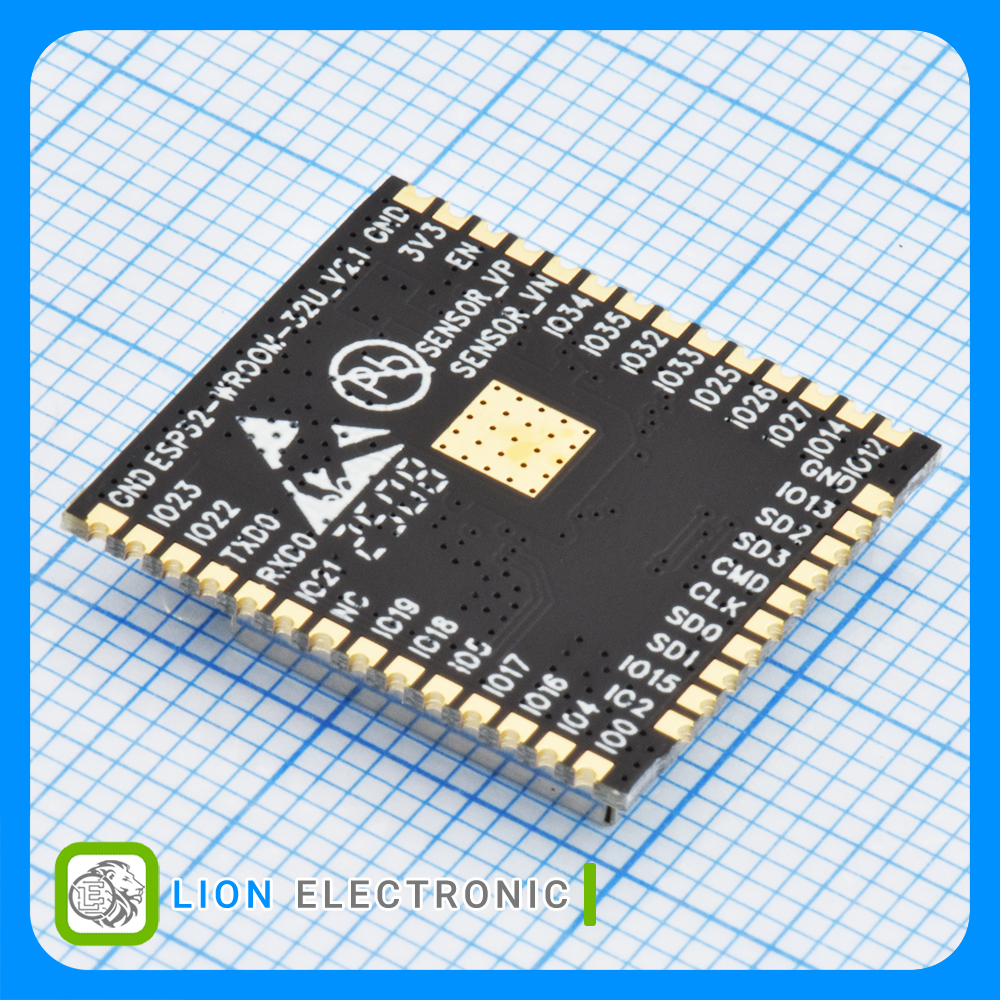

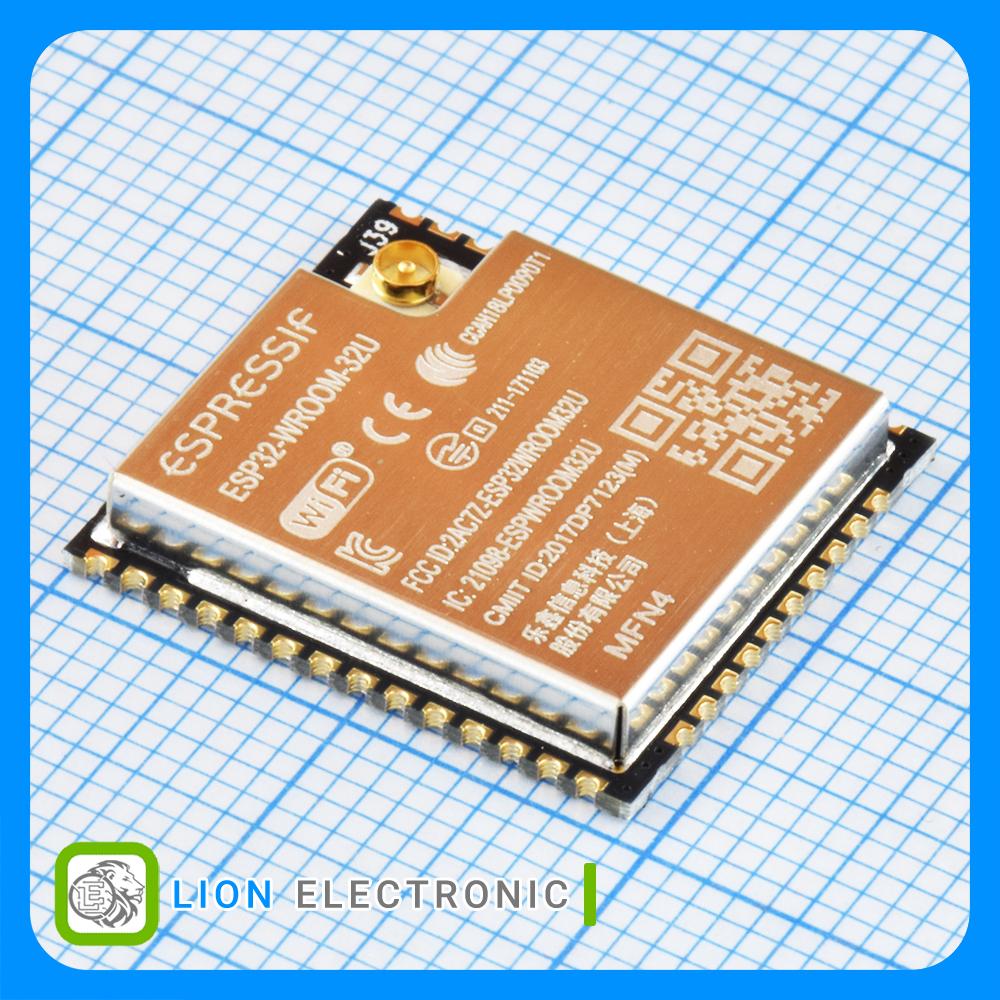

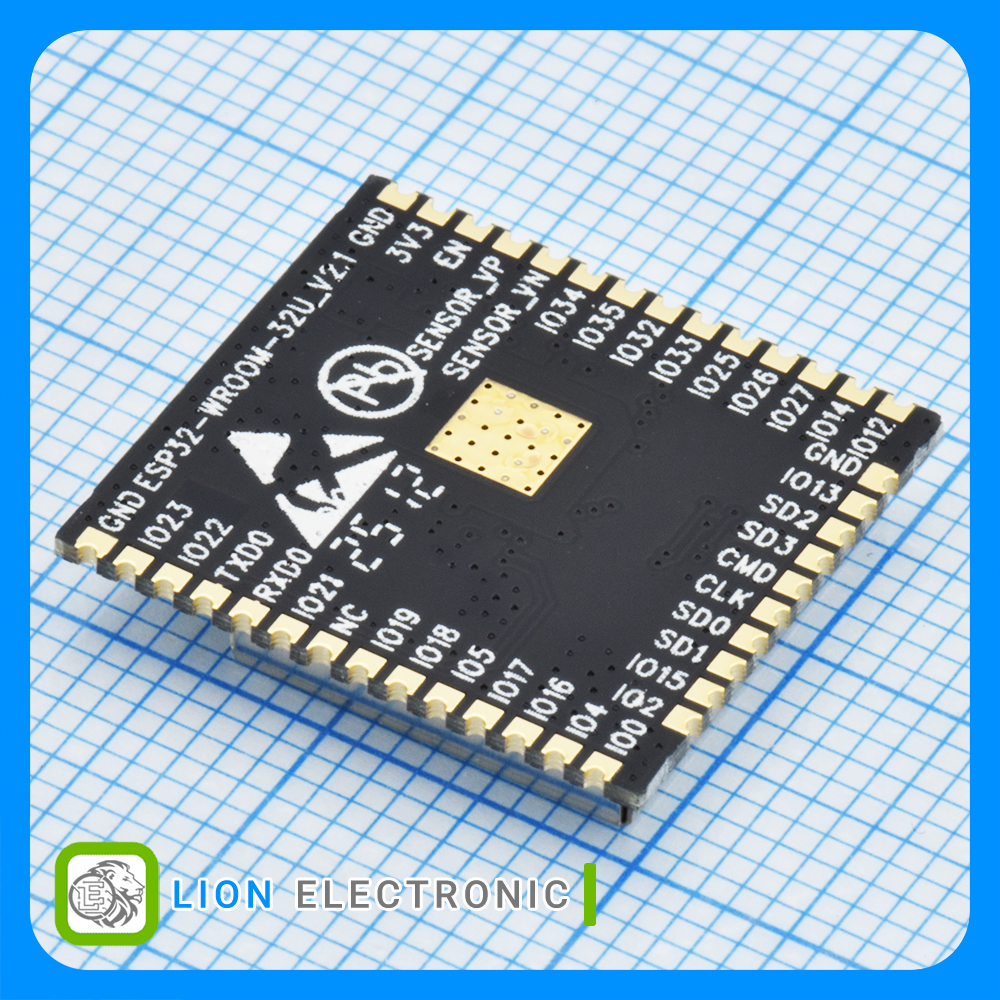

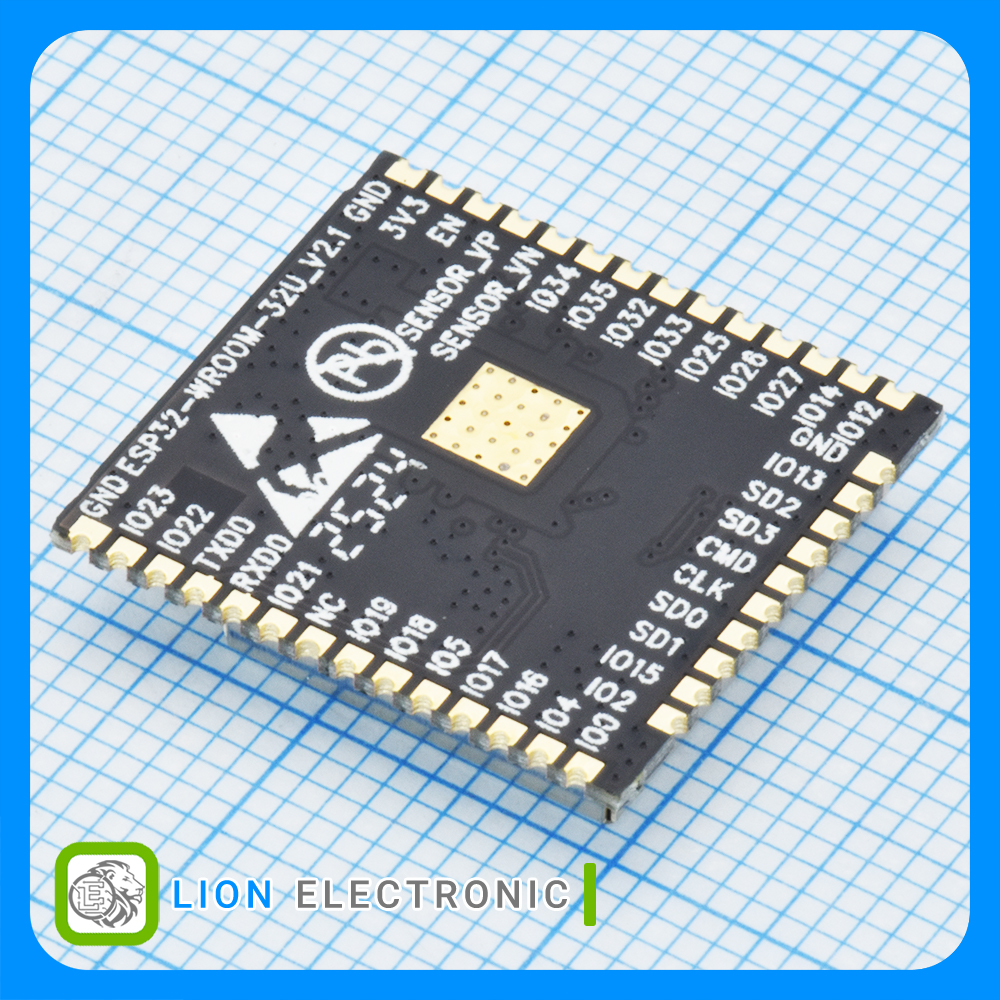

ماژول ESP32-WROOM-32U-N4
Part Number
IPEX
Antenna Connector Type
Reel
Packaging
-40C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
22
Number of I-Os
ESP32
Series
239mA
Supply Current Transmitting
240MHz
Frequency
112mA
Supply Current Receiving
19.2mm x 18mm x 3.2mm
Dimensions
20dBm
Output Power
3 - 3.6V
Operating Supply Voltage
WiFi & Bluetooth Module
Product
درج شده در توضیحات محصول
Interface Type
