HT1C108M0615PC
HT1C108M0615PC
Part Number
5319
Lion Part
Datasheet
Honor Elec Manufacture
خازن الکترولیت جامد پلیمری 1000 میکروفاراد 16 ولت تلرانس 20% سایز 6.3 میلیمتر در 15 میلیمتر

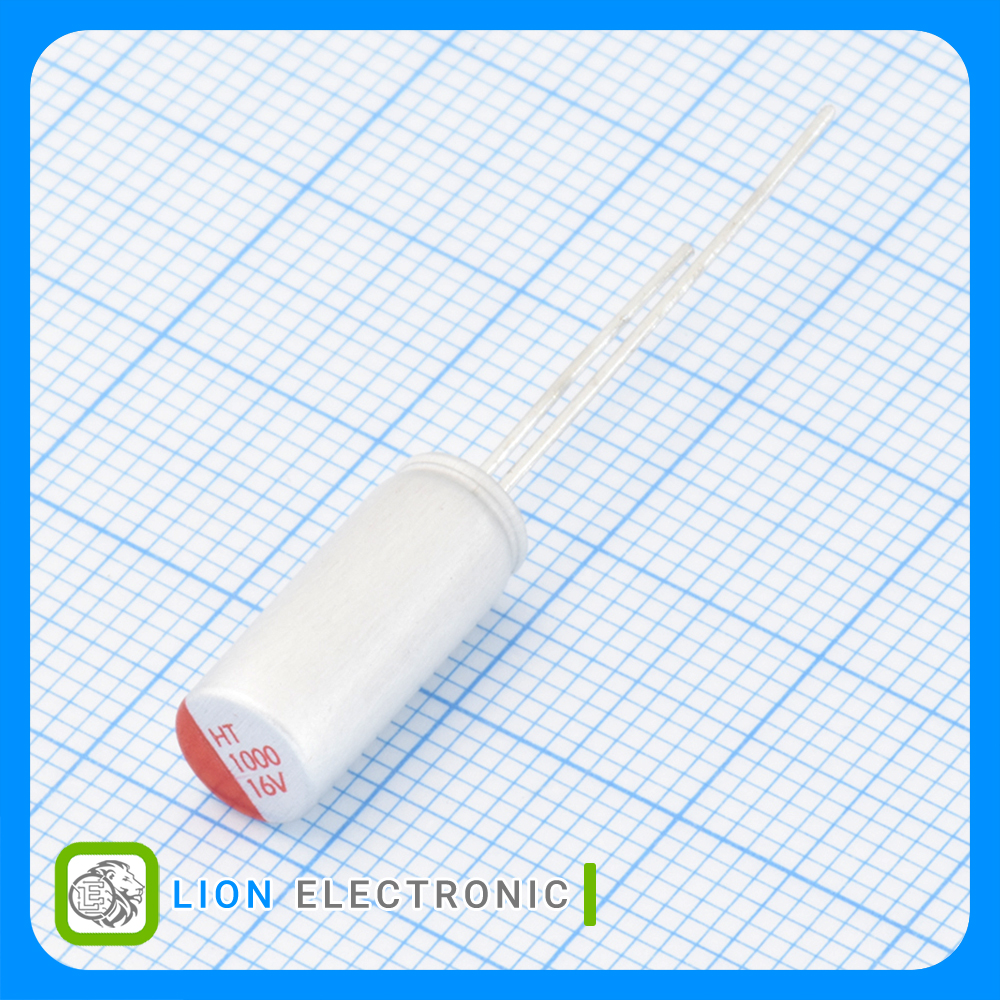

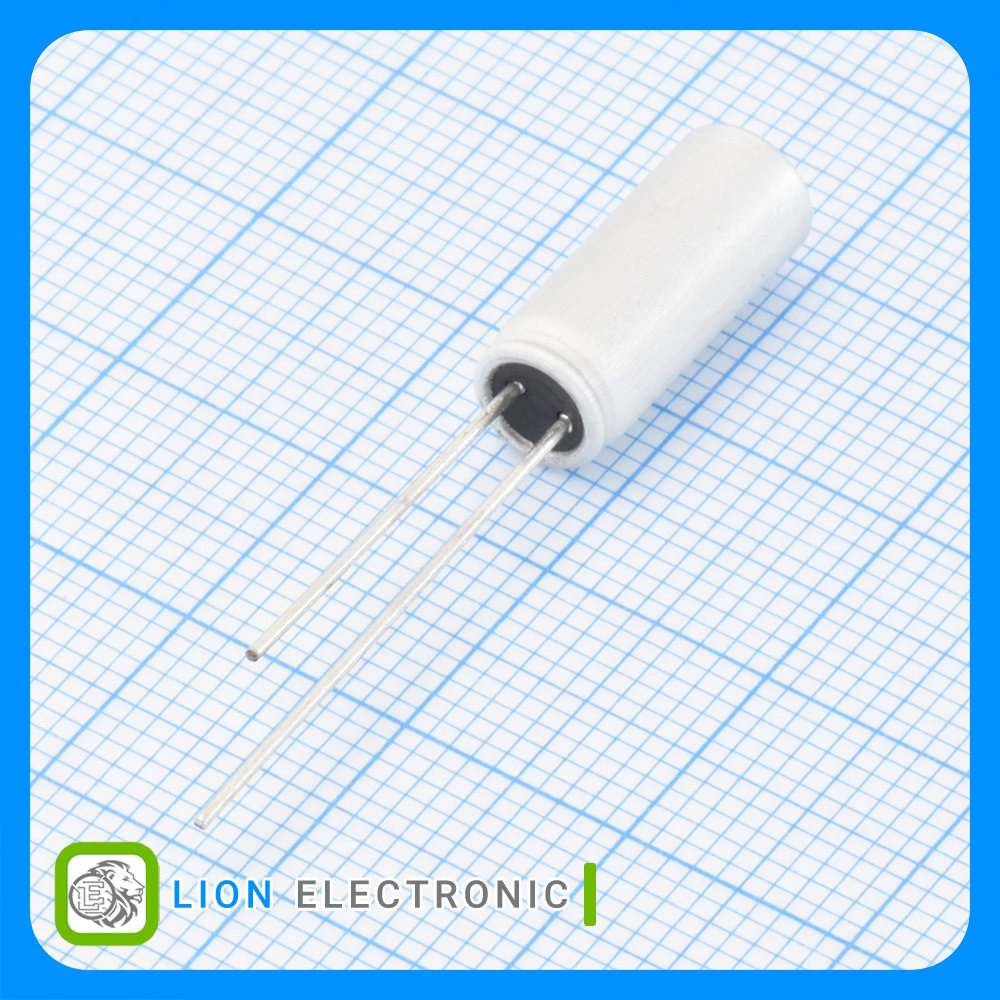

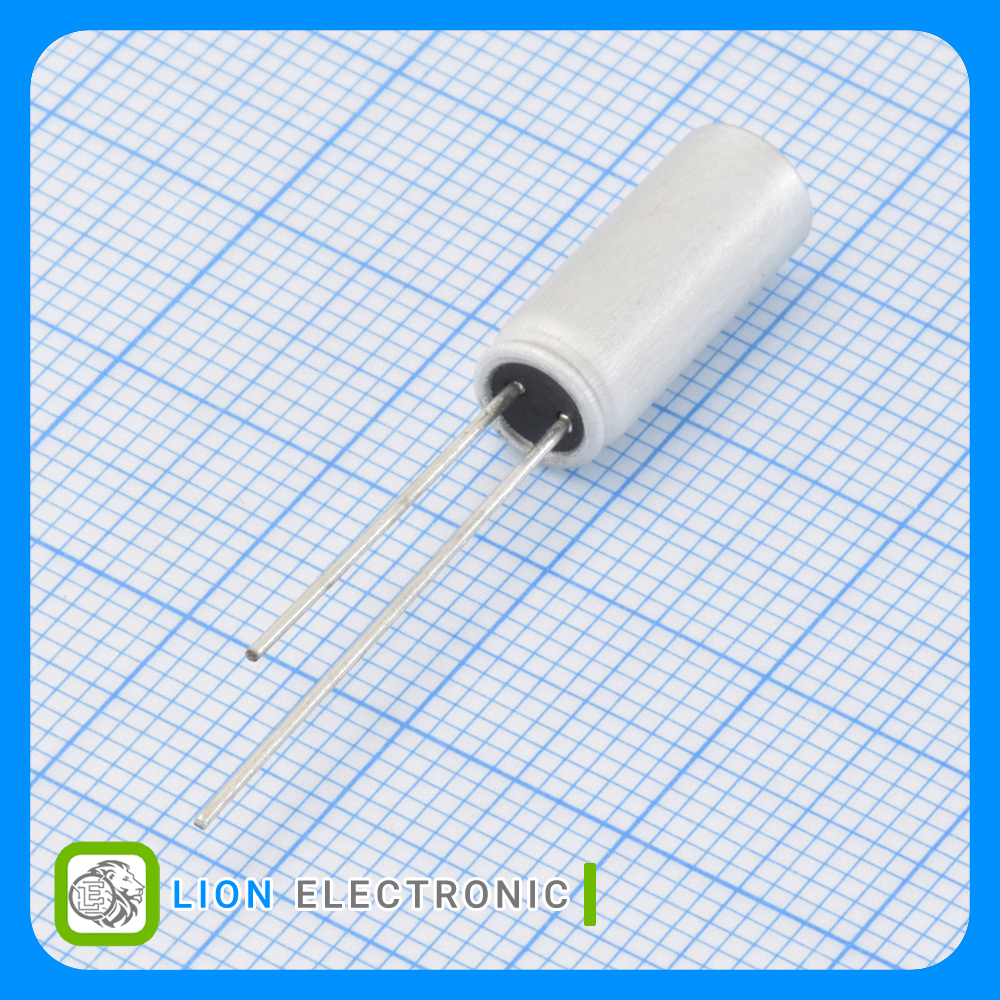

Solid Polymer Electrolytic Capacitor 1000uF 16V 20% 6.3mmx15mm
معرفی
خازن الکترولیت جامد پلیمری 1000 میکروفاراد 16 ولت تلرانس 20% سایز 6.3 میلیمتر در 15 میلیمتر
Solid Polymer Electrolytic Capacitor 1000uF 16V 20% 6.3mmx15mm
Specifications
- Life: 2000 Hour
- Capacitance: 1000uF
- Voltage Rating DC: 16VDC
- ESR: 14mΩ
- Ripple Current: 1.85A
- Tolerance: 20%
- Lead Spacing: 2.5mm
- Diameter: 6.3mm
- Height: 15mm
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
- Packaging: Bulk
مشخصات HT1C108M0615PC
HT1C108M0615PC
Part Number
14mΩ
ESR
2.5mm
Lead Spacing
2000 Hour
Life
-55C
Minimum Operating Temperature
Bulk
Packaging
16VDC
Voltage Rating DC
Through Hole
Mounting Style
6.3mm
Diameter
20%
Tolerance
+125C
Maximum Operating Temperature
1.85A
Ripple Current
15mm
Height
1000uF
Capacitance
