KNSCHA
معرفی
خازن الکترولیت 100 میکروفاراد 450 ولت تلرانس 20% سایز 25 میلیمتر در 25 میلیمتر، فاصله پایهها 10 میلیمتر

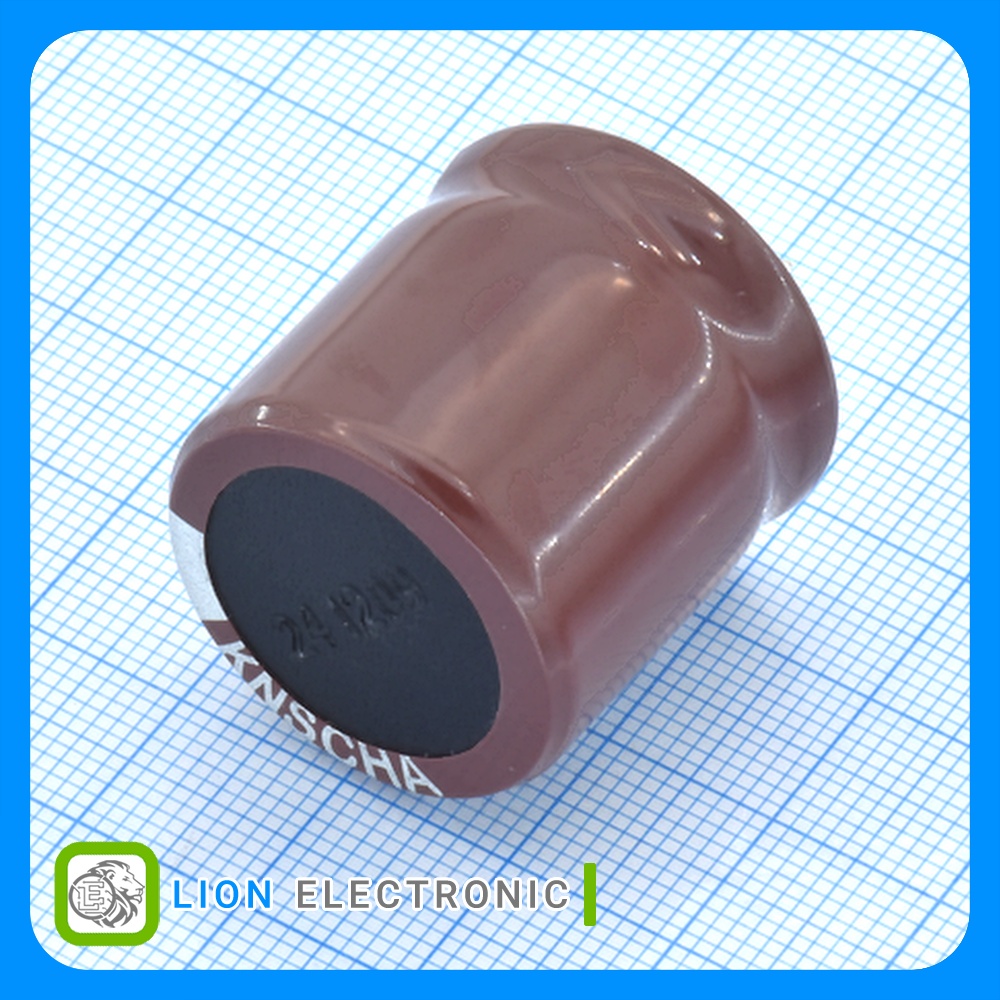

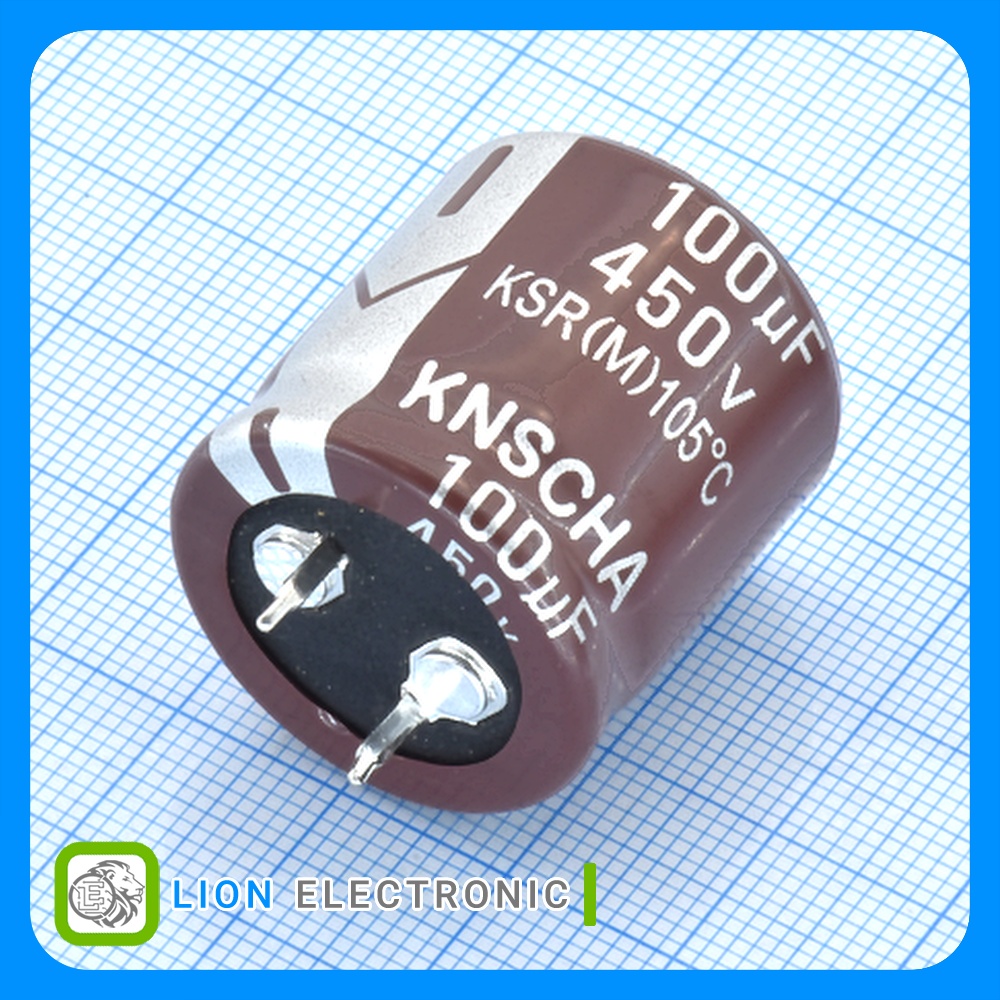

Aluminum Electrolytic Capacitor 100uF 450V 20% 25mmx25mm, Lead Spacing 10mm
Specifications
- Life: 3000 Hour
- Capacitance: 100uF
- Voltage Rating DC: 450VDC
- ESR: 2.65Ω
- Ripple Current: 1.13A
- Tolerance: 20%
- Lead Spacing: 10mm
- Diameter: 25mm
- Height: 25mm
- Mounting Style: Through Hole
- Minimum Operating Temperature: -25C
- Maximum Operating Temperature: +105C
- Packaging: Tray
مشخصات LSR450M107R252S1AA
LSR450M107R252S1AA
Part Number
3000 Hour
Life
10mm
Lead Spacing
Tray
Packaging
-25C
Minimum Operating Temperature
Through Hole
Mounting Style
20%
Tolerance
+105C
Maximum Operating Temperature
450VDC
Voltage Rating DC
25mm
Diameter
1.13A
Ripple Current
2.65Ω
ESR
100uF
Capacitance
25mm
Height
