HG1H477M1016PC
HG1H477M1016PC
Part Number
7038
Lion Part
Datasheet
Honor Elec Manufacture
خازن جامد پلیمری 470 میکروفاراد 50 ولت تلرانس ±20% سایز 10 میلیمتر در 16 میلیمتر

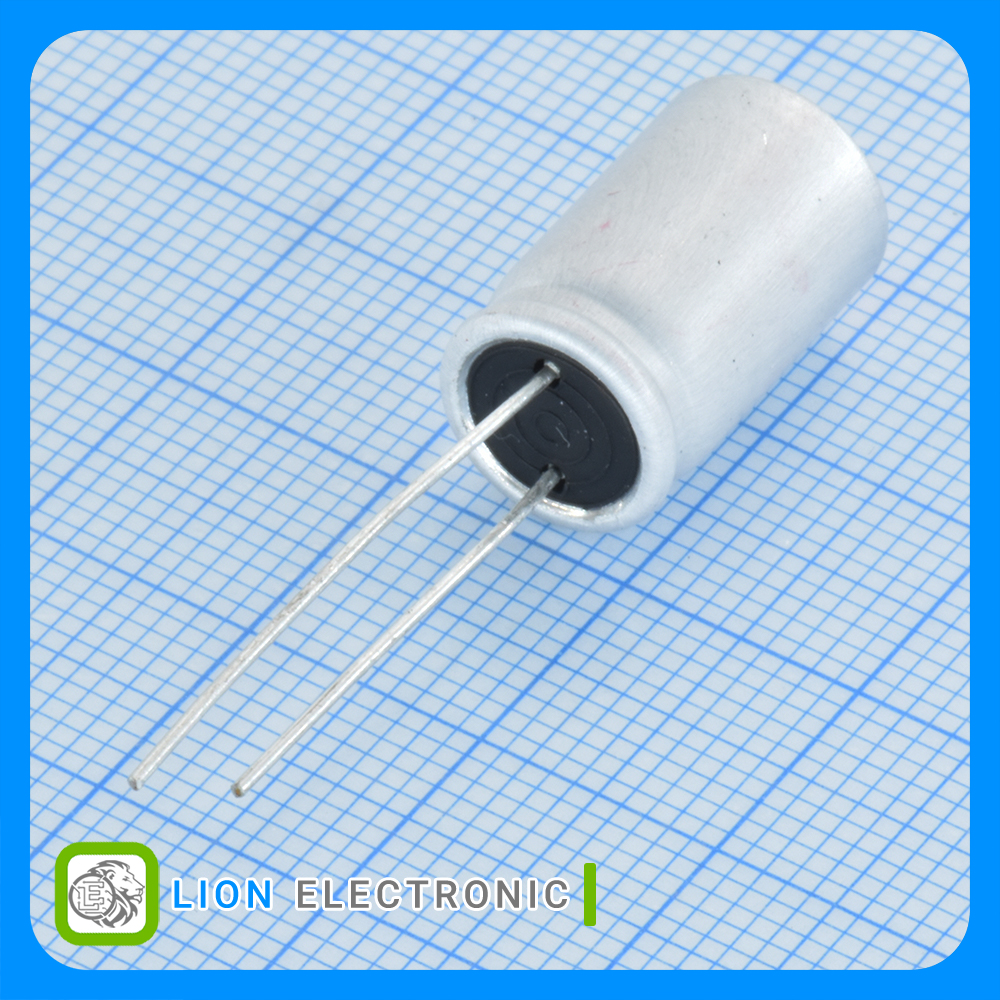

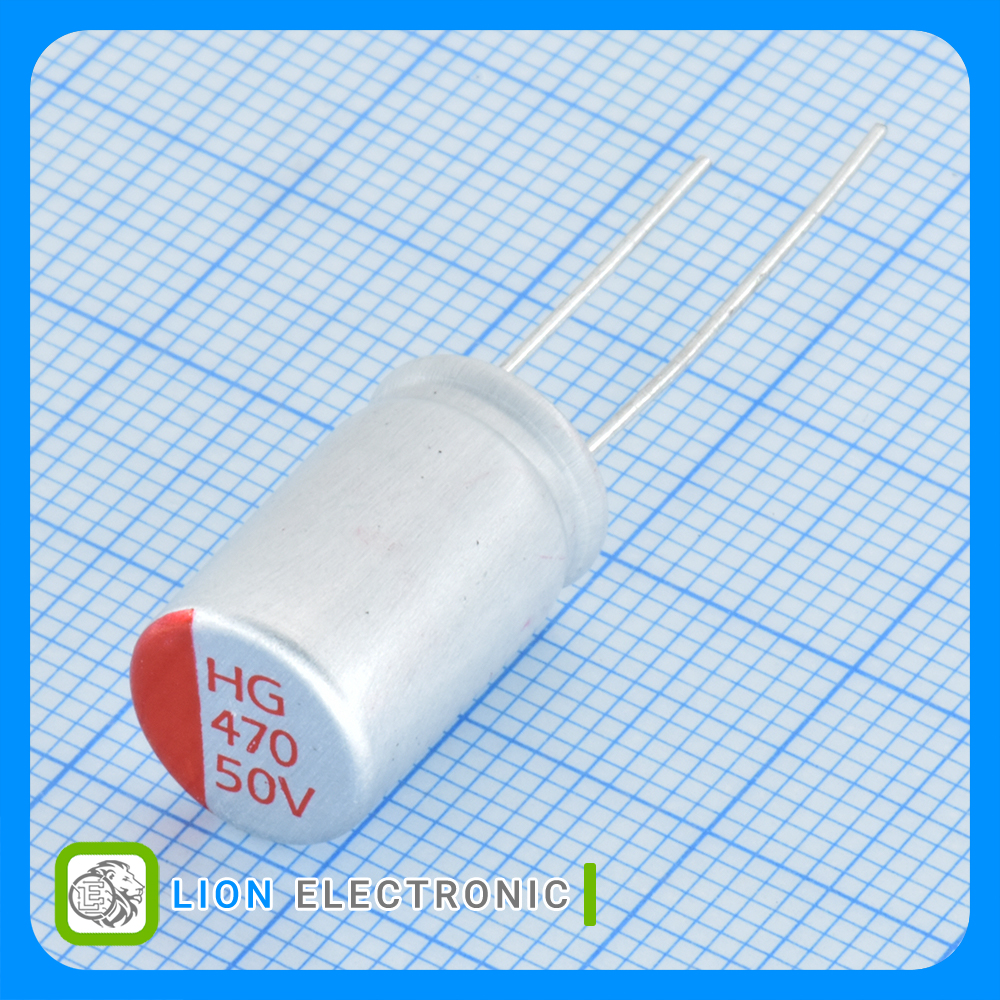

Solid Polymer Electrolytic Capacitor 470uF 50V ±20% 10mmx16mm
معرفی
خازن جامد پلیمری 470 میکروفاراد 50 ولت تلرانس ±20% سایز 10 میلیمتر در 16 میلیمتر
Solid Polymer Electrolytic Capacitor 470uF 50V ±20% 10mmx16mm
Specifications
- Life: 2000 Hour
- Capacitance: 470uF
- Voltage Rating DC: 50VDC
- ESR: 32mΩ
- Ripple Current: 3.15A
- Tolerance: ±20%
- Lead Spacing: 5mm
- Diameter: 10mm
- Height: 16mm
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Bag
مشخصات HG1H477M1016PC
HG1H477M1016PC
Part Number
Bag
Packaging
2000 Hour
Life
±20%
Tolerance
5mm
Lead Spacing
-55C
Minimum Operating Temperature
32mΩ
ESR
SMD/SMT
Mounting Style
+105C
Maximum Operating Temperature
50VDC
Voltage Rating DC
10mm
Diameter
3.15A
Ripple Current
16mm
Height
470uF
Capacitance
