Espressif
معرفی

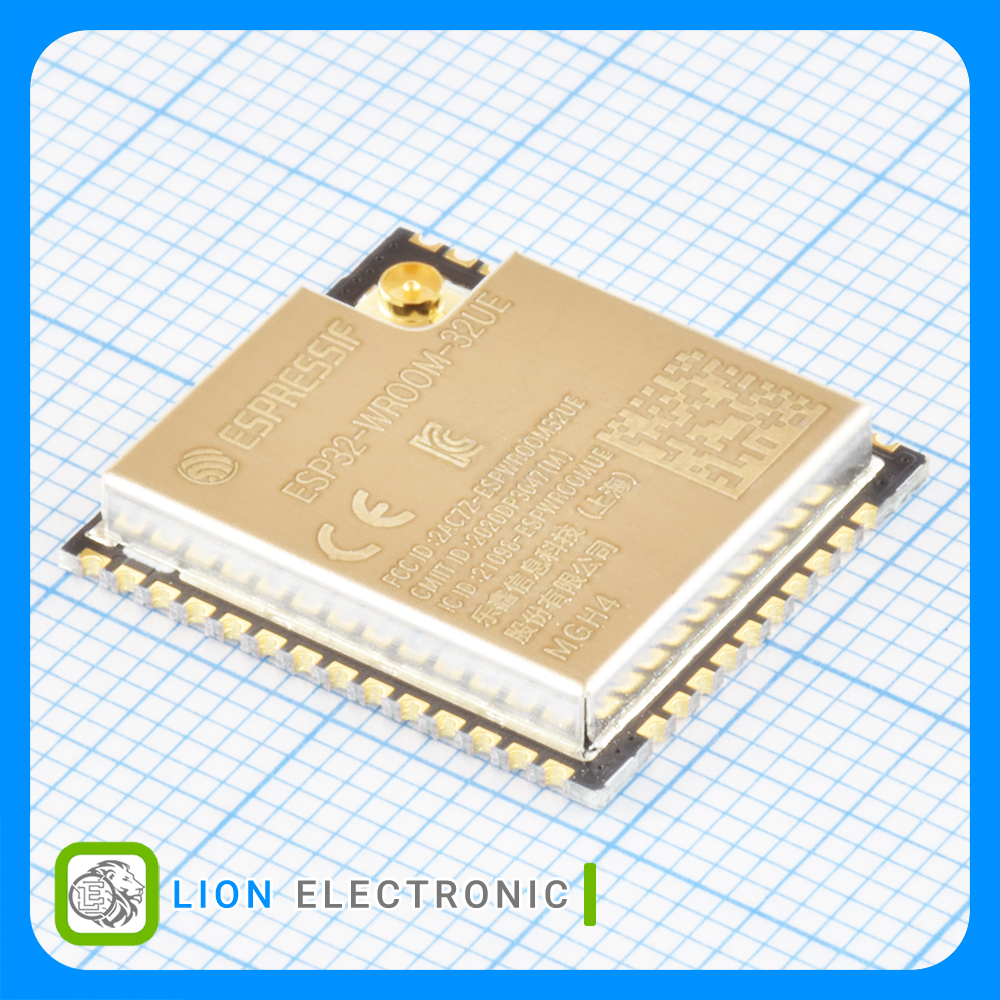

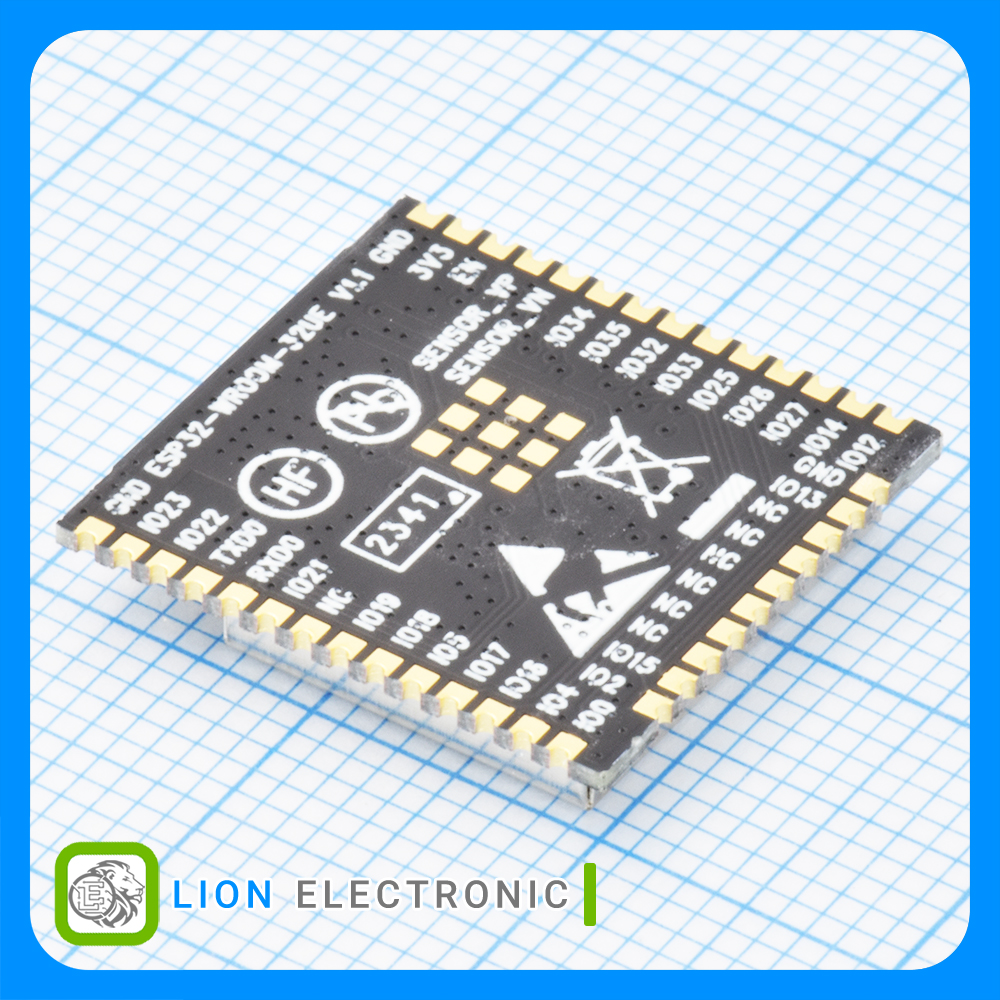

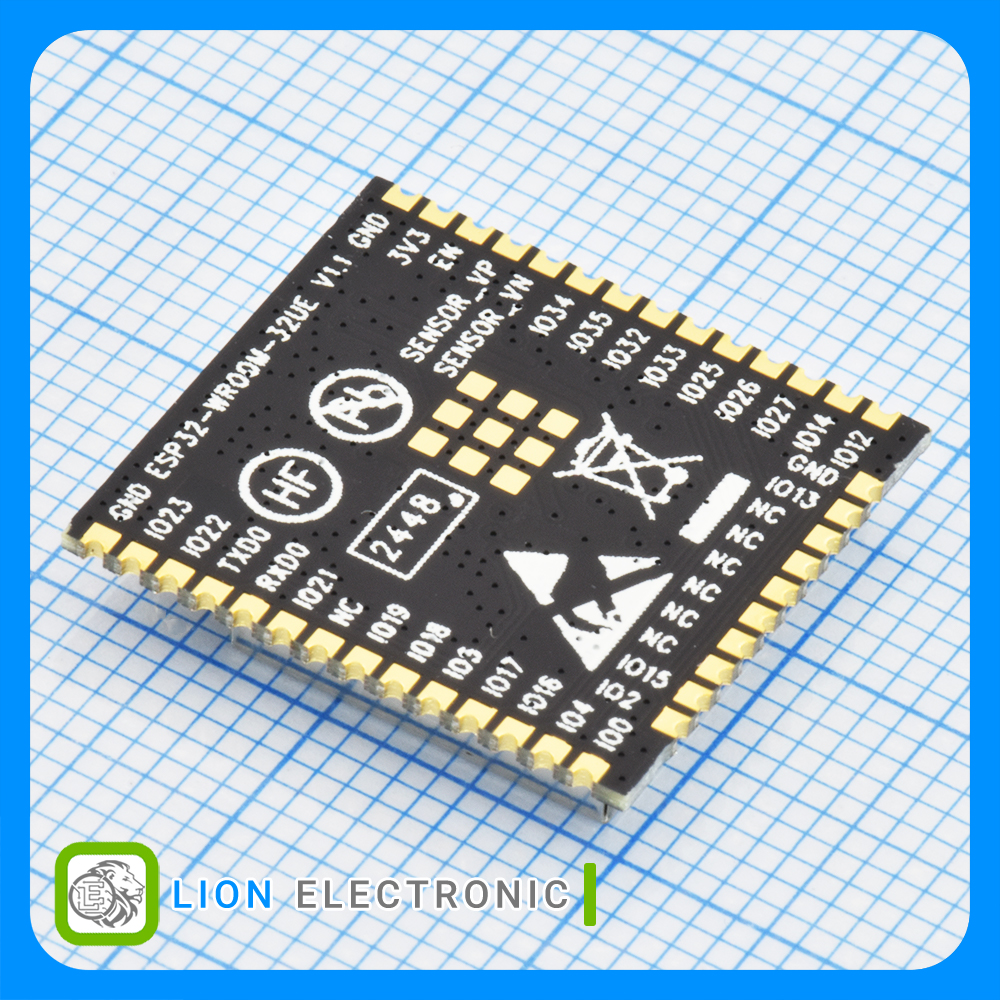

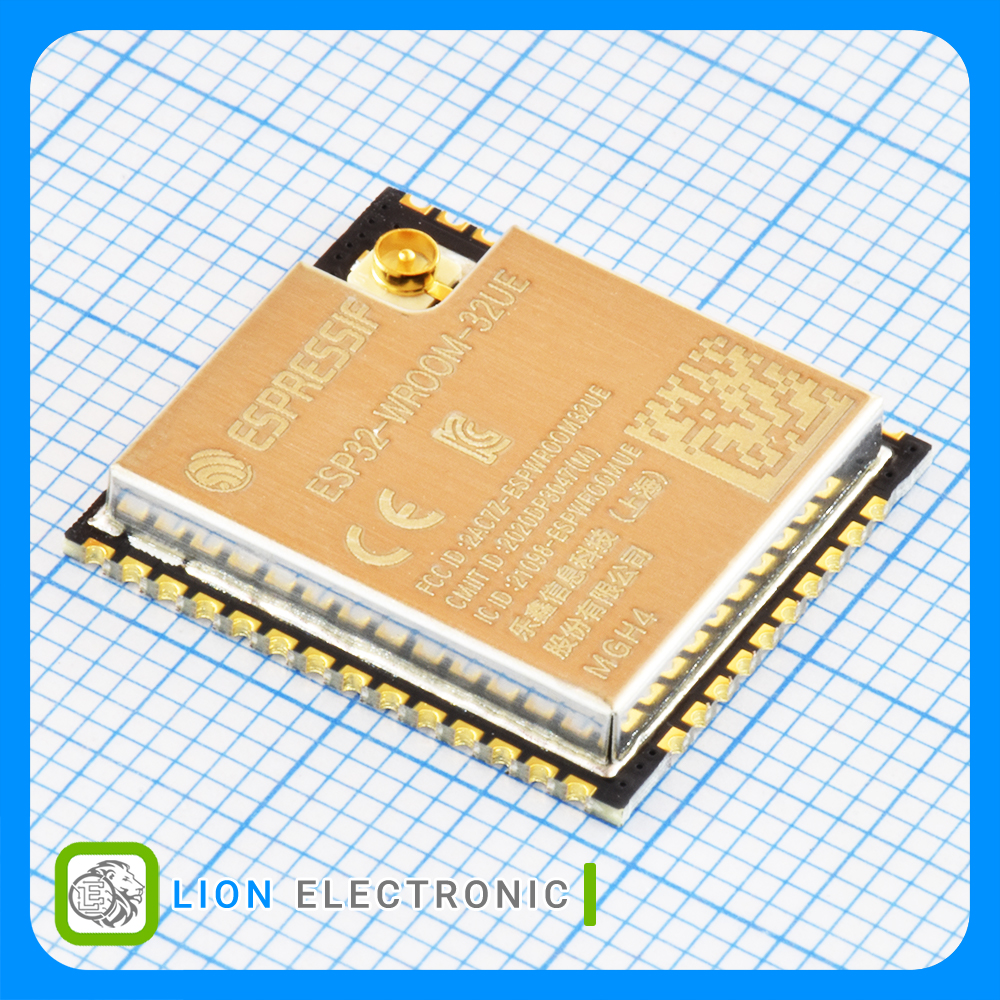

ماژول ESP32 سری ESP32 با فرکانس 240 مگاهرتز و 26 پایه I/O، ولتاژ تغذیه 3 تا 3.6 ولت با آنتن IPEX
ESP32 Module ESP32, 240MHz with 26 I/Os, 3 - 3.6V with IPEX Antenna
Specifications
- Product: Wi-Fi & Bluetooth (LE) & MCU Module
- Series: ESP32
- Interface Type: ADC, GPIO, I2C, I2S, RMT, SPI,TOUCH, UART, USB
- Antenna Connector Type: IPEX
- Number of I/Os: 26
- Output Power: 19.5dBm
- Frequency: 240MHz
- Operating Supply Voltage: 3 - 3.6V
- Supply Current Transmitting: 165mA, 183mA, 190mA, 239mA
- Supply Current Receiving: 112mA, 118mA
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات ESP32-WROOM-32UE-H4
ESP32-WROOM-32UE-H4
Part Number
IPEX
Antenna Connector Type
Reel
Packaging
-40C
Minimum Operating Temperature
+105C
Maximum Operating Temperature
26
Number of I-Os
ESP32
Series
165mA, 183mA, 190mA, 239mA
Supply Current Transmitting
ADC, GPIO, I2C, I2S, RMT, SPI,TOUCH, UART, USB
Interface Type
240MHz
Frequency
18mm x 19.2mm x 3.2mm
Dimensions
112mA, 118mA
Supply Current Receiving
19.5dBm
Output Power
3 - 3.6V
Operating Supply Voltage
Wi-Fi & Bluetooth (LE) & MCU Module
Product
