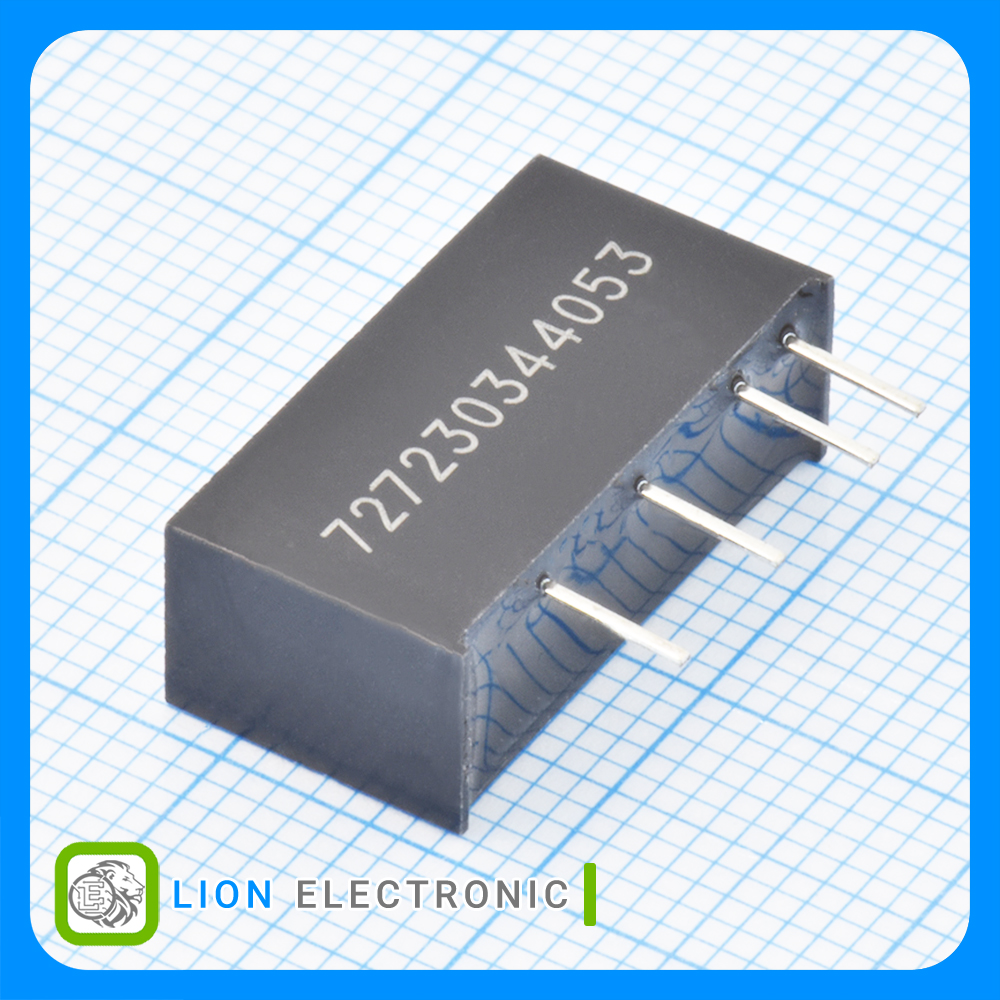

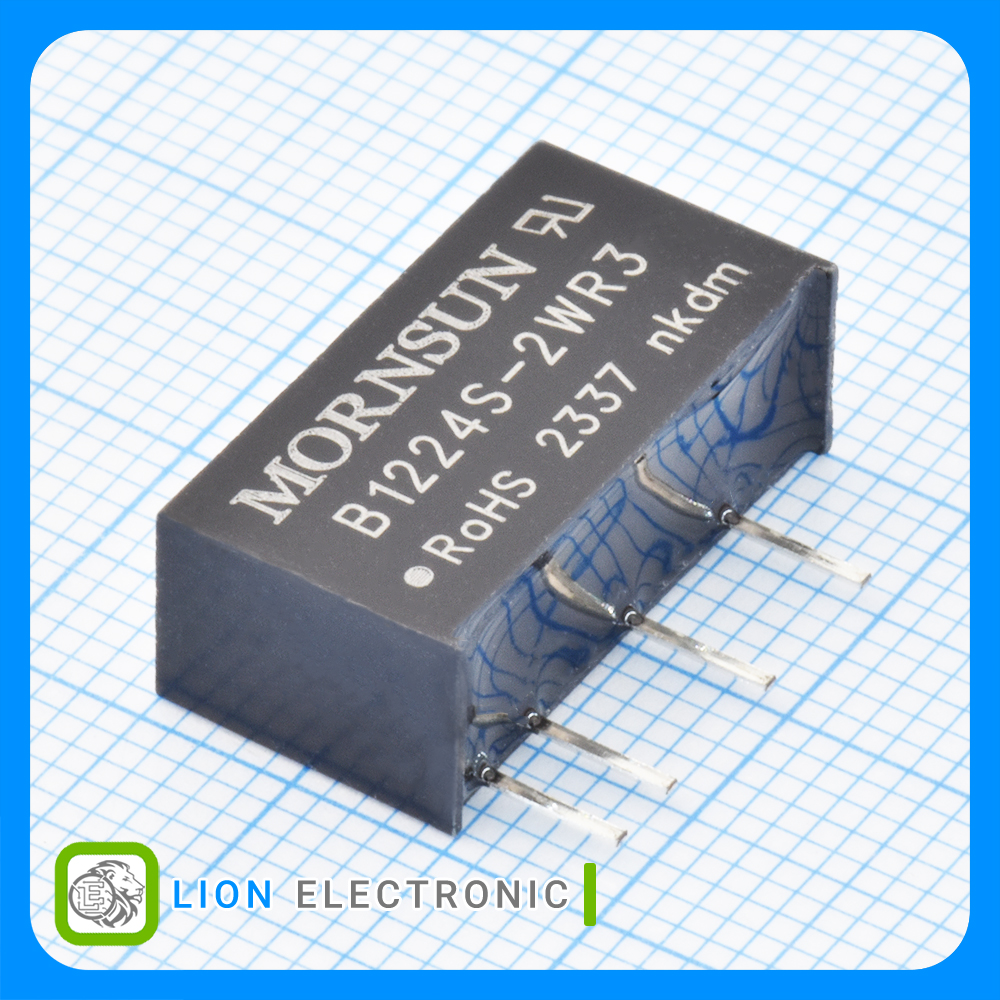

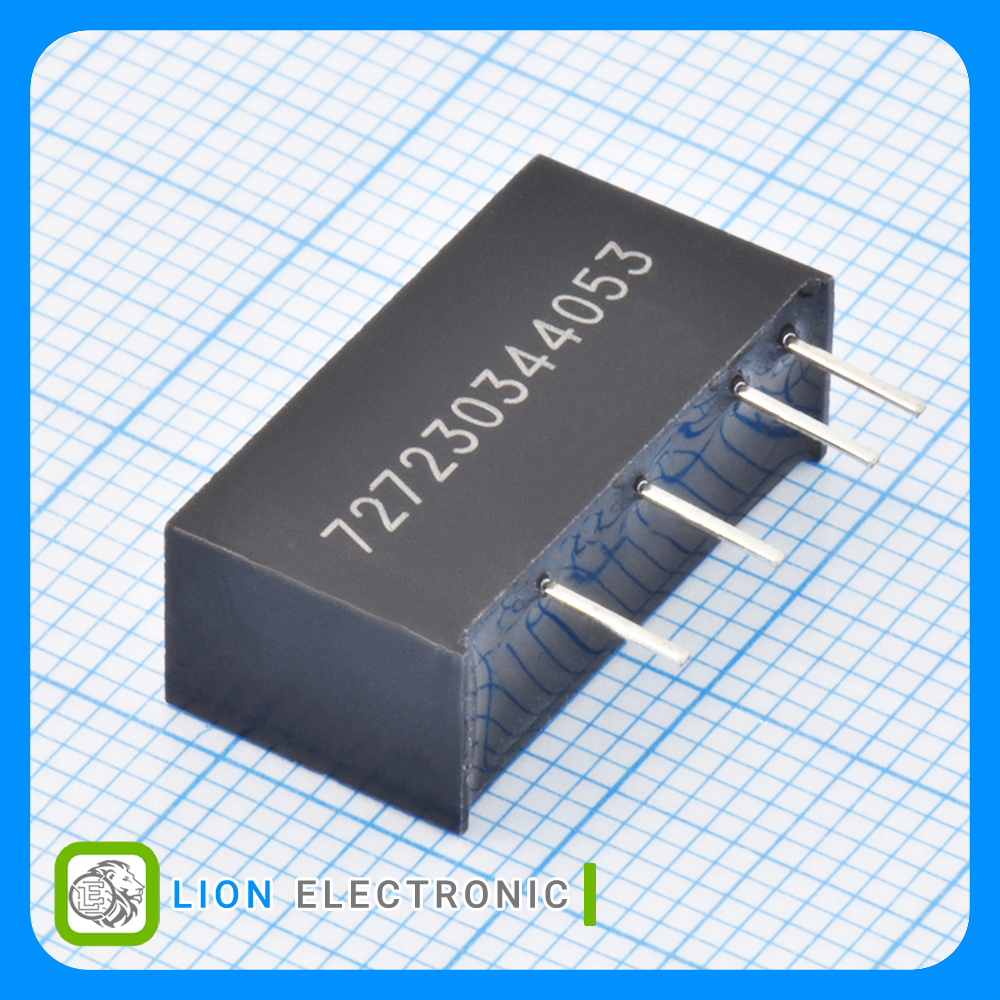

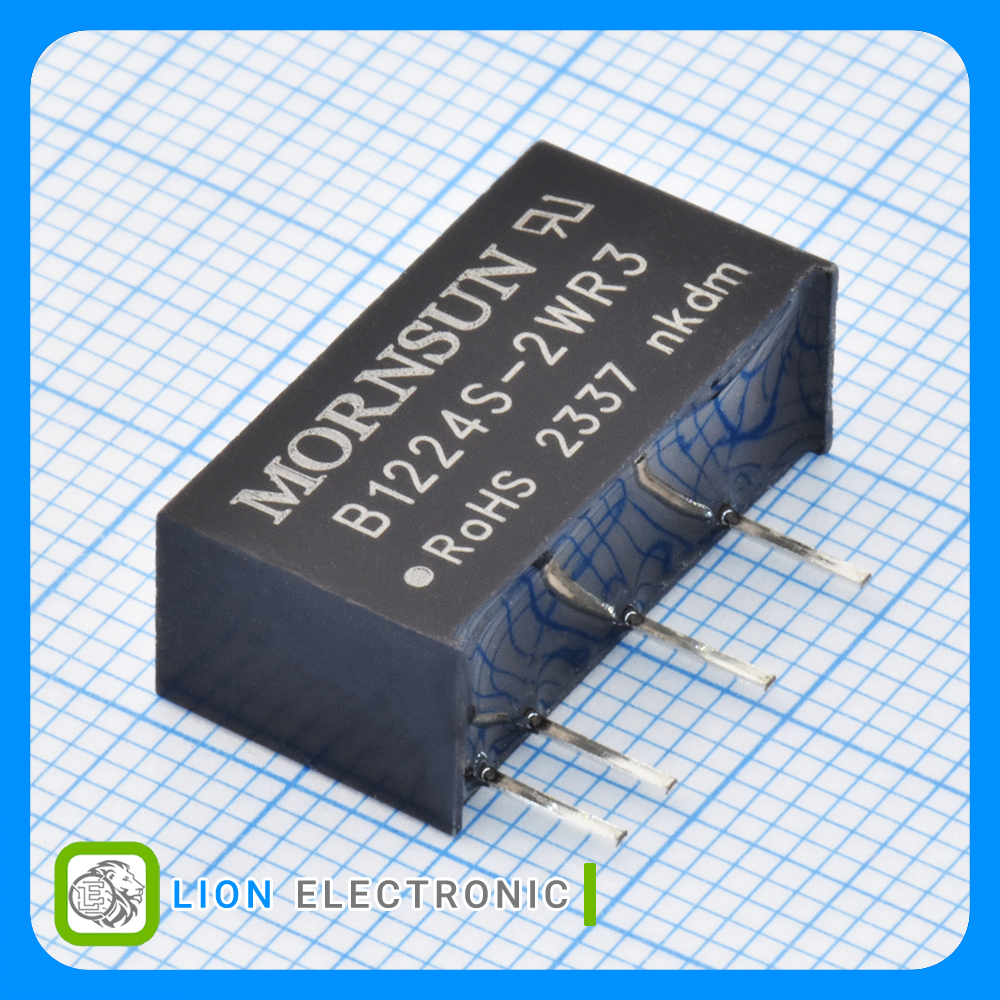

B1224S-2WR3
B1224S-2WR3
Part Number
5385
Lion Part
Datasheet
MORNSUN Manufacture
مبدل DC-to-DC ایزوله ورودی 12 ولت، خروجی 24 ولت 83 میلیآمپر، توان 2 وات، ایزولاسیون 1.5 کیلوولت، ابعاد 19.65x7.05x10.16mm
Isolated DC-to-DC Converter 12V in, 24V 83mA out, 2W, 1.5kVDC Isolation with 19.65x7.05x10.16mm Size
معرفی
مبدل DC-to-DC ایزوله ورودی 12 ولت، خروجی 24 ولت 83 میلیآمپر، توان 2 وات، ایزولاسیون 1.5 کیلوولت، ابعاد 19.65x7.05x10.16mm
Isolated DC-to-DC Converter 12V in, 24V 83mA out, 2W, 1.5kVDC Isolation with 19.65x7.05x10.16mm Size
Specifications
- Input Voltage: 12V
- Number of Outputs: 1
- Output Voltage - Channel 1: 24V
- Output Current - Channel 1: 83mA
- Output Power: 2W
- Isolation Voltage: 1.5kVDC
- Mounting Style: Through Hole
- Package/Case Size: 19.65x7.05x10.16mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
مشخصات B1224S-2WR3
B1224S-2WR3
Part Number
1
Number of Outputs
1.5kVDC
Isolation Voltage
19.65x7.05x10.16mm
Package-Case Size
83mA
Output Current - Channel 1
-40C
Minimum Operating Temperature
N/A
Output Voltage - Channel 2
24V
Output Voltage - Channel 1
Through Hole
Mounting Style
+105C
Maximum Operating Temperature
N/A
Output Current - Channel 2
2W
Output Power
12V
Input Voltage
