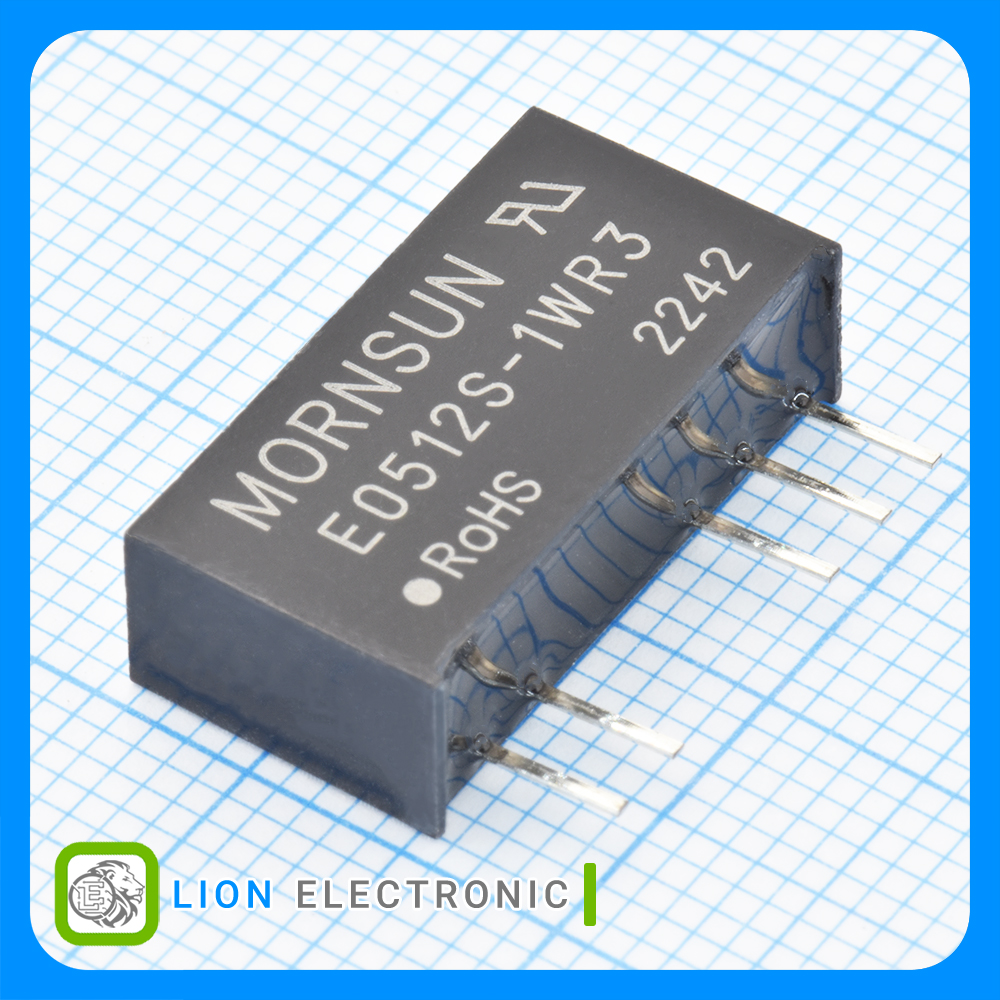

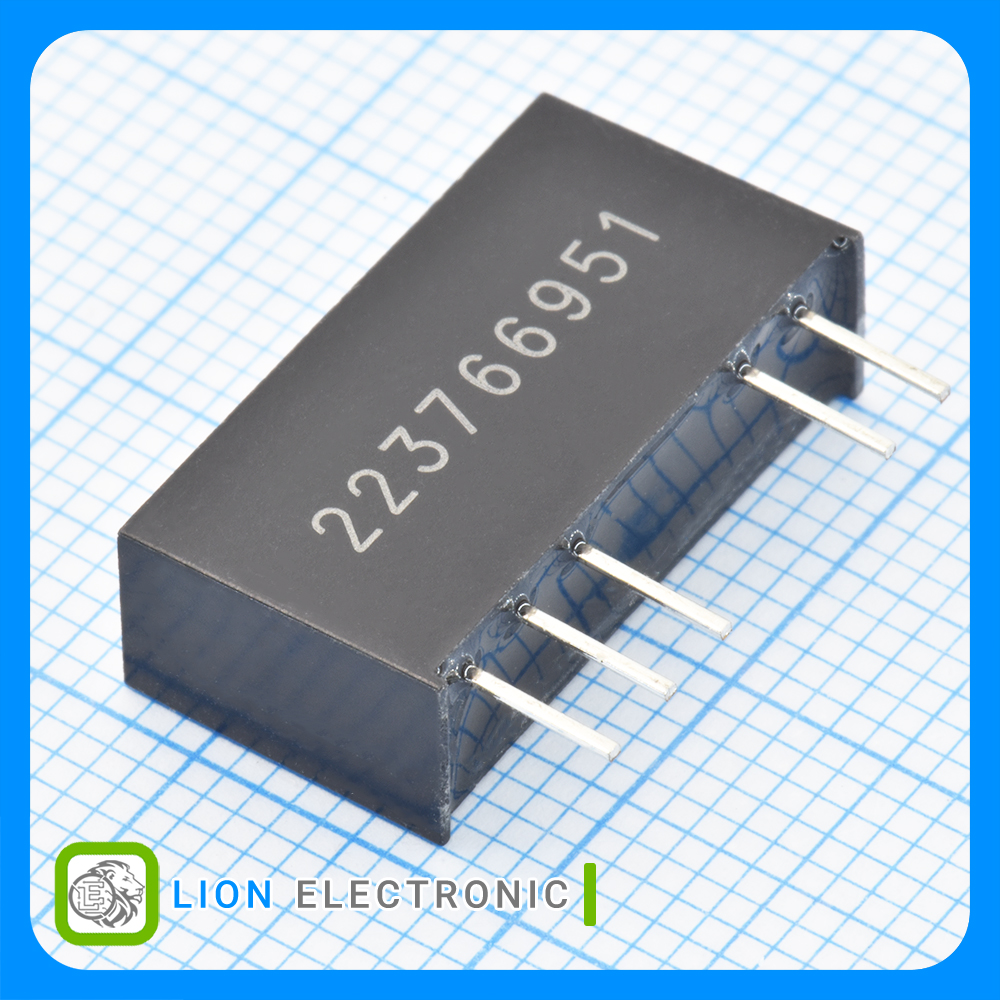

E0512S-1WR3
E0512S-1WR3
Part Number
5438
Lion Part
Datasheet
MORNSUN Manufacture
مبدل دیسی به دیسی ایزوله ورودی 5 ولت خروجی ±12 ولت ±42 میلیآمپر (دو خروجی) توان 1 وات ایزولاسیون 3 کیلوولت با ابعاد 19.65x6x10.16mm
Isolated DC-to-DC Converter 5V in, ±12V ±42mA out (2 outputs), 1W, 3kVDC Isolation with 19.65x6x10.16mm Size
معرفی
مبدل دیسی به دیسی ایزوله ورودی 5 ولت خروجی ±12 ولت ±42 میلیآمپر (دو خروجی) توان 1 وات ایزولاسیون 3 کیلوولت با ابعاد 19.65x6x10.16mm
Isolated DC-to-DC Converter 5V in, ±12V ±42mA out (2 outputs), 1W, 3kVDC Isolation with 19.65x6x10.16mm Size
Specifications
- Input Voltage: 5V
- Number of Outputs: 2
- Output Voltage - Channel 1: 12V
- Output Current - Channel 1: 42mA
- Output Voltage - Channel 2: -12V
- Output Current - Channel 2: 42mA
- Output Power: 1W
- Isolation Voltage: 3kVDC
- Mounting Style: Through Hole
- Package/Case Size: 19.65x6.00x10.16mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
مشخصات E0512S-1WR3
E0512S-1WR3
Part Number
2
Number of Outputs
19.65x6.00x10.16mm
Package-Case Size
42mA
Output Current - Channel 2
42mA
Output Current - Channel 1
-12V
Output Voltage - Channel 2
12V
Output Voltage - Channel 1
-40C
Minimum Operating Temperature
3kVDC
Isolation Voltage
Through Hole
Mounting Style
+105C
Maximum Operating Temperature
1W
Output Power
5V
Input Voltage
