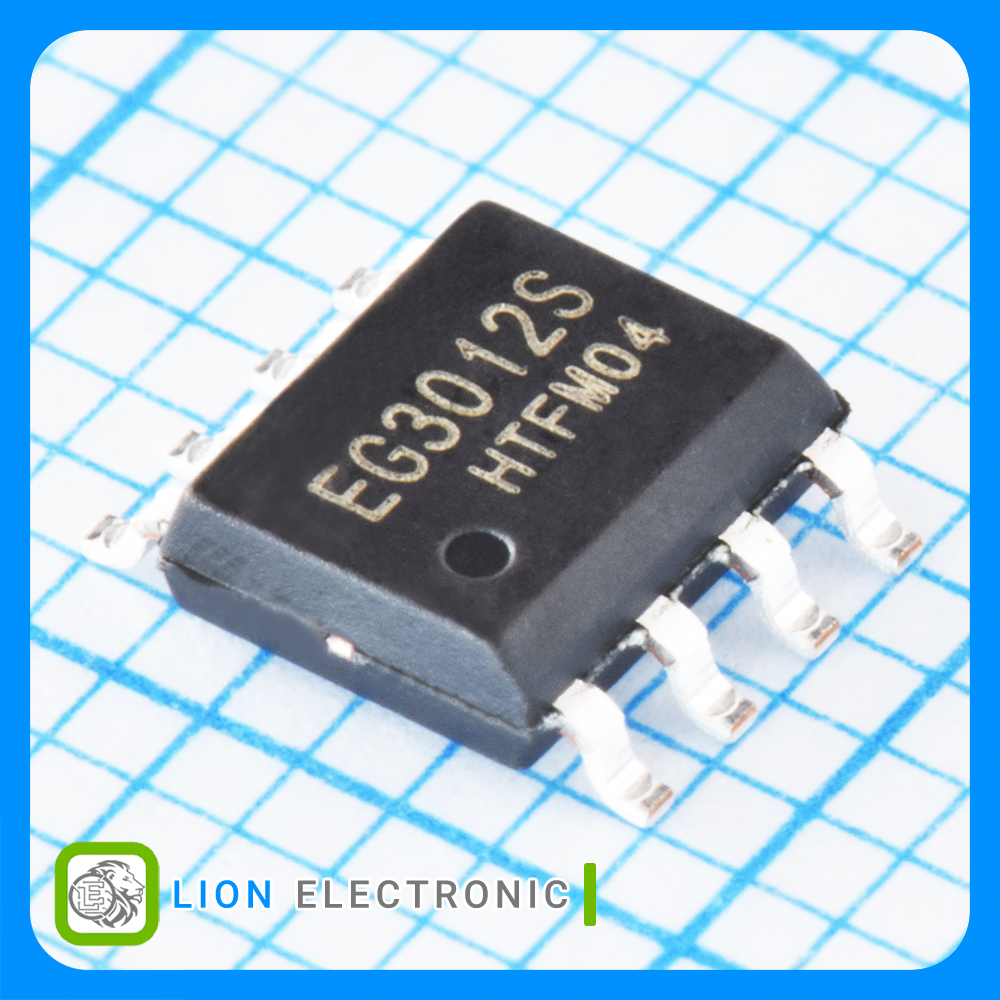

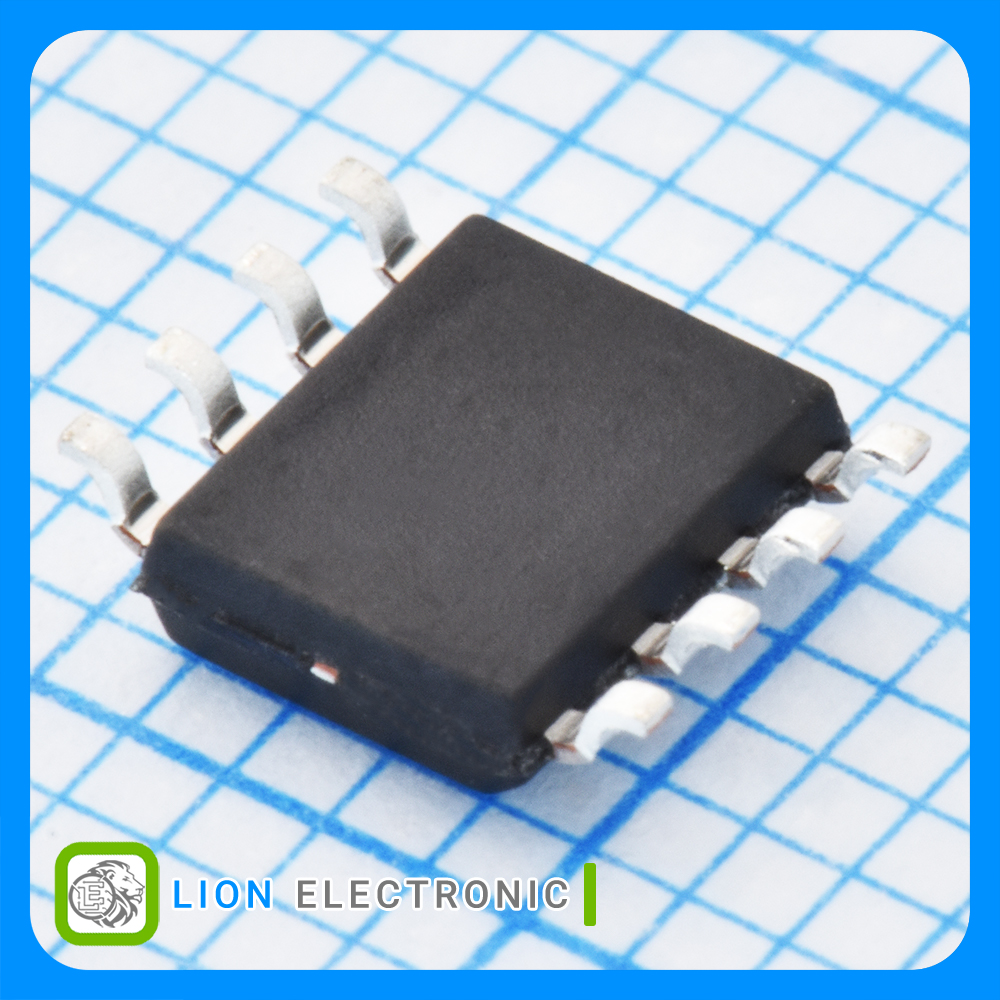

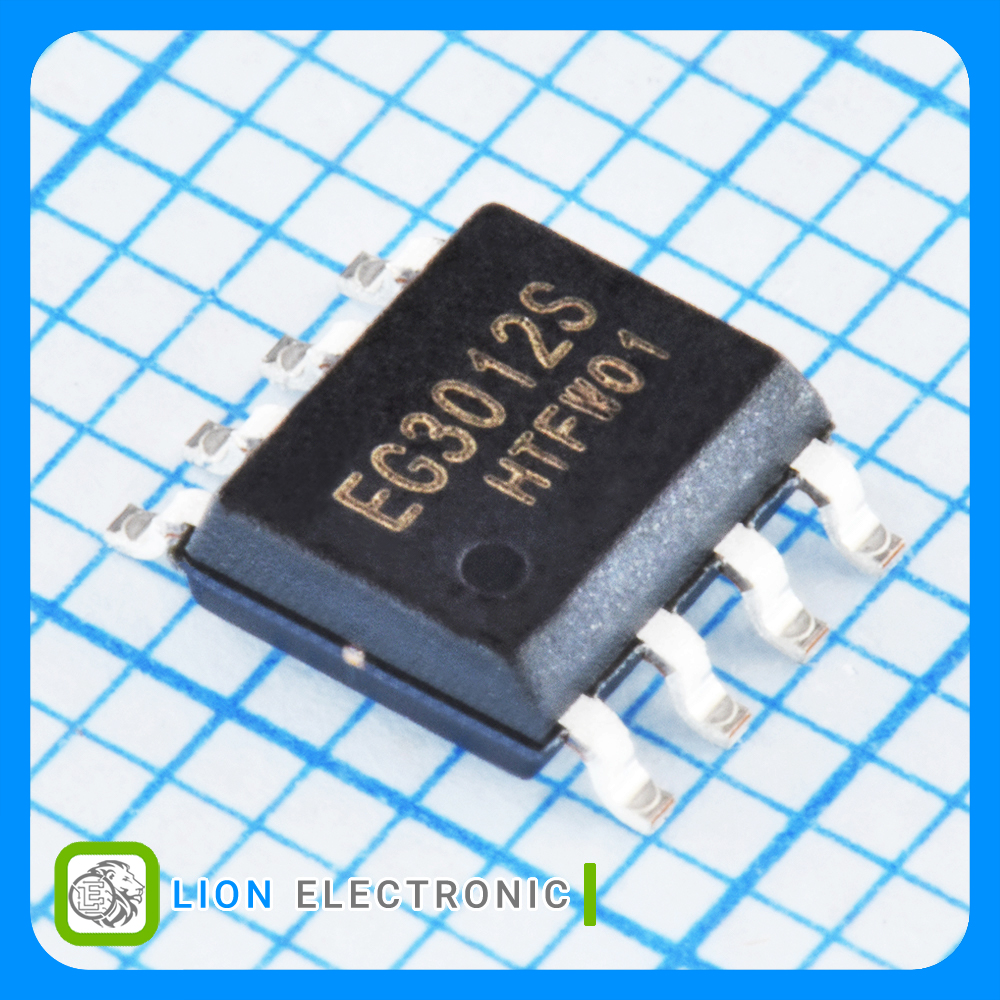

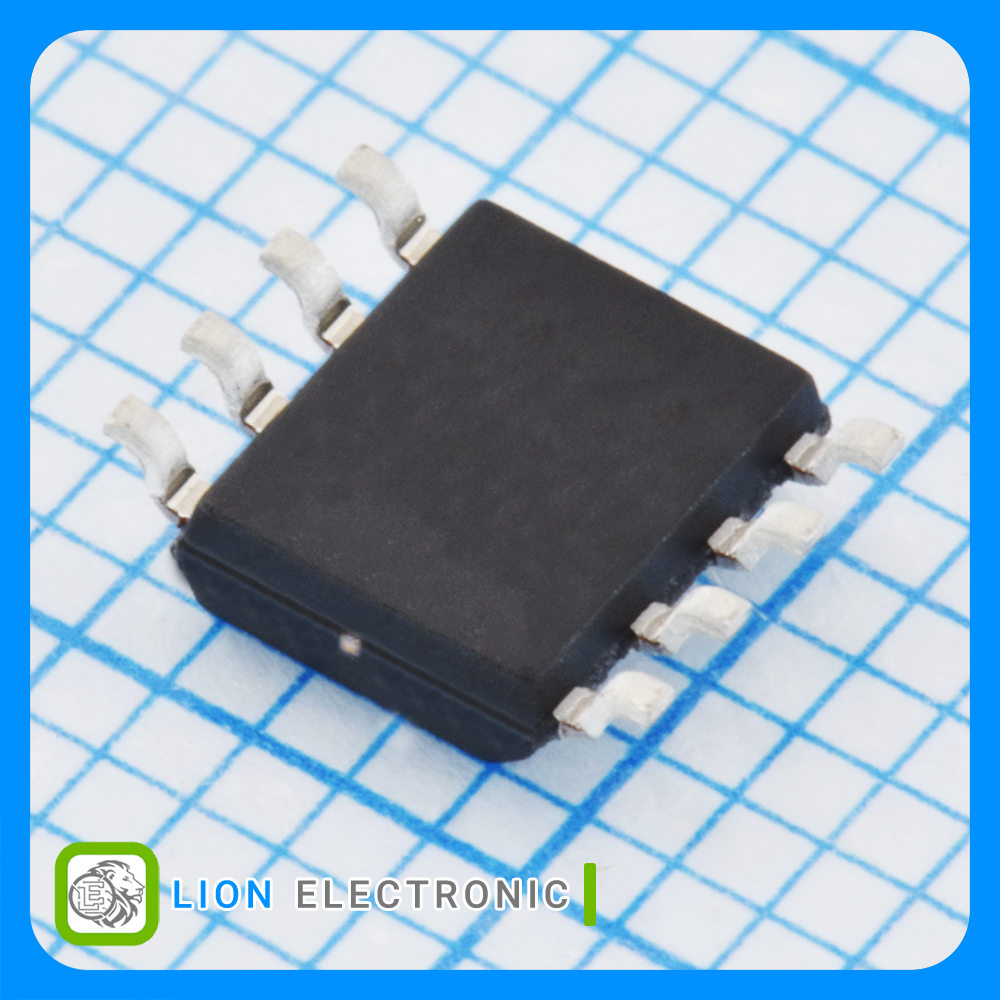

EG3012S
EG Micro
معرفی
گیت درایور نیمپل دوگانه 60 ولت مناسب برای درایو MOSFET و IGBT های کانال N، جریان خروجی 800 میلیآمپر، پکیج SOP-8
Dual 60V Half-Bridge Gate Driver, 800mA, suitable for driving N-channel MOSFETs and IGBTs, with SOP-8 Package
Specifications
- Configuration: Half-Bridge
- Output Current: 800mA
- Supply Voltage - Min: 11V
- Supply Voltage - Max: 30V
- Operating Supply Current: 4.5mA
- Propagation Delay - Max: 600ns
- Pd - Power Dissipation: 430mW
- Number of Outputs: 2
- Mounting Style: SMD/SMT
- Package/Case: 1.6 x 2.0mm
- Minimum Operating Temperature: -45C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات گیت درایور (Half Bridge) EG3012S
گیت درایور (Half Bridge) EG3012S
Part Number
2
Number of Outputs
Reel
Packaging
-45C
Minimum Operating Temperature
SMD/SMT
Mounting Style
N/A
Floating Voltage
N/A
Dead Time
+125C
Maximum Operating Temperature
Half-Bridge
Configuration
430mW
Pd - Power Dissipation
600ns
Propagation Delay - Max
30V
Supply Voltage - Max
800mA
Output Current
11V
Supply Voltage - Min
4.5mA
Operating Supply Current
SMD2016-4P
Package-Case
