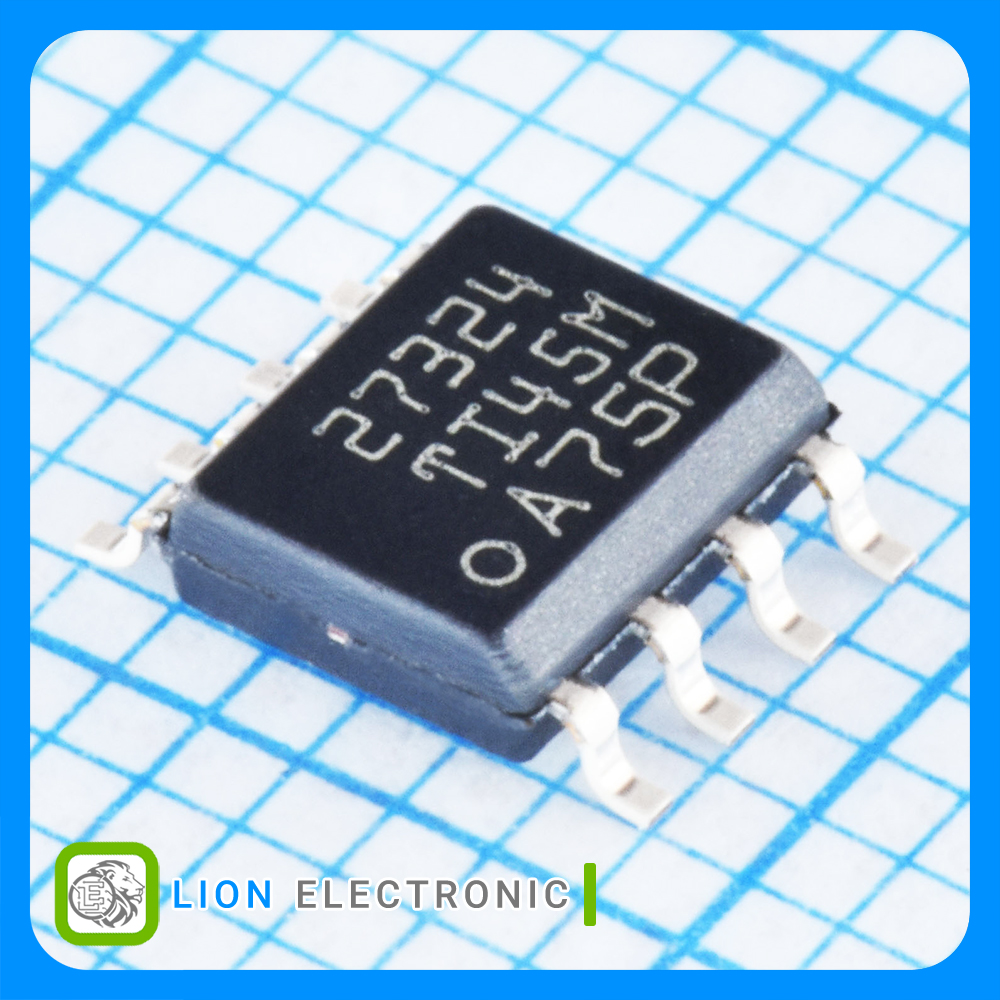

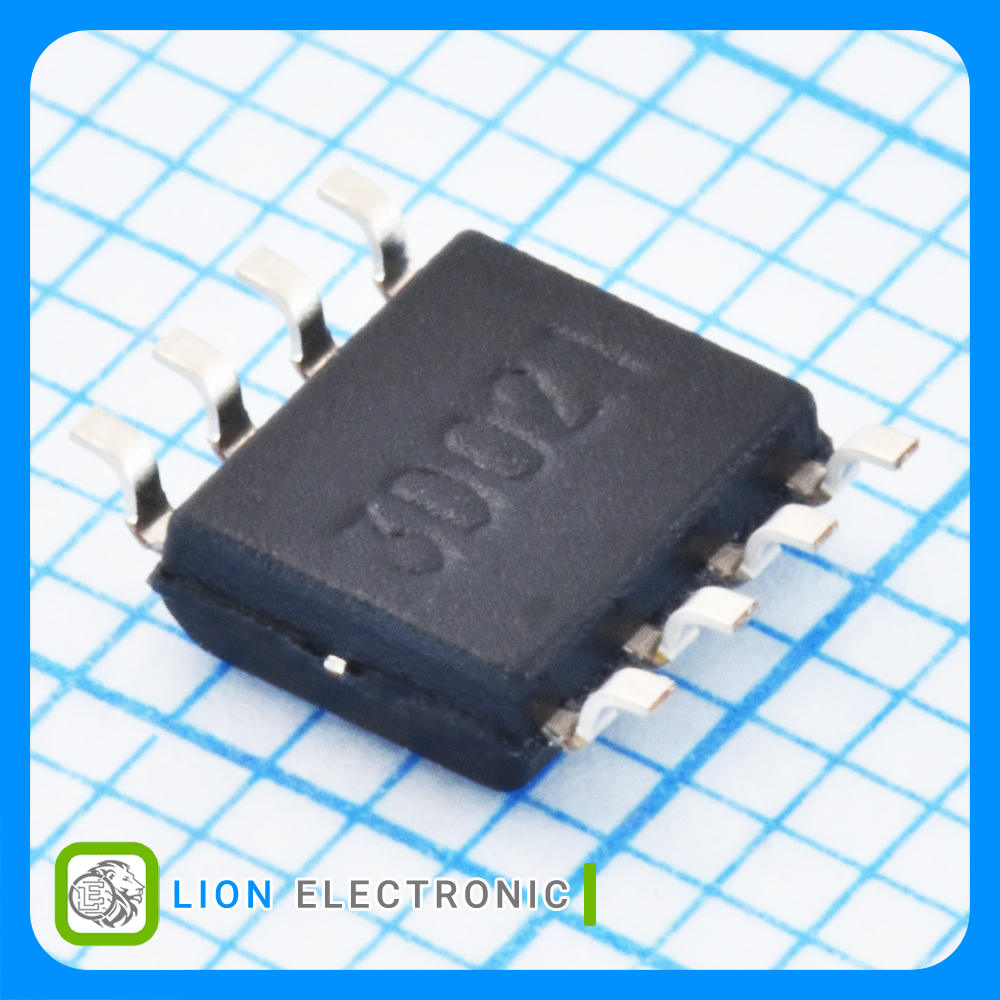

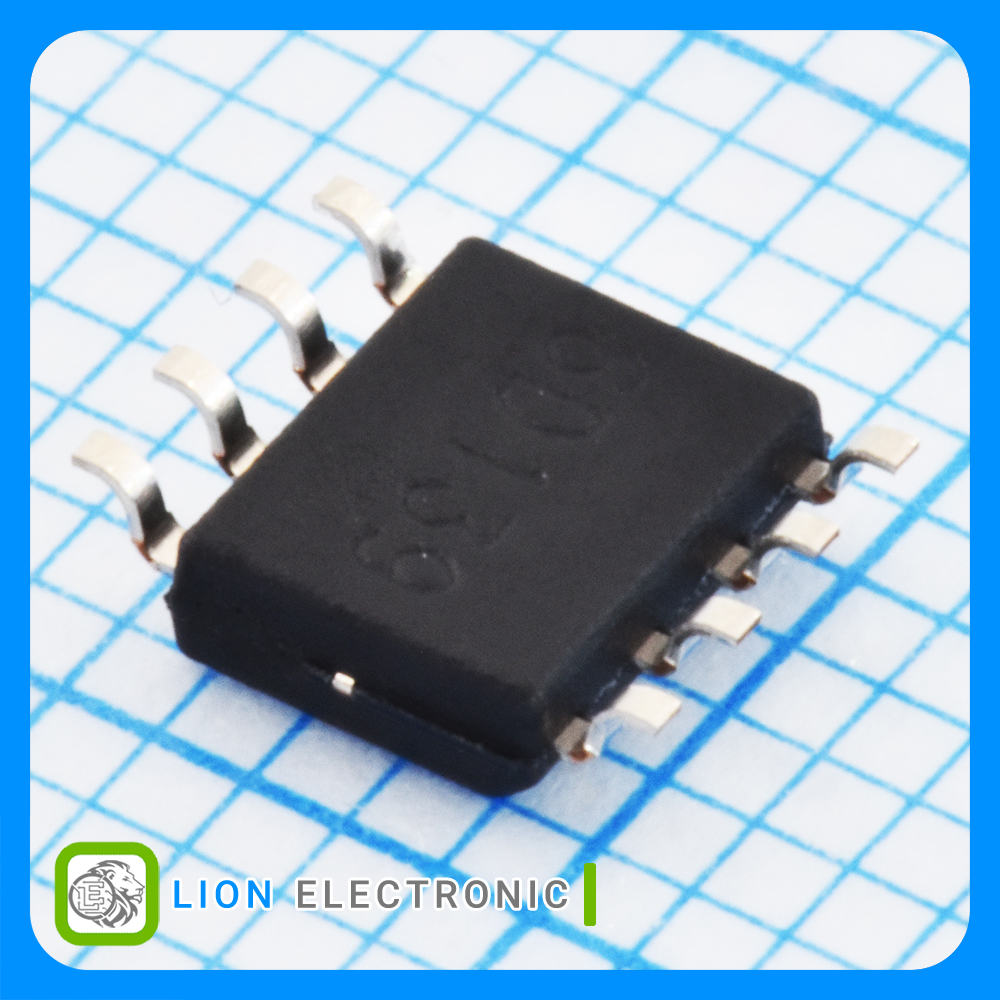

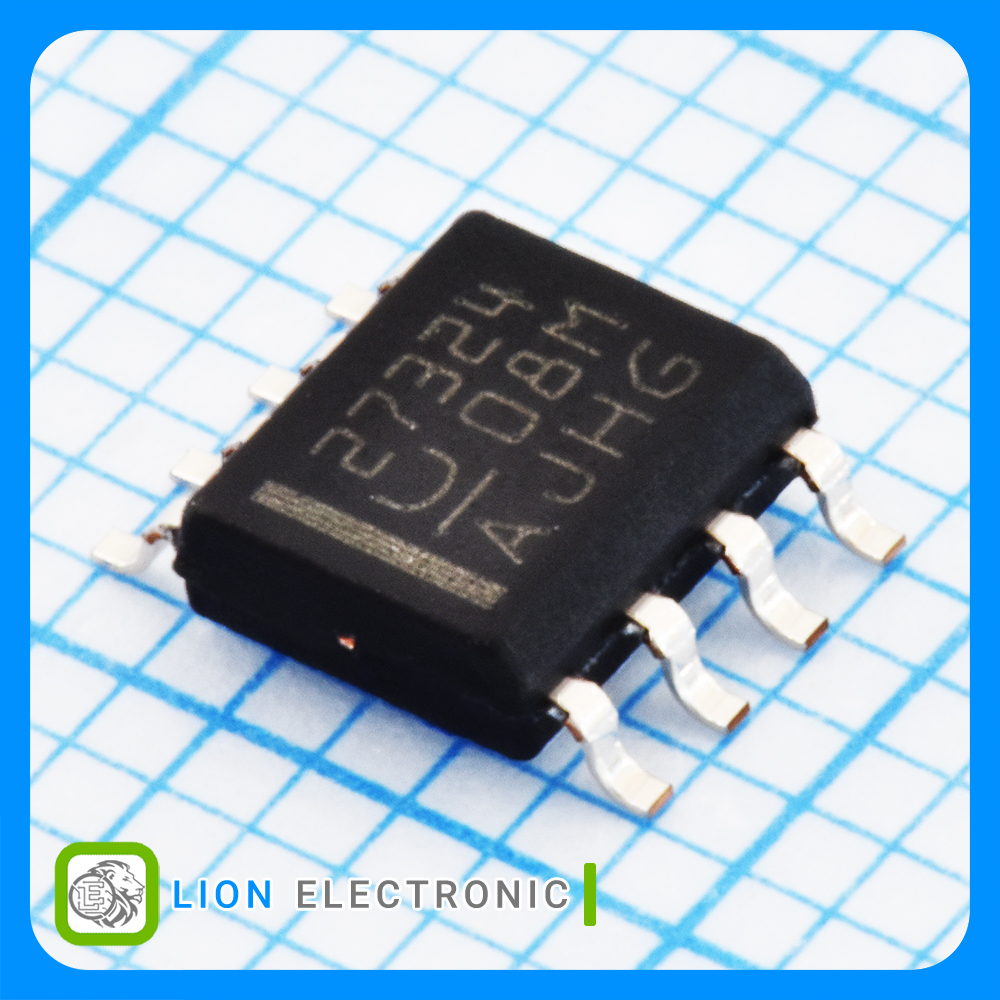

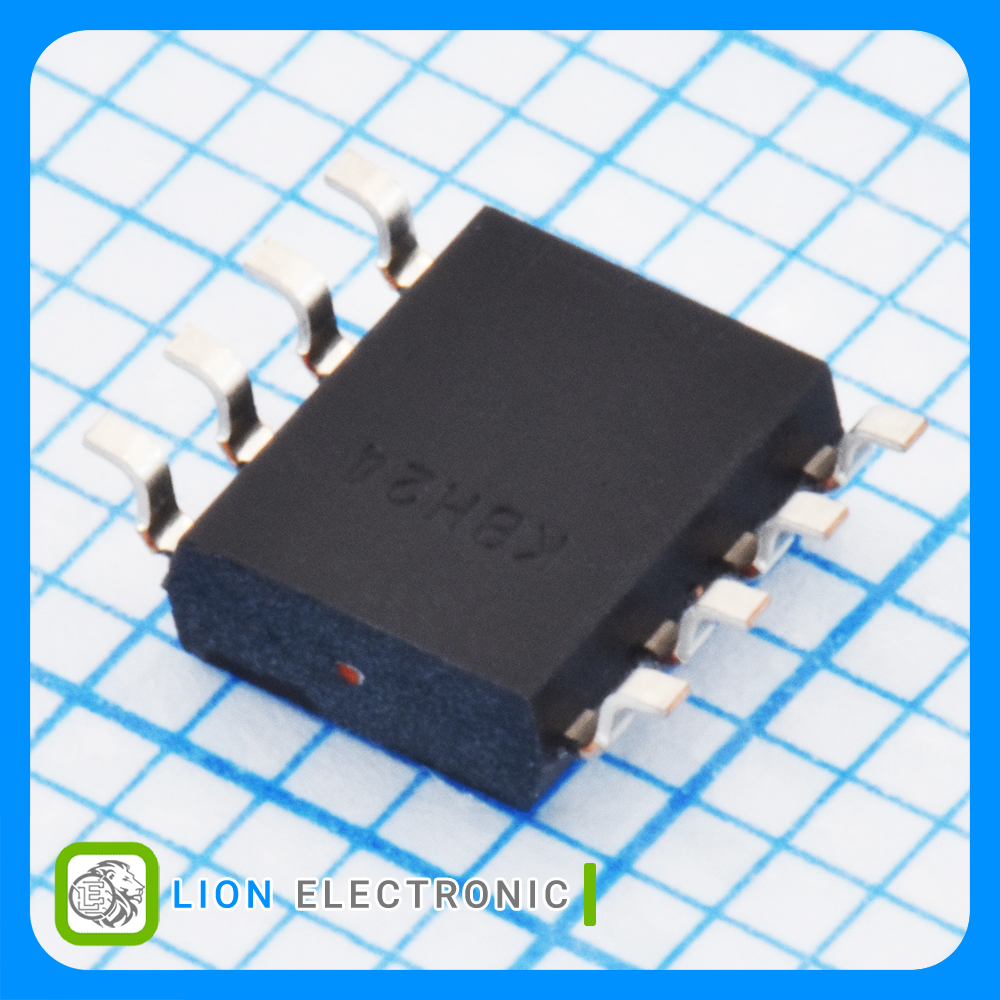

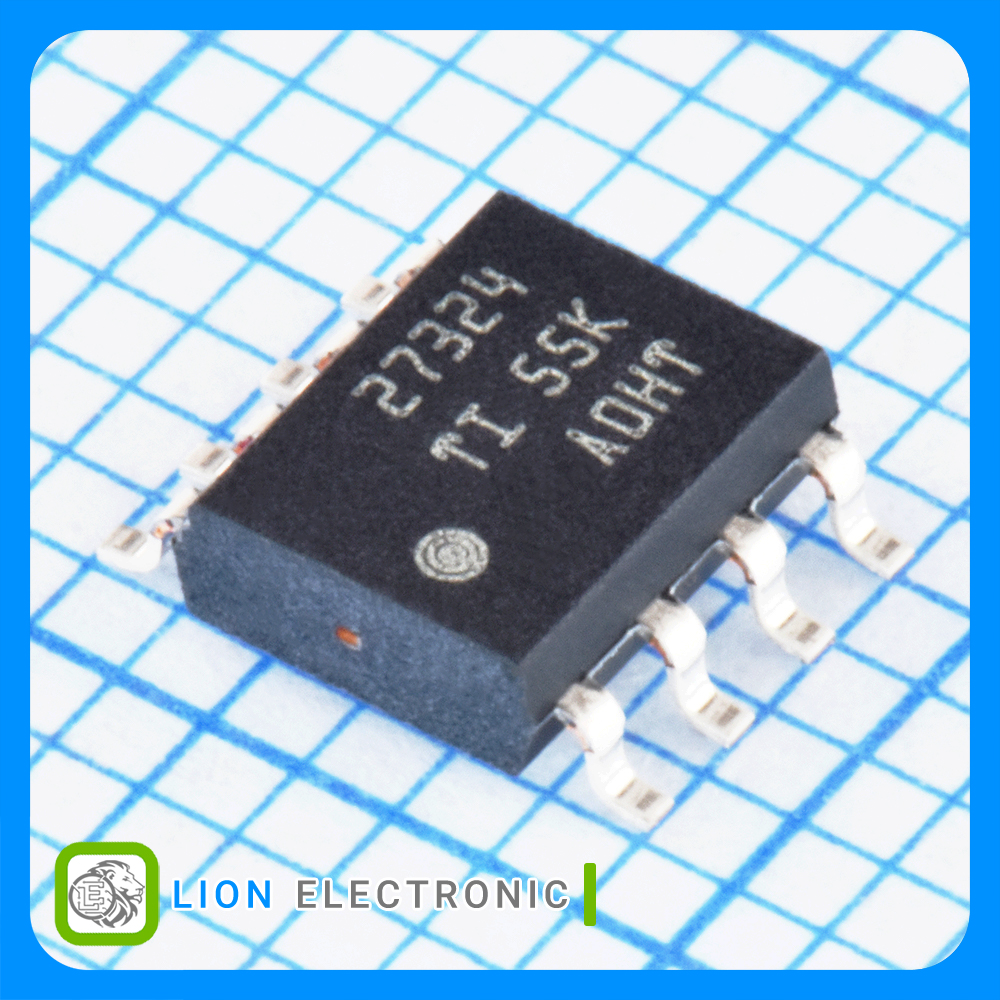

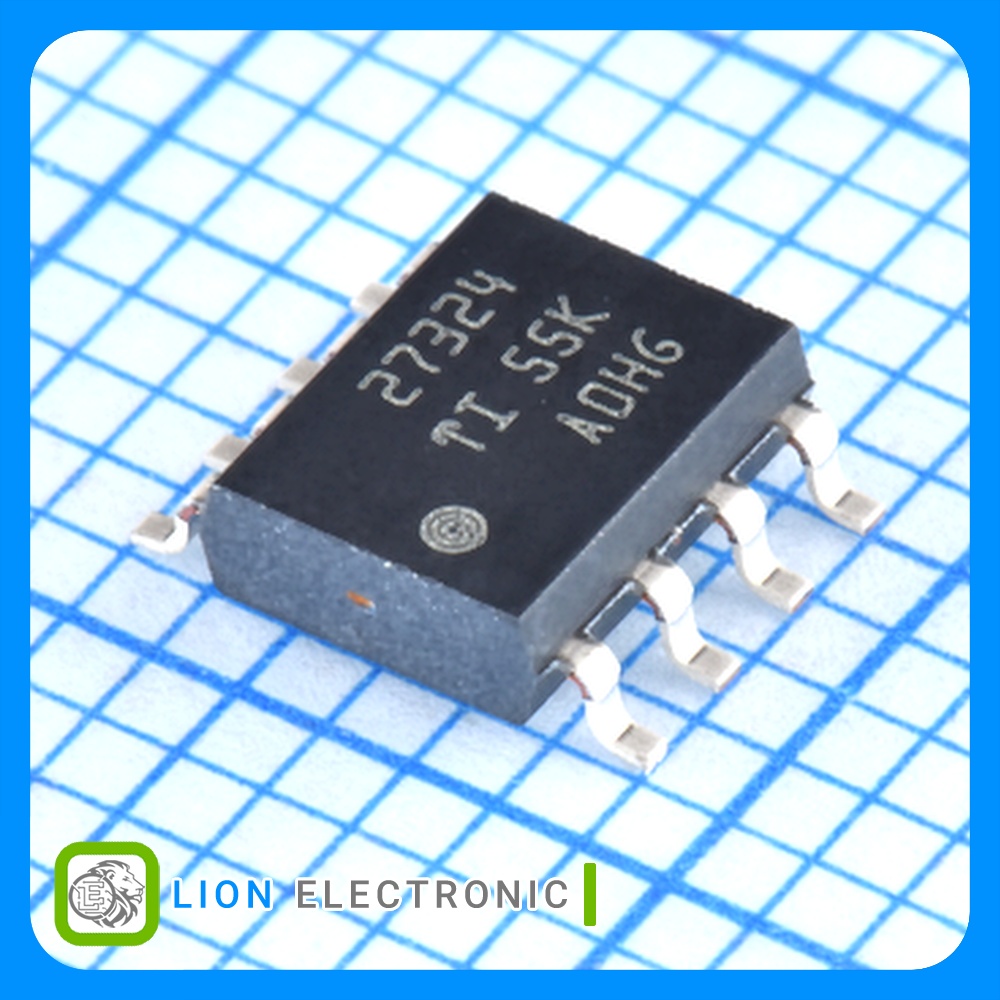

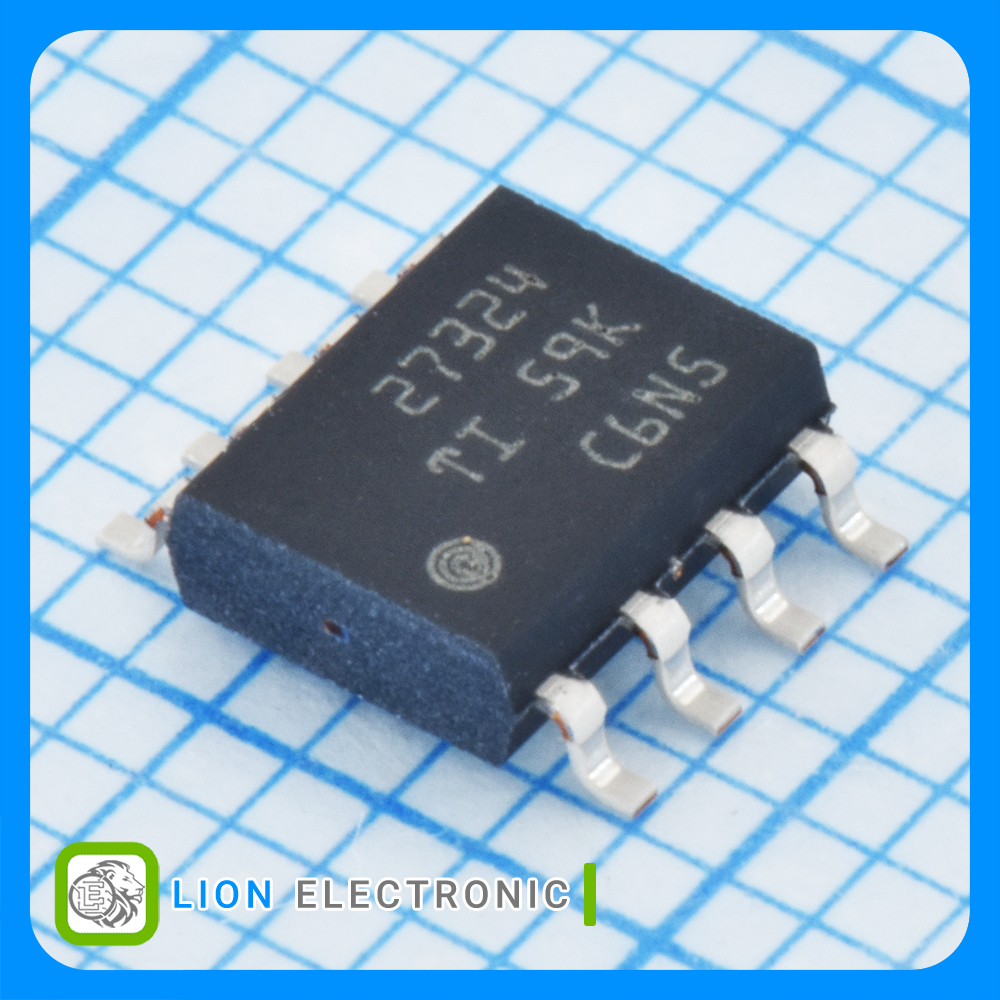

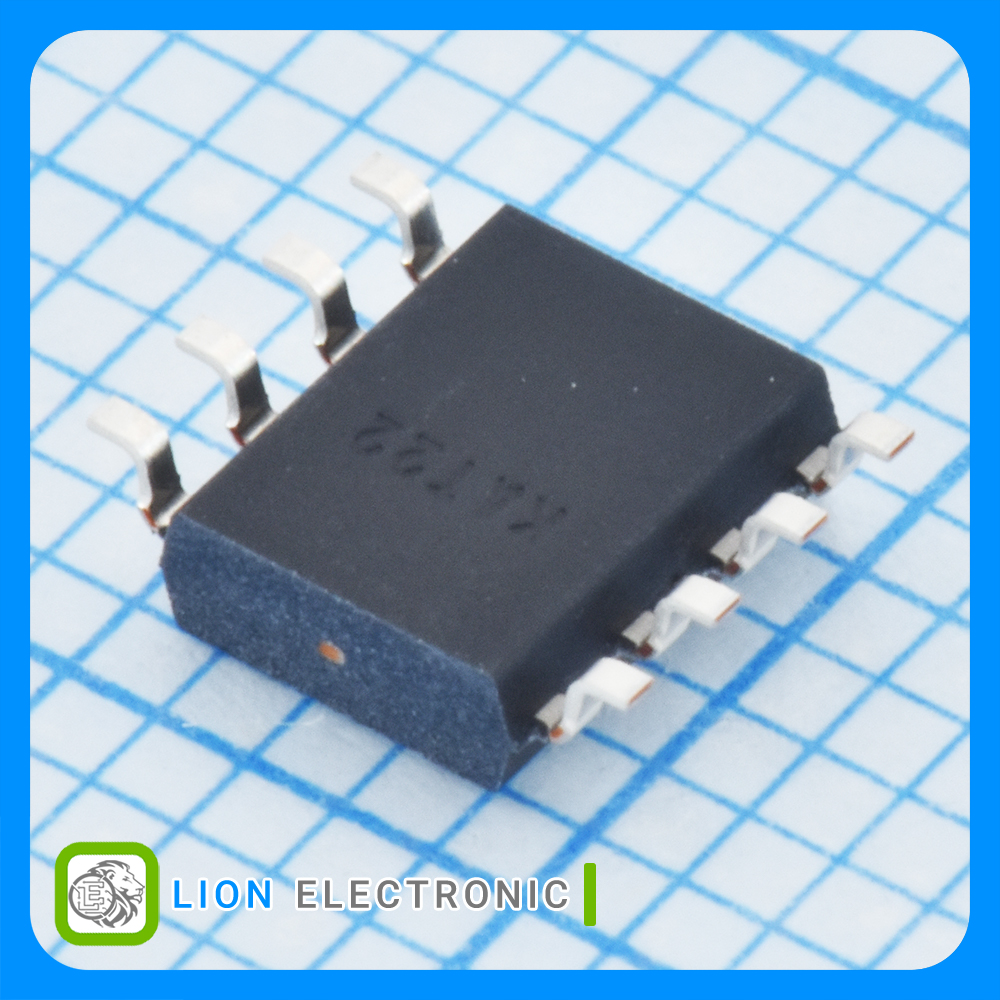

UCC27324DR
UCC27324DR
Part Number
5824
Lion Part
Datasheet
Texas Instruments Manufacture
گیت درایور دوتایی 15 ولت جریان خروجی 4 آمپر با پکیج SOIC-8
Dual Gate Driver 15V, 4A with SOIC-8 Package
معرفی
گیت درایور دوتایی 15 ولت جریان خروجی 4 آمپر با پکیج SOIC-8
Dual Gate Driver 15V, 4A with SOIC-8 Package
Specifications
- Configuration: Dual
- Output Current: 4A
- Supply Voltage - Min: 4.5V
- Supply Voltage - Max: 15V
- Operating Supply Current: 600uA
- Propagation Delay - Max: 30ns
- Pd - Power Dissipation: 1.14W
- Number of Outputs: 2
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات گیت درایور UCC27324DR
گیت درایور UCC27324DR
Part Number
2
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
N/A
Floating Voltage
SMD/SMT
Mounting Style
30ns
Propagation Delay - Max
N/A
Dead Time
+125C
Maximum Operating Temperature
Dual
Configuration
15V
Supply Voltage - Max
4.5V
Supply Voltage - Min
1.14W
Pd - Power Dissipation
4A
Output Current
600uA
Operating Supply Current
SOIC-8
Package-Case
