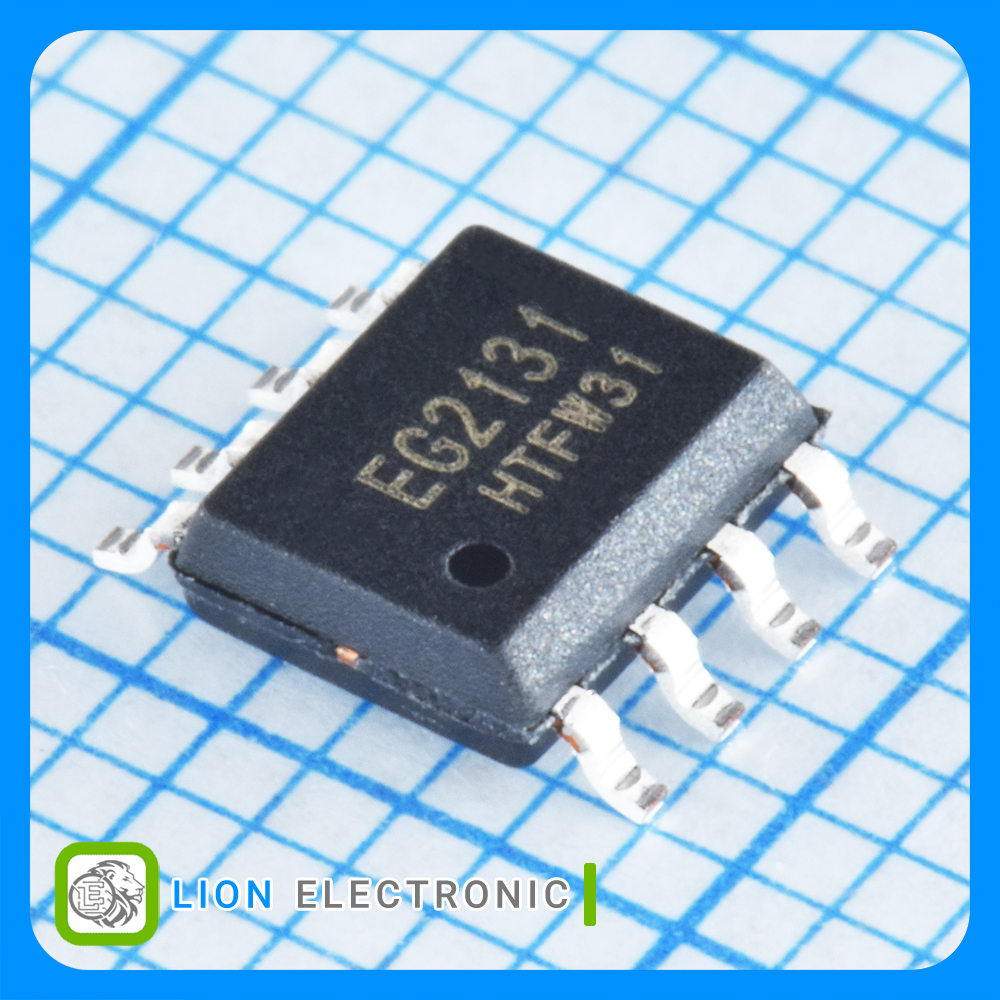

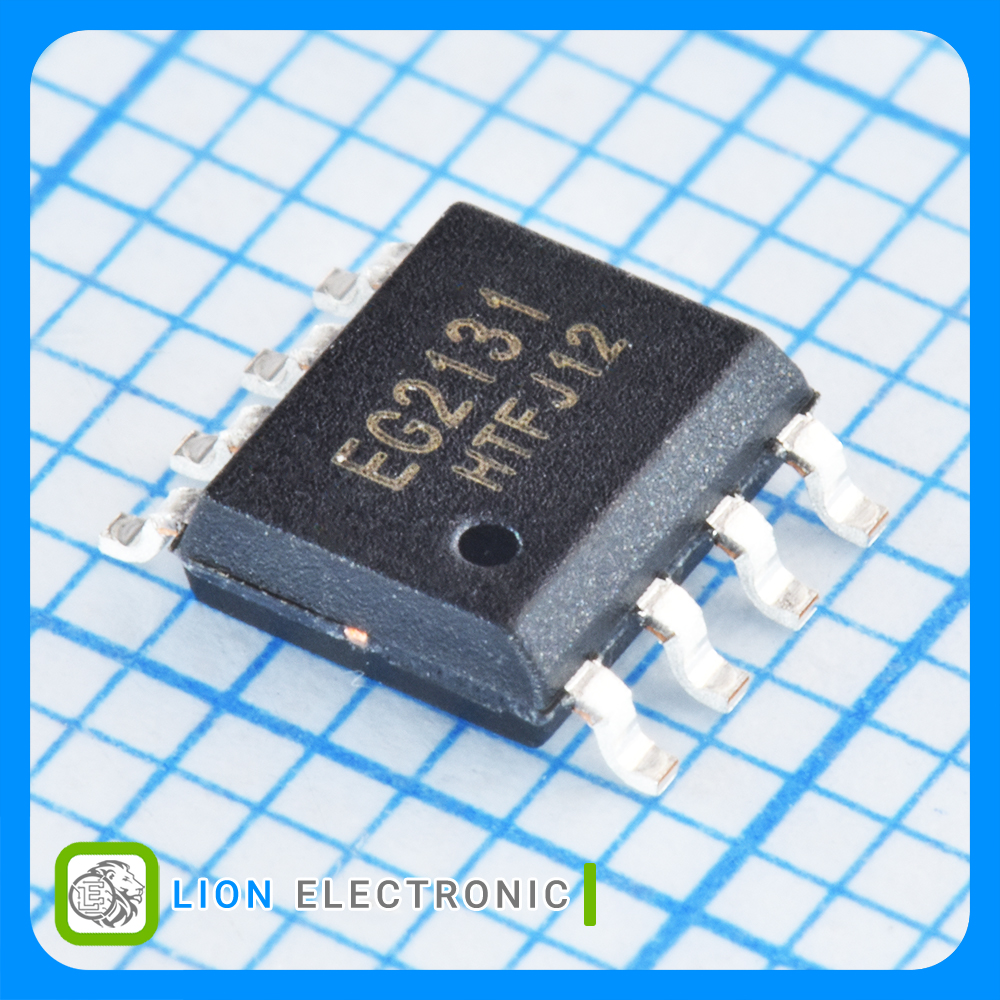

EG2131
EG2131
Part Number
6143
Lion Part
Datasheet
EG Micro Manufacture
گیت درایور EG2131 نیمپل، مناسب برای درایو MOSFET و IGBT، جریان خروجی 1.5 آمپر، تغذیه 11 تا 20 ولت، پکیج SOP-8

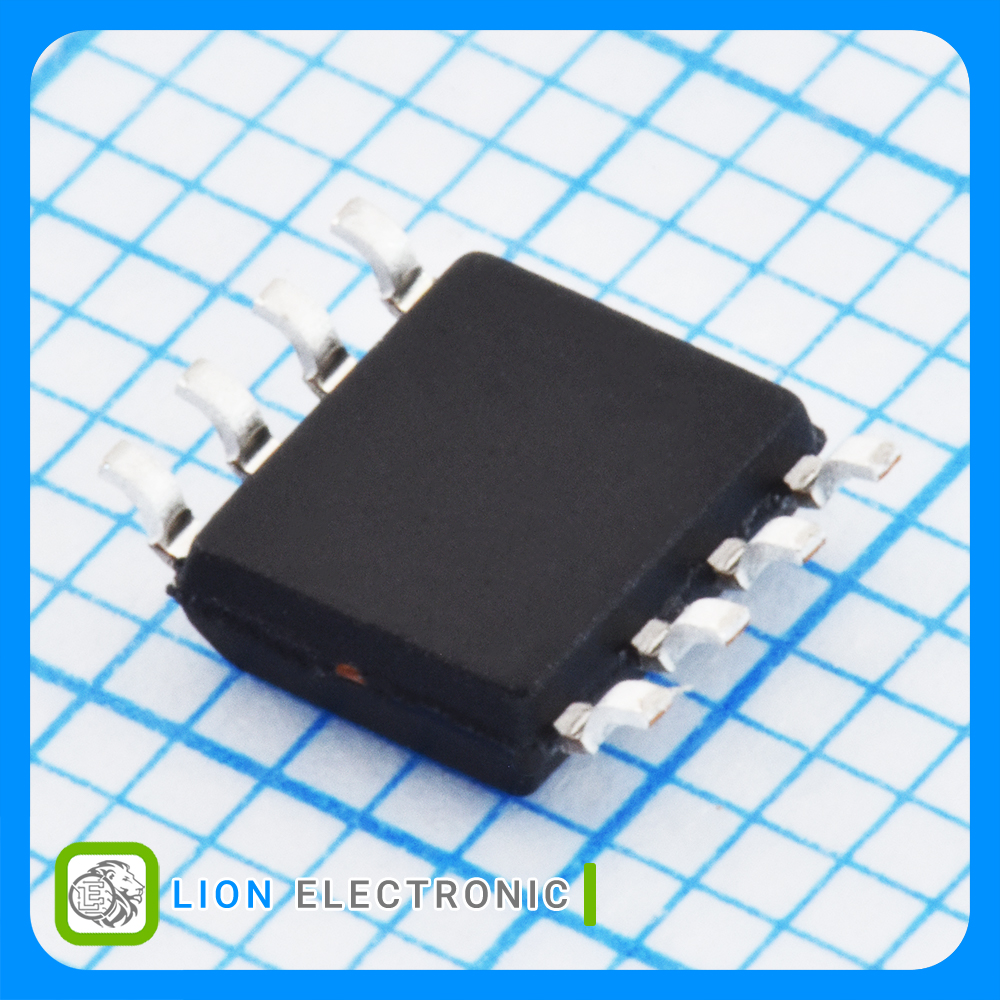

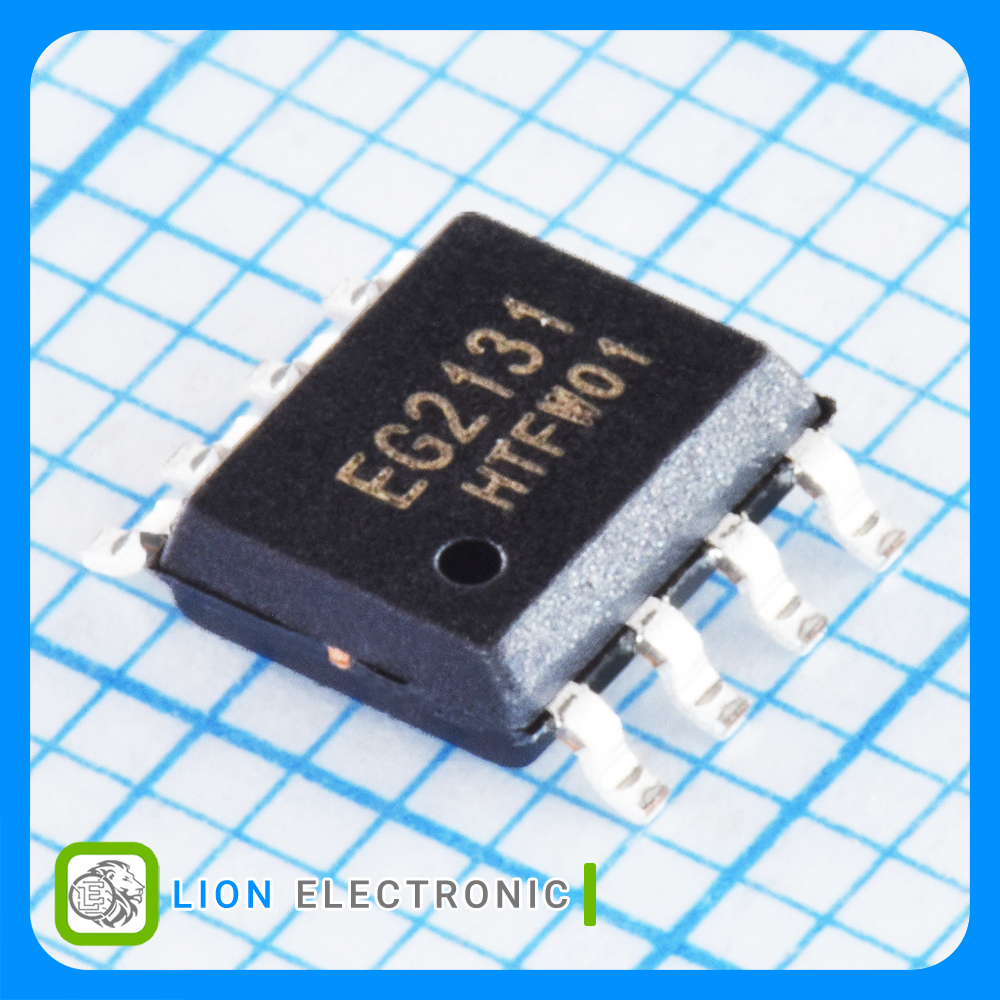

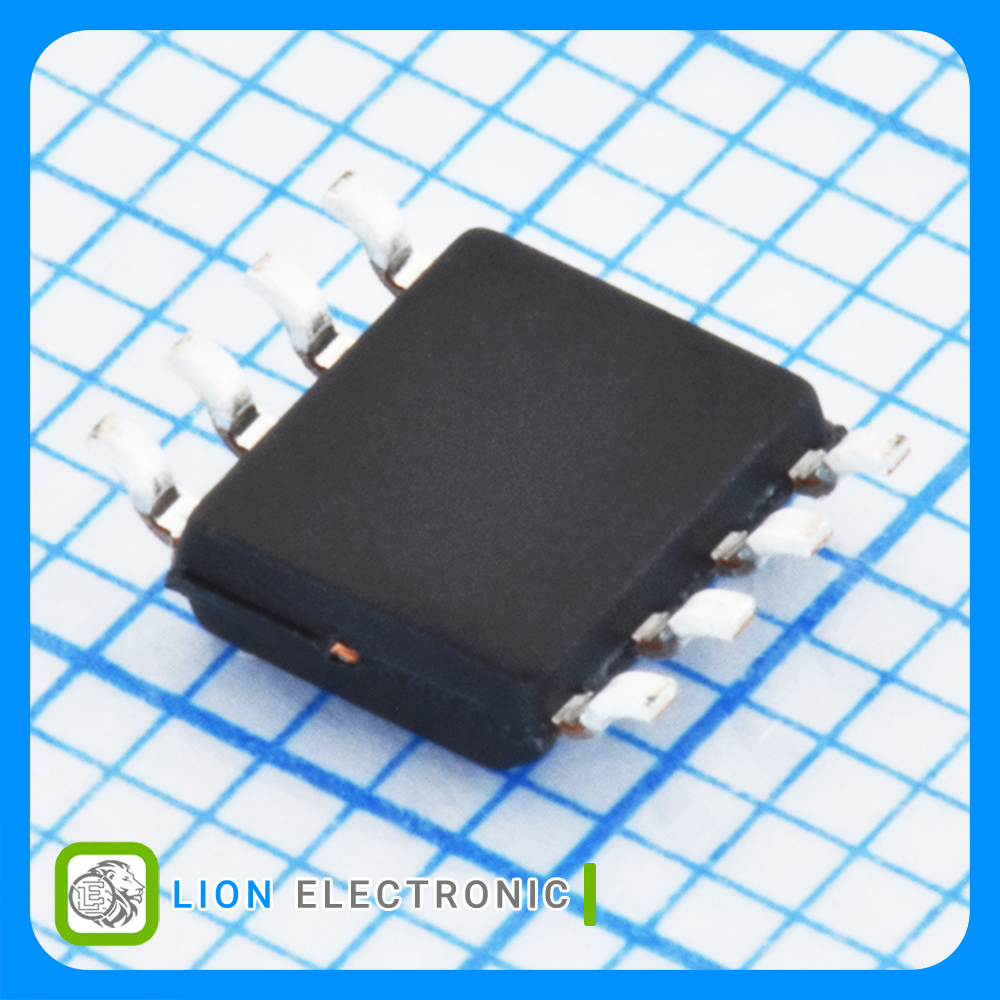

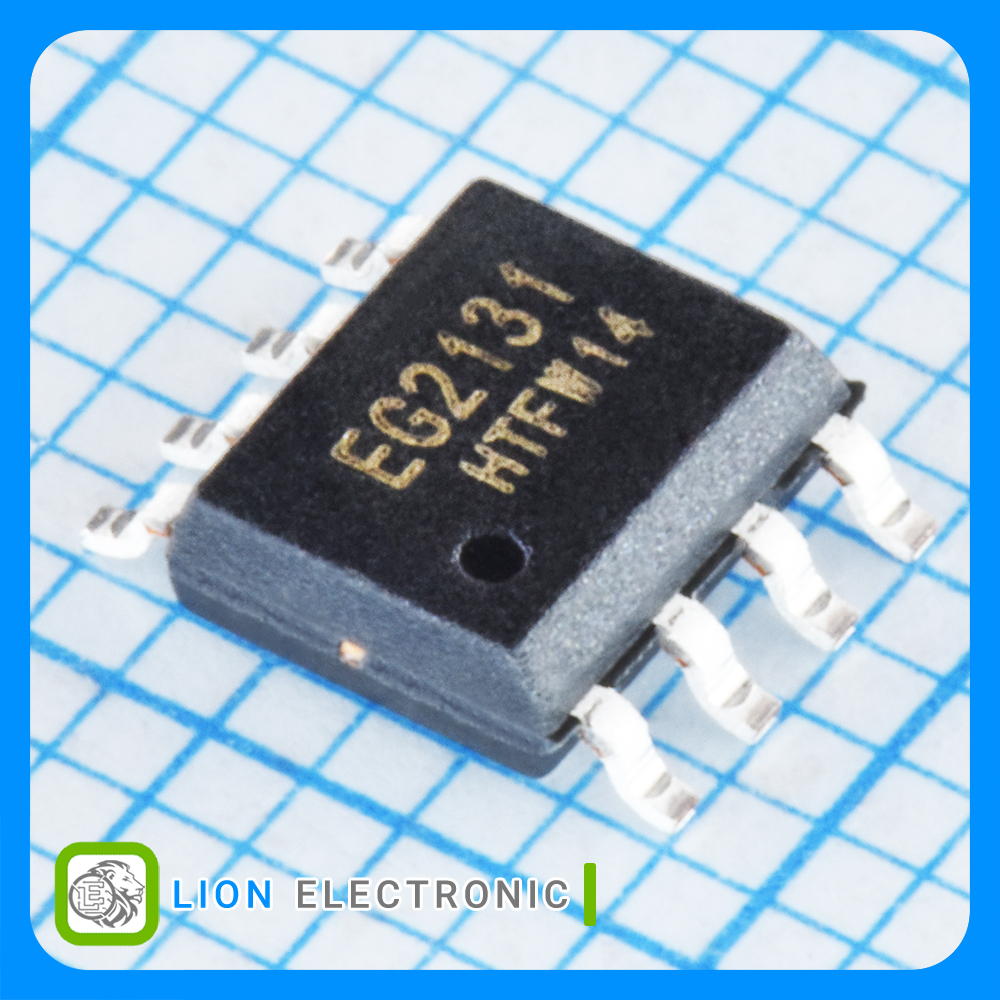

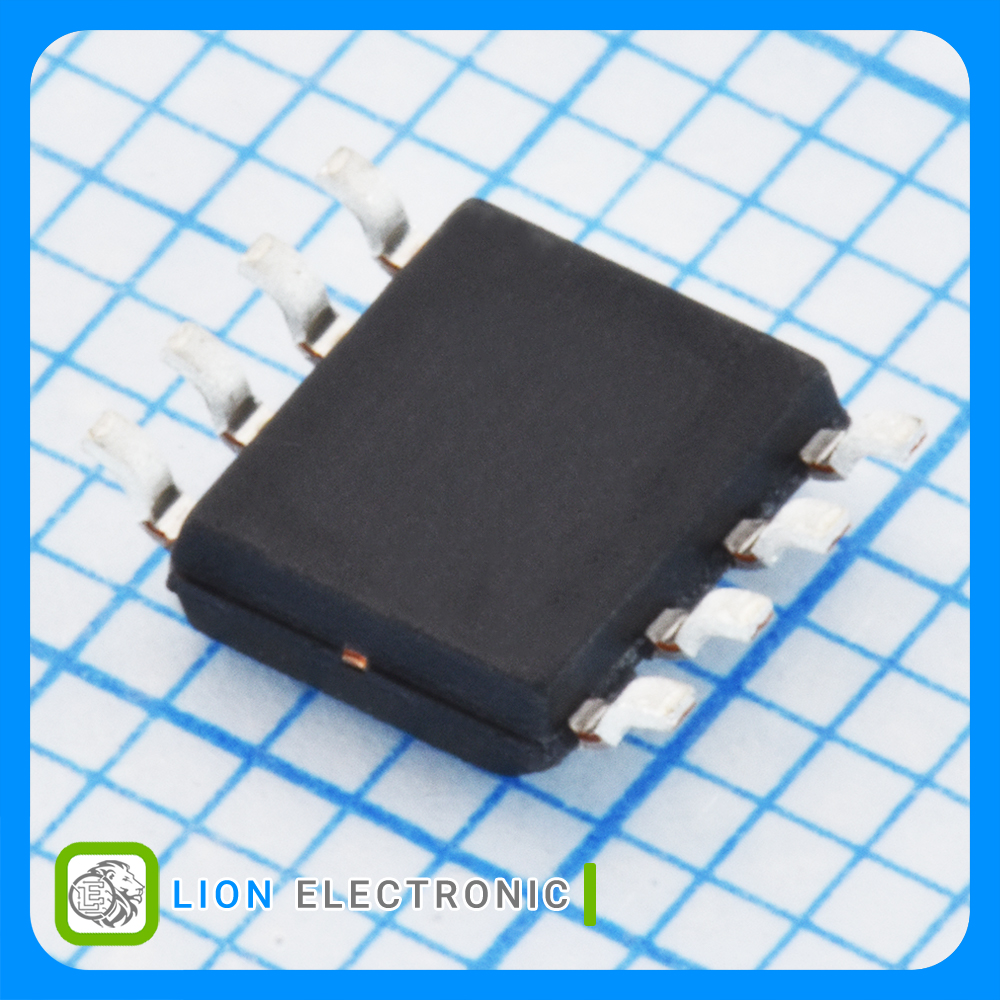

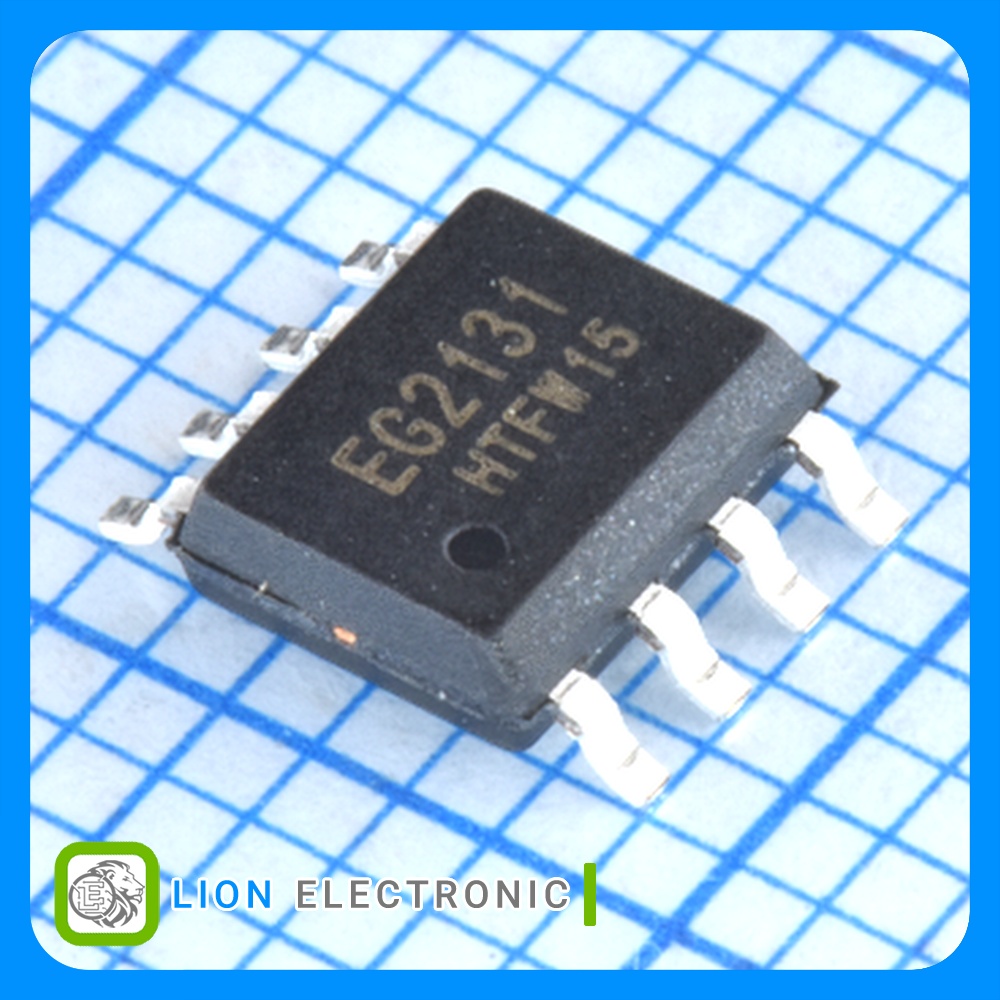

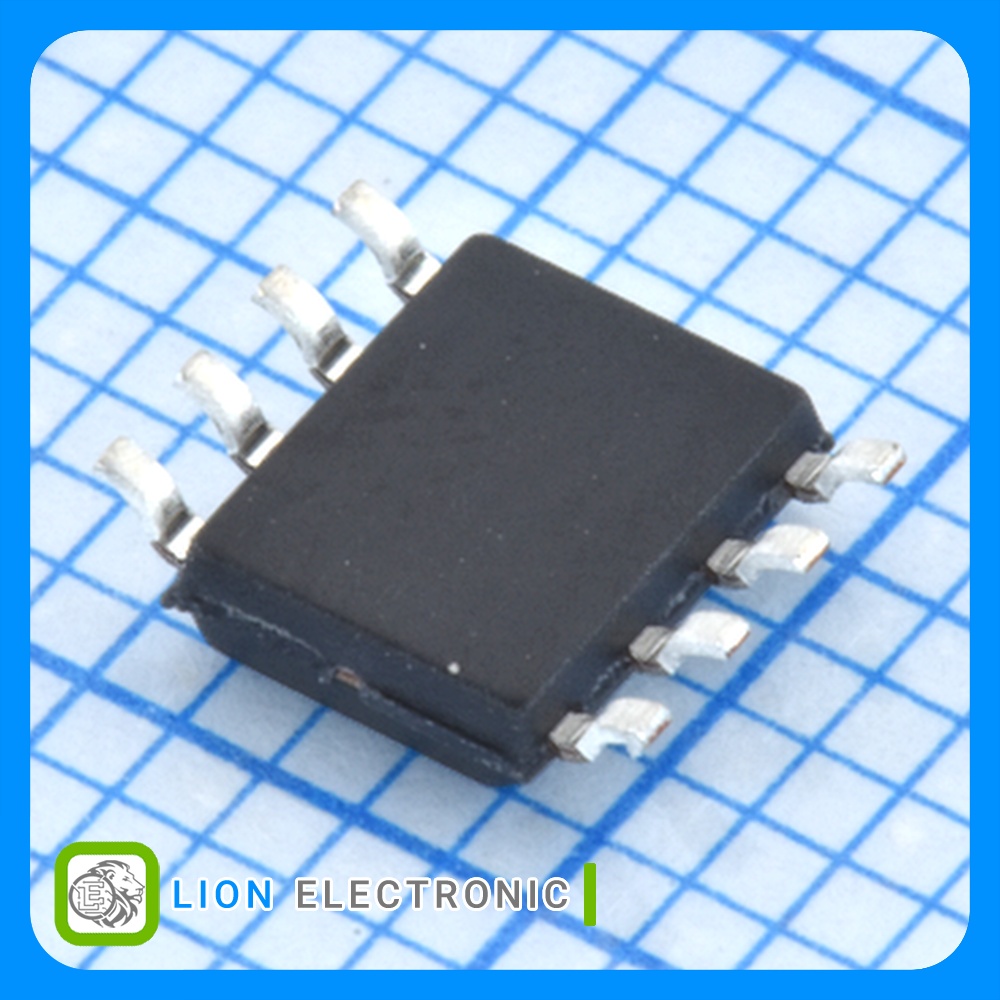

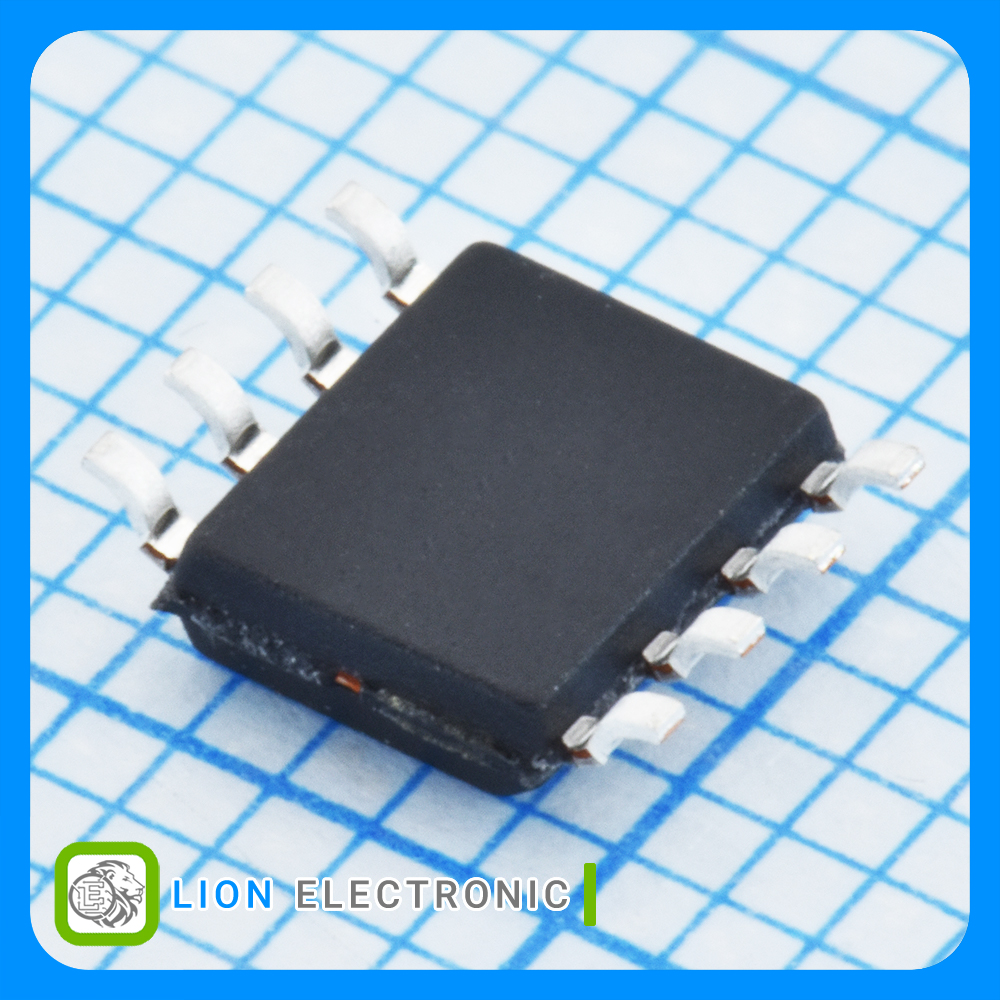

EG2131 Half-Bridge Gate Driver, High-Performance High-Power MOS Tube and IGBT Gate Drive Chip, 1.5A, 11V to 20V, with SOP-8 Package
معرفی
گیت درایور EG2131 نیمپل، مناسب برای درایو MOSFET و IGBT، جریان خروجی 1.5 آمپر، تغذیه 11 تا 20 ولت، پکیج SOP-8
EG2131 Half-Bridge Gate Driver, High-Performance High-Power MOS Tube and IGBT Gate Drive Chip, 1.5A, 11V to 20V, with SOP-8 Package
Specifications
- Configuration: Half-Bridge
- Output Current: 1.5A
- Supply Voltage - Min: 11V
- Supply Voltage - Max: 20V
- Operating Supply Current: 30uA
- Propagation Delay - Max: 250ns
- Pd - Power Dissipation: 430mW
- Number of Outputs: 2
- Mounting Style: SMD/SMT
- Package/Case: 0.85 inch x 0.96 inch x 0.215 inch
- Minimum Operating Temperature: -45C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات گیت درایور EG2131
گیت درایور EG2131
Part Number
0.85 inch x 0.96 inch x 0.215 inch
Package-Case
2
Number of Outputs
Reel
Packaging
-45C
Minimum Operating Temperature
SMD/SMT
Mounting Style
N/A
Floating Voltage
N/A
Dead Time
+125C
Maximum Operating Temperature
Half-Bridge
Configuration
30uA
Operating Supply Current
430mW
Pd - Power Dissipation
250ns
Propagation Delay - Max
20V
Supply Voltage - Max
1.5A
Output Current
11V
Supply Voltage - Min
