EG27324
EG27324
Part Number
6144
Lion Part
Datasheet
EG Micro Manufacture

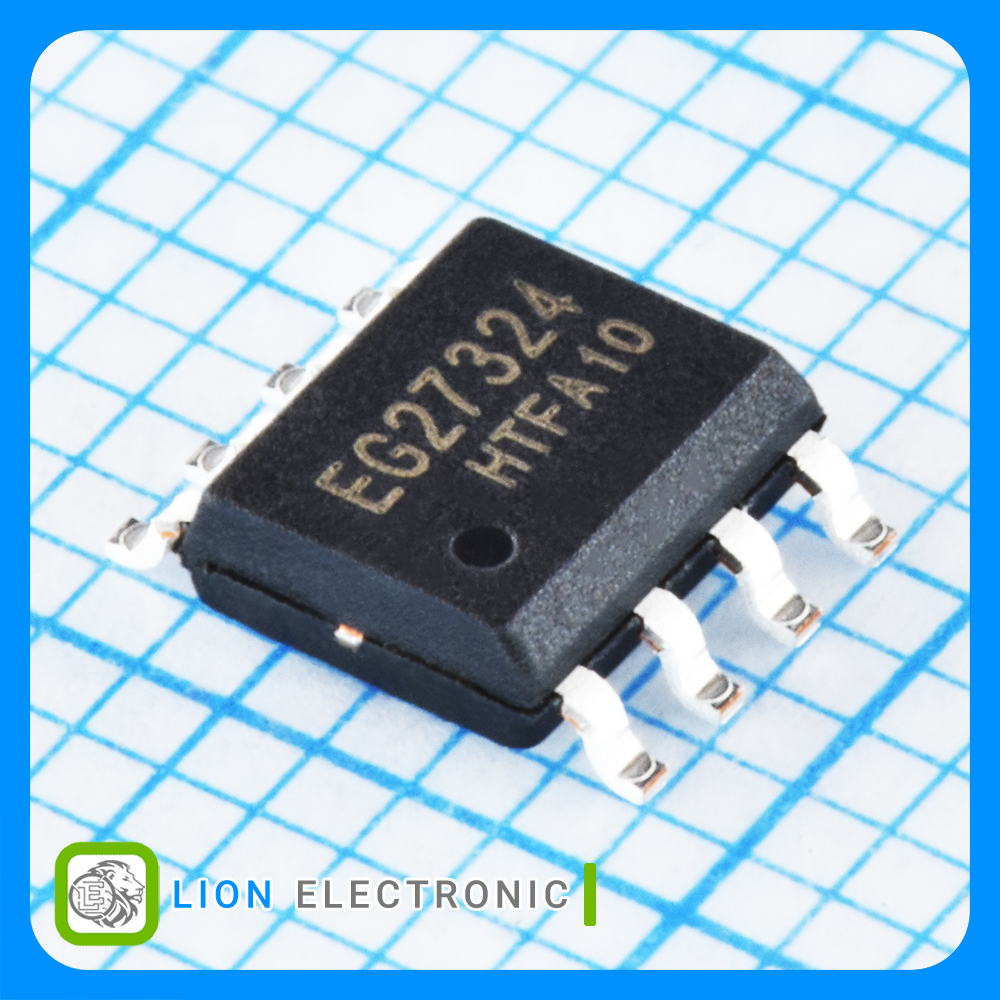

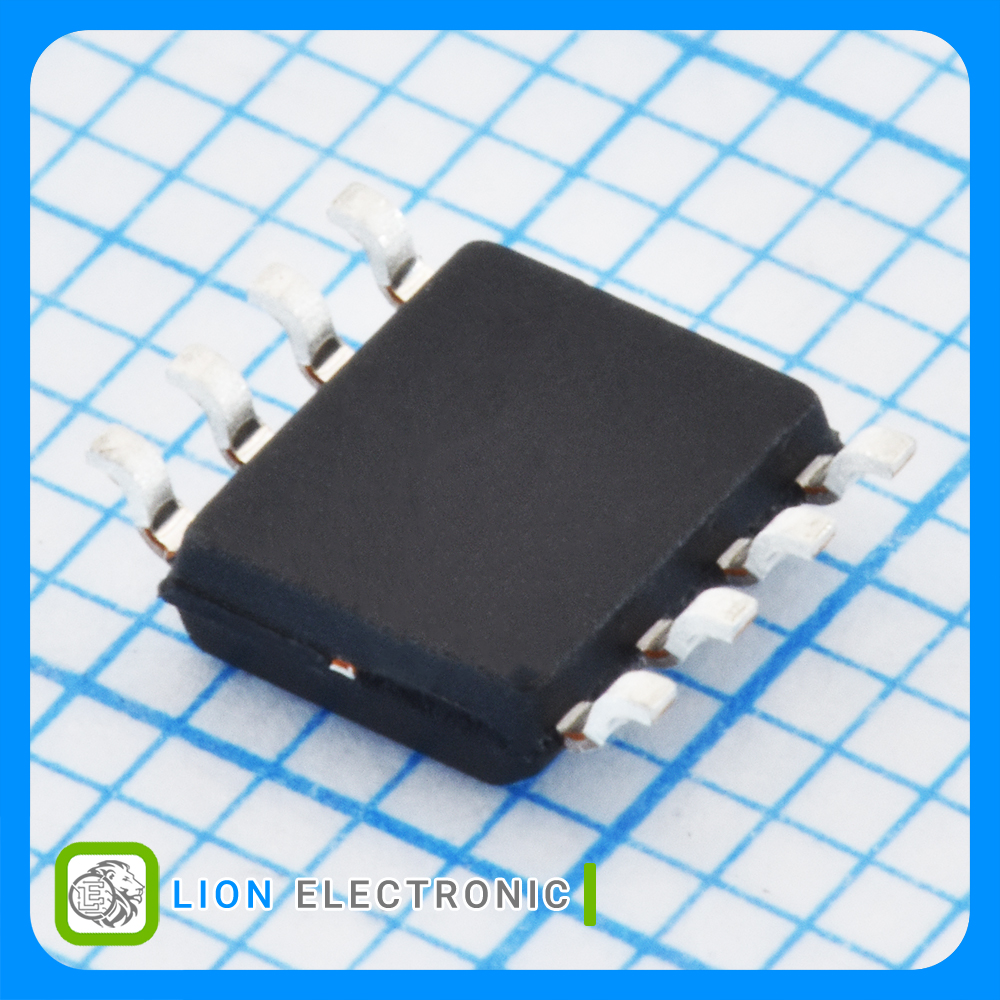

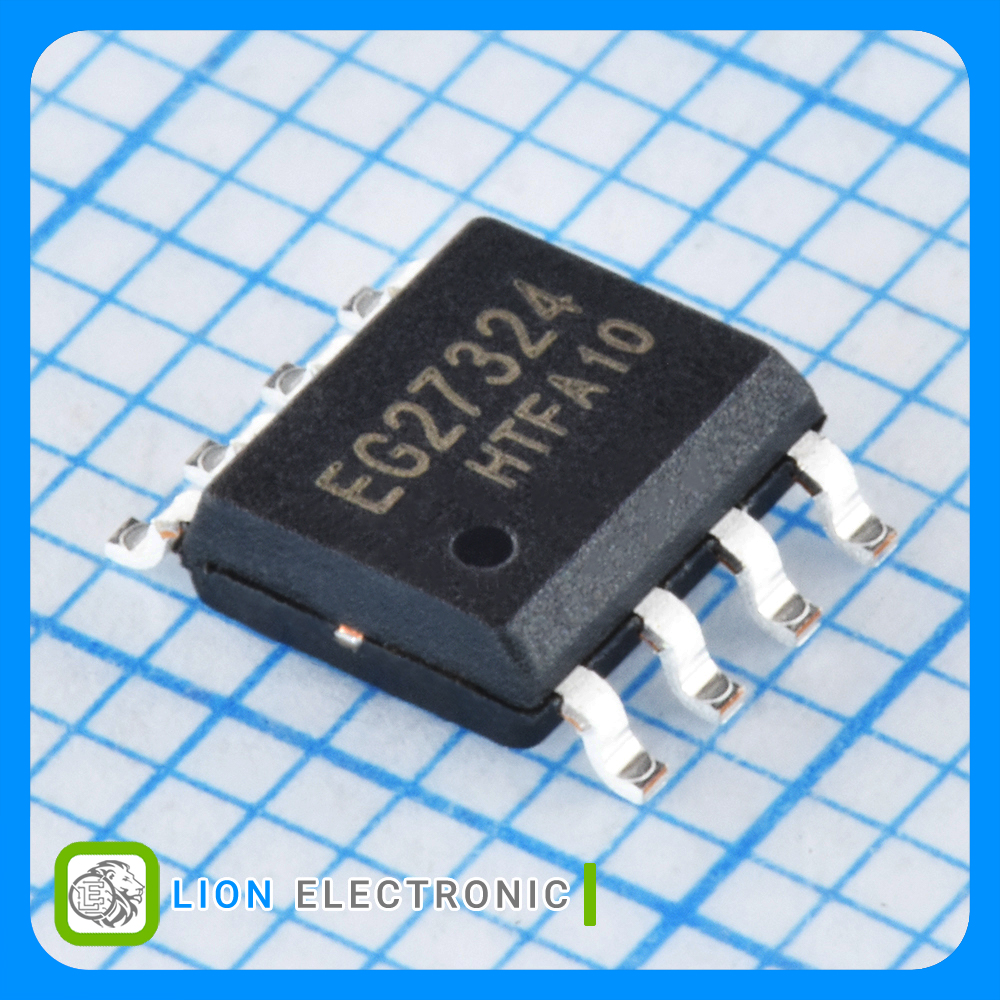

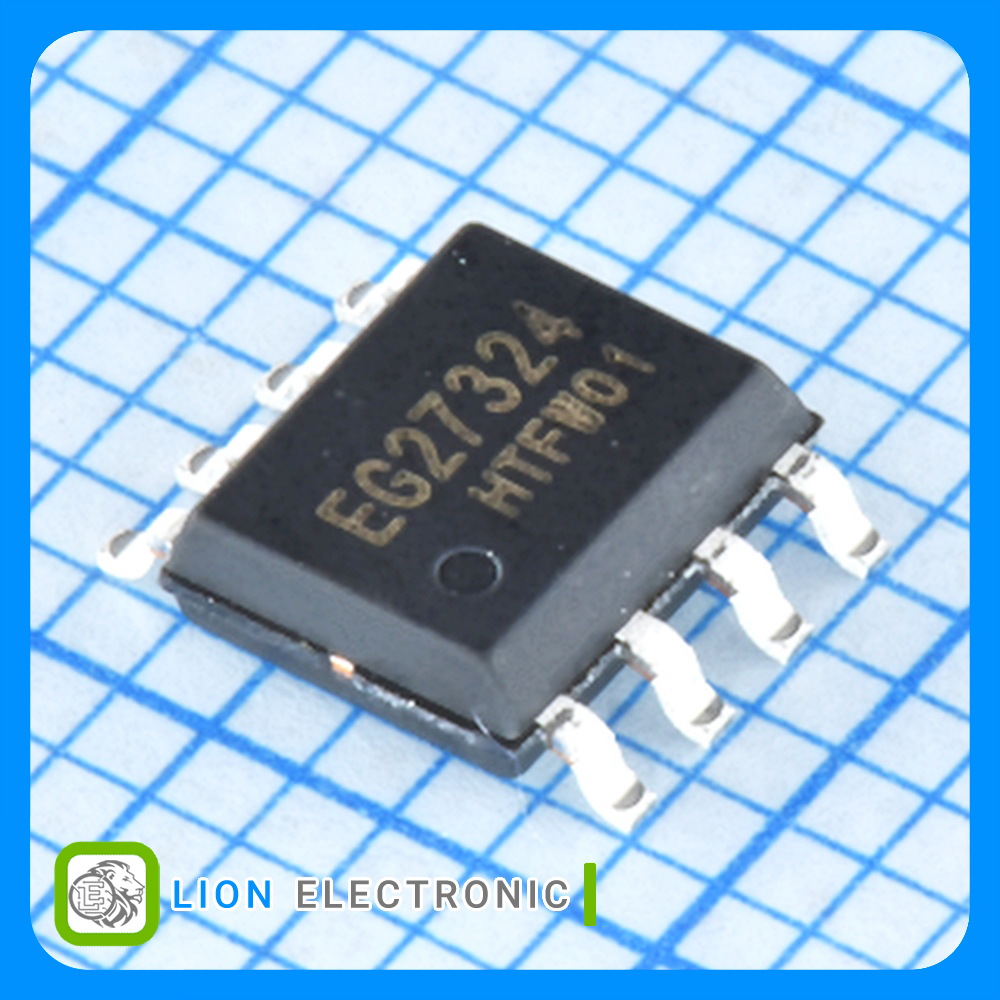

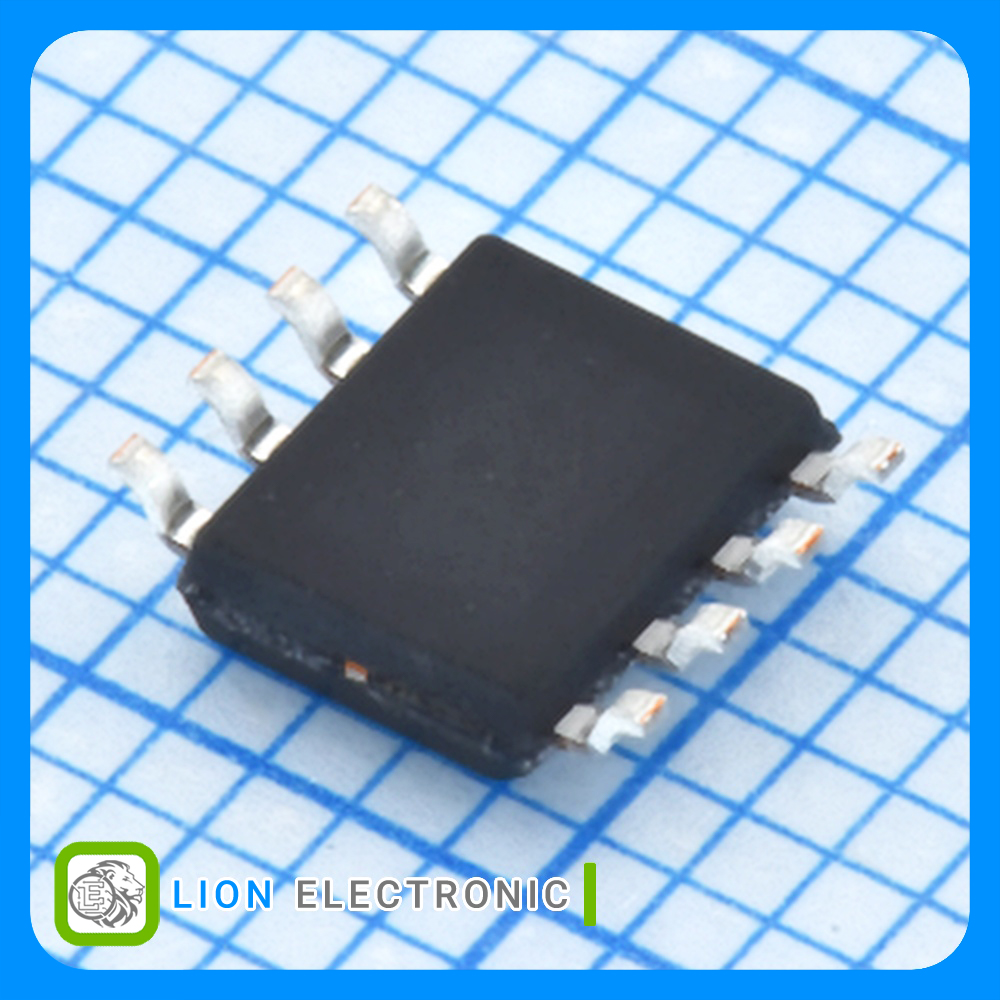

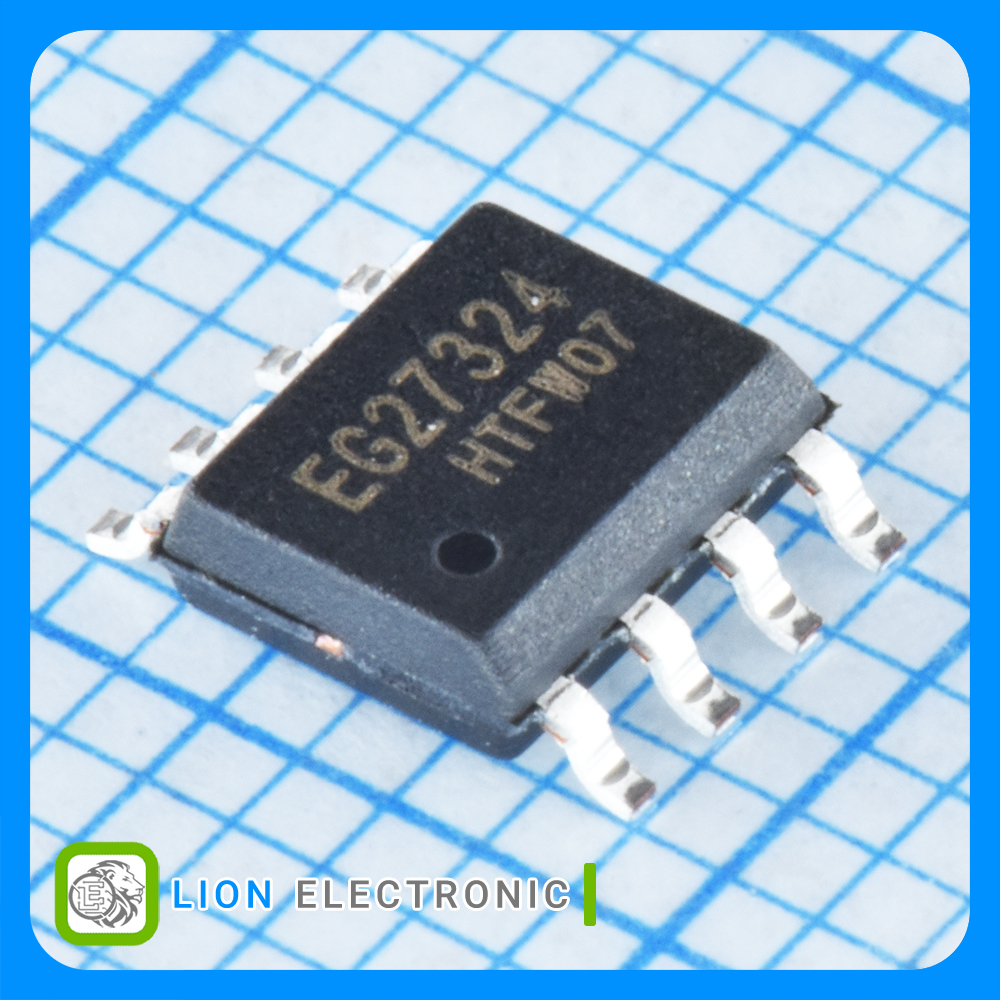

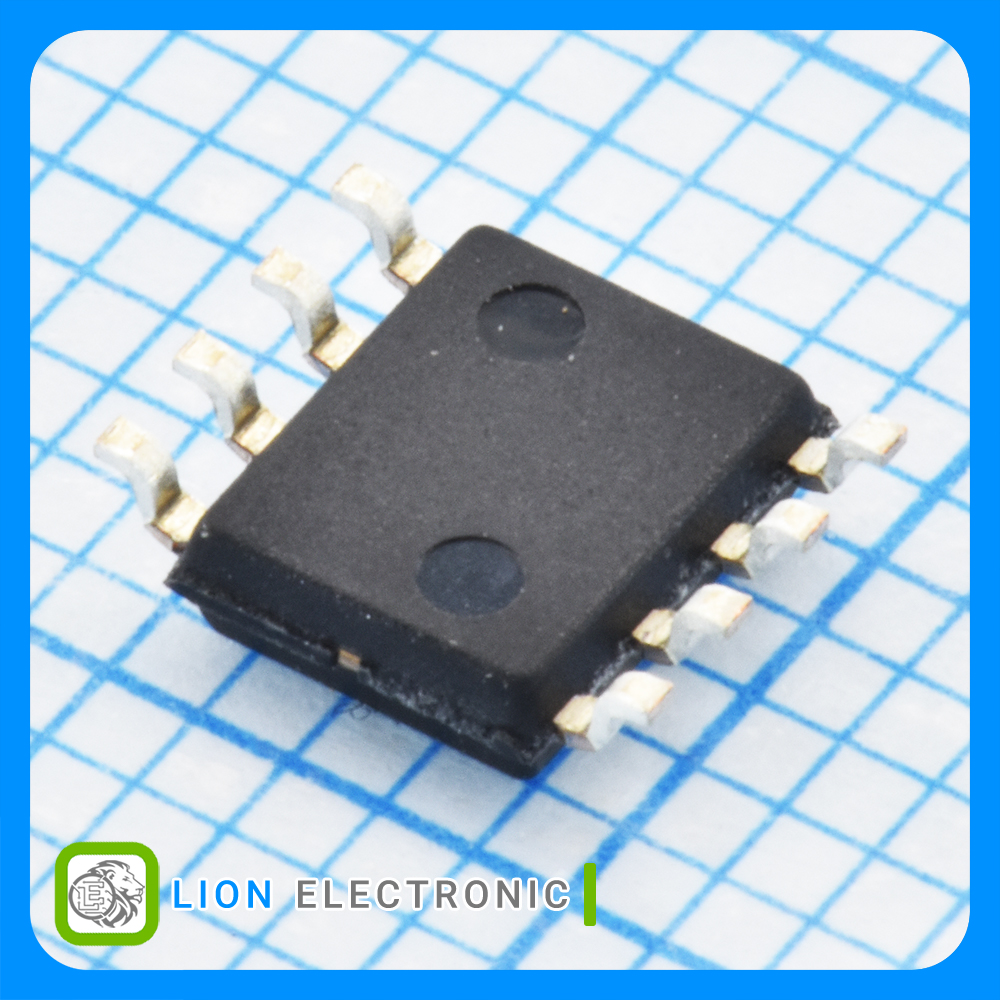

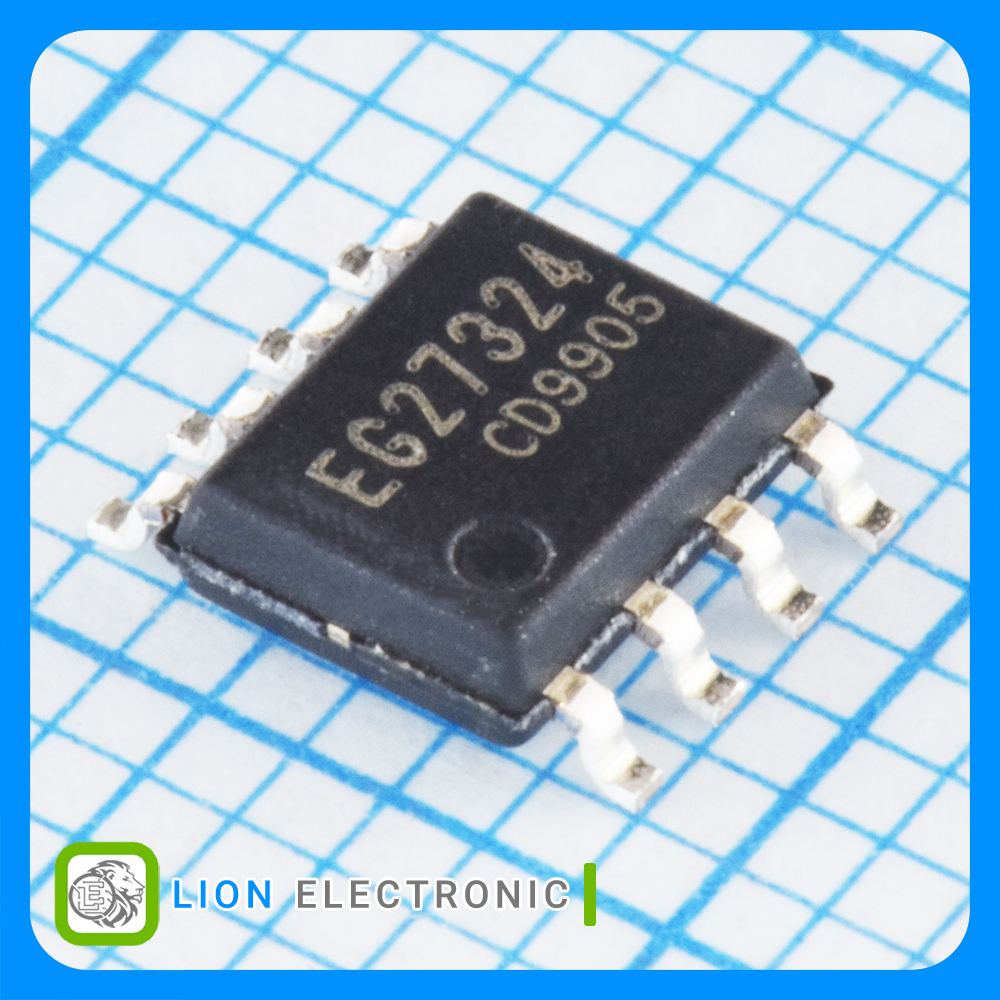

گیت درایور دوتایی EG27324 با صرفه اقتصادی، درایو مستقل دوکاناله اختصاصی، 20 ولت جریان خروجی 2.5 آمپر با پکیج SOP-8
Dual Gate Driver EG27324, Cost-Effective Dual-Channel Independent Drive Dedicated Chip, 20V, 2.5A with SOP-8 Package
معرفی
گیت درایور دوتایی EG27324 با صرفه اقتصادی، درایو مستقل دوکاناله اختصاصی، 20 ولت جریان خروجی 2.5 آمپر با پکیج SOP-8
Dual Gate Driver EG27324, Cost-Effective Dual-Channel Independent Drive Dedicated Chip, 20V, 2.5A with SOP-8 Package
Specifications
- Configuration: Dual
- Output Current: 2.5A
- Supply Voltage - Min: 2.8V
- Supply Voltage - Max: 20V
- Operating Supply Current: 1uA
- Pd - Power Dissipation: 430mW
- Number of Outputs: 2
- Mounting Style: SMD/SMT
- Package/Case: SOP-8
- Minimum Operating Temperature: -45C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات گیت درایور EG27324
گیت درایور EG27324
Part Number
2
Number of Outputs
Reel
Packaging
-45C
Minimum Operating Temperature
1uA
Operating Supply Current
N/A
Floating Voltage
SMD/SMT
Mounting Style
N/A
Dead Time
+125C
Maximum Operating Temperature
Dual
Configuration
430mW
Pd - Power Dissipation
2.8V
Supply Voltage - Min
N/A
Propagation Delay - Max
20V
Supply Voltage - Max
2.5A
Output Current
SOP-8
Package-Case
