Lelon
معرفی
خازن الکترولیت 470 میکروفاراد 50 ولت تلرانس 20% سایز 12.5 میلیمترx16 میلیمتر

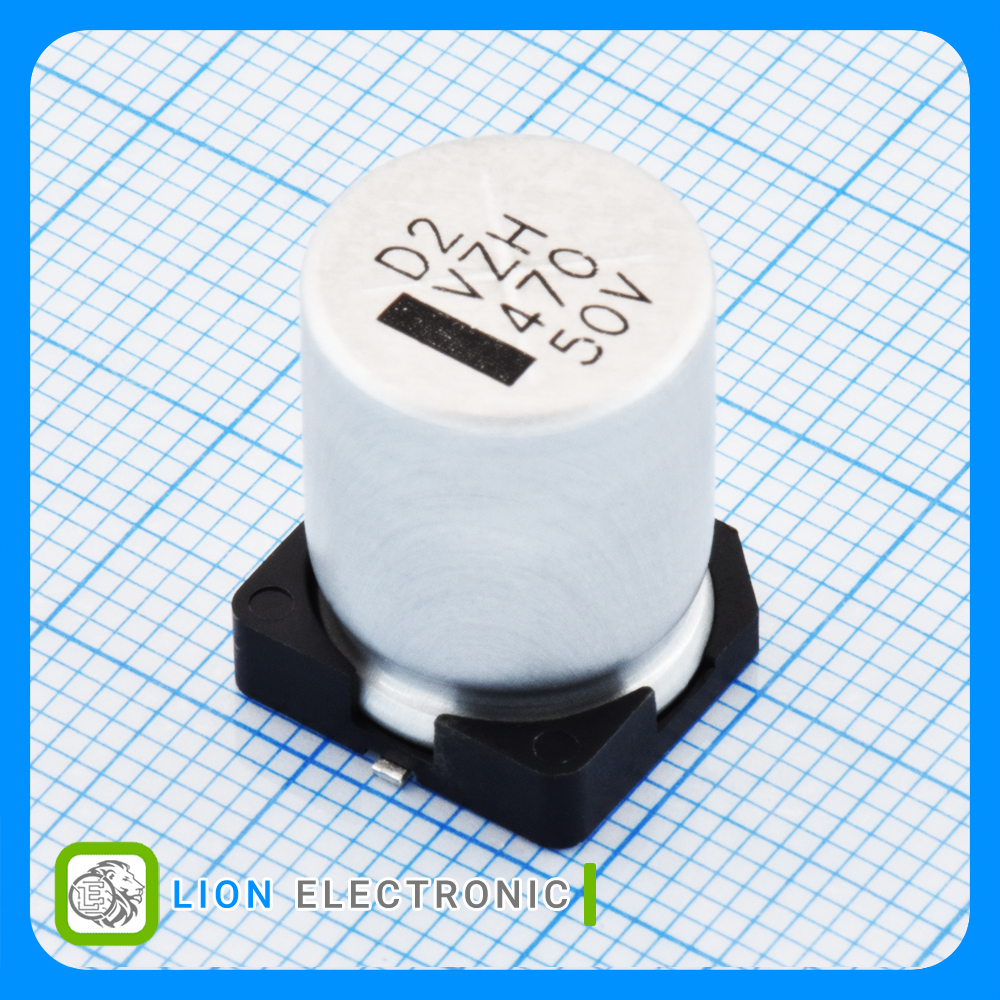

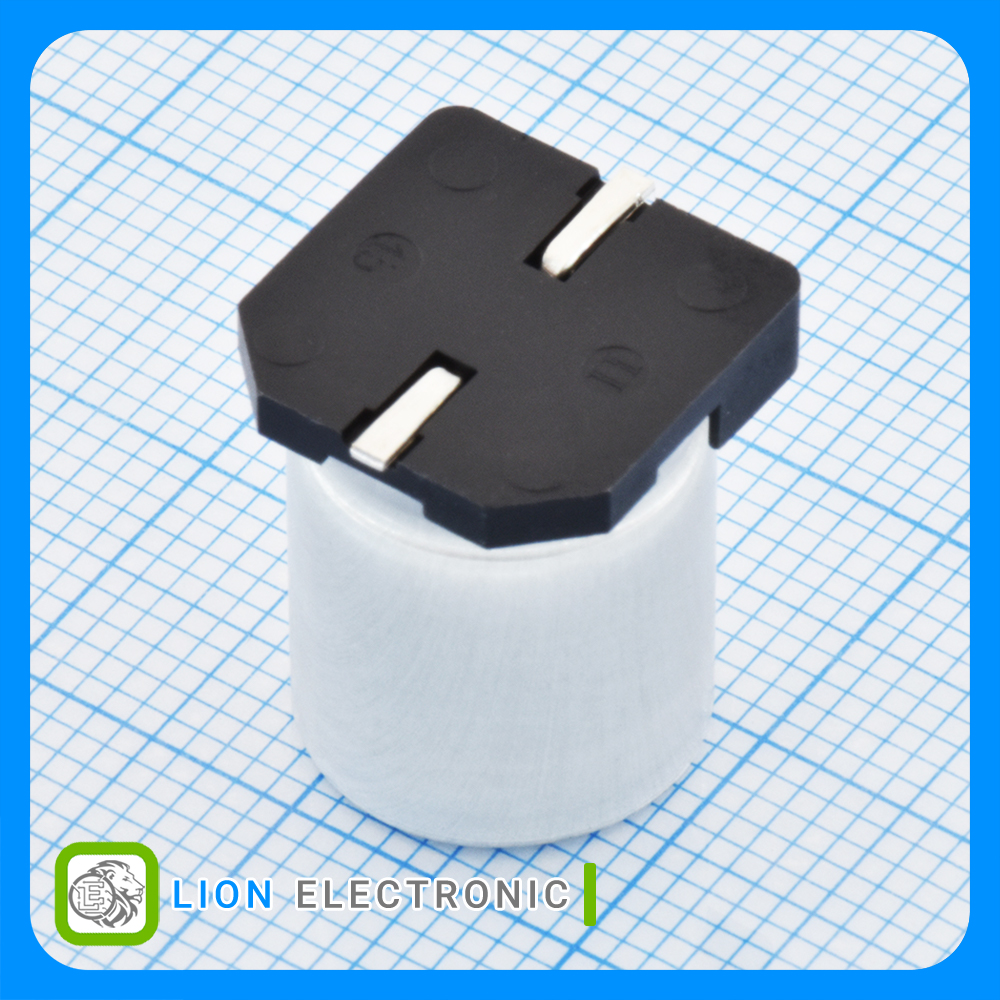

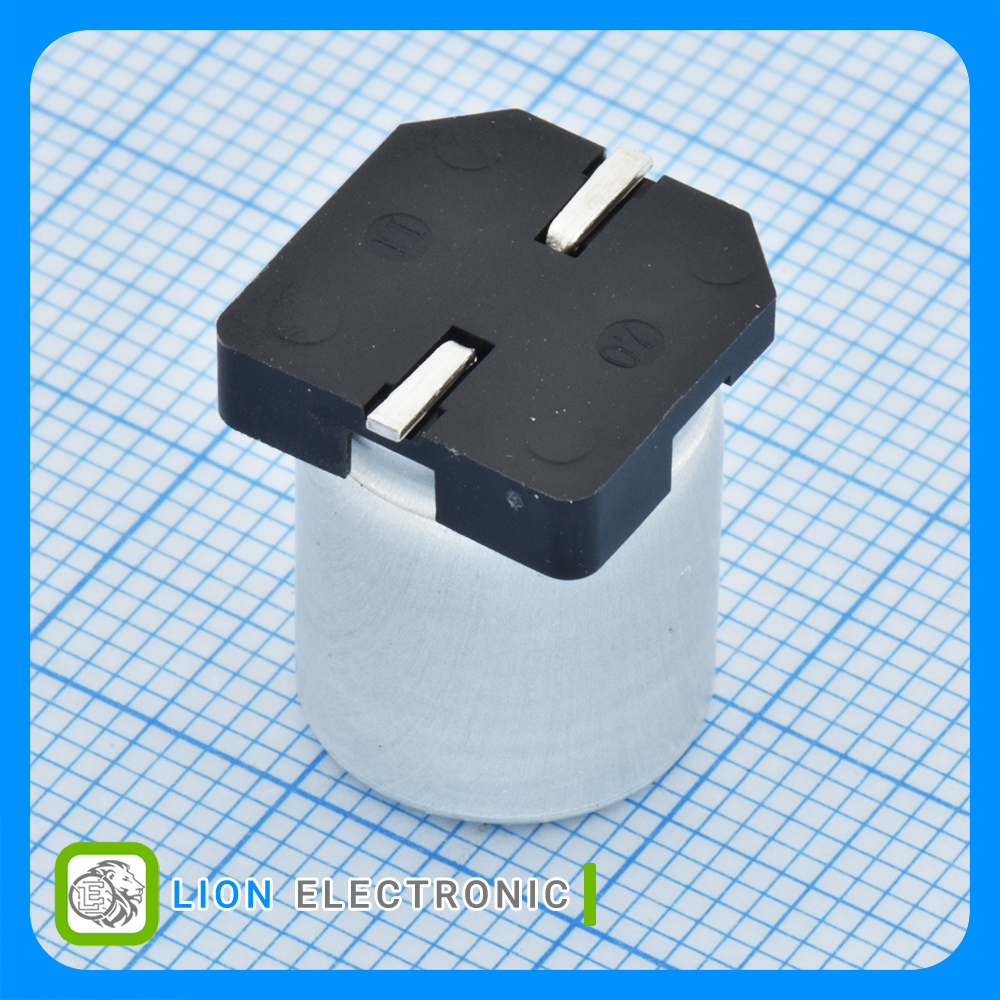

Aluminum Electrolytic Capacitor 470uF, 50V, 20% with 12.5mmx16mm Size
Specifications
- Life: 5000 Hour
- Capacitance: 470uF
- Voltage Rating DC: 50VDC
- Ripple Current: 1A
- ESR: 73mΩ
- Tolerance: 20%
- Diameter: 12.5mm
- Height: 16mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات VZH471M1HTR-1316

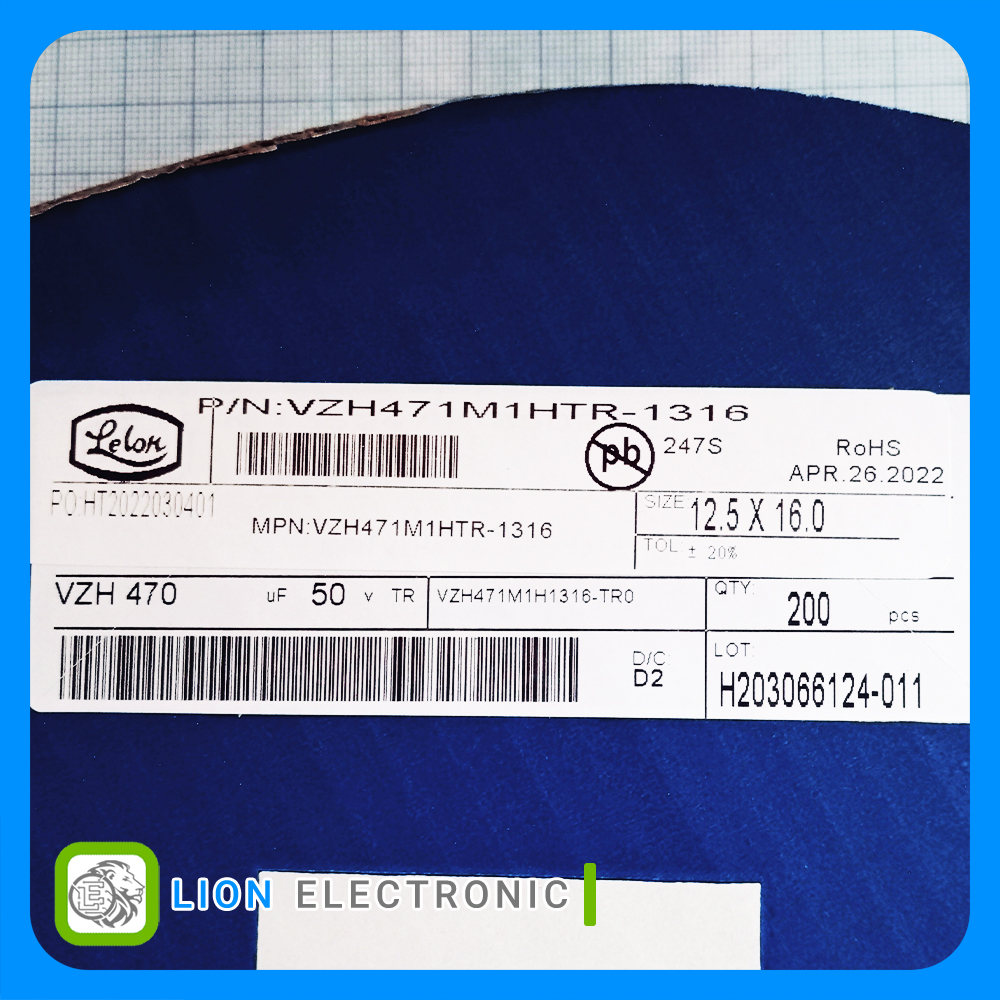

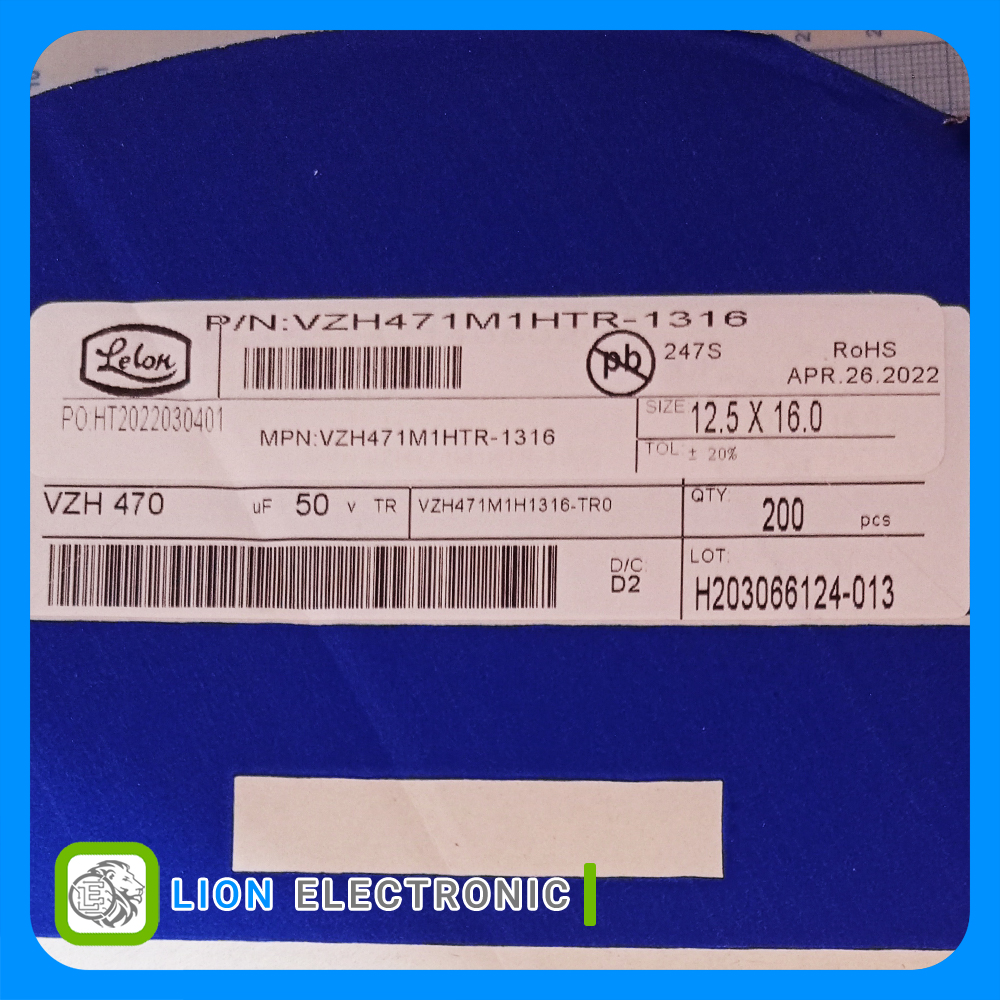

VZH471M1HTR-1316
Part Number
-55C
Minimum Operating Temperature
Reel
Packaging
5000 Hour
Life
20%
Tolerance
+105C
Maximum Operating Temperature
50VDC
Voltage Rating DC
73mΩ
ESR
12.5mm
Diameter
1A
Ripple Current
16mm
Height
470uF
Capacitance
