Lelon
معرفی
خازن الکترولیت 1000 میکروفاراد 25 ولت تلرانس 20% سایز 12.5 میلیمترx13.5 میلیمتر

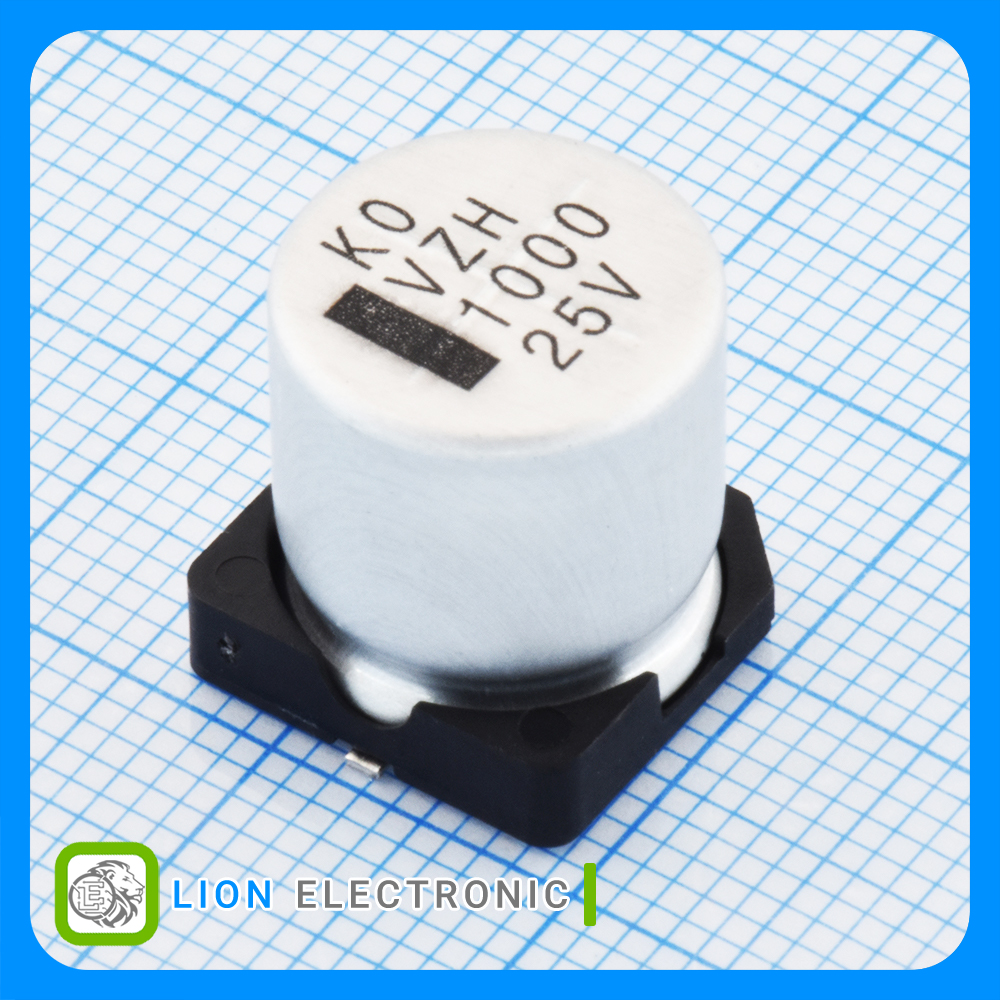

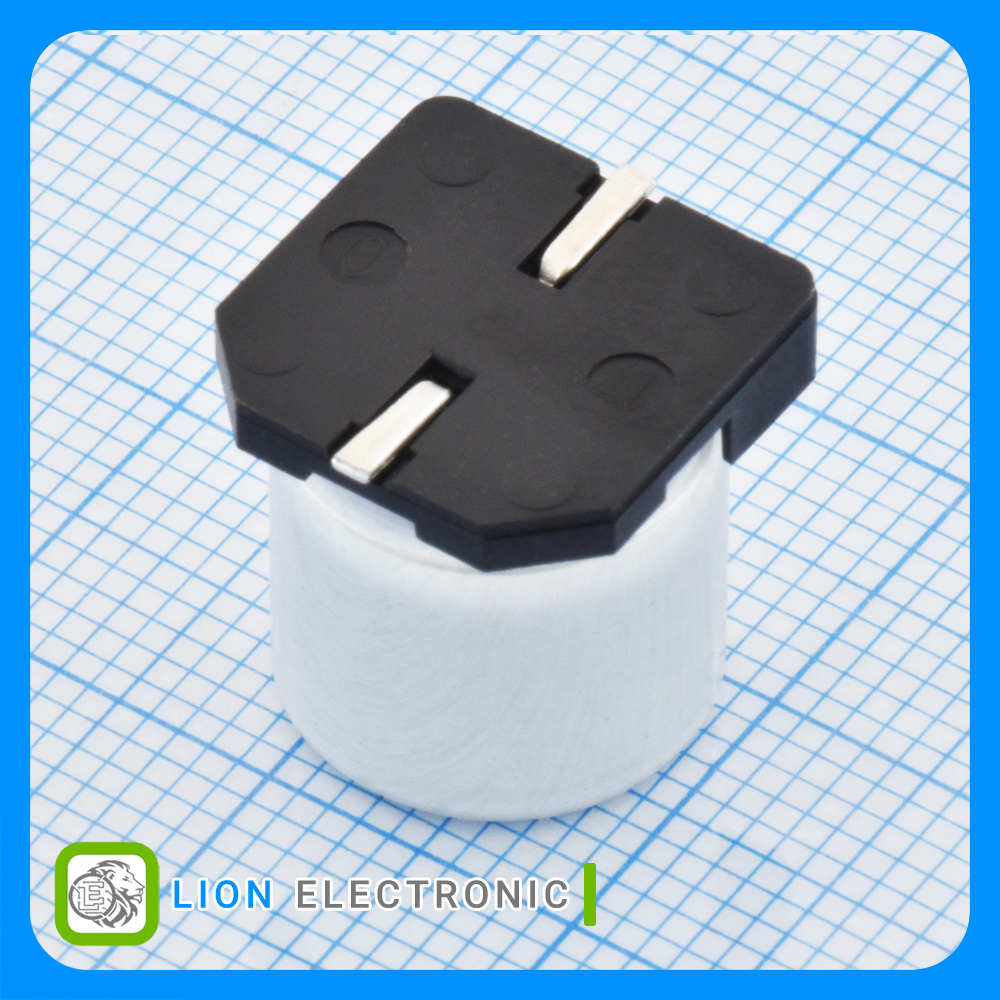

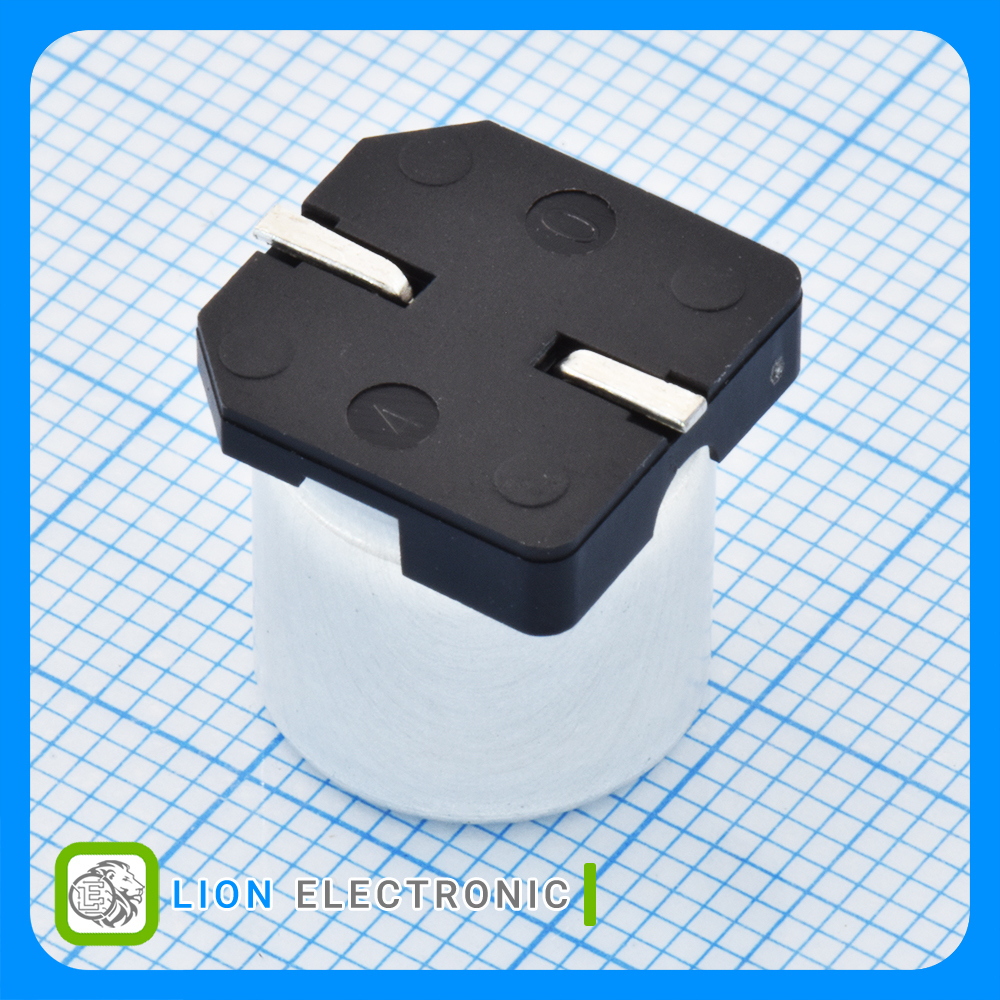

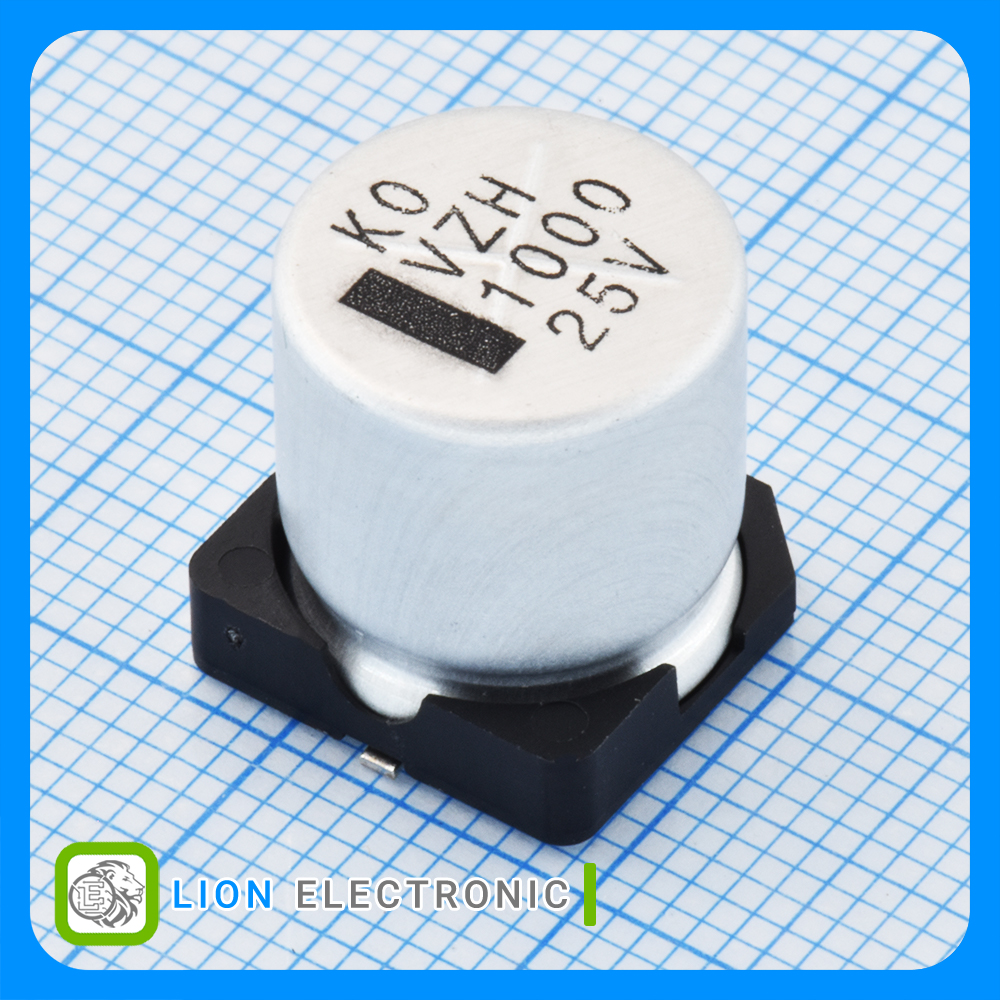

Aluminum Electrolytic Capacitor 1000uF, 25V, 20% with 12.5mmx13.5mm Size
Specifications
- Life: 5000 Hour
- Capacitance: 1000uF
- Voltage Rating DC: 25VDC
- Ripple Current: 950mA
- ESR: 60mΩ
- Tolerance: 20%
- Diameter: 12.5mm
- Height: 13.5mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات VZH102M1ETR-1313

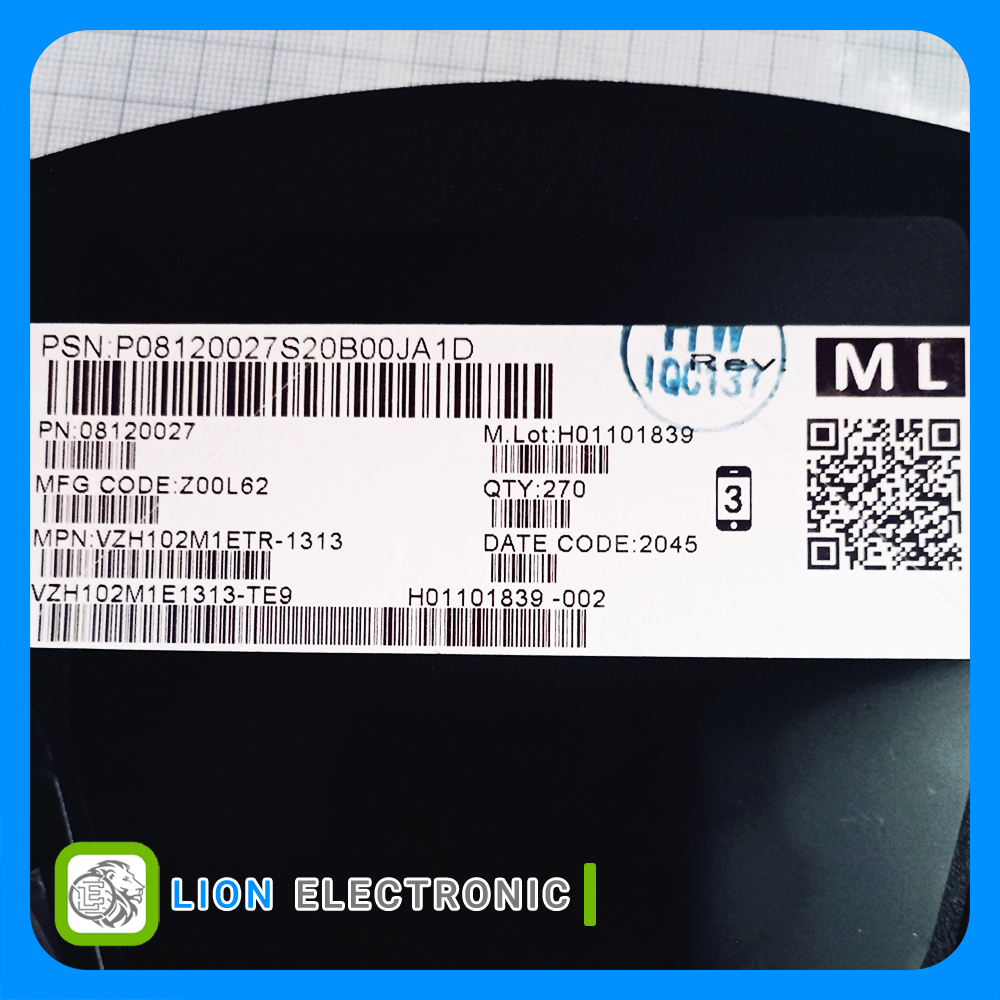

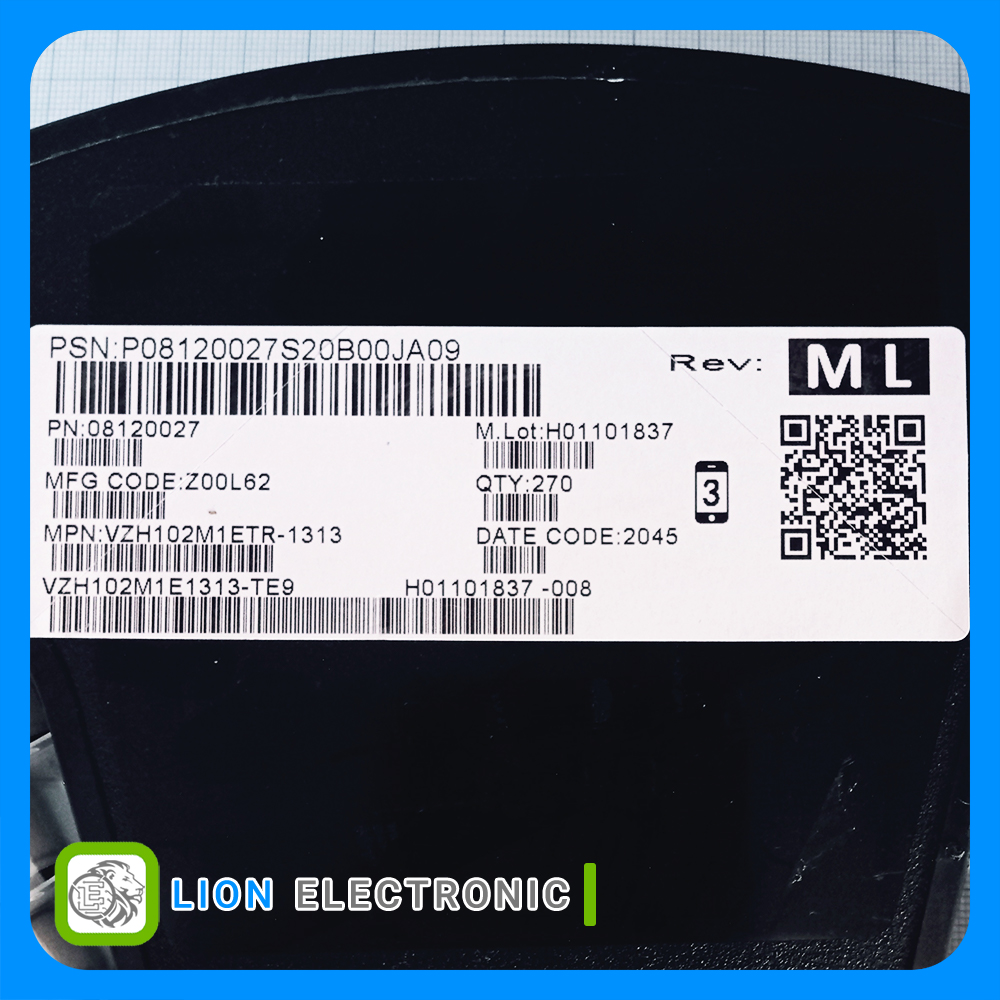

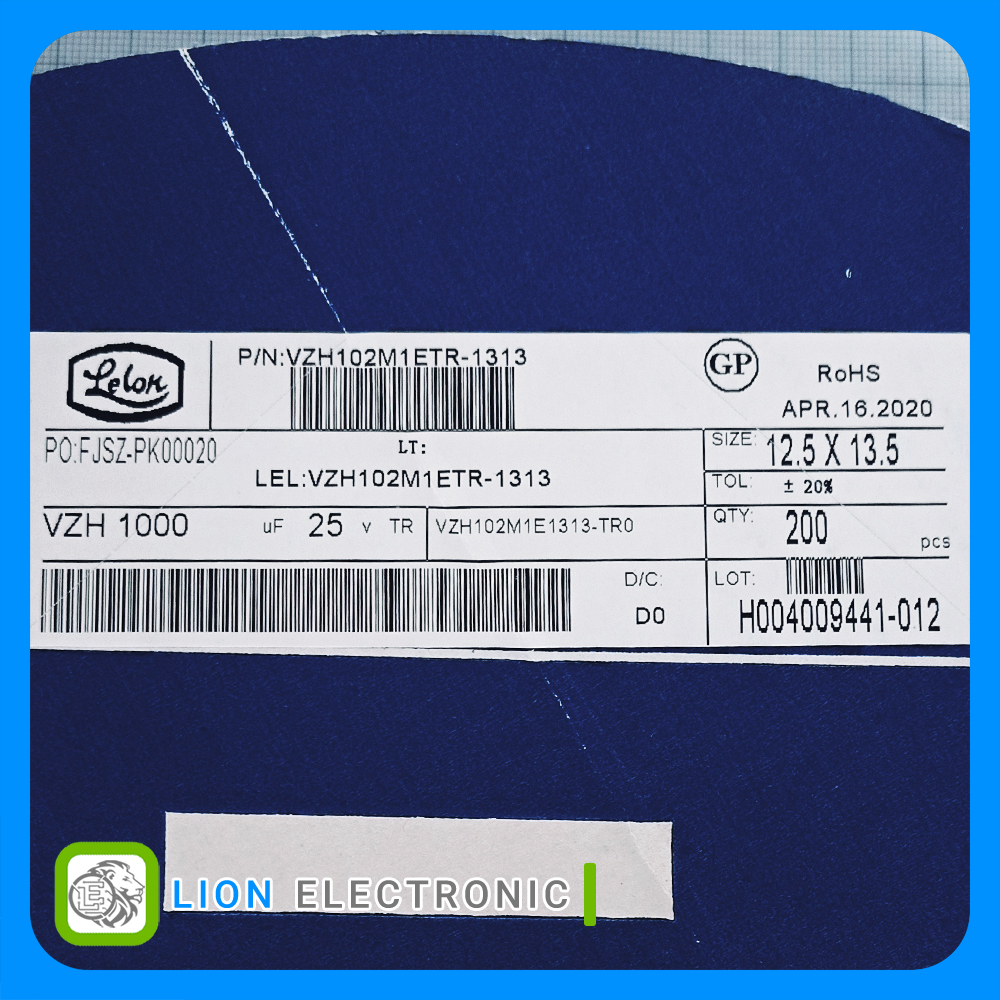

VZH102M1ETR-1313
Part Number
-55C
Minimum Operating Temperature
Reel
Packaging
5000 Hour
Life
25VDC
Voltage Rating DC
20%
Tolerance
+105C
Maximum Operating Temperature
60mΩ
ESR
12.5mm
Diameter
950mA
Ripple Current
13.5mm
Height
1000uF
Capacitance
